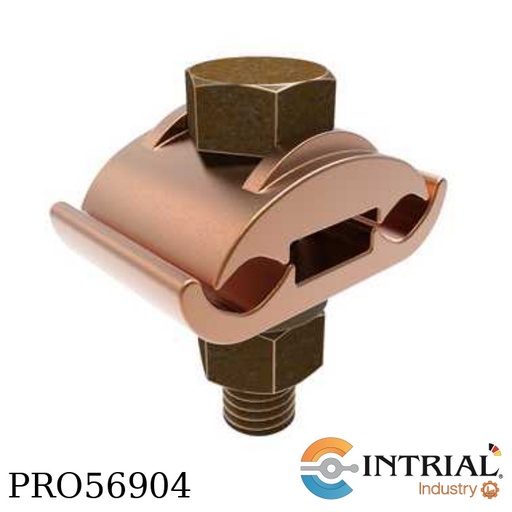

CONECTOR BIFILAR TIERRA DOBLE VIA<br />
MARCA: BURNDY  <br />
MODELO: GC2929<br />
CONDUCTOR: 2/0 SOL. - 250<br />
H TIPO GC/GCL: 2 - 1/4"<br />
W TIPO GC/GCL: 2- 1/4"

FILTER ELEMENT<br />
Brand: HYDAC<br />
Model: 0030D020BN4HC<br />
[0030]: Size, 0030<br />
[D]: Type, D<br />
[020]: Filtration rating, 20 micron<br />
[BN4HC]: Element media, Betamicron-H element (High collapse)

FILTER/REGULATOR<br />
Brand: NORGREN<br />
Model: B72G-2AS-980<br />
Maximum pressure, 17 bar (250 psig)<br />
Main Port Size, NPT 1/4<br />
Flow, 38 dm 3/s (Kv 2.0)<br />
<br />


COUNTER PINION<br />
Brand: STEIMEL<br />
Model: EGR053032045EC55<br />
16MnCrS5, flankengeschliffen, gebürstet<br />
Length, 101.00 mm<br />
Width, 45.00 mm<br />
Height, 45.00 mm

DRIVE PINION<br />
Brand: STEIMEL<br />
Model: EAR053032045EC55<br />
16MnCrS5, flankengeschliffen, gebürstet<br />
Length, 178.00 mm<br />
Width, 45.00 mm<br />
Height, 45.00 mm

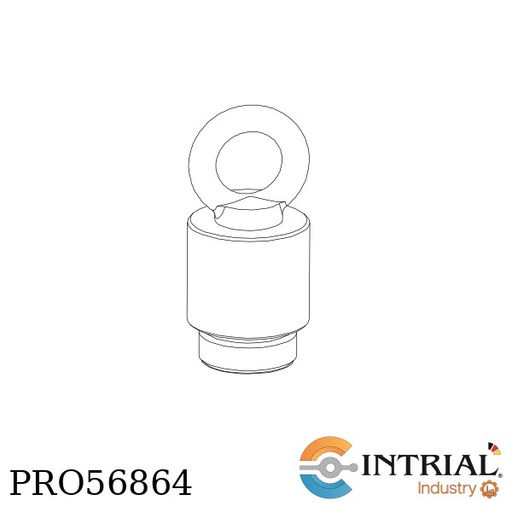

ADAPTADOR DE ELEVACION <br />
MARCA: SVENDBORG<br />
MODELO: 490-3456-001 <br />
HERRAMIENTA PARA ELEVAR EL TORNILLO DE AJUSTE FUERRA DE LA CARCASA (1 1/2" BSP)

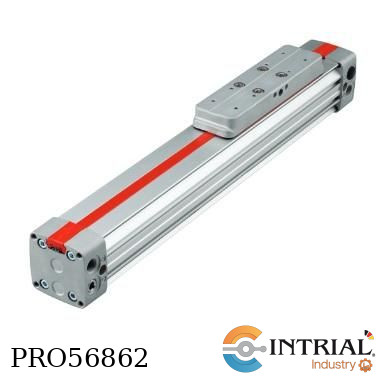

LINTRA PLUS RODLESS CYLINDER<br />
Marca: NORGREN<br />
Modelo: M/146132/M/1350<br />
[1]: Guiding system, External<br />
[32]: Cylinder Ø, 32 mm<br />
[1350]: Strokes, 1350 mm

BOMBA DOSIFICADORA ANALOGICA<br />
Marca: SEKO<br />
Modelo: AKL803NHH0000<br />
110 LPH<br />
5 - 0.1 BAR<br />
220 V<br />
50/60 HZ<br />
CABEZAL DE PVDF<br />
KIT DE INSTALACION PVDF/SELLOS FPM

KIT DE INSTALACION<br />
MARCA: SEKO<br />
MODELO: EM99106507<br />
REPUESTO PARA BOMBA DOSIFICADORA SEKO MODELO TEKNA EVO 803<br />
CUERPO PVDF-T<br />
SELLOS EPDM<br />
BOLAS CERAMICA

VALVE ISLANDS<br />
Brand: NORGREN<br />
Model: V22B517A-B313R<br />
Manual overide, pbmo<br />
Solenoid pilot supply, internal<br />
Mid position, sol/spring<br />
Operating pressure, 1,8 to 8 bar

VALVE ISLANDS<br />
Brand: NORGREN<br />
Model: V22BA11A-B313R<br />
Manual overide, pbmo<br />
Function 2x3/2, normally closed<br />
Solenoid pilot supply, internal<br />
Actuation, sol/spring<br />
Operating pressure, 2,2 to 8 bar

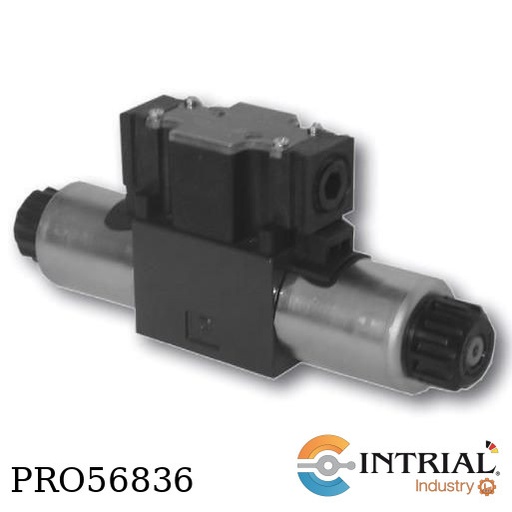

4/2 AND 4/3 DIRECTIONAL CONTROL VALVE<br />
Brand: ARGO HYTOS<br />
Model: RPEW4-103Y11/12060EW1R51<br />
[3]: Number of valve positions, two positions<br />
[Y11]: Spool symbols <br />
[12060]: Rated supply voltage of solenoid,<br />
120 V AC / 0.26 A, 60 Hz<br />
[EW1R]: Connector for wire box and wire box power,<br />
DC solenoid for AC power supply (rectifier in wirebox)<br />
[51]: Wire box version, 50 with LED (B side plugged, A side with feed-through plug)

4/2 AND 4/3 DIRECTIONAL CONTROL VALVE<br />
Brand: ARGO HYTOS<br />
Model: RPEW4-062R11/12060EW1R50<br />
[06]: Valve size, 06<br />
[2]: Number of valve positions, two positions<br />
[12060]: Rated supply voltage of solenoid,<br />
120 V AC / 0.26 A, 60 Hz<br />
[EW1R]: Connector for wire box and wire box power,<br />
DC solenoid for AC power supply (rectifier in wirebox)<br />
[50]: Wire box version, supply connector,<br />
without connector, 1/2 NPT thread at both ends (either side<br />
can be used for wiring, remove cover-plug accordingly)

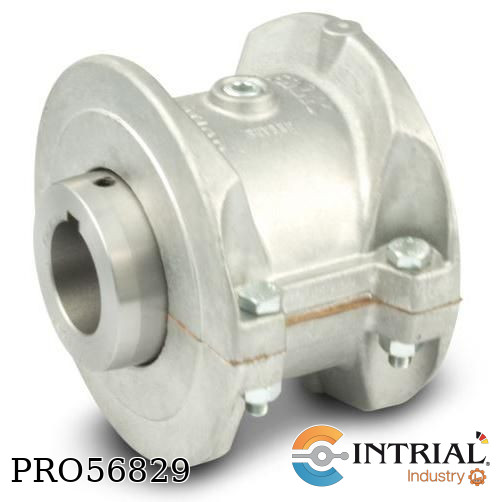

COMPLETE COUPLING<br />
Brand: FALK<br />
Model: 1140T(0707081)<br />
O.D., 384 mm<br />
Tnom, 200 Nm<br />
n-max, 28600 n-min<br />
<br />


COMPLETE COUPLING<br />
Brand: FALK<br />
Model: 1120T(0707079)<br />
O.D., 270 mm<br />
Tnom, 120 Nm<br />
n-max, 9320 n-min

<p class="MsoNormal">GEAR PUMP<br />
Model: SF 2/20 RD - VLFM<br />
art-nr: ASF2-20RD-210983R<br />
dimensional drawing: DPA052D-090LFM-R33<br />
spare part list: DET052020RD--165R<br />
SUCTION AND PRESSURE<br />
connections: G 1 / SAE 1<br />
casing parts: EN-GJL-250 (GG-25)<br />
shafts, noise optimized: 16MnCrS5, egh., helical toothed<br />
bearing: multilayer<br />
shaft sealing: radial shaft sealing<br />
elastomers: FKM<br />
flow medium: lube oil<br />
viscosity: 50-5000 cSt.<br />
temperature: 10-60°C<br />
flow rate: 21 l/min<br />
pressure: 5 bar<br />
speed: 1175 1/min<br />
PRESSURE RELIEF VALVE<br />
range of adjustment: 2-20 bar<br />
opening pressure: 8 bar<br />
sense of rotation: clockwise<br />
test run: yes HLPD 46<br />
coupling: BKUA040-1424-301<br />
pump mount with base: BLF052200110LA21<br />
three phase motor: LDM100-06-047,<br />
with special mounting<br />
dimensions<br />
analog IEC 090<br />
MOTOR DATA<br />
brand: Siemens<br />
power: 1,1 kW (1,5 HP)<br />
rotation speed: 1200 1/min<br />
voltage: 460 Volt - Stern<br />
frequency: 60 Hz<br />
efficiency class: NEMA Premium Efficiency (IE3)<br />
protection class: IP 55<br />
insulation class: F<br />
special: to NEMA, UL/CSA<br />
construction type: B 5<br />
finish: primed<br />
type plate: ETY924-D/E--PE02<br />
//////////////////////////////////////////////////////////////<br />
OLD SERIAL-NO: 2.PU210197-1<br />
OLD SERIAL-NO: 1.PU123613-2<br />
SF 2/20 RD - VLFM no longer available,<br />
we quoted now replacement pump unit.<br />
//////////////////////////////////////////////////////////////</p>

<p class="MsoNormal"></p>

<p></p>

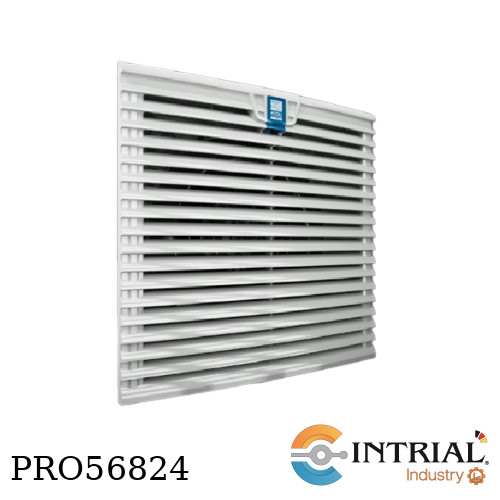

VENTILADOR CON FILTRO <br />
MARCA: RITTAL <br />
MODELO: SK3241.100<br />
COLOR: RAL 7035<br />
CAUDAL DE AIRE SOPLADO LIBRE (CON FLTRO): <br />
A 50 HZ: 225 M³/H<br />
A 60 HZ: 245 M³/H<br />
TENSIÓN DE SERVICIO: 230 V, 1~, 50 HZ/60 HZ<br />
POTENCIA NOMINAL PEL:<br />
A 50 HZ: 40 W<br />
A 60 HZ: 42 W<br />
CAMPO DE TEMPERATURA DE SERVICIO: -30 °C...55 °C

<p class="MsoNormal">GEAR PUMP <br />
Brand: STEIMEL<br />
Model: SF 2/20 RD - VLFM<br />
STEIMEL part-no: ASF2-20RD-170734R<br />
dimensional drawing: DPA052D-170734R<br />
list of spare parts: DET052020RD--165R<br />
SUCTION AND PRESSURE<br />
connection: G 1 / SAE 1<br />
casing parts: EN-GJL-250 (GG-25)<br />
pinion shafts, noise-optimised: 16MnCrS5, egh., helical-toothed<br />
bearings: multilayer MD<br />
shaft seal: radial shaft seal<br />
elastomers: FKM<br />
flow medium: lube oil<br />
viscosity: 50-5000 cSt.<br />
temperature: 10-60°C<br />
flow rate: 17 / 21 l/min.<br />
pressure: 5 bar<br />
speed: 950 / 1140 1/min.<br />
PRESSURE RELIEF VALVE<br />
range of adjustment: 2-20 bar<br />
opening pressure: 8 bar<br />
sense of rotation: clockwise<br />
test run: yes, with HLPD 46<br />
coupling: BKUA040-1424-301<br />
bracket of pump with base: BLF052200110LA21<br />
three-phase-motor: LDM090-06-095 (Birkenbeul)<br />
MOTOR DATA<br />
power 1/2: 1,1 / 1,2 kW<br />
speed 1/2: 1000 / 1200 1/min<br />
voltage / frequency 1: 230/400 Volt at 50 Hz<br />
voltage / frequency 2: 265/460 Volt at 60 Hz<br />
efficiency class: IE3<br />
degree of protection: IP 55<br />
insulation class: F<br />
additional lable (without IE3) for<br />
voltage / frequency: <br />
- 220-240/380-420 V at 50/60 Hz<br />
- 250-280/440-480 V ati 60 Hz<br />
form of construction: B 5<br />
finish: primed HDO058-green<br />
type plate: ETY924-D-E--PE02</p>

<p class="MsoNormal"></p>

<p></p>

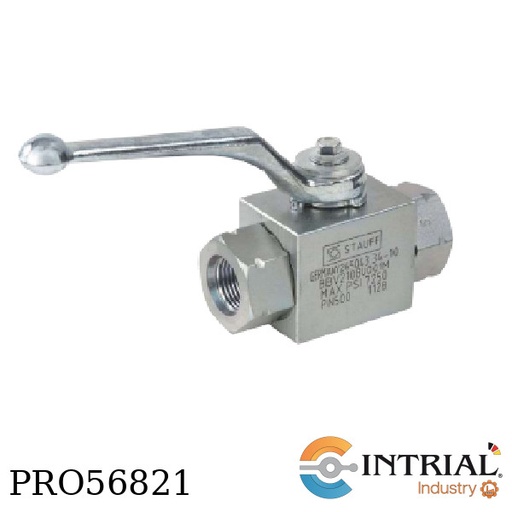

HIGH-PRESSURE BLOCK BODY BALL VALVE <br />
BRAND: STAUFF<br />
MODEL: BBV-2-G08-8001-M<br />
TYPE: BBV<br />
NUMBER OF PORTS: 2<br />
CONNECTION STYLE: FEMALE BSP THEAD (DIN ISO 228)<br />
CONNECTION SIZE: 08<br />
BODY MATERIAL/ SURFACE FINISHING: CARBON STEEL, ZING//NICKEL-PLATED<br />
BALL/STEM MATERIAL: BALL: CARBON STEEL, HARD CHROME- PLATED<br />
STEM: CARBON STEEL <br />
BALL SEAT MATERIAL: DEIRIN (POM)<br />
O-RING MATERIAL: FKM/FPM(VITON) <br />
MANUFACTURING CODE: MANUFACTURING CODE FOR ALL CONNECTION STYLE <br />

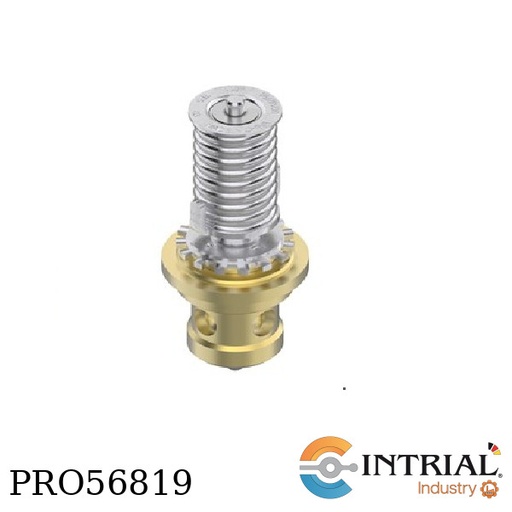

VALVE HOLE<br />
BRAND: DANFOSS<br />
MODEL: 067B2791<br />
ORIFICE SIZE: 03<br />
QUANTITY PER PACKING FORMAT: 8 PC<br />
RATED CAP. COND. RANGE N [YES]:<br />
TCONC=38 °C<br />
TEVAP=4.4 °C<br />
TLIQ=37 °C
