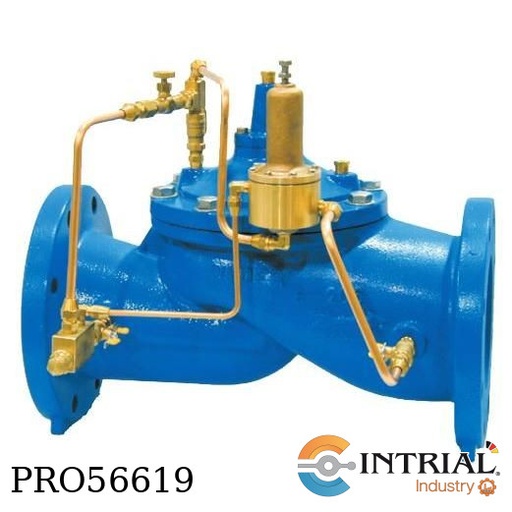

VALVULA DE ALIVIO/SOSTENEDORA DE PRESION<br />
Marca: SINGER<br />
Modelo: 12-S106-RPS-300<br />
Cuerpo y Bonete en Hierro dúctil ASTM A-536 C654512<br />
Cuerpo estilo recto y paso total<br />
Eje y asiento en acero inox. AISI 316, asiento garantizado por la vida útil de la válvula.<br />
Tapa separada en 2 partes para fácil mantenimiento y centrado del eje.<br />
Extremos bridados según ANSI B16.42 Clase 300#<br />
Tornillos externos e internos en acero inox. 316<br />
Revestimiento con pintura epóxica aprobada por la NSF61<br />
Diafragma en goma sintética reforzada y disco de cierre en EPDM.<br />
Piloto de alivio de presión Mod. 83-RP, rango 20 - 200 psi en acero inoxidable.<br />
Válvula de aguja para control de velocidad de cierre en acero inoxidable.<br />
Restricción fija y válvulas de bola en acero inoxidable.<br />
Conexiones y tuberías en acero inoxidable.<br />
Circuito piloto completo en acero inoxidable<br />
Dibujo esquemático A-0423F

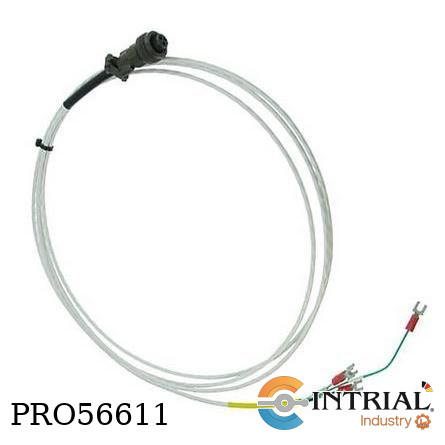

EXTENSION CABLE 3-WIRE<br />
Brand: BENTLY NEVADA<br />
Model: 16710-30<br />
3-conductor shielded 22 AWG<br />
Cable length, 30 f

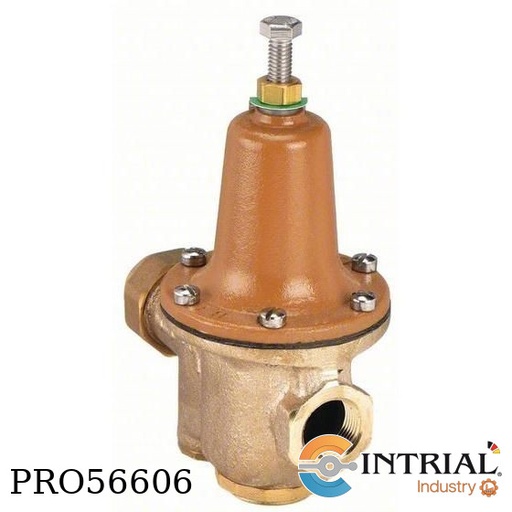

Water Pressure Reducing Valve<br />
Brand: WATTS<br />
Model: 1-LFU5B-Z3<br />
Max. Pressure, 300 psi<br />
Max. Temp., 160 °F<br />
Pipe Size, 1 in<br />
Preset Pressure Settings, 50 psi<br />
Height, 7-3/8 in<br />
Length, 6-3/4 in<br />
<br />

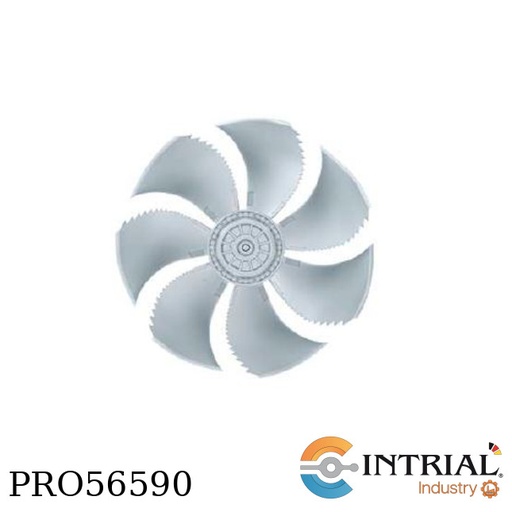

AXIAL FAN WITH SICKLE-SHAPED BLADES<br />
BRAND: ZIEHL-ABEGG<br />
MODEL: FN056-4DK.4M.V7P2<br />
ELECTRICAL CONNECTION: K62 TERMINAL BOX<br />
ERP DATA:<br />
ΗSTATA EFFICIENCY: 33.7%<br />
DEGREE OF EFFICIENCY: NACTUAL = 40.1 / NTARGET = 40*<br />
*ERP 2015<br />
PROTECTION TYPE: IP54<br />
THERMAL INSULATION CLASS: THCL155<br />
TERMINAL BOX MOUNTING TYPE: STATOR MOUNTED<br />
MIN. OPERATING TEMPERATURE: -40°C<br />
CONNECTION DIAGRAM: 1360-106X<br />
NAMEPLATE: 1X FIXED

FLOW METERS<br />
BRAND: KRACHT<br />
MODEL: VCA0,2U4F4R1VH/148<br />
MATERIAL HOUSING: ALUMINIUM ALMGSIF30 HARDCOATED<br />
PULSE VOLUME: 0.2 CM³/PULSE<br />
TYPE OF CONNECTION: PIPE CONNECTION G3/8"<br />
ELECTRONIC OUTPUT: WITHOUT PREAMPLIFIER (FOR PLUG-IN DISPLAY SD 1)<br />
ELECTRICAL CONNECTION: RECTANGULAR CONNECTOR - TERMINAL STRIP<br />
STANDARD TEMPERATURE EXECUTION<br />
MEASURING RANGE: 0.25...10 L/MIN<br />
MEASURING ACCURACY: ± 3% OF READING (AT VISCOSITY: MIN. 20 MM²/S)<br />
REPEAT ACCURACY: ± 0,05 %<br />
RESOLUTION: 5000 PULSES/L<br />
MAX. PRESSURE: 200 BAR<br />
FLUID TEMPERATURE: -10°C...+80°C<br />
AMBIENT TEMPERATURE: -10°C...+80°C<br />
MAX. PERM. FOREIGN PARTICLE: 30 ΜM

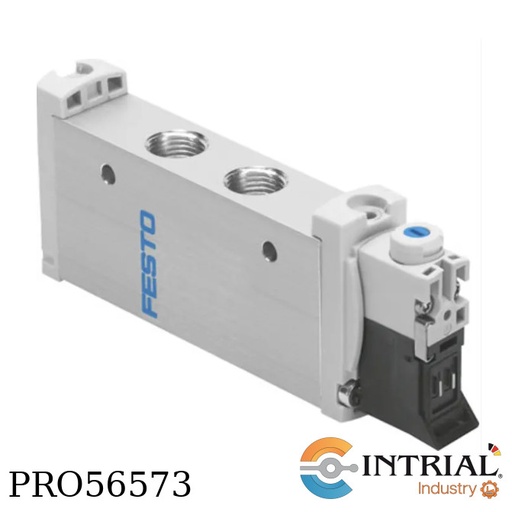

VÁLVULA DE SOLENOIDE<br />
MARCA: FESTO<br />
MODELO: VUVG-L14-M52-AT-G18-1P3<br />
SERIE VUVG<br />
ROSCA G 1/8<br />
FUNCIÓN 5/2<br />
PILOTO<br />
EN LÍNEA<br />
780L/MIN

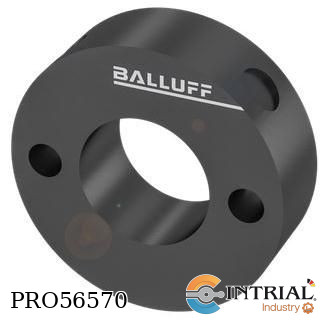

SENSOR DE POSICIÓN PARA FORMA DE VARILLA<br />
Marca: BALLUFF<br />
Modelo: BTL-P-1012-4R-PA<br />
Material, PA<br />
Dimensiones, Ø 25 x 8 mm<br />
Diámetro interior, 12.0 mm<br />
Temperatura ambiente, -40...100 °C

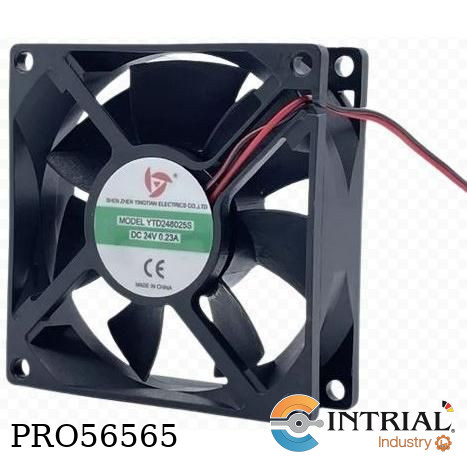

DC AXIAL FAN<br />
Brand: YINGTIAN<br />
Model: YTD248025S<br />
Voltage, 24 V<br />
Current, 0.23 A<br />

<div>
<div class="gtx-trans-icon"></div>
</div>

TRANSFER GEAR PUMPS TYPE KF<br />
BRAND: KRACHT<br />
MODEL: KF5/250H10BP000DP2+DKF5D16<br />
GEOMETRICAL DISPLACEMENT: 255,00 CM³/R<br />
DIRECTION OF ROTATION: CLOCKWISE (SEEN ON SHAFT END)<br />
TYPE OF FIXATION FLANGE: KF 5/...<br />
OUTBOARD BEARING: NO<br />
TYPE OF PIPE CONNECTION FLANGE CONNECTION: KF 5/... - DN 75<br />
SHAFT END: CYLINDRICAL Ø 28MM<br />
INTEGRATED VALVE: DKF-VALVE 16; 8...16 BAR<br />
OPERATING PRESSURE (SUCTION SIDE): -0,4...+1 BAR<br />
MAX. OPERATING PRESSURE (PRESSURE SIDE): 20 BAR (DEPENDING ON VISCOSITY, SPEED AND POWER)<br />
FLUID TEMPERATURE: -20°C...+150°C<br />
AMBIENT TEMPERATURE: -20°C...+60°C<br />
MINIMUM VISCOSITY:<br />
1.4 MM²/S (MAX. 3 BAR)<br />
6 MM²/S (MAX. 12 BAR)<br />
12 MM²/S (MAX. OPERATING PRESSURE)<br />
MAXIMUM VISCOSITY: DEPENDING ON SUCTION CONDITIONS, SPEED AND POWER<br />
SPEED RANGE: 200...2000 RPM (DEPENDING ON PRESSURE, VISCOSITY AND POWER)<br />

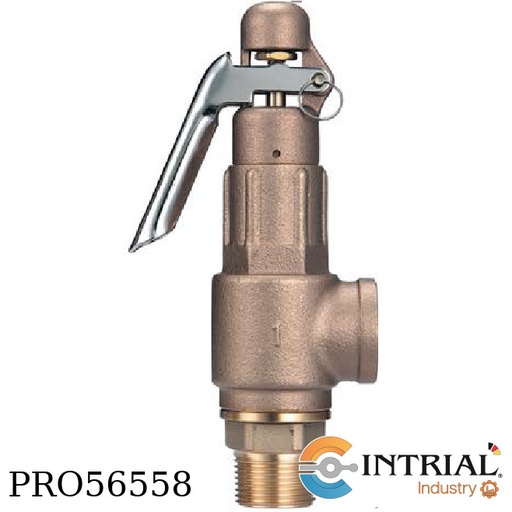

BRONZE SAFETY VALVE<br />
Brand: SUN<br />
Model: 1-1/2-L3P<br />
1-1/2"<br />
NPT SEALING<br />
10KG PTFE SEAT<br />
SET PRESSURE 150 PSI

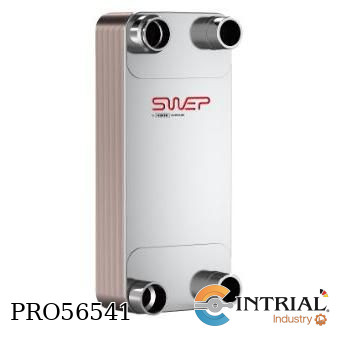

EXCHANGER<br />
Brand: SWEP<br />
Model: V400THx142/1P-SC-S-35.1+90+2x1/2"INT/2x3"VIC<br />
Material, 316 stainless steel plates, copper brazing

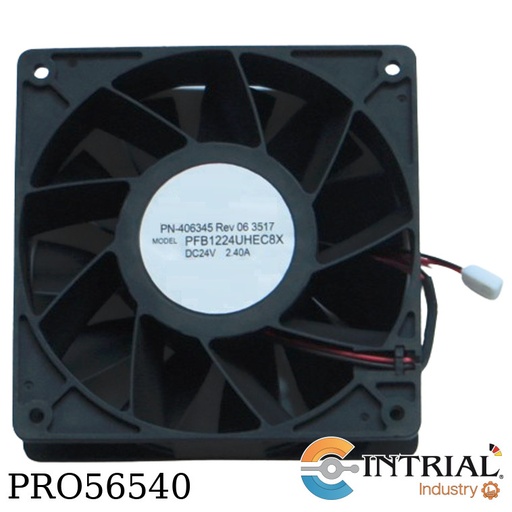

VENTILADOR<br />
MARCA: DELTA<br />
MODELO: PFB1224UHEC8X<br />
TAMAÑO: 12CM<br />
VOLTAJE: 24V<br />
CORRIENTE: 2.40A<br />
<br />

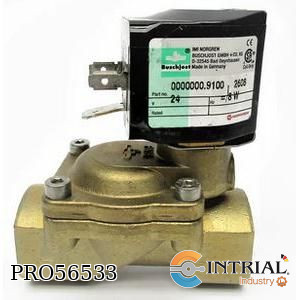

SOLENOID VALVE<br />
Brand: BUSCHJOST<br />
Model: 0000000.9100<br />
24 V<br />
8W<br />
3/4"

SOLENOID VALVE<br />
Brand: ASCO<br />
Model: 8210G207<br />
Pipe Size, 1/2"<br />
Operating Pressure, 5-175 PSI<br />
CV Flow Factor,    3<br />
Connection Type, NPT<br />
Enclosure, Brass<br />
Enclosure, NEMA 4X

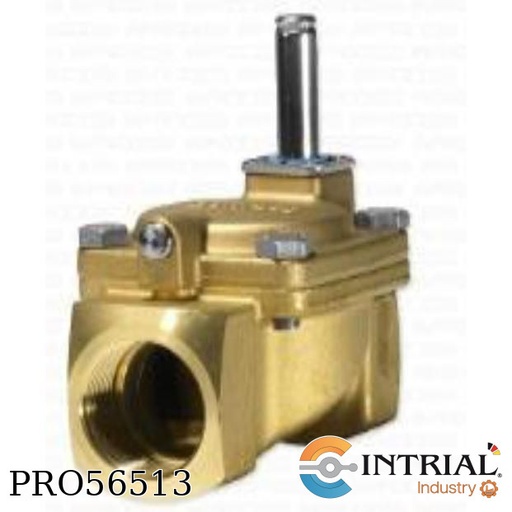

EV 220B 25B G1/2", NBR, K.V. 11 m3/h, N.C.<br />
Válvula Solenoide Normalmente cerrada<br />
Marca: Danfoss<br />
Origen: Dinamarca<br />
Modelo: EV220B<br />
Conexión: G1/2”<br />
Material de la válvula: Latón<br />
Material del diafragma: NBR<br />
Fluidos: Agua, Aceite, Aire, gases neutros.<br />
Presión diferencial: 0.3 a 10 Bar

FILTER FAN<br />
Brand: EBM-PAPST<br />
Model :K2S165-AA77-15<br />
Motor:M2S052-CA<br />
Nominal voltage : 115VAC<br />
Frequency  :50/60Hz<br />
Speed :2650/2700min-1 <br />
Power : 40~42W <br />
Current:0.52/0.48A<br />
Blade diameter 165mm<br />
Blade material PA plastic<br />
Degree of protection IP20<br />
<br />

<div>
<div class="gtx-trans-icon"></div>
</div>

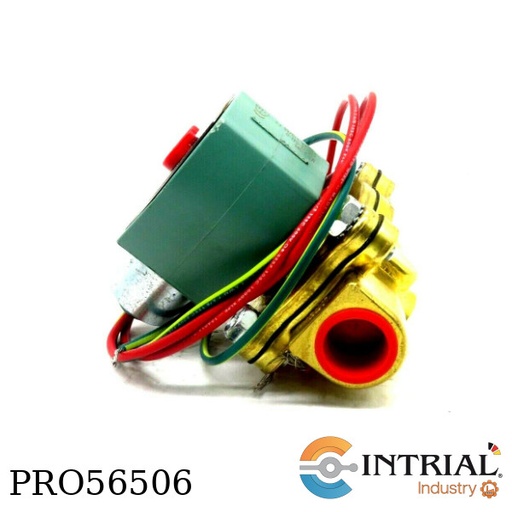

SOLENOID VALVES ASCO<br />
BRAND: ASCO<br />
MODEL: 8210G002<br />
PIPE SIZE (IN):1/2<br />
ORIFICE SIZE (MM): 16<br />
KV FLOW FACTOR ( M3/HR): 3.4<br />
MIN: 0.3<br />
MAX AC: <br />
AIR- INERT GAS: 14<br />
WATER: 10<br />
LIGHT OIL @ 300SSU: 9<br />
MAX FLUID TEMP °C:<br />
AC: 82

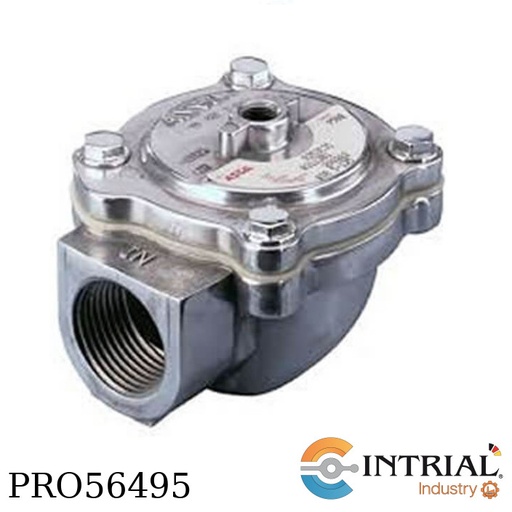

MAIN PULSE VALVES<br />
BRAND: ASCO<br />
MODEL: 8353C33<br />
PIPE SIZE (INS): 3/4<br />
ORIFICE SIZE (INS): 3/4<br />
CV FLOW FACTOR: 10.5<br />
MIN OPERATING PRESSURE DIFFRENTIAL (PSI): 5<br />
MAX. OPERERATING DIFFERENTIIAL (PSI): 125<br />


<strong>Gear pump unit: SF 6/180 RD-VLFM<br />
STEIMEL part-no.: ASF6-180RD210197R</strong><br />
dimensional drawing: DPA056D-180689R<br />
list of spare parts: DET056180RD--165R<br />
Suction and Pressure:<br />
connections: SAE 2 ½<br />
casing parts: EN-GJL-250 (GG-25)<br />
shafts: 16MnCrS5, case-hardened.<br />
gear wheels,<br />
noise-optimized: EN-GJS-400-15 (GGG-40)<br />
ionitrided, helical toothed<br />
shaft sealing: radial shaft sealing ring<br />
elastomers: FKM<br />
flow medium: lube oil<br />
viscosity: 50-5000 cSt<br />
temperature: 10-60°C<br />
flow rate: approx. 165 / 198 ltr/min.<br />
pressure: 5 bar<br />
speed: 950 / 1140 1/min.<br />
pressure relief valve.<br />
opening pressure: 8 bar<br />
range of adjustment: 2-16 bar<br />
sense of rotation: clockwise<br />
test run: yes, with HLPD 46<br />
coupling: BKUA095-2442-301<br />
pump mount with base: BLF056350188LA21<br />
three-phase motor: LDM160-06-059 (Birkenbeul)<br />
MOTOR DATA:<br />
power 1/2: 7,5 kW<br />
speed 1/2: 1000 / 1200 1/min.<br />
voltage / frequency 1: 400/690 Volt +/-10% at 50 Hz<br />
voltage / frequency 2: 460 Volt +/-10% at 60 Hz<br />
efficiency class: IE3<br />
degree of protection: IP 55<br />
insulation class: F<br />
form of construction: B 5<br />
specially: UL/ CSA - design<br />
finish: primer HDO058 - green<br />
type plate: ETY924-D-E--PE02<br />
motor junction box:turned 90° to suction side.

High Pressure Checkball Piston Pumps<br />
Brand: DYNEX<br />
Model: PF1002-2978<br />
Pump Type, Fixed Displacement Checkball Pump<br />
Output Flow, 1.5 gpm (5,7 L/min)<br />
Operating Pressure, Standard Pressure<br />
Drive Shaft, Keyed, 0.875 inch (22,20 mm) diameter
