<strong>BimetaThermowells for Temperature Sensors<br />
Model: TWL-1-3-3-A-N-DN5C-A-1<br />
Brand: Kobold (Alemania)</strong><br />
[TWL-1]:<br />
Version standard<br />
Thermowell cylindrical, tapered<br />
Material neckpipe/sensor/thermowell drilled<br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6 <br />
[3]: Sensor, 1x Pt100, cat, B,  (-80..+600 °C)<br />
[3]: Wiring, 3 wires<br />
[A]: Head-mounted transmitter, Model 5333D<br />
[N]: Connection neckpipe, 1/2" NPT male <br />
[DN5C]: Connection, 3/4" NPT male, PN 250<br />
[A]: Neckpipe/lagging extension (HL/T), Standard neckpipe (130 mm)w/o lagging extension<br />
[1]: Options, with LED-display<br /><br />
Dimensions Temperature Sensor:<br />
Neck pipe length (HL): 130 mm (Standard for TWL-1) (For Ex applications is needed)<br />
Inmension length (EL): U + H – 8 mm = 114.30 + 46 – 8 = 152.30 mm<br />
Bulb diameter: 6 mm<br /><br />
Dimensions Thermowell:<br />
Length Thermowell (H): 46 mm<br />
Immersion length Thermowell (U): 114.30 mm (4.5”)

Industrial Resistance Thermometers acc. DIN <br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-4-N08-C-3-E-0-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[4]: Diameter / length thermowell, 4 mm / 76.2 mm<br />
[N08]: Process connection, 1/4" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[E]: Terminal head, Output signal: 4 ... 20 mA<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN <br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-8-N08-C-3-E-0-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[8]: Diameter / length thermowell, 8 mm /300 mm<br />
[N08]: Process connection, 1/4" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[E]: Terminal head, Anschlusskopf<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

<strong>Insertion Resistance Thermometers compact<br />
Brand: Kobold (Alemania)<br />
Model: MMA-0-10-N08-C-3-D-A-0</strong><br />
[MMA-0]<br />
Probe material st.st. 1.4404<br />
Connection fixed<br />
Design w/o stand-off<br />
Max. temperature - 70...+150°C<br />
[10] Immersion length / diameter: 100 mm / Ø6<br />
[N08] Connection: 1/4 NPT<br />
[C] Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[3] Wiring: 3-wire<br />
[D] Electr. Connection: plug acc. to DIN 43650<br />
[A] Head Transmitter: 4..20 mA, range 0 bis 100 °C<br />
[0] Options, without

<strong>Temperature Sensors for Liquids and Gases<br />
Brand: Kobold (Alemania)<br />
Model: TSA-11-15</strong><br />
[TSA-11]<br />
Housing material, brass<br />
Seal, FPM<br />
Measuring range, -40...150 °C<br />
Output, PT 100<br />
Accuracy, Class B (IEC 751)<br />
Max. Pressure, 16 bar<br />
Max. Temperature, 180 °C<br />
Electr. Connection, 1,5 m Silicone cable<br />
[15] Connection, G 1/2

<strong>Temperature Sensors for Liquids and Gases<br />
Brand: Kobold (Alemania)<br />
Model: TSA-01-15</strong><br />
[TSA-01]<br />
Housing material, brass<br />
Seal, FPM<br />
Measuring range, -40...150 °C<br />
Output, PTC-Sensor<br />
Accuracy, at 20 °C = ±0,7 °C<br />
else <±2,5 °C<br />
Max. Pressure, 25 bar<br />
Max. Temperature, 180 °C<br />
Electr. Connection, 1,5 m Silicone cable<br />
[15] Connection, G 1/2

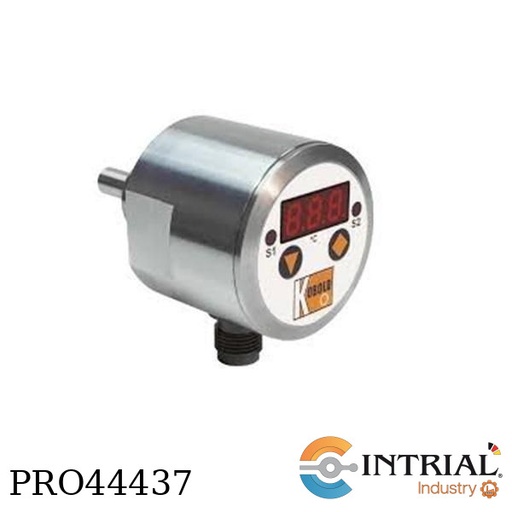

Electronic temperature sensor with 3 digit LED Display<br />
Model: TDA-15H2-R4-0-L-3M<br />
Brand: Kobold (Alemania)<br />
[TDA-15H2]:<br />
Housing (mm), st. st.<br />
Output, 0(4)-20 mA (switch output)<br />
max. pressure, 80 bar<br />
max. temperature, 120 °C<br />
Display, 3 digit LED display<br />
Measuring range, -20...+120 °C<br />
Version, compact<br />
[R4]: Connection, G 1/2 male<br />
[0]: Sensor length, short<br />
[L]: Output, 0(4)-20 mA<br />
[3M]: Electrical connection, M12x1 plug connector<br /><br />
Accessories round plug<br />
Model: ZUB-KAB-12-K005<br />
M12x1 box with 5 m cable

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-C-3-G-B-0</strong><br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6] Diameter / length thermowell, 6 mm / 195 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C) <br />
[3] Wiring, 3 Wires<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[B] head-mounted transmitter, <br />
2 wire transmitter with HART protocol model 5337D <br />
[0] Options, without

<strong>Electronic temperature sensor with 3 digit LED Display<br />
Brand: Kobold (Alemania)<br />
Model: TDA-15H3-D6-1-P-3M</strong><br />
[TDA-15H3]<br />
Housing (mm), st. st.<br />
Output, 0(4)-20 mA (switch output)<br />
max. pressure, 80 bar<br />
max. temperature, 120 °C<br />
Display, 3 digit LED display<br />
Measuring range, -50...+125 °C<br />
Version, seperately<br />
[D6] Connection, separ. mount. version, M25x1, smooth sensor<br />
[1] Sensor length,  100 mm<br />
[P] Output, 0(4)-20 mA, PNP switch output<br />
[3M] Electrical connection, M12x1 plug connector<br /><br />
Include:<br />
Accessories Plug Connector from Z2<br />
Model: ZUB-KAB-12D500<br />
M12x1 box with screw terminals

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-F-6-N15-A-3-G-0-0(129mm)<br />
[MWD-F]:<br />
Version, For mounting in thermowell, insert filled with MgO, removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), see thermowell<br />
Connection, fixed connection<br />
Neckpipe, with<br />
[6]: Diameter / length thermowell, 27mm / 102 mm<br />
[N15]: Process connection, 1/2" NPT male <br />
[A]: Sensor, 1x Pt100, cat. B, (-70..+250 °C) <br />
[3]: Wiring, 3 wires <br />
[G]: Terminal head, crew cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter  <br />
[0]: Options, without

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold- Alemania<br />
Model: MWD-L-6-N15-E-3-G-A-0 (100mm)</strong><br />
Version: Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material: st.st. 1.4404<br />
Max. pressure (@ 20°C): 30 bar<br />
Connection: fixed connection<br />
Neckpipe: without<br />
[6] Diameter / length thermowell: 6mm/139mm<br />
[N15] Process connection: 1/2" NPT male<br />
[E] Sensor: 1x Pt100, cat. B, (-70..+400 °C)<br />
[3] Wiring: 3 wires<br />
[G] Terminal head: screw cap with chain, aluminium<br />
[A] Head-mounted transmitter: programable 2 wire transmitter model 5334D<br />
[0] Options: without<br /><strong>Thermowells for Temperature Sensors<br />
Brand: Kobold-Alemania<br />
Model: TWL-0000-N-GN5B-0-0</strong><br />
Version: cylindrical<br />
Thermowell: drilled<br />
Material neckpipe/sensor/thermowell: st.st. 1.4404<br />
Connection head: Form XD with chain, M20 x 1,5<br />
Approval: ATEX II 2 GD Ex d IIC T6<br />
[N] Connection neckpipe: 1/2" NPT male<br />
[GN5B] Connection thermowell: 3/4" NPT male, PN 100<br />
[0] Lagging extension (T): w/o lagging extension<br />
[0] Options: w/o<br />
Immersion length (U): Immersion length (U)<br />
at connection 1/2" NPT: w/o<br />
Dimensions:<br />
Thermowell Inmersion length(U): 100 mm<br />
Thermowell Bulb diameter: 15mm

<strong>Industrial Resistance Thermometers acc. DIN<br />
Model: MWD-L-8-N15-C-3-G-A-0<br />
Brand: Kobold (Alemania)</strong><br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[8]: Diameter / length thermowell, 8 mm / 300 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A,  (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[0]: Options, without

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-5-N15-C-3-G-B-0</strong><br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[5]: Diameter / length thermowell, 5 mm / 200 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[B]: Head-mounted transmitter,  transmitter 4 - 20 mA with HART<br />
[0]: Options, without

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-C-3-G-A-0</strong><br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[6]: Diameter / length thermowell, 6 mm / 200 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[A] Head  transmitter 5334D transmit-ter  4 - 20 mA 2-wire<br />
[0]: Options, without

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-5-N08-C-3-G-B-0</strong><br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[5]: Diameter / length thermowell, 5 mm / 200 mm<br />
[N08]: Process connection, 1/4" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[B]: Head-mounted transmitter,  transmitter 4 - 20 mA with HART<br />
[0]: Options, without

<strong>Industrial Resistance Thermometers acc. DIN <br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-5-N08-C-3-G-A-0</strong><br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[5]: Diameter / length thermowell, 5 mm / 200 mm<br />
[N08]: Process connection, 1/4" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[A]: Head-mounted transmitter, 4 - 20 mA<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-8-N15-C-3-E-0-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772,<br />
filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[8]: Diameter / length thermowell, 8 mm / 100 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[E]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmiter, without transmitter<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-8-G20-C-3-G-A-0<br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[8] Diameter / length thermowell, 8 mm / 200 mm<br />
[G20] Process connection,  G 3/4" male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[A] Head-mounted transmitter,<br />
5333D transmit-ter 4-20 mA 2-wire<br />
[0] Options, without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-8-N15-C3-G-A-0<br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[8] Diameter / length thermowell, 8 mm / 200 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[A] Head-mounted transmitter,<br />
5333D transmit-ter 4-20 mA 2-wire<br />
[0] Options, without<br /><br />
* Measurement range : -10°C to 80°C
<p class="MsoNormal"><span style="color:#1F497D;"></span></p><p></p>

<strong>Industrial Resistance Thermometers acc. DIN <br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-8-N15-C-3-G-A-0</strong><br />
[MWD-L]<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[8]: Diameter / length thermowell, 8 mm / 400 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A,  (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[0]: Options, without<br /><br />
*Working range: 0 to 100 ºC
