<strong>Screw-In Resistance Thermometers with cable<br />
Model: MWE-1-6-G08-A-3-P-0 (18 mm)<br />
Brand: Kobold (Alemania)</strong><br />
[MWE-1]:<br />
Version: Immersion tube without filling, not removable<br />
Material immersion tube: St. steel 1.4404 / 316 L<br />
Max. pressure (@ 20°C): 30 bar<br />
Temperature range: -70…+250 °C (depending on cable material)<br />
Connection: fixed<br />
Connection cable: Cable acc. customer specification with bend protection spring<br />
[6]: Diameter / length immersion tube, 6mm, 18 mm<br />
[G08]: Process connection, G 1/4 male<br />
[A]: Sensor type, 1x Pt100, cat. B (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[P]: Cable material, PVC (max. 80°C); Cable length, 6 m<br />
[0]: Options, without

Screw-In Resistance Thermometers  with cable<br />
Model: MWE-1-6-G15-A-3-P-0<br />
Brand: Kobold (Alemania)<br />
[MWE-1]:<br />
Version: Immersion tube without filling, not removable<br />
Material immersion tube: St. steel 1.4404 / 316 L<br />
Max. pressure (@ 20°C): 30 bar<br />
Temperature range: -70…+250 °C (depending on cable material)<br />
Connection: fixed<br />
Connection cable: Cable acc. customer specification with bend protection spring<br />
[6]: Diameter / length immersion tube, 6mm, 60 mm<br />
[G15]: Process connection, G 1/2 male<br />
[A]: Sensor type, 1x Pt100, cat. B (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[P]: Cable material, PVC (max. 80°C); Cable length, 6 m<br />
[0]: Options, without

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-G15-A-3-G-0-0</strong><br />
[MWD-L]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm / 145 mm<br />
[G15]: Process connection, G1/2 male<br />
[A]: Sensor, 1x Pt100, cat. B,  (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Electronic temperature sensor with 3 digit LED Display<br />
Brand: Kobold (Alemania)<br />
Model: TDA-15H2-N4-1-N-3M<br />
[TDA-15H2]<br />
Housing (mm), st. st.<br />
Output, 0(4)-20 mA (switch output)<br />
max. pressure, 80 bar<br />
max. temperature, 120 °C<br />
Display, 3 digit LED display<br />
Measuring range, -20...+120 °C<br />
Version, compact<br />
[N4] Connection: 1/2 NPT male<br />
[1] Sensor length: 100 mm<br />
[N] Output: 0(4)-20 mA, NPN switch output<br />
[3M] Electrical connection: M12x1 plug connector

<strong>Resistance Thermometers Exd<br />
Model: TWL-2-1-3-B-N-DN5C-A-2<br />
Brand: Kobold (Alemania)</strong><br />
[TWL-2]:<br />
Version, with nipple union<br />
Thermowell, tapered drilled<br />
Material neckpipe/sensor/thermowell, st.st, 1.4404<br />
Connection head, Form XD with chain, M20x1.5<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[1]: Sensor, 1xPt100, class B, (-30...+550°C)<br />
[3]: Wiring, 3 wires<br />
[B]: Head-mounted transmitter, Model 5337D<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[DN5C]: Connection thermowell, 3/4" NPT male, PN 250<br />
Immersion length (U), 50 mm<br />
[A]: Neckpipe/lagging extension, Standard neckpipe (150 mm) w/o lagging extension<br />
[2]: Options, with LED-display<br /><br />
Inmersion length Thermowell (U) = 50 mm<br />
Length see Thermowell (H) = 46 mm<br />
Length see Thermowell (i) = 7 mm<br />
Bulb diameter Thermometer = 6 mm<br />
Bulb diameter Thermowell (d) = 18 mm<br />
Neck pipe (HL) = 150 mm (Standard for TWL-2)<br />
Inmersion Length Thermometer (EL) = U+H–8 mm = 88 mm<br />
EL = U+H-8 mm for Thermowell type D

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-A-N15-C-3-E-0-0<br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[A] Diameter / length thermowell, 10 mm / 100 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[E] Terminal head, Anschlusskopf<br />
[0] Head-mounted transmitter, without transmitter<br />
[0] Options, without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-5-N15-C-3-G-A-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[5]: Diameter / length thermowell, 5 mm / 63.10 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[0]: Options, without<br /><br />
*L= 38.1+25 = 63.10 mm<br />
Incluye Termopozo

Temperature Sensors for Liquids and Gases<br />
Brand: Kobold (Alemania)<br />
Model: TSA-12-20<br />
[TSA-12]:<br />
Housing material, st.st.<br />
Seal, FPM<br />
Measuring range, -40...150 °C<br />
Output, Pt 100<br />
Accuracy, Class B (IEC 751) <br />
Max. Pressure, 25 bar<br />
Max. Temperature, 180 °C<br />
Electr. Connection, 1,5 m Silicone cable<br />
[20]: Connection, G 3/4

Temperature Sensors for Liquids and Gases<br />
Brand: Kobold (Alemania)<br />
Model: TSA-12-15<br />
[TSA-12]:<br />
Housing material, st.st.<br />
Seal, FPM<br />
Measuring range, -40...150 °C<br />
Output, Pt 100<br />
Accuracy, Class B (IEC 751) <br />
Max. Pressure, 25 bar<br />
Max. Temperature, 180 °C<br />
Electr. Connection, 1,5 m Silicone cable<br />
[15]: Connection, G 1/2

Head Mounted Temperature Transmitters<br />
Brand: Kobold (Alemania)<br />
Model: KM-320-V<br />
[KM-320]:<br />
Input,<br />
Pt100, Pt500, Pt1000,<br />
Cu40, Cu100, Ni100, Ni550, Ni1000<br />
Thermocouples:.B;E,J,K,N,R,S,T<br />
Resistance: 100...400 Ohm, 10...2000 Ohm<br />
Voltage:: 10..75 mV, 100...2000 mV<br />
Output 4..20 mA<br />
Mounting, connection head<br />
Galvanic isolation: no<br />
Programmier Modus: U-Pro<br />
Power supply 7,5..45 VDC<br />
[V]: Factory setting: To be specified in words<br />
Standard range: TC  E(NiCr-CuNi) -270 ... +1000 ºC

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-C-3-G-0-0<br />
[MWD-L]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm / 200 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter <br />
[0]: Options, without<br />
[Y1]: length thermowell,200 mm

Resistance Thermometers Exd<br />
Model: TWL-2-8-3-L-N-GN4B-A-0-Y1<br />
Brand: Kobold<br />
[TWL-2]:<br />
Version with nipple union<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6 <br />
[8] Sensor: 2x Pt100, cat. A, (-80..+600 °C)<br />
[3] Wiring: 3 wires<br />
[L] Head-mounted transmitter, without transmitter<br />
[N] Connection neckpipe, 1/2" NPT male<br />
[GN4B] Connection thermowell: 1/2" NPT male, PN 100<br />
[A] Neckpipe/lagging extension <br />
Standard neckpipe (150 mm)w/o lagging extension<br />
[0] Options: without <br />
[Y1] Immersion length 102 mm

Resistance Thermometers Exd<br />
Model: TWL-1-5-4-L-N-G4NB-F-0-Y1<br />
Brand: Kobold<br />
[TWL-1]:<br />
Version standard<br />
Thermowell cylindrical, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6 <br />
[5] Sensor: 1x Pt100, cat. A, (-30..+550 °C)<br />
[4] Wiring: 4 wires<br />
[L] Head-mounted transmitter, without transmitter<br />
[N] Connection neckpipe, 1/2" NPT male<br />
[GN4B] Connection thermowell: 1/2" NPT male, PN 100<br />
[F] Neckpipe/lagging extension <br />
Special neckpipe length 200 mm<br />
[0] Options: without <br />
[Y1] Immersion length 230 mm

Resistance Thermometers Exd<br />
Model: TWL-1-5-4-L-N-G4NB-F-0<br />
Brand: Kobold<br />
[TWL-1]:<br />
Version standard<br />
Thermowell cylindrical, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6 <br />
[5] Sensor: 1x Pt100, cat. A, (-30..+550 °C)<br />
[4] Wiring: 4 wires<br />
[L] Head-mounted transmitter, without transmitter<br />
[N] Connection neckpipe, 1/2" NPT male<br />
[GN4B] Connection thermowell: 1/2" NPT male, PN 100<br />
Immersion length 60 mm<br />
[F]: Neckpipe/lagging extension <br />
Special neckpipe length 200 mm<br />
[0] Options: without

Thermocouples Exd<br />
Brand: Kobold (Alemania)<br />
Model: TTL-1-3-2-A-N-0000-G-0<br />
[TTL-1]:<br />
Version standard<br />
Thermowell, w/o<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6<br />
[3]: Sensor, 1x NiCr-Ni (type K), cat, 2<br />
[2]: Wiring: 2 wires<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[N]: Connection neckpipe, 1/2" NPT male <br />
[0000]: Connection thermowell, w/o thermowell<br />
Immersion length (EL), for sensor w/o thermowell, 250 mm<br />
[G]: Standard neckpipe (130 mm) w/o thermowell<br />
[0]: Options: w/o

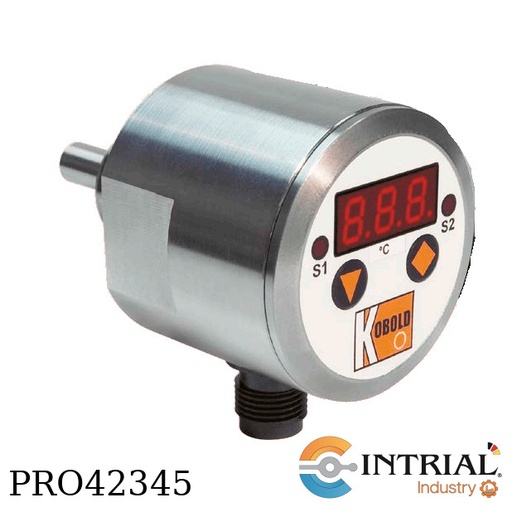

Electronic temperature sensor with 3 digits LED Display<br />
Brand: Kobold (Alemania)<br />
[TDA-15H2]:<br />
Housing (mm), st. st<br />
Output, 0(4)-20 mA (switch output)<br />
max. pressure, 80 bar<br />
max. temperature, 120 °C<br />
Display, 3 digit LED display<br />
Measuring range, -20...+120 °C<br />
version, compact<br />
[R4]: Connection G 1/2 male<br />
[2]: Sensor length 200 mm*<br />
maximum length for NPT screw thread is 184 mm instead of 200 m.<br />
[L]: Output 0(4)-20 mA<br />
[3M]: Electrical connection M12x1 plug connector<br /><br />
include: <br />
Accessories Plug Connector from Z2<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12K002<br />
M12x1 box with 2 m cable

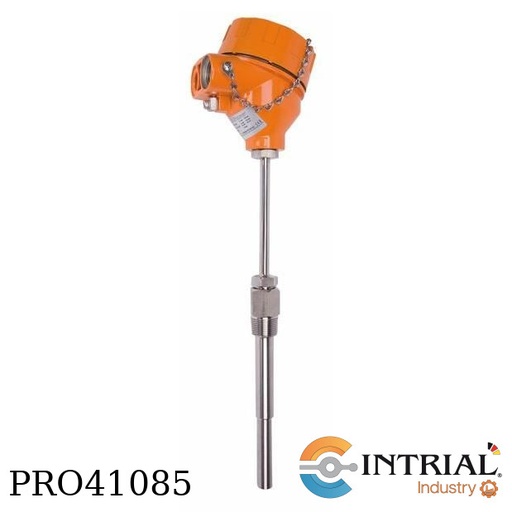

Resistance Thermometers Exd<br />
Model: TWL-1-5-3-A-N-0000-A-0<br />
Brand: Kobold<br />
[TWL-1]:<br />
Version standard<br />
Thermowell cylindrical, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6 <br />
[5]: Sensor: 1x Pt100, cat. A, (-30..+550 °C) <br />
[3]: Wiring: 3 wires<br />
[A]: Head-mounted transmitter Model 5333D <br />
[N]: Connection neckpipe, 1/2" NPT male <br />
[0000]: Connection w/o thermowell<br />
[A]: Neckpipe/lagging extension (HL/T), Standard neckpipe (130 mm)w/o lagging extension<br />
[0]: Options, w/o

Insertion Resistance Thermometers compact MMA<br />
Brand: Kobold (Alemania)<br />
Model: MMA-H-10-C50-C-3-D-A-0<br />
[MMA-H]:<br />
Probe material, st.st. 1.4404<br />
Connection, fixed <br />
Design, c/w stand-off<br />
Max. temperature, -198...+250°C<br />
[10]: Immersion length / diameter, 100 mm / Ø6<br />
[C50]: Connection, Clamp DN50<br />
[C]: Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[3] Wiring, 3-wire<br />
[D]: Electr. Connection, plug acc. to DIN 43650 <br />
[A]: Head Transmitter, 4..20 mA, range 0 bis 100 °C<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-F-6-N15-A-3-I-A-0<br />
[MWD-F]:<br />
Version, For mounting in thermowell, insert filled with MgO, removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), see thermowell<br />
Connection, fixed connection<br />
Neckpipe, with<br />
[6]: Diameter / length thermowell, 6mm / 90 mm<br />
[N15]: Process connection, 1/2" NPT male <br />
[A]: Sensor, 1x Pt100, cat. B, (-70..+250 °C) <br />
[3]: Wiring, 3 wires <br />
[I]: Terminal head, screw cap with chain, st. steel 1.4401<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-W-8-N15-G-3-G-A-0 (500mm)<br />
[MWD-W]:<br />
Version: For mounting in thermowell, insert filled with MgO, removable<br />
Protective tube material: st.st. 1.4404<br />
Max. pressure: see thermowell<br />
Connection:fixed connection<br />
Neck pipe: divisible<br />
HL= 150 mm<br />
Longitud de Inserción= 280 mm<br />
[8]:Measuring insert diameter /8 mm <br />
[N15]: Process connection, 1/2" NPT male <br />
[G]: Sensor, 1x Pt100, cat. A,  (-70..+400 °C) <br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium <br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D <br />
[0]: Options, without
