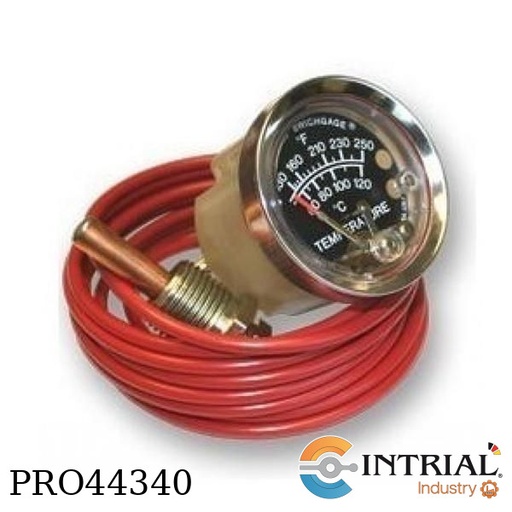

TEMPERATURE SWICHGAGE<br />
Brand: MURPHY<br />
Part. Number: 10701401

TEMPERATURE SWICHGAGE<br />
Brand: MURPHY<br />
Part. Number: 10090146

TEMPERATURE GAGES<br />
Brand: MURPHY<br />
2.5"<br />
Range: 180 – 350°F (82 – 177°C)<br />
Part. Number: 10703887

THERMOSTAT NON-PROGRAMABLE<br />
BRAND: HONEYWELL<br />
2H/2C<br />
BACKLIT<br />
DIGITAL<br />
MULTI STAGE<br />
HORIZONTAL MOUNT<br />
HARDWIRED OR BATTERY<br />
TEMP RANGE 40 F- 99 F<br />
OPERATING HUMIDITY 5 TO 90% RH NON-CONDENSING<br />
AMERAGE 0.02-1/WATTAGE 0.4 TO 30<br />
PREMIER WHITE

CONTROLADOR DIGITAL ENTRADA 1 SONDA DIGITAL<br />
Marca: HACH<br />
Aberturas de los conductos: 1/2" Conducto NPT<br />
Comunicación:Standard (2x 4-20 mA outputs)<br />
Comunicación: digital: MODBUS RS232/RS485, PROFIBUS DPV1 opcional<br />
Condiciones de almacenamiento: -20 °C - 70 °C<br />
Fuente de alimentación: Without power cord<br />
Funciones de relé: Alarma, Temporizador, Control de alimentador, Control PWM o FM, Sistema de alarma<br />
Pantalla: Gráfica LCD con retroiluminación LED, transreflectiva<br />
Protección de la carcasa (IP): IP66 / NEMA 4X<br />
Rango de temperatura de operación: -20 - 60 °C a 0 - 95% humedad relativa (sin-condensación)<br />
Requisitos de alimentación (Hz): 50 - 60 Hz<br />
Requisitos de alimentación (voltaje): 100 - 240 V CA<br />

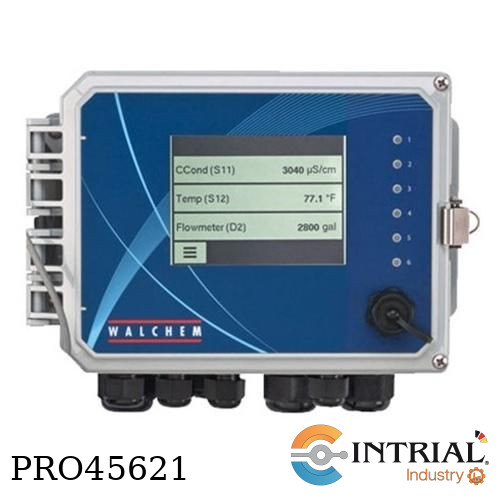

CONTROLADOR PARA TORRE DE ENFRIAMIENTO<br />
Marca: WALCHEM<br />
Set Point de encendido/apagado<br />
Control de tiempo proporcional<br />
Control de pulso proporcional (cuando se adquiere con relés de estado sólido)<br />
Activación En rango o Fuera del rango<br />
Activación basada en el temporizador<br />
Lavado de sensor<br />
Activación basada en el estado de un contacto cerrado<br />
610H =2 relés energizados, 4 relés secos, conectados directamente<br />
6 A (resistiva), 1/8 HP (93W) por relé<br />
Corriente 100-240 VCA, 50 ó 60 Hz, 7A máx<br />
Fusible: 6.3 Amp<br />
SS=Dos tarjetas de entrada de sensor<br />
A= 01 tarjeta dual de salida analógica (4-20 ma)<br />
Carga resistiva máx. de 600 ohmios<br />
Resolución 0.0015% de alcance, Precisión ± 0.5% de lecturas<br />
N= Sin Tarjeta Ethernet con Modbus TCP<br />
NN=No tierne sensor (Sensores por separado)<br />
- Cubierta :Policarbonato<br />
- Grado de protección :NEMA 4X o IP65<br />
- Display :2 x 16 caracteres con retroiluminacion de cristal liquido

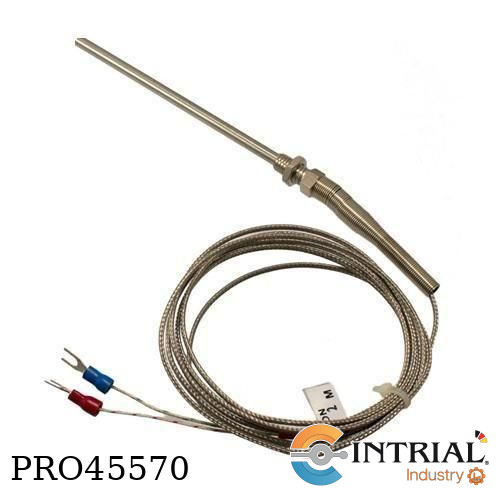

SLEEVE TEMPERATURE SENSOR<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
Class B,<br />
3-wire, stainless steel sleeve ø 5 x 152 mm<br />
with welded ring<br />
with pressure spring and bayonet cap<br />
with 5129 mm connection cable<br />
PFA, 3-wire<br />
covered with 4900 mm<br />
corrugated ring hose<br />
229 mm free ends with<br />
forked cable lugs<br />
similar to your potos

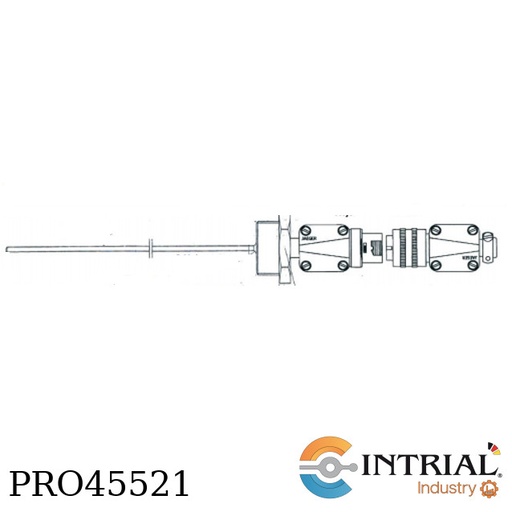

<strong>Screw-in temperature sensor<br />
Brand: Intrial(Made in Germany)<br />
Model: </strong>PRO45521<br />
1 x Pt 100 Ohm DIN EN 60751, class B, <br />
protection tube ø 3±0,2 x 800 mm, material <br />
stainless steel, with compression fitting G1/2", <br />
with connected connector M12 x 1, with <br />
counter plug and with 15.000 mm connection <br />
cable PTFE/Cu-shield nickel-plated/PTFE <br />
(cable no. 98B), 3-wire, , temperature range: <br />
-40 to +200°C, like to your drawing

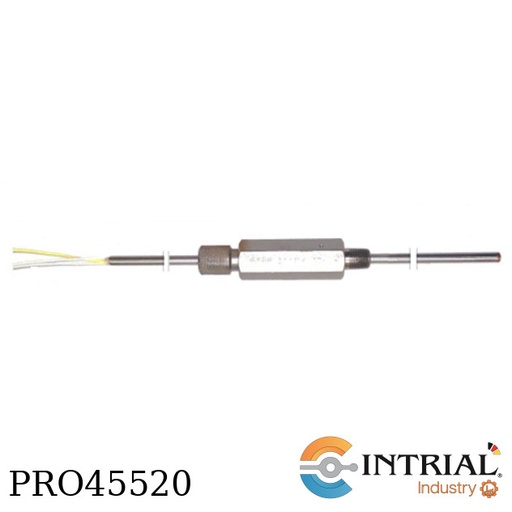

<strong>Screw-in temperature sensor<br />
Brand: Intrial(Made in Germany)<br />
Model: </strong>PRO45520<br />
1 x Pt 100 Ohm DIN EN 60751, class B, <br />
3-wire, protection tube ø 4,8 x 285 mm, <br />
material stainless steel, spring loaded <br />
compression fitting 1/8 "NPT, with transition <br />
sleeve, with 15.000 mm single strands open <br />
stranded, 2 x red/white (cable no. 153A), with <br />
free ends, temperature range: -50 to +260°C, <br />
like to your drawing

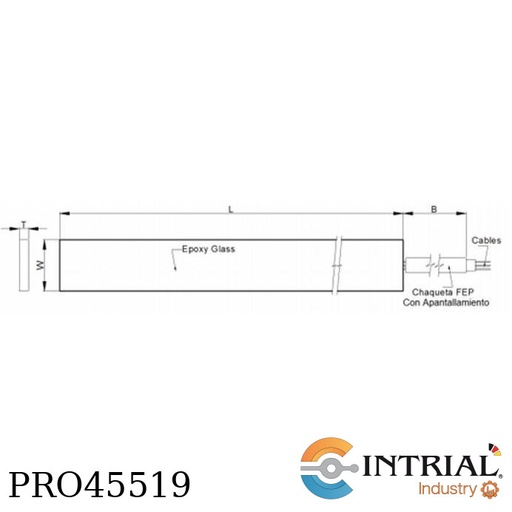

<strong>Slot resistance thermometer<br />
Brand: Intrial(Made in Germany)<br />
Model: </strong>PRO45519<br />
1 x Pt 100 Ohm DIN EN 60751, cl. B, 3-wire, <br />
4+0,1/-0,2 x 20,6±0,5 x 1670±2 mm, material <br />
Veronit G-11, with 12.000 mm connecting <br />
cable PFA/Cu-shield nickel-plated/PFA (cable <br />
no. 98B), with free ends, temperature range: <br />
-40 to +155°C, similar to your drawing

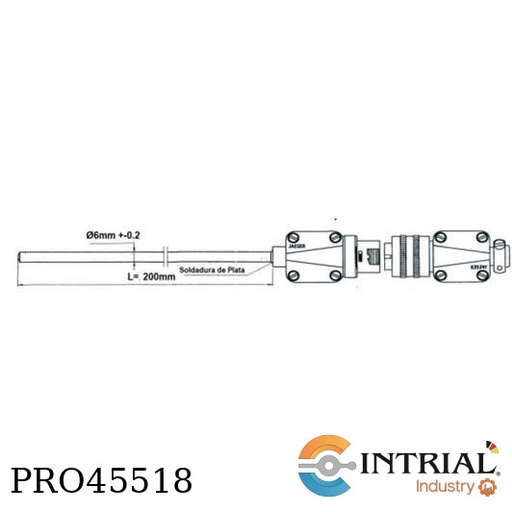

<strong>Screw-in temperature sensor<br />
Brand: INTRIAL(Made in Germany)<br />
Model: </strong>PRO45518<br />
1 x Pt 100 Ohm DIN EN 60751, class B, <br />
protection tube ø 6±0,2 x 200 mm, material <br />
stainless steel, with compression fitting G1/4", <br />
with connected connector M12, with counter <br />
plug, with 15.000 mm connection cable <br />
PTFE/Cu-shield nickel-plated/PTFE (cable <br />
no. 98B), 3-wire, with connected connector <br />
M12, temperature range: -40 to +200°C, like <br />
to your drawing

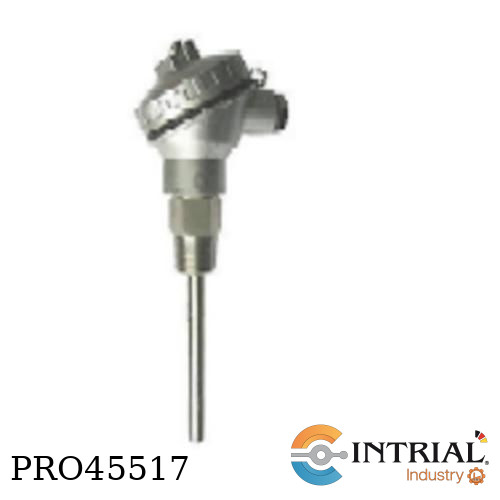

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: Intrial (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
Class B, <br />
2-wire<br />
Protective tube ø 6 mm<br />
Length 35 mm<br />
Material Stainless steel<br />
Process connection 1/2" NPT<br />
Connection head form KNE<br />
Temperature range: -50 to +400°C

TEMP/HUMIDITY TRANSDUCER<br />
BRAND: AUTONICS<br />
WALL MOUNT<br />
100MM SENSING POLE<br />
4-20MA OUTPUT<br />
24VDC POWER <br />

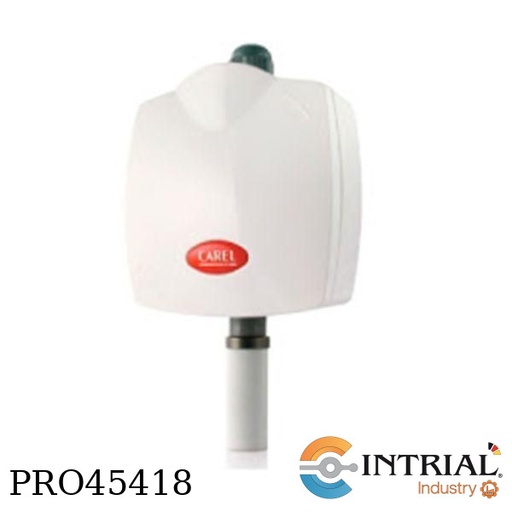

REPLACEMENT INDUSTRIAL HUMIDITY<br />
Brand: CAREL<br />
Temperature (0…100%Hr)  <br />
Humidity (-20T70ºC)<br />
Alimentación seleccionable 8…32 Vcc/ 12…24 Vac<br />
Salida seleccionable 0…1Vcc/-0,5...1Vcc/4-20mA

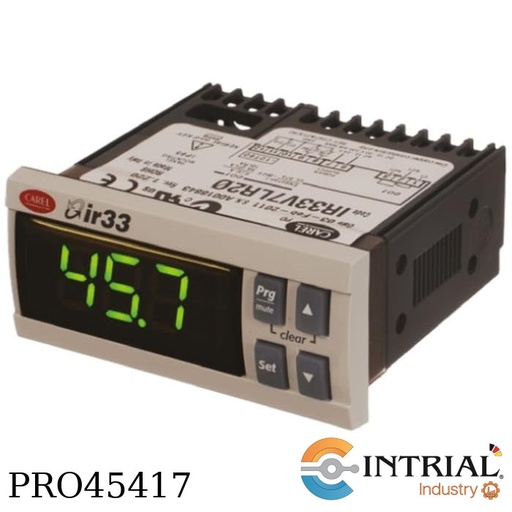

PID TEMPERATURE CONTROLLER<br />
BRAND: CAREL<br />
4 OUTPUT RELAY<br />
24 V AC/DC<br />
115-230VAC<br />
PANEL MOUNT

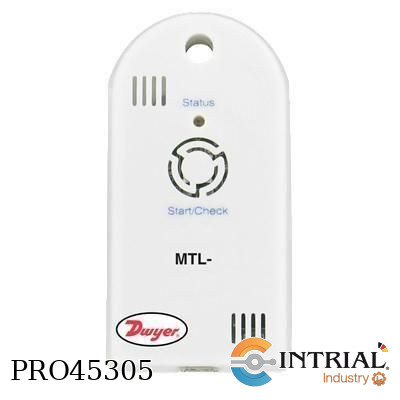

MINIATURE USB DATA LOGGER<br />
Input type: Temperature/Humidity/Dew Point<br />
MARCA: DWYER INSTRUMENTS<br />
SPECIFICATIONS<br />
Temperature Range: MTL20: -40 to185°F (-40 to 85°C), 0% to 99% RH(non condensing).<br />
Accuracy: MTL20: ±1°F (±0.5°C); MTL30: ±1°F (±0.5°C), ±2% RH from10% to 90% RH.<br />
Resolution:  Non-LCD models: 0.01°F (0.01°C), 0.01% RH; LCD models: 0.1°F (0.1°C), 0.1% RH.<br />
Memory Size: 43,344 temperature; 21,672 each temperature and RH.<br />
Sampling Mode: Stop on memory full or memory rollover for continuous recording.<br />
Sampling Rate: 1 s to 18 hrs.<br />
Computer Requirements: Windows® based application software included.<br />
Power Requirements: 3 V CR2032 lithium metal battery, installed  functional, user replaceable.<br />
Alarms: Programmable high/low.<br />
Interface: USB port (cable included).<br />
Weight: 1 oz (28 g).<br />
Agency Approvals: CE.<br />
NO DISPLAY

MINIATURE USB DATA LOGGER<br />
Input type: Temperature/Humidity/Dew Point<br />
MARCA: DWYER INSTRUMENTS<br />
SPECIFICATIONS<br />
Temperature Range: MTL20: -40 to185°F (-40 to 85°C), 0% to 99% RH(non condensing).<br />
Accuracy: MTL20: ±1°F (±0.5°C); MTL30: ±1°F (±0.5°C), ±2% RH from10% to 90% RH.<br />
Resolution:  Non-LCD models: 0.01°F (0.01°C), 0.01% RH; LCD models: 0.1°F (0.1°C), 0.1% RH.<br />
Memory Size: 43,344 temperature; 21,672 each temperature and RH.<br />
Sampling Mode: Stop on memory full or memory rollover for continuous recording.<br />
Sampling Rate: 1 s to 18 hrs.<br />
Computer Requirements: Windows® based application software included.<br />
Power Requirements: 3 V CR2032 lithium metal battery, installed  functional, user replaceable.<br />
Alarms: Programmable high/low.<br />
Interface: USB port (cable included).<br />
Weight: 1 oz (28 g).<br />
Agency Approvals: CE.<br />
NO DISPLAY

Reflex Sensor with Background Suppression<br />
Brand: Wenglor<br />
Range: 500 mm<br />
Supply Voltage: 10 ... 30 V DC<br />
Current Consumption (Ub = 24 V): 30 mA<br />
Switching Frequency: 1 kHz<br />
Housing Material: Plastic<br />
Connection: M12 × 1; 4-pin

Reflex Sensor with Background Suppression<br />
Brand: Wenglor<br />
Range: 60…300 mm<br />
Supply Voltage: 10 ... 30 V DC<br />
Current Consumption (Ub = 24 V): 30 mA<br />
Switching Frequency: 1 kHz<br />
Housing Material: Plastic<br />
Connection: M12 × 1; 4-pin

TEMPERATURE SENSOR WITH DISPLAY<br />
BRAND: IFM<br />
LARGE TEMPERATURE EVALUATION RANGE<br />
PROGRAMMABLE SWITCHING OUTPUT<br />
WITH IO-LINK AND SCALABLE ANALOGUE OUTPUT<br />
3-PUSH BUTTON CONTROL<br />
RED/GREEN DISPLAY
