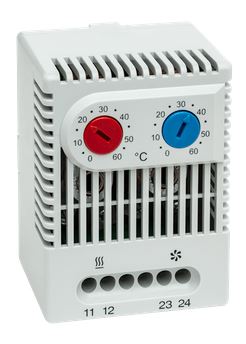

TERMOSTATO DOBLE
Marca: STEGO
Modelo: 01172.0-00
Serie, ZR 011
Rango de ajuste, 0 °C - 60 °C
Contacto normalmente cerrado (NC) Contacto normalmente abierto (NO)
Tolerancia máxima de la tensión de funcionamiento, AC 250 V (VDE), AC 120 V (UL) V
Potencia mínima de conmutación, 0,48 W
Tensión mínima de referencia, 24 V

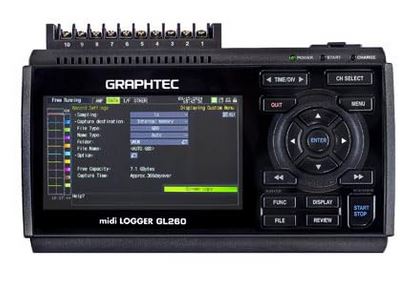

MULTI-CHANNEL DATA LOGGER
Brand: GRAPHTEC
Model: GL260
Number of analog input channels: 10 channels
External input:
- Trigger or Sampling (1 channel), Logic/Pulse (4 channels)
- Voltage range: Up to 24V (common ground)
- Signal type: Voltage, Open collector, Contact (relay)
- Threshold: Approx. + 2.5 V (Hysteresis: Approx. 0.5V (2.5V to 3V))
External output:
- Alarm (4 channels)
- Output signal: Open collector (pull-up to 5V by 10kΩ resistor)
- <Maximum rating of the output transistor>
- Voltage: Max. 30V
- Current: Max. 0.5A
- Collector dissipation: Max. 0.2W
Power source:
AC adapter: 100 to 240 V AC, 50/60 Hz (1 pc of adapter is attached as standard accessory)
DC power: 8.5 to 24 V DC (DC drive cable (option B-514) is required)

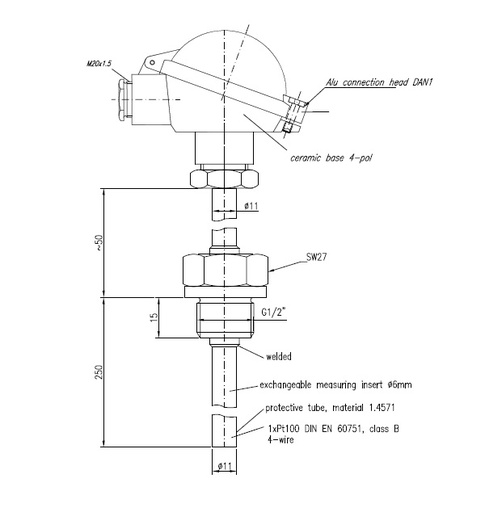

SCREW-IN RESISTANCE THERMOMETER
Brand: HEINZ
Model: R254-11X220/50.G1/2".DAN.4L
1x Pt100 DIN EN 60751, class B, 4-wire, protection tube ø11 mm, installation length 250 mm, neck tube length 50 mm, material 1.4571, with screw connection G1/2’, SW27, material 1.4571, with connection head DAN, with exchangeable measuring insert ø6 mm, with 4-pole ceramic base, temperature range: -50 to +300°C

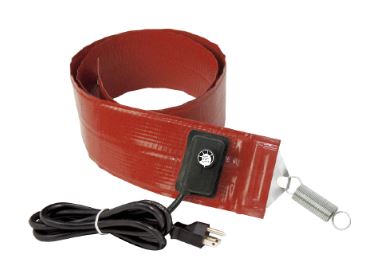

HEAVE-DUTY SILICONE RUBBER DRUM HEATER
Brand: BRISKHEAT
Model: DHCS25
With adjustable thermostat control
240 VAC
1200 W
Size 55 gal(208L)

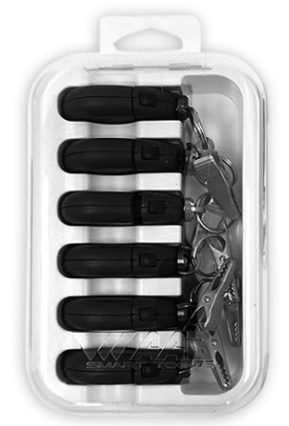

TEMPERATURE & HUMIDITY DATA LOGGER
Brand: CPS
Model: TS-100-6PK
Includes a 1/4 in.-20 metal D-ring connector, key chain split-ring and alligator clip for mounting in various configurations
Operational temperature range: -4F to +158F (-20C to +70C)
Temperature accuracy: 0.36F, (0.2C)
Relative Humidity Range: 0-85%
Relative Humidity Accuracy: 3%
Rugged, weather resistant housing
Power supply: 3V, CR 2450 Coin Cell Lithium Battery
Compatible with EXP-64 Extension Pole and TRI-MIN Tripod for convenient readings
Data Log stores the last 20,000 temperature and humidity readings that can be uploaded to a smart device for review
Compatible with the CPSLink App
On screen guidance to accurately measure and record test data:
E-mail professional reports for work completed and location
Client Lists
Select from 4 languages to work in (English, French, Spanish, German)

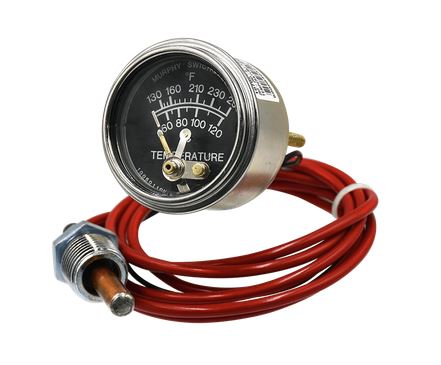

TEMPERATURE SWICHGAGE
Brand: MURPHY
Model: A25TE-OS-250-20-1/2
P/N: 10707175
[A25TE]: Base model
[OS]: Option, Oil sealed (silicone oil)
[250]: Range, 130-250 °F (60-121 °C)
[20]: Temperature capillary, 20 ft.
[1/2]: Adapter nuts, 1/2-14 NPT

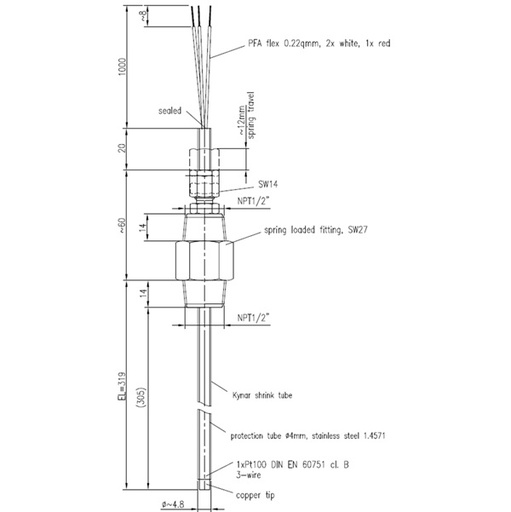

Screw-in temperature sensor
Brand: INTRIAL
Model: PRO62395

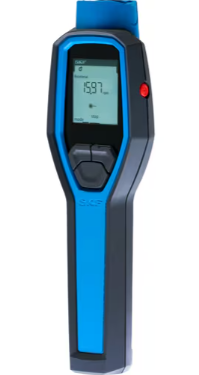

TACOMETRO DIGITAL
Marca: SKF
Modelo: TKRT-21
Pantalla: Pantalla LCD
Tipos de medición: Actual, Mínima, Máxima, Media, Total
Método de medición óptica: Láser incorporado
Tipo de láser: Láser de línea roja visible
Longitud de onda del láser: 650 nm
Potencia máx. del láser: 1 mW
Duración de la batería: 12 h
Grado de protección (IP): IP40

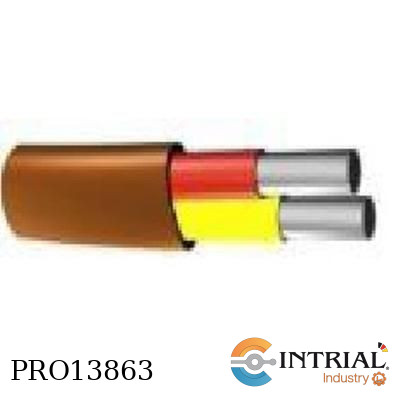

CABLE PARA TERMOCUPLA TIPO "K"
CALIBRE DE 2 X 20 AWG
FORRO DE FIBRA DE VIDRIO
CHAQUETA DE FIBRA DE VIDRIO
MALLA ACERO INOXIDABLE
MARCA: TERMO ELECTRIC - AMERICANO

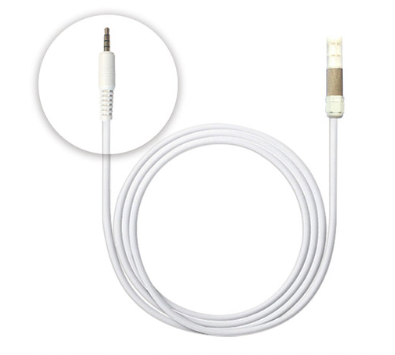

SONDA EXTERNA DE HUMEDAD Y TEMPERATURA PARA MODELOS GS1 & SP1
Marca: UBIBOT
Modelo: TH30S-B-3M-R-Audio
Temperatura: -40°C a 80°C
Humedad: 0 a 100%RH

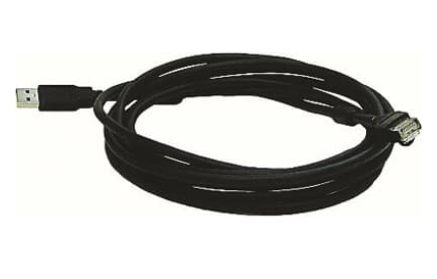

CABLE USB PSTX PSCA-1
Marca: ABB
Modelo: 1SFA899314R1001
CABLE USB PSTX para conectar el arrancador suave PSTX al ordenador
Temperatura ambiente:
Funcionamiento -25 ... +60 °C
Almacenamiento -40 ... +70 °C

USB-Kabel
Marca: JUMO
Modelo: 00616250
A-Stecker auf Micro-B-Stecker

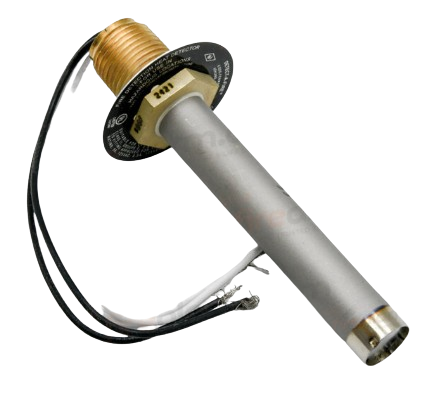

HEAT DETECTOR
Marca: KIDDE FENWAL
Model: 12-E27121-000-03
Class I, Groups B,C&D
Class Ii, Groups E,F&G
Rating: 5A, 125Vac; 0.5A, 125Vdc; 2A, 24Vdc; 1A, 48Vdc
Detector Fire Protection Heat 160˚F/71˚C
