<strong>GAS FILLED THERMOMETER WITH BACK CAPILLARY ENTRY<br />
Brand: JAKO</strong><br />
Case :96 x 96mm, square<br />
Mounting: Front flange, flush panel mount with U-clamp<br />
Case Material: Glassfibre reinforced black plastic (Noryl)<br />
Window : Plexiglass<br />
Case filling: None<br />
Range: 0-100 °C<br />
Accuracy: Class 1,0%<br />
Capillary length: 15.000 mm<br />
Armour material: None<br />
Stem diameter: ø 6,35 mm<br />
Stem Length: 96 mm<br />
Connection size: 1/2"BSP<br />
Connection type: CS2, Sliding compression, on capillary, PN25<br />
Contact: M-33 Hz, double magnetic, DPDT<br />
Specifications: circuits sepatrated<br />
Cable :2.000 mm<br /><br />
NOTA: La información brindada "CAP TH Q96 0-100 00/96 / 6,4 M33 15M" no es un código para identificación del equipo exacto.<br />
La única descripción de los artículos es por ejemplo el caso del producto ofrecido: 377637712722242.<br />
Por ello le pedimos que verifique las especificaciones técnicas mencionadas en la oferta y si esta conforme

REMOTE MOUNT TEMPERATURE SWITCHES<br />
Brand: BARKSDALE<br />
[T2] Switch; Dual switch 2 independent SPDT<br />
[H] Enclosure; NEMA 4 enclosure<br />
[M] Limit Switch; 10 amps @ 125/250 VAC; 3 amp @ 480 VAC; 0.5 amps @ 125 VDC; 0.25 amps @ 250 VDC<br />
[251] Temperature Range; Adjustable Range(Low+10, High+121 C°), Media Temperature Limit (Proof) (Low-73, High+149 C°), Differential (Approx.) Liquid (.5 to 1.1 C°)<br />
[S] Wetted Material; 304 stainless steel<br />
[A]; Options; 302 stainless steel armor

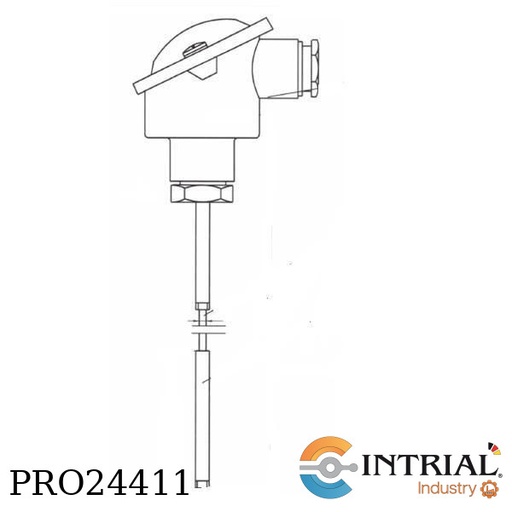

MANTEL-WIDERSTANDSTHERMOMETER<br />
Brand: SCHENK <br />
2 x Pt100, 4-wire, aee. DIN lEC 751/B<br />
Length: 1200 mm<br />
Case: D=3 mm, stainless steel<br />
Sensing element: D=6mm x 60mm Ig<br />
stainless steel<br />
Conneetion Head Form B

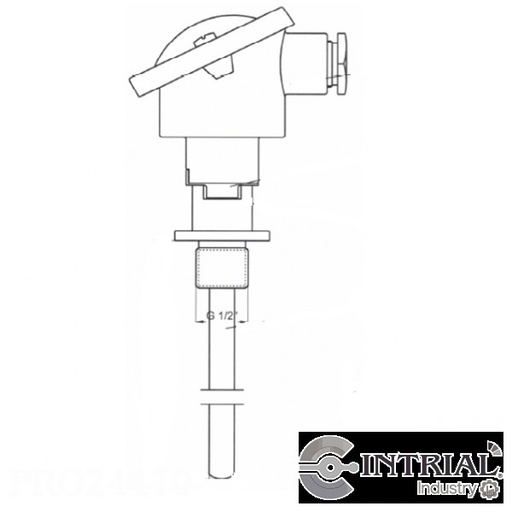

SCREW-IN THERMOMETER   <br />
Brand: SCHENK <br />
2 x Pt100, 4-wire, aee. DIN lEC 751/B<br />
Head Form B<br />
Proteetion tube: D=10x1 mm, stainless steel<br />
Fitting length: 160 mm<br />
Thread: G 1/2-1/2, Material MS-58<br />
with Locking Deviee

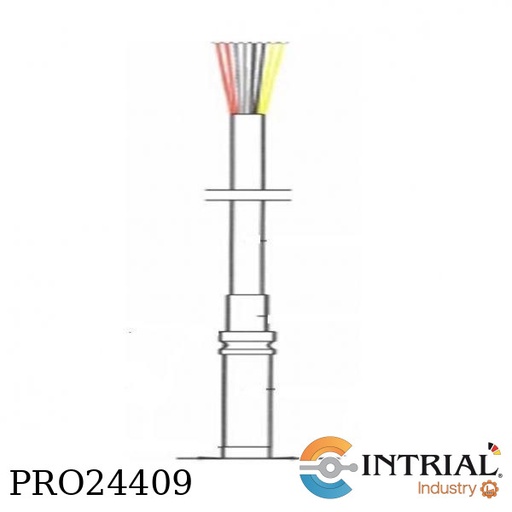

CABLE THERMOMETER    <br />
Brand: SCHENK   <br />
2 x Pt100, 4-wire, acc. DIN lEC 751/B<br />
Protection tube: D 6 x 60 Ig, stainless steel<br />
Cable.: Teflon FEP, 8 x 0.14 mm2-, 20 m<br />
thermical class 'F' (155°C)<br />
Isolation test 1.5 kV AC (2.6 kV DC)

NIVOTEMP NT 61<br />
Brand: BUHLER TECHNOLOGIES <br />
Model designation: NT 61<br />
Version MS Brass<br />
Plug connector: S6<br />
Length in mm: 370<br />
Level measurement: 2 Number of contacts<br />
Level contact: K Model K10  (NC/NO)

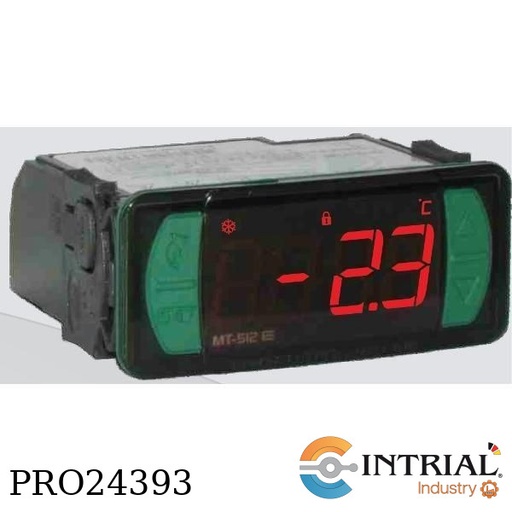

Modelo : MT-512E 2HP<br />
Controlador de temperatura Digital FULL<br />
Alimentación : 115 o 230 Vac ±10%* (50/60 Hz)<br />
Temperatura de control : - 50 a 105°C (-58 a 221°F)<br />
Temperatura de operación : 0 a 50°C / 32 a 122°F<br />
Resolución : 0,1 °C (-10 a 100 °C) y 1°C en lo restante de la faja<br />
Grado de protección : IP 65 (frontal)

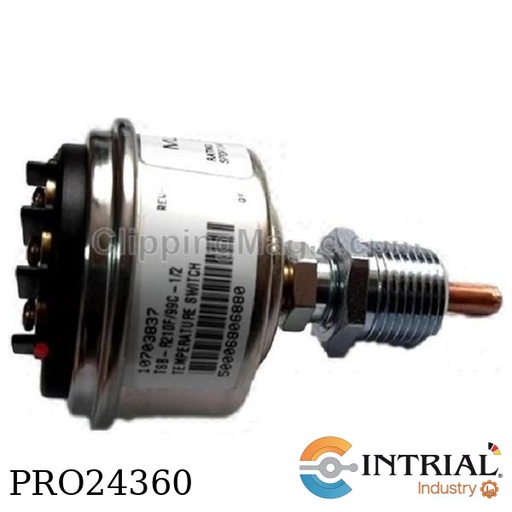

TEMPERATURE SWITCH<br />
Band: FW MURPHY<br />
Housing: Plated steel.<br />
Connections: 1/2 NPT<br />
Diaphragm: Formed beryllium copper (heat treated).<br />
Sensing Bulb: Copper.<br />
Terminal Block: Three # 4-40 screws.<br />
Factory Trip Point Setting: 210°F (99°C)Rising.

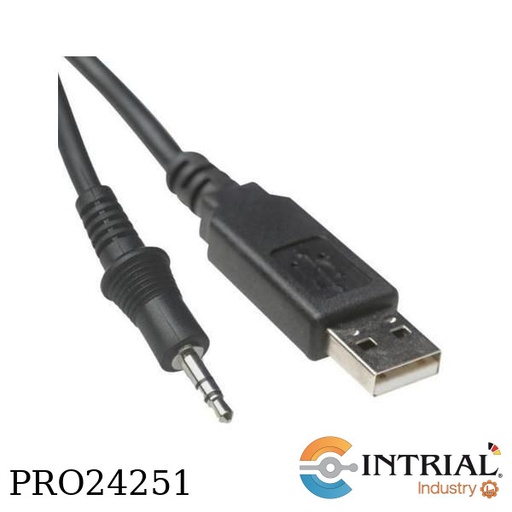

CAB-0005-USB; CABLE DE INTERFASE<br />
Marca GEMINI (Ing.)<br />
Para descarga de data a PC; c/conector USB

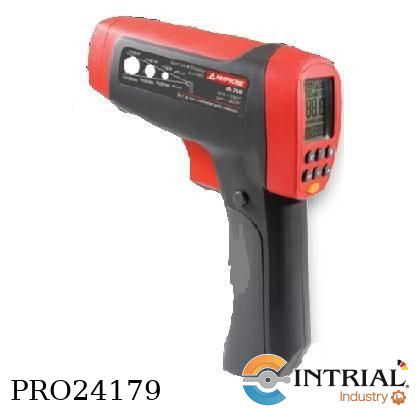

Pirometro infrarrojo<br />
Marca: Amprobe<br />
Modelo: IR-710<br />
Rango de temperatura: -18°C a 380°C

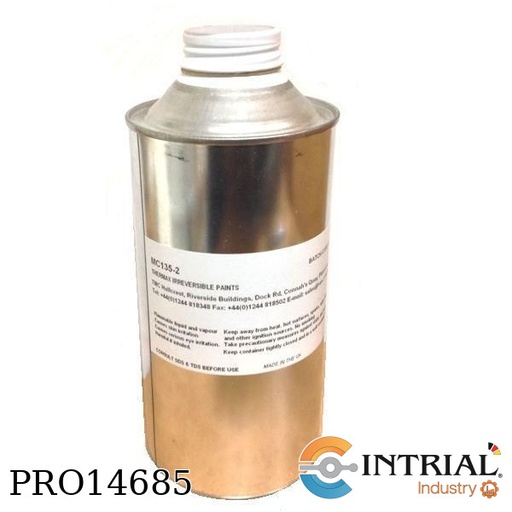

MULTI CHANGE PAINT MC135-2 (1L)<br />
Brand: THERMAX<br />
1L of paint has 2 changes of color<br />
1st temp change form pink to blue<br />
10 min@135°C/275°F; 20 min@130°C/266°F; 60 min@125°C/257°F;<br />
120 min@122°C/252°F; 300 min@120°C/248°F; 900 min@117°C/243°F;<br />
2880 min@116°C/241°F<br />
2nd temp change from blue to grey<br />
10 min@315°C/599°F; 60 min@275°C/527°F;<br />
180 min@243°C/469°F<br />
Non-Reversible Multi-Change Indicating Thermal Paint

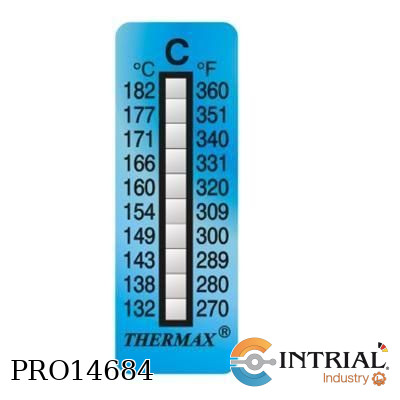

NON-REVERSIBLE 10 LEVEL TEMPERATURE LABEL<br />
Brand: THERMAX<br />
270°F~360°F (132°C~182°C)<br />
Generates Permanent Record of Max Temperature<br />
Pack of 10

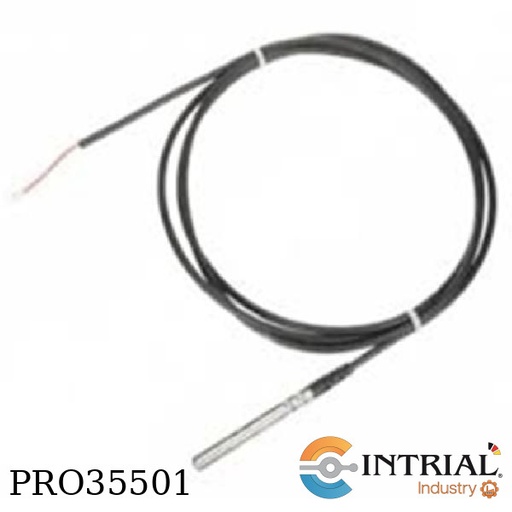

TEMPERATURE SENSOR<br />
Brand: CAREL<br />
Length: 12m<br />
Storage conditions: -50T105 °C<br />
Operating range: -50T105 °C<br />
Connections: Stripped ends, dimensions 5±1mm<br />
Sensor: NTC 10 kΩ ±1% a 25 °C Beta 3435<br />
Dissipation factor (in air): ca. / approx. 7 mW/°C<br />
Thermal constant over time (in air):  ca. / approx. 10 s<br />
Cable: Two-wire with double sheath, AWG22, OD 3.5 mm max<br />
Sensitive element index of protection: IP67<br />

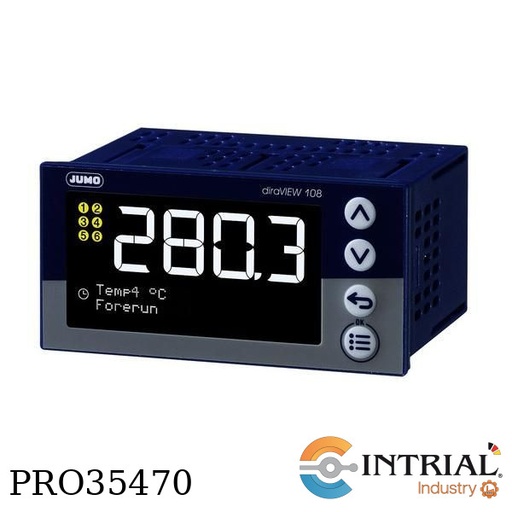

TEMPERATURE CONTROLLER<br />
Brand: JUMO<br />
diraVIEW 108 (size 96x48 mm, 1x analog input, 2x relay, 1x DI, 1x DI/DO)<br />
Version Standard with default settings<br />
Option 1 Not to be used<br />
Option 2 1 analog output (configurable)<br />
Option 3 Not to be used<br />
Option 4 Not to be used<br />
Voltage supply AC 110..240V +10/-15%,48..63Hz<br />

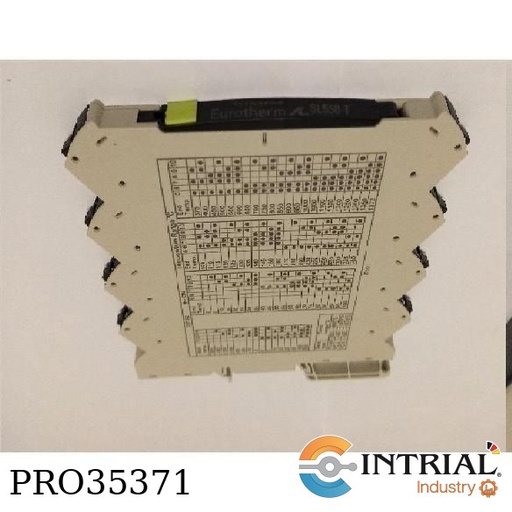

TEMPERATURE CONVERTER LOOP <br />
Brand: NVENSYS EUROTHERM CONTROLS<br />
Specifications range: –25°C to +70°C<br />
Storage temperature: –40°C to +85°C<br />
Calibration temperature: 20...28°C<br />
Relative humidity: < 95% RH (non-cond.)<br />
Protection degree: IP20 / EN60529<br />
Installation: pollution degree 2 and overvoltage<br />
category II.  Supply voltage, DC: 8...35 VDC<br />
Voltage drop 8 VDC<br />
Power consumption, max: 1 W<br />
Internal consumption, max: 0.65 W<br />
Isolation voltage, test: 2.5 kVAC (reinforced)
<div>
<div class="gtx-trans-icon"></div>
</div>

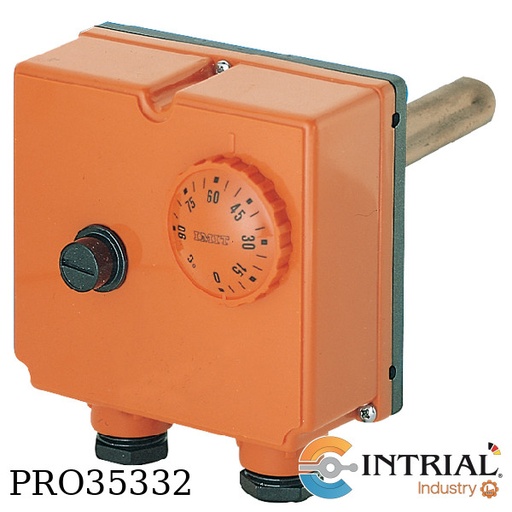

TERMOSTATO TLSC<br />
Marca: IMIT<br />
Rango de temperatura: 0 a 90 °C<br />
Contactos NA/NC: 10 Amp 250 Vca.<br />
Contactos/acometida: M20 x 1,5 mm.<br />
Contra vaina: Rosca ½" longitud 100 mm diámetro Ø16 mm.<br />
Caja plástica alta visibilidad IP40.<br />

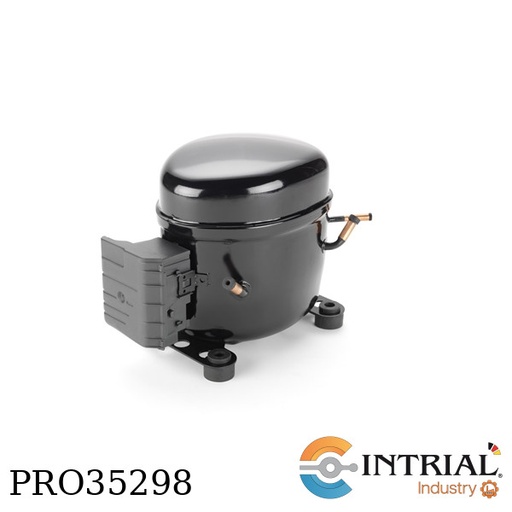

COMPRESOR RECÍPROCO<br />
Fabricante: TECUMSEH<br />
R134A<br />
115V<br />
60HZ

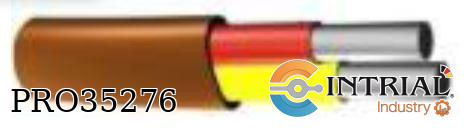

CABLE PARA TERMOCUPLA TIPO "K"<br />
CALIBRE DE 2 X 20 AWG<br />
FORRO DE FIBRA DE VIDRIO + MALLA ACERO<br />
INOX.C/FILAMENTO SOLIDO

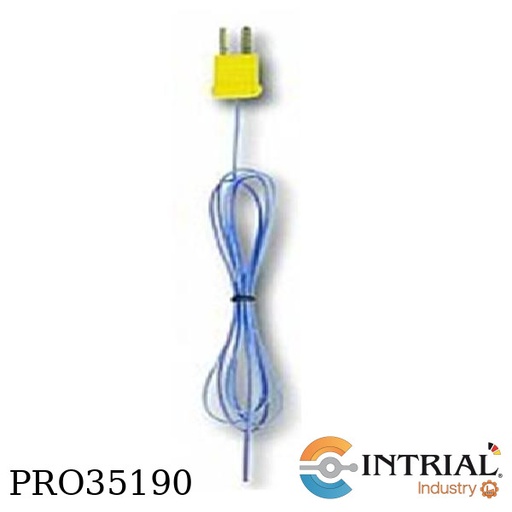

TYPE K TEMPERATURE PROBE<br />
Brand: LUTRON

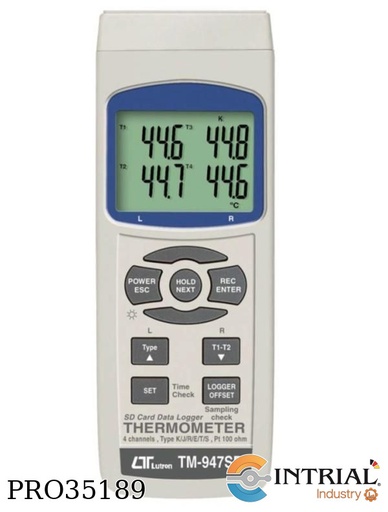

4 CHANNELS THERMOMETER<br />
Brand: LUTRON<br />
Operating Temperature: 0 to 50 ℃.<br />
Operating Humidity: Less than 85% R.H.<br />
Power Supply: AAlkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.<br />
ADC 9V adapter input. ( AC/DC power adapter is optional ).<br />
Power Current: Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 8.5 mA.<br />
SD card capacity : 1 GB to 16 GB.<br />
LCD with green light backlight, easy reading.<br />
Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.<br />
Pt 100 ohm : -199.9 to 850.0 ℃.<br />
℃/℉, 0.1 degree/1 degree.<br />
4 channels ( T1, T2, T3, T4 ), T1-T2.<br />
