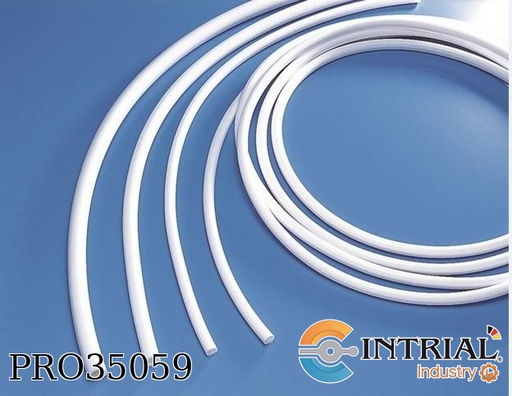

PTFE Tubing – Industrial and Heavy Wall Tubing<br />
 Tube Outside Diameter: 0.25 inch, 6.35 mm<br />
Tube Inside Diameter: 0.19 inch, 4.83 mm<br />
Tube Wall Thickness: 0.031 inch, 0.79 mm<br />
Maximum Operating Pressure: 130 psi, 9 bar<br />
Minimum Burst Pressure: 520 psi, 36 bar<br />
Minimum Bend Radius: 1 inch, 25 mm<br />
Minimum Operating Temperature: -100 °F, -75 °C<br />
Maximum Operating Temperature: 500 °F, 260 °C<br />
Compatible Fitting: Compression, Compression-Align®, TrueSeal<br />
Color: Natural<br />
Tube Material: PTFE<br />
Specifications Met: AMS 3653E; FDA Compliant; USP Class VI Compliant; RoHs<br />
Application: Fluid Transfer, Food & Beverage, Gas Sampling, High Temperature Applications, Laboratory, Life Science, Heat Exchangers<br />
Media: Adhesives, Chemicals, Water<br />
Length per Package: 100 ft

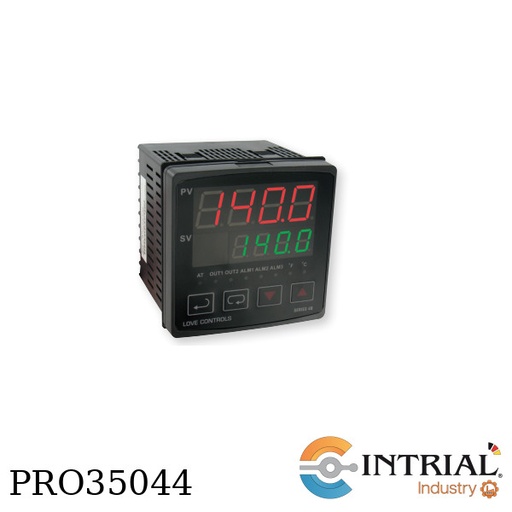

PROCESS AND TEMPERATURE CONTROLLER<br />
Brand: DWYER<br />
Supply Power: 100 to 240 VAC<br />
Output 1: Current<br />
Output 2: Relay

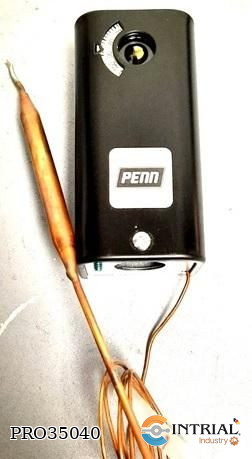

TEMPERATURE CONTROLS FOR REFRIGERATION<br />
Brand: JOHNSON CONTROLS<br />
A19 SERIES<br />
[A]: Remote bulb, NEMA 1<br />
[A]: Fixed differential<br />
[B]: Open high, standar differential<br />
Case Material, 1.6mm, cold Rolled Steel<br />
Conduit Openning 7/8" Diameter Hole for 1/2" Conduit<br />
Contact unit, Snap-Acting Contacts in Dusttight Enclosoure<br />
Cover Material 0.6mm, cold Rolled Steel<br />
Finish, Gray Baked Enamel<br />
30/110F<br />
3' 3/8"x5"BLB SPST

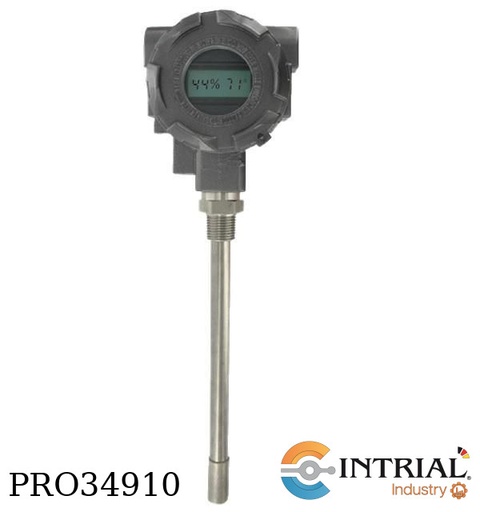

HAZARDOUS AREA HUMIDITY/TEMPERATURE TRANSMITTER<br />
Brand: DWYER<br />
Intrinsically Safe Humidity/temperatura with display<br />
Relative Humidity <br />
Range: 0 to 100% RH.<br />
Temperature Range: -40 to 140°F (-40 to 60°C)<br />
Accuracy: ±2% 10 to 90% RH, ±0.9°F at 72°F (±0.3°C at 25°C).<br />
Hysteresis: ±1%.<br />
Repeatability: ±0.1% typical.<br />
Temperature Limits: -40 to 140°F (-40 to 60°C).<br />
Storage Temperature: -40 to 176°F (-40 to 80°C).<br />
Compensated Temperature: -40 to 140°F (-40 to 60°C).<br />
Power Requirements: For intrinsically safe models HHT-IX, 9.5-28 VDC. <br />
Forexplosion-proof models HHT-EX, 16.5-28 VDC.<br />
Output Signal: 4-20 mA, 2 channels for humidity/temperature models (loop power on RH).<br />
Response Time: 15 s.<br />
Electrical Connections: Screw terminal block.<br />
Conduit Connection: 1/2 female NPT.<br />
Drift: < 1% RH/year.<br />
RH Sensor: Capacitance polymer.<br />
Temperature Sensor: Solid state band gap.<br />
Housing Material: Aluminum.<br />
Display: Optional 2 line alpha numeric, 8 characters/line. <br />
Temperature display is °F/°C selectable.<br />
Display Resolution: RH: 0.1%; <br />
Temperature: 0.1°F (0.1°C).<br />
Weight: 2 lb 8 oz (1134 g).<br />
Enclosure Rating: NEMA 4X (IP66). <br />
Models HHT-EX: FM Explosion- Proof<br />
Class I
<div>
<div class="gtx-trans-icon"></div>
</div>

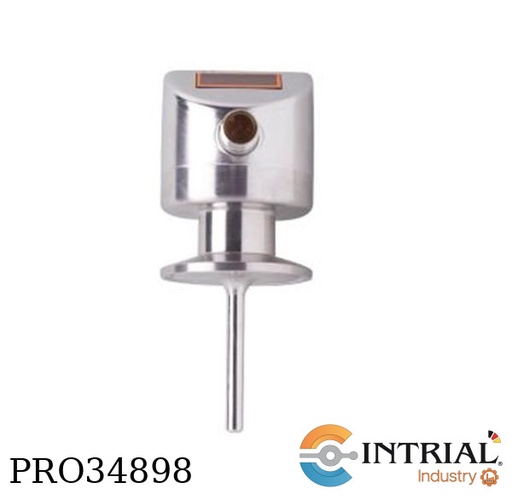

TRANSMISOR DE TEMPERATURA CON PANTALLA<br />
Marca: IFM<br />
Número de entradas y salidas Número de salidas analógicas: 1<br />
Rango de medición: -50...150 °C (-58...302 °F)<br />
Conexión de proceso: Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)<br />
Longitud de instalación EL [mm]: 50<br />
Elemento de medición: 1 x Pt 1000; (según DIN EN 60751, clase A)<br />
Fluidos: fluidos líquidos y gaseosos<br />
Resistencia a la presión [bar]: 100<br />
Resistencia al vacío [mbar]: -1000<br />

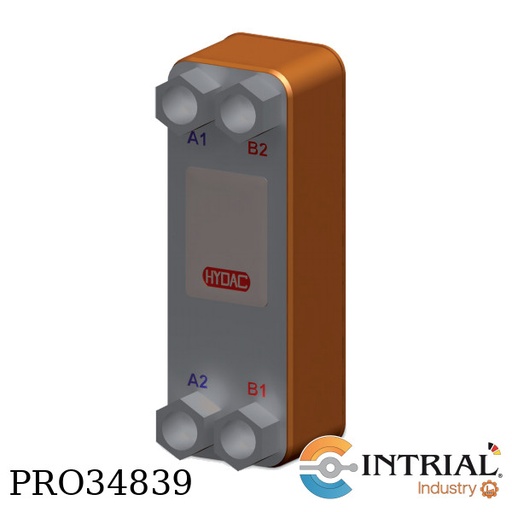

PLATE HEAT EXCHANGERS<br />
Brand: HYDAC<br />
Weight net: 5,5kg/pcs.<br />
No. 3366754<br />
4 x G1" female thread<br />
Plate material Stainless steel 1.4401 (AISI 316) <br />
Braze material Copper (standard), nickel <br />
Pressures Copper braze: max. 30 bar (test pressure 45 bar) <br />
Nickel braze: max. 10 bar <br />
Media <br />
Hydraulic oil, lubrication oil, rolling oil, engine oil <br />
HFC, HFA, HFD, pressure fluids <br />
Water, water glycol <br />
Refrigerant <br />
Use nickel-brazed plate heat exchangers with corrosive fluids: e.g. ammonia<br />
sulphides and sulphates, deionised or demineralised water Other fluids on request <br />
Temperature range up to +200 °C  (freezing point and boiling point must be taken into consideration) <br />

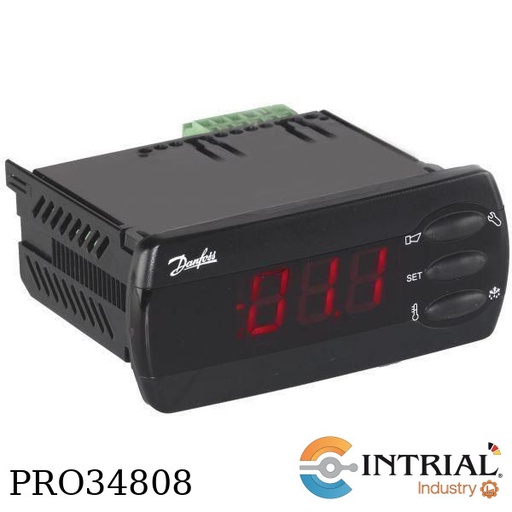

Controlador EKC 202C,<br />
4 Rele,<br />
No incluye Sensores<br />
Controlador de temperatura<br />
Marca: Danfoss<br />
Modelo: EKC 202C<br />
Alimentacion: 230Vac 60/50Hz<br />
Pantalla LED: 3 digitos<br />
Rango: -60 a 99°C<br />
Entradas: 2 sensores de temperatura<br />
Salida: 4 Reles<br />
Elemento sensor: PTC1000, Pt1000, NTC 5K<br />
Proteccion: IP65 Frontal

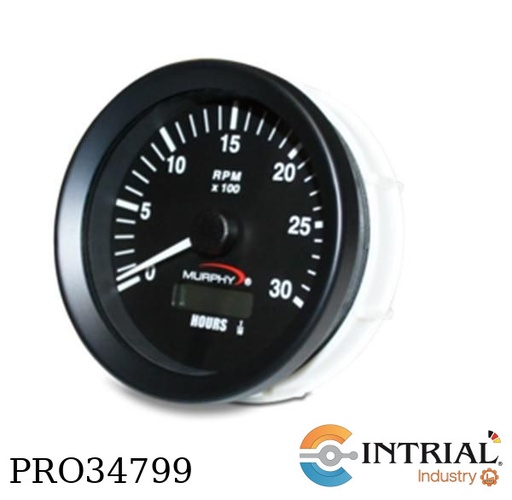

TACHOMETERS AND TACH/HOURMETERS<br />
Brand: MURPHY <br />
3000 rpm<br />
10-32 VDC<br />
0 to 99-999.1 hours<br />
LED Backlight<br />
Part Number: 20700251
<div>
<div class="gtx-trans-icon"></div>
</div>

<div>
<div class="gtx-trans-icon"></div>
</div>

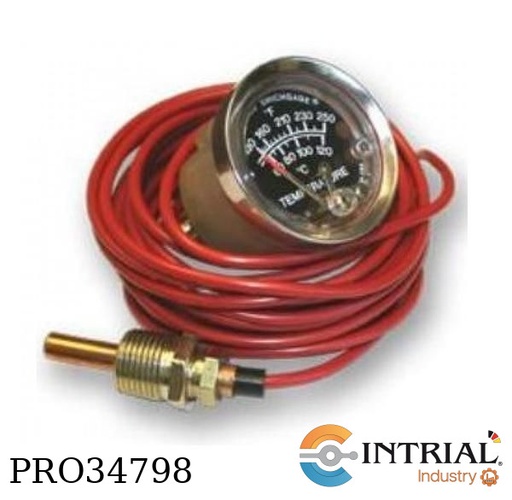

TEMPERATURE SWICHGAGE<br />
Brand: MURPHY<br />
Range: 130-250°F - 60-121°C<br />
Dial: White on black; U.S.A. standard scale is dual scale °F/°C<br />
Case: Glass filled/Polycarbonate, corrosion-resistant; steel mounting clamp included.<br />
Bezel: Polished stainless steel<br />
Pointer: Tempered nickel silver; red tip.<br />
Lens: Polycarbonate, high-impact.<br />
Sensing Element: Beryllium copper diaphragm.<br />
Capillary: PVC armored copper 25 ft.<br />
Unit Dimensions: 4-3/4 x 4-3/4 x 3 in. (121 x 121 x 76 mm)<br />
Part Number: 10703168
<div>
<div class="gtx-trans-icon"></div>
</div>

Brand : DWYER<br />
Model : 16L2034<br />
Selectable Inputs: 10 thermocouple, 4 RTD, DC voltage, or DC current selectable.<br />
Display: Two 4 digit, 7 segment 0.3˝ (7.62 mm) high LEDs.<br />
Accuracy: ±0.25% of span, ±1 least significant digit.<br />
Power Requirements: 100-240 VAC, nominal, +10 -15%, 50 to 400 Hz. single<br />
phase; 132-240 VDC, nominal, +10 -20%.<br />
Power Consumption: 5 VA maximum.<br />
Temperature Limits: 14 to 131°F (-10 to 55°C).<br />
Memory Backup: Nonvolatile memory. No batteries required.<br />
Output: Relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC inductive.<br />
Weight: 8 oz (227 g).<br />
Front Panel Rating: NEMA 4X (IP66).

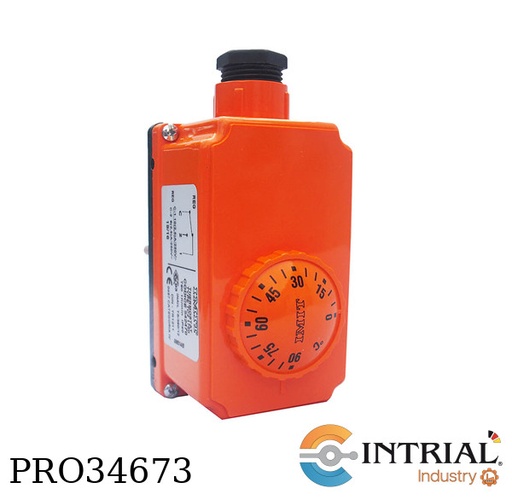

​TERMOSTATO<br />
Marca: IMIT<br />
Temperatura intervento: 0-90°C<br />
Max. Temperatura testa: 80°C<br />
Max. temperatura bulbo: 150 °C<br />
Grado de protección: IP 40

RING CABLE SHOE TEMPERATURE PROBE<br />
Brand: INTRIAL (MADE IN GERMANY)<br />
2 x Pt100 Ohm DIN EN 60751<br />
Class B suitable for M8<br />
Inner-ø 7 mm<br />
with 5000 mm connection cable <br />
Kapton/glass silk/VA-steel<br />
braided(cable no. 76A) 6-wire<br />
Crossing cable shoe/cable with shrinking hose <br />
Temperature range: -50 to +260°C
<div>
<div class="gtx-trans-icon"></div>
</div>

WINDING TEMPERATURE INDICATOR<br />
BRAND: QUALITROL CORPORATION
<div>
<div class="gtx-trans-icon"></div>
</div>

SENSOR PT-100 MINERAL SIMPLE 3 HILOS<br />
MARCA: INTRIAL<br />
largo total(recto 160mm.angular 76mm.) <br />
punta de inconell 600<br />
​abrazadera de montaje para cañería de 6", cabezal de aluminio grande.

SENSOR PT-100 MINERAL SIMPLE 3 HILOS<br />
MARCA: INTRIAL<br />
largo total(recto 140mm.angular 76mm.) <br />
punta de inconell 600<br />
​abrazadera de montaje para cañería de 4", cabezal de aluminio grande.

RELATIVE HUMIDITY & TEMPERATURE <br />
MARCA: EXTECH MFR<br />
MODEL: 445582 <br />
GRAINGER ITEM #4ZG12

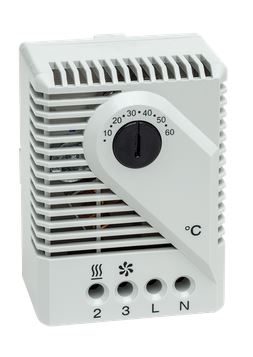

TERMOSTATO MECANICO
Marca: STEGO
Modelo: 01170.0-00
Serie, FZK 011
Tipo de contacto, contacto puente
Sensor bimetal, termostático
Rango de ajuste, 5 °C - 60 °C
Tensión mínima de funcionamiento, 230 V
Tolerancia máxima de la tensión de funcionamiento, 250 V

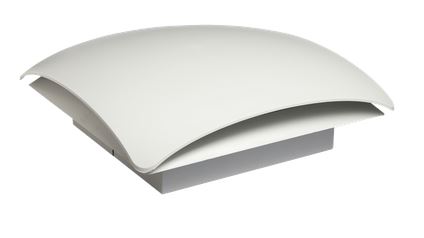

VENTILADOR DE TECHO CON FILTRO
Marca: STEGO
Modelo: 01860.0-00
Serie, RFP 018
Tensión mínima de funcionamiento, 230 V
Tolerancia de la tensión de funcionamiento, 208 V - 253 V
Frecuencia, 50 Hz
Consumo de potencia, 68 W
Caudal de aire de refrigeración del ventilador, 300 m³/h
Nivel medio de presión acústica, 55 dB(A)
Temperatura de funcionamiento, -10 °C - 70 °C
Tipo de conexión, Borne de conexión

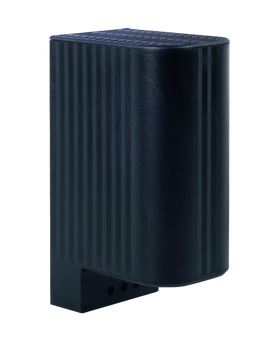

RESISTENCIA CALEFACTORA PARA ENVOLVENTES
Marca: STEGO
Modelo: 06010.0-00
Serie, CS 060
Tensión de funcionamiento, 120 V - 240 V
Corriente máxima de entrada, 4,5 A
Fusible de respaldo recomendado, 8 A
Capacidad mínima de calefacción, 100 W
Temperatura de salida de aire, 120 °C

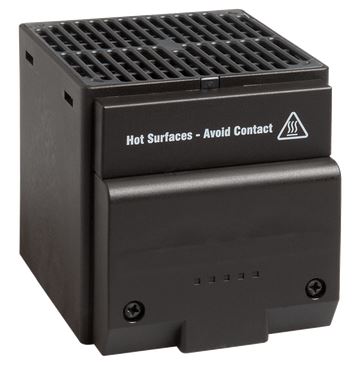

RESISTENCIA CALEFACTORA CON VENTILADOR PARA ENVOLVENTES
Marca: STEGO
Modelo: 02811.0-01
Serie, CSL 028
Tensión mínima de funcionamiento, 230 V
Tolerancia de la tensión de funcionamiento, 208 V - 253 V
Corriente máxima de entrada, 9 A
Fusible de respaldo recomendado, 10 A
Capacidad mínima de calefacción, 250 W
Montaje, Montaje
