REDUCTOR PLANETARIO<br />
Marca: ALPHA-WITTENSTEIN<br />
Modelo: NP035S-MF2-30-1G1-1S<br />
Tamaño, 35<br />
Relación, 30:1<br />
Doble Etapa<br />
Standard Backlash<br />
Para ser acoplado a motor Delta ECMA-K11320RS<br />
Con chaveta (shaft with key)

ENCODER<br />
Brand: AVTRON<br />
Model: HS4AW6MWA50BA000<br />
[AW]: PPR, 1000 PPR<br />
[6]: Line Driver, 5-24v In/out Line Driver (7272)<br />
[M]: Hollow Shaft Bore Size, 8mm, Clamping Collar<br />
[W]: Connector Options, Cable (1m or special length)<br />
[A]: Seals, Shaft Seals, IP65, Aluminum Housing<br />
[5]: Housing Size, 58mm OD with 28mm Hollow Shaft Depth<br />
[0]: Protective Basket, No Basket<br />
[B]: Tether, Dual-Tab Tether; 2.48 in. BC, 0.14 in. slot, fits 58mm housing<br />
[A]: Channels, All Signals A, A/, B, B/, Z, Z<br />
[000]: Modifications, No Special Features

ROTARY ENCODER<br />
Brand: OMRON<br />
Model: E6B2-CWZ6C<br />
1024 PPR<br />
Construction size, 40 mm<br />
Pulses per rotation, 1000<br />
Signal outputs, A, B, Z<br />
Shaft diameter, 6 mm<br />
Power supply voltage, 5-24 V<br />
Output type, NPN<br />
Connection method, Cable<br />
Cable length, 0.5 m

INDUCTIVE PROXIMITY SENSOR<br />
Brand: SICK<br />
Model: IMS30-15BPSVC0S<br />
P/N: 1097591<br />
Thread Size, M30<br />
Sensor Technology, Inductive<br />
Detection Range, 15 mm<br />
Body Style, Barrel<br />
Digital Switching Output Type, PNP<br />
Output Function, NO<br />
Connection Type, M12<br />
Supply Voltage, 7.2 → 60 V dc<br />
IP Rating, IP68, IP69K<br />
Housing Material, Stainless Steel<br />
Maximum dc Voltage, 60V<br />
Switching Frequency, 300 Hz<br />
Maximum Switching Frequency, 300Hz<br />
Switching Current, 200 mA
<p class="MsoNormal" style="margin:0cm 0cm 0cm -63.8pt;line-height:normal;"></p>

ULTRASONIC BARREL PROXIMITY SENSOR<br />
Brand: SICK<br />
Model: UM30-214113<br />
P/N: 6036919<br />
Supply voltage, 9...30 VDC<br />
Power consumption, ≤ 2.4 W<br />
Initialization time, < 300 ms<br />
Connection type, Male connector, M12, 5-pin<br />
Enclosure rating, IP65 / IP67
<p class="MsoNormal" style="margin:0cm 0cm 0cm -63.8pt;line-height:normal;"></p>

<p class="MsoNormal">PAGU-FLEX ACOPLAMIENTO FLEXIBLE AISLANTE<br />
Marca: HOHNER<br />
Model: GFP10-10/10<br />
Velocidad máxima, 3.000 rpm<br />
Par, 0,5 Ncm<br />
Par apriete, 100 Ncm<br />
Desalineamiento angular máximo admisible, ±10 grados<br />
Desalineamiento radial máximo admisible, ±2 mm<br />
Constante elástica torsional, 13 Nm/rad<br />
Inercia, 41 gcm²<br />
Constante elástica radial, 13 N/mm<br />
Diámetro, 10/10<br />
<br />
 </p>

ROTARY ENCODER<br />
Brand: ELTRA<br />
Model: EH63D100Z5L8X3JR.L<br />
P/N: 91287050<br />
[63]: Body dimension, 63<br />
[D]: Type of flange, D<br />
[100]: PRR, 100 PPR<br />
[Z]: Zero pulse, with zero pulse<br />
[5]: Input voltage, 24 VDC<br />
[L]: Output type, line driver<br />
[8]: Shaft diameter, 8 mm<br />
[X]: Enclosure rating, Standard IP54<br />
[3]: RPM, 3000 RPM<br />
[J]: Connector, JMSP 1607 F or 1610 F<br />
[R]: Radial

<p class="MsoNormal" style="margin:0cm 0cm 0cm -63.8pt;line-height:normal;"></p>
MOTOR FEEDBACK SYSTEMS ROTARY HIPERFACE<br />
Brand: SICK<br />
Model: SRS50-HEA0-K21<br />
P/N: 1037083<br />
Sine/cosine periods per revolution, 1024 PPR<br />
Total number of steps, 32,768<br />
Connection type, Male connector, 8-pin, radial<br />
Supply voltage, 7 V DC ... 12 V DC<br />
Recommended supply voltage, 8 V DC<br />
Current consumption, 80 mA

ENCODER INCREMENTAL<br />
Brand: BAUMER<br />
Model: ITD22H00-SIL-2048-M-NI-S21SG8-E-14-IP65<br />
[2048]: Sinewave cycles/turn, 2048<br />
[M]: Voltage supply, 5 VDC ±10% / sine 1 Vpp<br />
[NI]: Output signal sine, A+, A-, B+, B-, N+, N-<br />
[S21G8]: Connection, Board connector type 21, pin contacts, straight, 8-pin<br />
[E]: Operating temperature, -30...+100 °C<br />
[14]: Through hollow shaft, ø14 mm, clamping ring, A-side<br />
[IP65]: Protection class, IP65

<p class="MsoNormal" style="margin:0cm 0cm 0cm -63.8pt;line-height:normal;"></p>
ENCODER INCREMENTAL<br />
Brand: SICK<br />
Model: DFS60<br />
Programado a 8192 PPR<br />
Eje macizo Ø6 mm<br />
4.5-32 VDC<br />
Señal, Programado en HTL/Push-pull<br />
Canales, 6 canales<br />
IP67<br />
Conexión, 8 hilos x 1.5 M

INCREMENTAL ENCODER<br />
Brand: KUBLER<br />
Model: 8.5020.0310.1024.S090<br />
Pulse rate, 1024<br />
5-30 VDC<br />
150 mA<br />
<br />


SENSOR DE NIVEL<br />
Marca: SICK<br />
Modelo: LFC-XXSGTM<br />
P/N: 6073811<br />
[S]: Versión, estándar<br />
Temperatura de proceso, –20 °C ... +100 °C<br />
Presión de proceso, –1 ... 10 bar<br />
Grado de protección,  IP65/IP67<br />
[G]: Conexión de proceso/material, G ½" PN25, ISO0228-1,<br />
para adaptador roscado higiénico / 316L (RA < 0,76 μm)<br />
[T]: Salida eléctrica, 2 salidas digitales (PNP/NPN/Push-Pull conmutable) con IO-Link, 12 … 35 V CC<br />
[M]: Conexión eléctrica, M12 x 1, 4-polos / Plástico
<p class="MsoNormal" style="margin:0cm 0cm 0cm -63.8pt;line-height:normal;"></p>

SENSOR DE PROXIMIDAD INDUCTIVO<br />
Marca: SICK<br />
Modelo: IME18-08BPSZC0S<br />
P/N: 1040966<br />
Tamaño de rosca, M18 x 1<br />
Diámetro, Ø 18 mm<br />
Alcance de detección, 8 mm<br />
Frecuencia de conmutación, 1.000 Hz<br />
Tipo de conexión, Conector macho M12 de 4 polos<br />
Salida conmutada, PNP<br />
Función de salida, Normalmente abierto<br />
Características eléctricas, C.c. 3 hilos<br />
Tensión de alimentación, 10 V DC ... 30 V DC
<p class="MsoNormal" style="margin:0cm 0cm 0cm -63.8pt;line-height:normal;"></p>

TACHOMETER ENCODER - PULSE GENERATOR<br />
MARCA: AVTRON<br />
INCLUDES OPTIONS: M484-48-HS1 & M484-48-LS<br />
AND TORQUE ARM No. B21958<br />
DATOS DE PLACA<br />
240/960PPR 12-15 VDC 150 mA<br />
REPUESTO MOTOR VARIADOR POWERFLEX7000

M685L-48-LS1-HS1 with B21958 Torque Arm<br />
Marca: AVTRON <br />
Kit includes:<br />
1) Hollow Shaft mounted encoder, 1-1/8"<br />
inside shaft diameter<br />
2) Diagnostic LED indicator on each sensor,<br />
standard equipment now<br />
3) 480 pole rotor<br />
4) Low Resolution sensor on left side for 240<br />
ppr output in<br />
quadrature, no marker pulse<br />
5) High Resolution sensor on right side for 960<br />
ppr output in<br />
quadrature, no marker pulse<br />
6) 12" Threaded Rod Torque Arm Kit<br />
7) 12-15vDC line driver power input on both<br />
sensors.

MODEL: M484L-48HS1<br />
TACHOMETER ENCODER<br />
BRAND: AVTRON

ENCODER ABSOLUTE<br />
Brand: OMROM<br />
Resolution per rotation: 360<br />
Output code: Gray<br />
Output signal: 9-bit<br />
Power supply voltaje: 12-24 V<br />
Output type: NPN<br />
Cable length: 5 m

ENCODER ABSOLUTE<br />
Brand: OMRON,<br />
9-BIT<br />
12-24 VDC<br />
GRAY CODE OUTPUT<br />
6M CABLE<br />

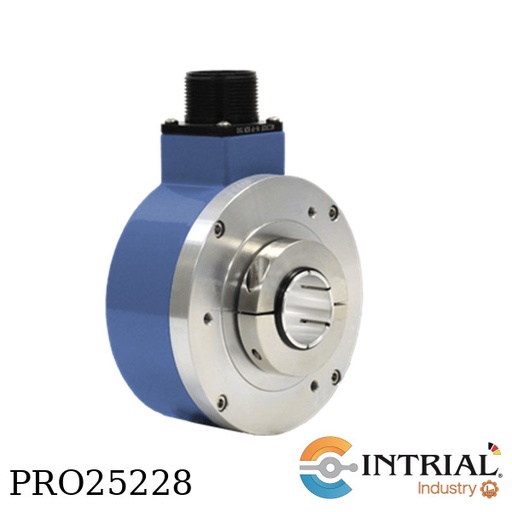

ENCODER INCREMENTAL<br />
Brand: AVTRON<br />
Serie HS35A<br />
PPR [Y] : 1024 PPR<br />
Line Driver [1] : 5-28v In/Out (7272)<br />
Hollow Shaft Size [C] : 5/8 in. bore via insert<br />
Connector Options [B] : 10 pin MS style w/o Plug, Dynapar HS35 pinout<br />
Mounting  [U] : Universal (Thru & End of Shaft)<br />
Protection [0] : None<br />
Anti-Rotational Tether  [C] : 3/8 in.-16 T-Bolt Fan Cover Tether<br />
Channels [A] : All Channels (A, A/, B, B/, Z, Z/)<br />
Modifications [000] : No Special Features

INCREMENTAL OPTICAL ENCODER<br />
Brand: BEI<br />
Model: HS35F-100-SS-1024-ABZC-28V/V-SM18-S<br />
(HS35): Type, Hollow Shaft (3.5" Encoder Diameter)<br />
(F): Housing Configuration, Standard<br />
(100): Shaft Bore, 1.00"<br />
(SS): Shaft Seal Configuration, Through Shaft, Rubber Seals.<br />
(1024): Cycles per turn<br />
(ABZ):  Nª of Channels<br />
(C): Compliments, Complimentary Outputs<br />
(28V/V): Voltage / Output, 5-28Vin/out<br />
(SM18): Output Termination, MS3102R18-1P<br />
(S): Special Features, Special Features specified on Purchase Order
