Light Mill Duty Optical Hollow Shaft<br />
HS35AY1FCU0XA000<br />
DESCRIPTION: OPTION<br />
PPR (Y): 1024 PPR<br />
Line Driver (1): 5-28v In/Out (7272)<br />
Hollow Shaft Size (F): 1 in. bore<br />
Connector Options (C) : 10 pin MS style w/Plug, Avtron/BEI pinout<br />
Mounting (U): Universal (Thru & End of Shaft)<br />
Protection (0): None<br />
Anti-Rotational Tether (X): No Tether<br />
Channels (A): All Channels (A, A/, B, B/, Z, Z/)<br />
Modifications (000): No Special Features

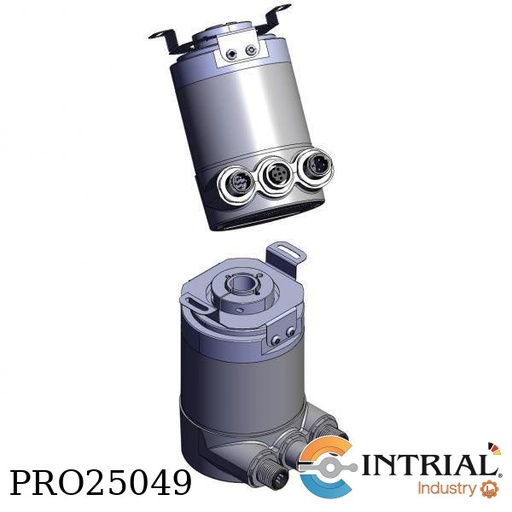

Communication Bus (R): Ethernet IP Communication<br />
Style (1): 58mm / 2.25 in. Housing Diameter<br />
Hollow Shaft Size (P):  12mm Shaft Fit<br />
Turns/bits/MT (2): 4096 Turns/12 bits<br />
PPR/bits Per Turn/ST (3): 8192 Counts per Revolution/13 bits<br />
Connector (C): 3xM12 (4/4/5 or 4/4/4) pin w/o Plugs<br />
Mounting (A): End of Shaft (EOS) Mounting; Radial Connector Exit<br />
Output Coding (1): Binary Bit Coding<br />
IP Rating (A): IP66 Shaft Seals, aluminum housing<br />
Modifications (000): No Special Features

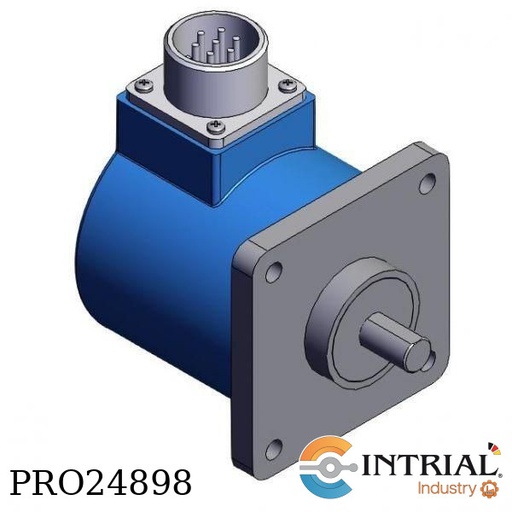

Encoder OPTICO “Light Mill Duty” INCREMENTAL<br /><br />
PPR (F): 60 PPR<br />
Line Driver (1): 5-28v In/Out (7272)<br />
Shaft Size (B): 3/8 in. diameter Shaft w/Flat<br />
Connector Options (N): 7 pin MS style w/plug, Reverse Phasing<br />
Wiring Exit (A): Side (Radial)<br />
Mounting (1): 2.625" Square Flange w/1.25 in. Pilot<br />
Face/Bolt Pattern (X): No Additional Face Drill Holes<br />
Seals (A): Shaft Seals (best all around) (male pilot only)<br />
Channels (B): A,A/,B,B/ (complements, no marker)<br />
Modifications (000): No Special Features<br />
Brand: AVTRON

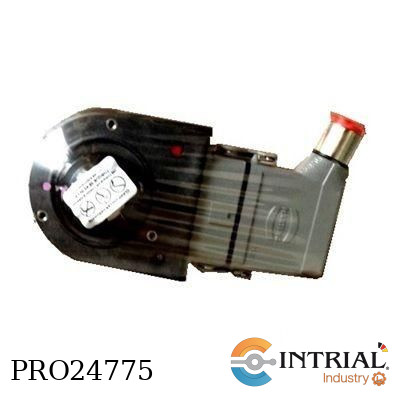

KIT ENCODER HS351024 AVTRON 5-28 Vdc 1024 PPR<br />
AVTRON, MAGNETIC HS35M<br /><br />
Decsription<br />
========<br />
Avtron HS35M Encoders<br />
Marca: AVTRON<br />
Modelo: HS35M<br />
Código: HS35MYX6CPU1MA00<br />
Procedencia: USA<br />
Especificaciones Tecnicas:<br />
- Left PPR: Y - 1024 PPR<br />
- Right PPR: X - No Right Output<br />
- Line Driver: 6 - 5-28v In/Out (7272)<br />
- Bore Size: C – 5/8 in. 0.625 IN. Bore<br />
- Connector Options: P - 10 Pin Mini-Epic Style with Plug<br />
- Mounting Style: U - Universal (Thru & End of Shaft)<br />
- Protection: 1 - Protective Basket Included<br />
- Anti-Rotational Tether: M – D and E Tether Kit<br />
- Channels and Modifications: A00 - Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\)

ENCODERS<br />

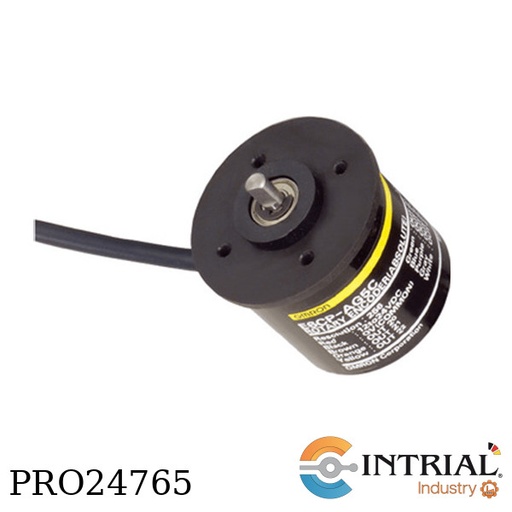

Marca: OMRON<br />
Voltaje de alimentación operativo: 5 VDC to 12 VDC<br />
Tamaño:56 mm x 50 mm<br />
Características:Resolution (rotations) 256 (8-bit)<br />
Frecuencia de respuesta maxima: 5 kHz<br />
Velocidad de giro maximo: 1000 rpm

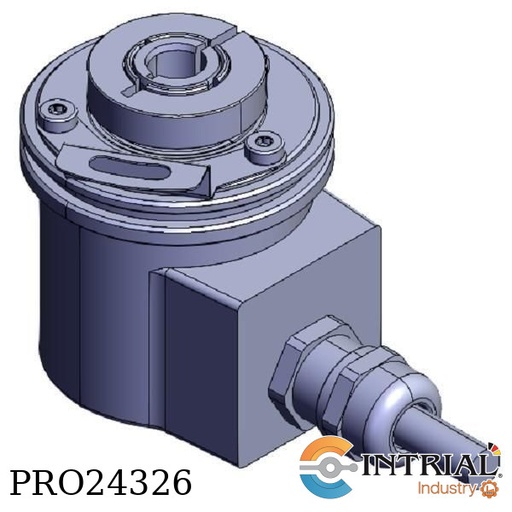

HS6M ENCODER ABSOLUTO MAGNETICO “Hollow Shaft”<br />
Numero de Parte: HS6MA7MA2WE5A920<br />
(A) Communication Bus: Analog Communication<br />
(7) Style: 42mm / 1.65 in. Housing Diameter<br />
(M) Rotor Bore Size: 8mm Shaft Fit<br />
(A) Turns/bits: 16 Turns/4 bits-(Analog Output Only)<br />
(2) PPR/bits Per Turn: 4096 Counts per Revolution/12 bits (Only option with analog output)<br />
(W) Connector: Cable, 1m (or special length)<br />
(E) Mounting: End of Shaft (EOS) Mounting<br />
(5) Output Coding: 4-20mA Analog<br />
(A) IP Rating: IP65 Shaft Seals, aluminum housing<br />
(920) Modifications: 000 – 20 ft. 6m Cable Built into Encoder

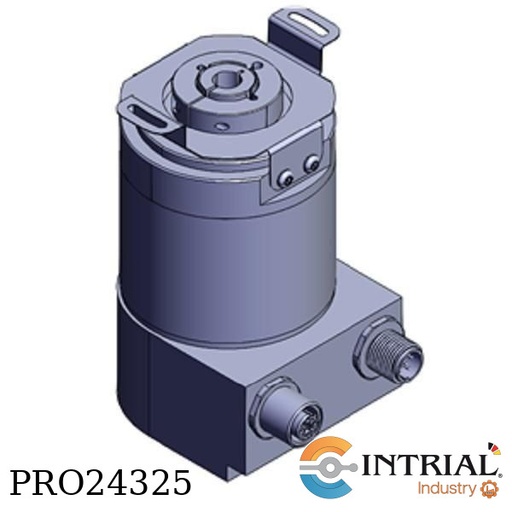

HS6A ENCODER ABSOLUTO OPTICO “Hollow Shaft”<br />
Numero de Parte: HS6AM1M46DE1A000<br />
(M) Communication Bus: Modbus Ethernet Communication<br />
(1) Style: 58mm Housing Diameter<br />
(M) Rotor Bore Size: 8mm Shaft via Sizing insert<br />
(4) Turns/bits: 16384 Turns/14 bits<br />
(6) PPR/bits Per Turn: 65536 Counts per Revolution/16 bits<br />
(D) Connector: D – 2xM12/4/5 pin w/o Plugs<br />
(E) Mounting: End of Shaft (EOS) Mounting<br />
(1) Output Coding: Binary Bit Coding<br />
(A) IP Rating: IP 66 Shaft Seals, aluminiun housing<br />
Modifications: 000 – No special Features

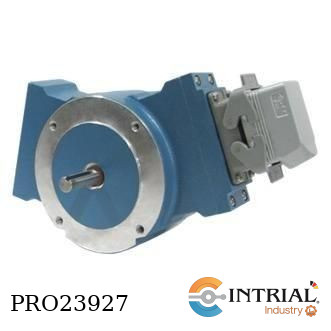

AV485N1S64XXC000<br />
(Reemplazo Directo del Modelo M3-2S2L2048B000)<br />
DESCRIPTION<br />
Severe Mill Duty Magnetic Encoder<br />
(N): -20°C to +80°C (Standard)<br />
(1): Standard Bolt Pattern Foot Mount Bracket (Avtron & RIM6200/H56)<br />
(S): Standard Single Ended 5/8 in. x 2 in. Stainless Steel Shaft, with 3/16 in. Key way & Key<br />
(6): 5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no complements)<br />
(4): 2048 PPR<br />
(X): No Right Output<br />
(X): No Right Output PPR<br />
(C): 10 pin MS style w/Plug & Flex Cond. Adapt.<br />
(000): No Special Options

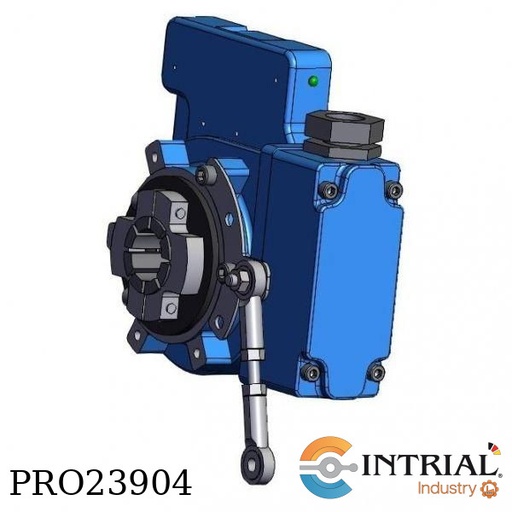

HS45 – Heavy Mill Duty MAGNETIC Hollow Shaft<br />
Part Number: HS45FAYXX6HPA000<br />
F - 1 in. bore, insulated shaft bushing, universal end or thru shaft mountable<br />
AT - 3072 PPR<br />
XX - No Right Output<br />
6 - 5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no complements, and differential wiring up to 500'.<br />
H - Terminal box w/USA 1/2 in. conduit, LED & Remote<br />
Alarm Diagnostics<br />
P - Threaded Rod Torque Arm Kit, Fixed 70mm Length<br />
A - All Channels (A, A/, B, B/, Z, Z/ )<br />
000 - No Special Options

RUGGEDIZED HOLLOW SHAFT ENCODER<br />
Brand: LEINE LINDE<br />
Shaft type: Ø12 mm throughgoing hollow shaft<br />
Flange type: 59 flange with stator coupling<br />
Resolution: 1024 ppr<br />
Power supply: 930 Vdc<br />
Output signal: HTL<br />
Connection type: Cable<br />
Connecting direction: Radial<br />
Cable length: 1.50 m<br />
Operating temperatura: 40 °C...+70 °C<br />
Ingress protection class [IEC 60529]: IP67 (IP66 at shaft inlet)<br />
Shaft load (axial/radial): 10 N / 20 N<br />
Rotational speed max: 6000 rpm<br />
Shaft material: Stainless steel<br />
Cover material: Aluminium<br />

TEsST

ENCODER <br />

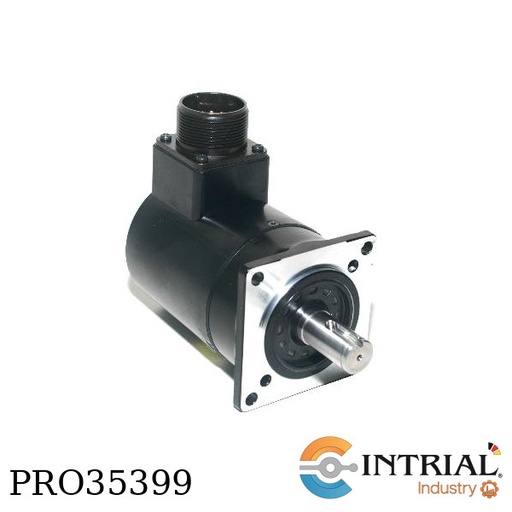

Brand: FANUC<br />
Position coder 10000RPM W/ 68MM<br />
Square Flange<br />
Spindle encoder<br />
Alpha position<br />
CNC

Magnetic Encoder Hollow Shaft HS4 Series<br />
DESCRIPTION:    OPTION:<br />
PPR (AY): 1024 PPR<br />
Line Driver (1): 5-30v In, HTL Line Driver (IC-HD2)<br />
Hollow Shaft Size (M): 8mm<br />
Connector Options (W): Cable (1m or special length)<br />
Seals (A): Shaft Seals, IP65, Aluminum Housing<br />
Housing Size (3): 36mm OD with 18mm Hollow Shaft Depth<br />
Protective Basket (0): No Basket<br />
Tether (C): Dual-Tab Tether; 1.65 in. - 2.48 in. BC, 0.14 in slot, fits 36mm housing<br />
Channels A): All Signals A, A/, B, B/, Z, Z/<br />
Modifications (905): 5 ft./1.5m Cable Built into Encoder

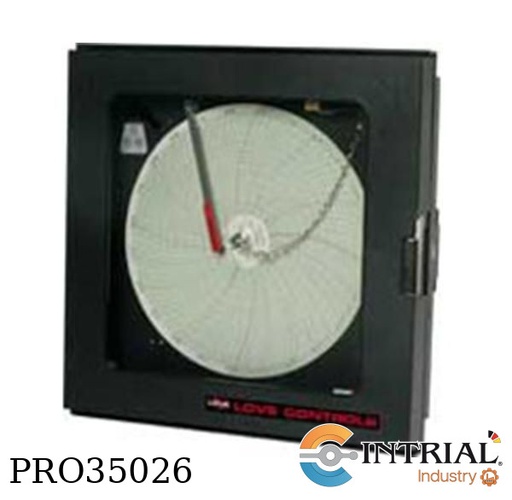

CIRCULAR CHART RECORDERS<br />
Brand: DWYER<br />
Chart Size: 10˝ (254 mm).<br />
Accuracy: ±0.5% of span (100 division span).<br />
Output Relay: Form C (DPDT), 1A @ 240 VAC resistive.<br />
Chart Speed: Programmable 4, 8, 12, 24, 48, 72, 168 hour rotation (168 hours=7 days).<br />
Ambient Operating Temperature/RH: 32 to 140°F (0 to 60°C); 0-90% RH (non-condensing).<br />
Power Requirements: 110/220 VAC ±10%.<br />
Battery Backup: 9 V alkaline battery, installed functional, user replaceable.<br />
Rotation: Counter-clockwise<br />
Pen Inputs: Single<br />
Output: Yes<br />

CODIFICADOR ROTATORIO<br />

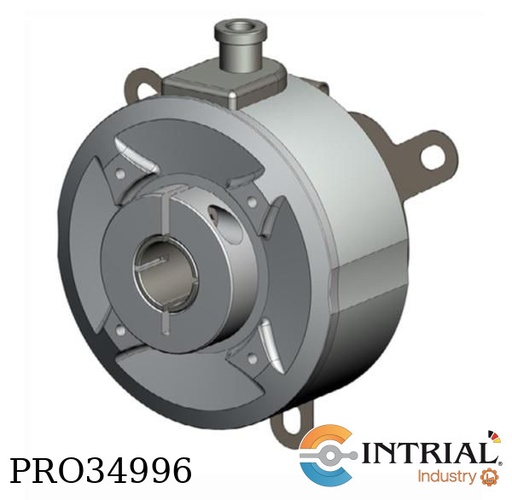

Brand: LIKA<br />
OUTPUT CIRCUITS: PP/LD universal circuit<br />
OUTPUT SIGN: AB0, /AB0<br />
SUPPLY VOLTAGE: +5V÷ +30V (H output circuit)<br />
SHAFT DIAMETER: 8 mm<br /><div>
<div class="gtx-trans-icon"></div>
</div>

KIT ENCODER<br />
MARCA: AVTRON<br />
5-24 VDC 50MA<br />
TIPO 1024 PULSOS POR MINUTO, TEFC<br />
CONECCION TIPO: MS-ST
<div>
<div class="gtx-trans-icon"></div>
</div>

MODEL: 755A-01-S-250<br />
ENCODER 2500CPR<br />
MARCA: ​ACCU
<div>
<div class="gtx-trans-icon"></div>
</div>

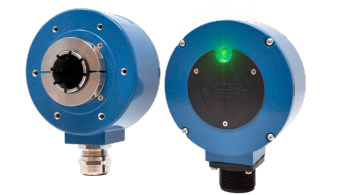

Avtron HS35X Encoders
Brand: AVTRON
Model: HS35XY1CCU1UA000
DESCRIPTION:
PPR: Y - 1024 PPR
Line Driver: 1 - 5-30V In/Out (Hx)
Hollow Shaft Bore Size: C - 5/8 in. bore via insert
Connector Options: W - M20 Cord Grip w/ Cable (18 in. or special length)
Mounting: U - Universal (Thru & End of Shaft)
Protection: 0 - None
Anti-Rotational Tether: U - A-F All Tethers
Channels: A - All Channels (A, /A, B, /B, Z, /Z)
Modifications: 000 - No Special Features
