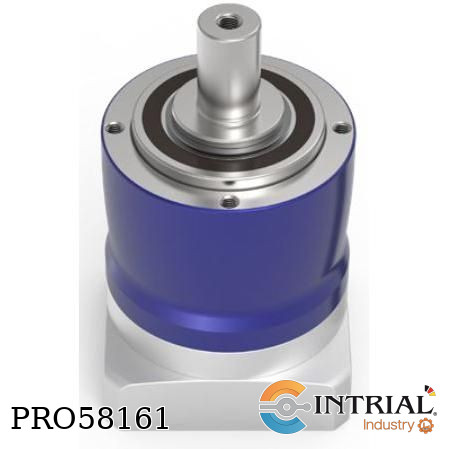

REDUCTOR PLANETARIO
Marca: ALPHA-WITTENSTEIN
Modelo: NP035S-MF2-30-1G1-1S
Tamaño, 35
Relación, 30:1
Doble Etapa
Standard Backlash
Para ser acoplado a motor Delta ECMA-K11320RS
Con chaveta (shaft with key)

ENCODER<br />
Brand: AVTRON<br />
Model: HS4AW6MWA50BA000<br />
[AW]: PPR, 1000 PPR<br />
[6]: Line Driver, 5-24v In/out Line Driver (7272)<br />
[M]: Hollow Shaft Bore Size, 8mm, Clamping Collar<br />
[W]: Connector Options, Cable (1m or special length)<br />
[A]: Seals, Shaft Seals, IP65, Aluminum Housing<br />
[5]: Housing Size, 58mm OD with 28mm Hollow Shaft Depth<br />
[0]: Protective Basket, No Basket<br />
[B]: Tether, Dual-Tab Tether; 2.48 in. BC, 0.14 in. slot, fits 58mm housing<br />
[A]: Channels, All Signals A, A/, B, B/, Z, Z<br />
[000]: Modifications, No Special Features

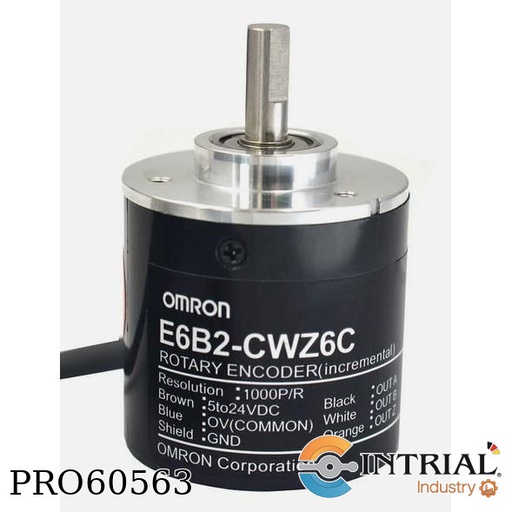

ROTARY ENCODER<br />
Brand: OMRON<br />
Model: E6B2-CWZ6C<br />
1024 PPR<br />
Construction size, 40 mm<br />
Pulses per rotation, 1000<br />
Signal outputs, A, B, Z<br />
Shaft diameter, 6 mm<br />
Power supply voltage, 5-24 V<br />
Output type, NPN<br />
Connection method, Cable<br />
Cable length, 0.5 m

INDUCTIVE PROXIMITY SENSOR<br />
Brand: SICK<br />
Model: IMS30-15BPSVC0S<br />
P/N: 1097591<br />
Thread Size, M30<br />
Sensor Technology, Inductive<br />
Detection Range, 15 mm<br />
Body Style, Barrel<br />
Digital Switching Output Type, PNP<br />
Output Function, NO<br />
Connection Type, M12<br />
Supply Voltage, 7.2 → 60 V dc<br />
IP Rating, IP68, IP69K<br />
Housing Material, Stainless Steel<br />
Maximum dc Voltage, 60V<br />
Switching Frequency, 300 Hz<br />
Maximum Switching Frequency, 300Hz<br />
Switching Current, 200 mA
<p class="MsoNormal" style="margin:0cm 0cm 0cm -63.8pt;line-height:normal;"></p>

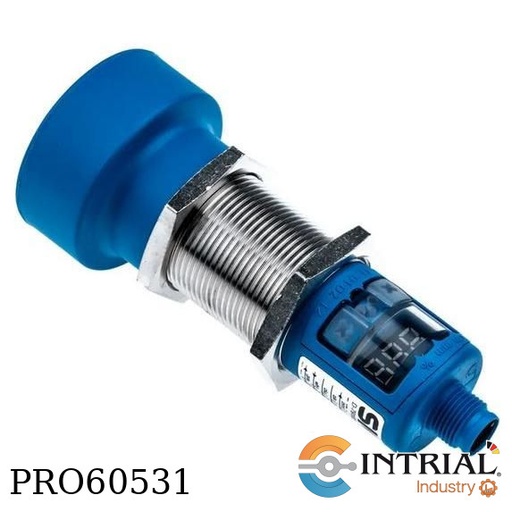

ULTRASONIC BARREL PROXIMITY SENSOR<br />
Brand: SICK<br />
Model: UM30-214113<br />
P/N: 6036919<br />
Supply voltage, 9...30 VDC<br />
Power consumption, ≤ 2.4 W<br />
Initialization time, < 300 ms<br />
Connection type, Male connector, M12, 5-pin<br />
Enclosure rating, IP65 / IP67
<p class="MsoNormal" style="margin:0cm 0cm 0cm -63.8pt;line-height:normal;"></p>

<p class="MsoNormal">PAGU-FLEX ACOPLAMIENTO FLEXIBLE AISLANTE<br />
Marca: HOHNER<br />
Model: GFP10-10/10<br />
Velocidad máxima, 3.000 rpm<br />
Par, 0,5 Ncm<br />
Par apriete, 100 Ncm<br />
Desalineamiento angular máximo admisible, ±10 grados<br />
Desalineamiento radial máximo admisible, ±2 mm<br />
Constante elástica torsional, 13 Nm/rad<br />
Inercia, 41 gcm²<br />
Constante elástica radial, 13 N/mm<br />
Diámetro, 10/10<br />
<br />
 </p>

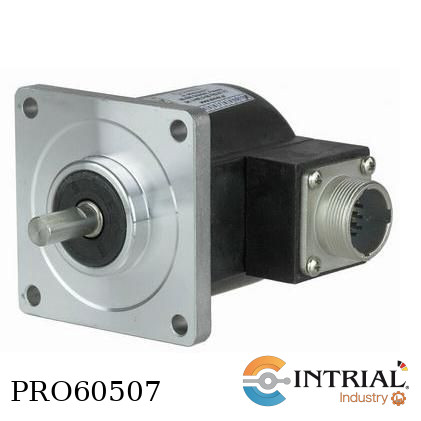

ROTARY ENCODER<br />
Brand: ELTRA<br />
Model: EH63D100Z5L8X3JR.L<br />
P/N: 91287050<br />
[63]: Body dimension, 63<br />
[D]: Type of flange, D<br />
[100]: PRR, 100 PPR<br />
[Z]: Zero pulse, with zero pulse<br />
[5]: Input voltage, 24 VDC<br />
[L]: Output type, line driver<br />
[8]: Shaft diameter, 8 mm<br />
[X]: Enclosure rating, Standard IP54<br />
[3]: RPM, 3000 RPM<br />
[J]: Connector, JMSP 1607 F or 1610 F<br />
[R]: Radial

<p class="MsoNormal" style="margin:0cm 0cm 0cm -63.8pt;line-height:normal;"></p>
MOTOR FEEDBACK SYSTEMS ROTARY HIPERFACE<br />
Brand: SICK<br />
Model: SRS50-HEA0-K21<br />
P/N: 1037083<br />
Sine/cosine periods per revolution, 1024 PPR<br />
Total number of steps, 32,768<br />
Connection type, Male connector, 8-pin, radial<br />
Supply voltage, 7 V DC ... 12 V DC<br />
Recommended supply voltage, 8 V DC<br />
Current consumption, 80 mA

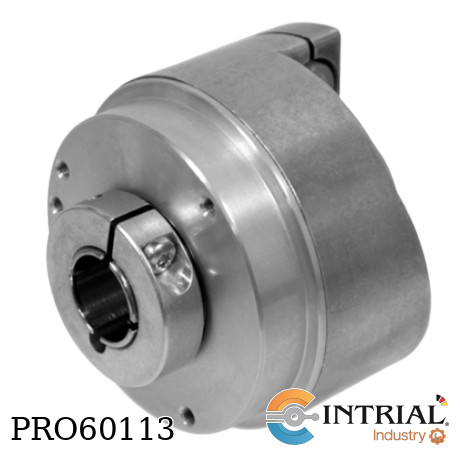

ENCODER INCREMENTAL<br />
Brand: BAUMER<br />
Model: ITD22H00-SIL-2048-M-NI-S21SG8-E-14-IP65<br />
[2048]: Sinewave cycles/turn, 2048<br />
[M]: Voltage supply, 5 VDC ±10% / sine 1 Vpp<br />
[NI]: Output signal sine, A+, A-, B+, B-, N+, N-<br />
[S21G8]: Connection, Board connector type 21, pin contacts, straight, 8-pin<br />
[E]: Operating temperature, -30...+100 °C<br />
[14]: Through hollow shaft, ø14 mm, clamping ring, A-side<br />
[IP65]: Protection class, IP65

<p class="MsoNormal" style="margin:0cm 0cm 0cm -63.8pt;line-height:normal;"></p>
ENCODER INCREMENTAL<br />
Brand: SICK<br />
Model: DFS60<br />
Programado a 8192 PPR<br />
Eje macizo Ø6 mm<br />
4.5-32 VDC<br />
Señal, Programado en HTL/Push-pull<br />
Canales, 6 canales<br />
IP67<br />
Conexión, 8 hilos x 1.5 M

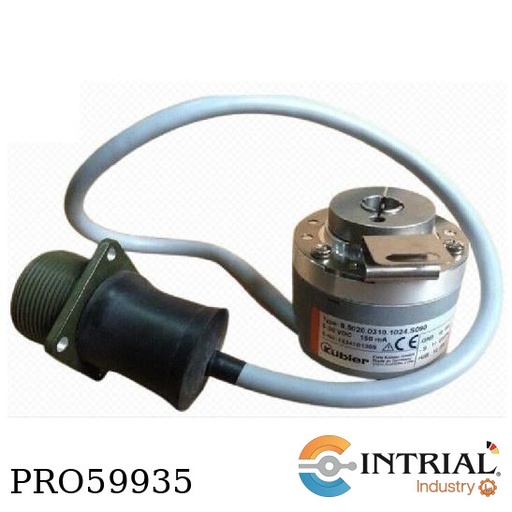

INCREMENTAL ENCODER<br />
Brand: KUBLER<br />
Model: 8.5020.0310.1024.S090<br />
Pulse rate, 1024<br />
5-30 VDC<br />
150 mA<br />
<br />


SENSOR DE NIVEL<br />
Marca: SICK<br />
Modelo: LFC-XXSGTM<br />
P/N: 6073811<br />
[S]: Versión, estándar<br />
Temperatura de proceso, –20 °C ... +100 °C<br />
Presión de proceso, –1 ... 10 bar<br />
Grado de protección,  IP65/IP67<br />
[G]: Conexión de proceso/material, G ½" PN25, ISO0228-1,<br />
para adaptador roscado higiénico / 316L (RA < 0,76 μm)<br />
[T]: Salida eléctrica, 2 salidas digitales (PNP/NPN/Push-Pull conmutable) con IO-Link, 12 … 35 V CC<br />
[M]: Conexión eléctrica, M12 x 1, 4-polos / Plástico
<p class="MsoNormal" style="margin:0cm 0cm 0cm -63.8pt;line-height:normal;"></p>

SENSOR DE PROXIMIDAD INDUCTIVO<br />
Marca: SICK<br />
Modelo: IME18-08BPSZC0S<br />
P/N: 1040966<br />
Tamaño de rosca, M18 x 1<br />
Diámetro, Ø 18 mm<br />
Alcance de detección, 8 mm<br />
Frecuencia de conmutación, 1.000 Hz<br />
Tipo de conexión, Conector macho M12 de 4 polos<br />
Salida conmutada, PNP<br />
Función de salida, Normalmente abierto<br />
Características eléctricas, C.c. 3 hilos<br />
Tensión de alimentación, 10 V DC ... 30 V DC
<p class="MsoNormal" style="margin:0cm 0cm 0cm -63.8pt;line-height:normal;"></p>

TACHOMETER ENCODER - PULSE GENERATOR
MARCA: AVTRON
INCLUDES OPTIONS: M484-48-HS1 & M484-48-LS
AND TORQUE ARM No. B21958
DATOS DE PLACA
240/960PPR 12-15 VDC 150 mA

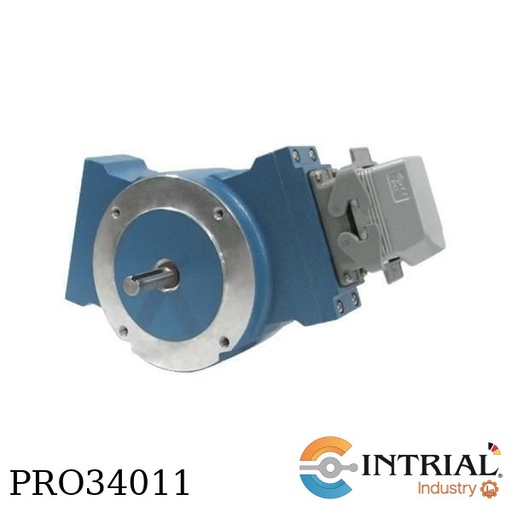

REPUESTO MOTOR VARIADOR POWERFLEX7000

M685L-48-LS1-HS1 with B21958 Torque Arm
Marca: AVTRON
Kit includes:
1) Hollow Shaft mounted encoder, 1-1/8"
inside shaft diameter
2) Diagnostic LED indicator on each sensor,
standard equipment now
3) 480 pole rotor
4) Low Resolution sensor on left side for 240
ppr output in
quadrature, no marker pulse
5) High Resolution sensor on right side for 960
ppr output in
quadrature, no marker pulse
6) 12" Threaded Rod Torque Arm Kit
7) 12-15vDC line driver power input on both
sensors.

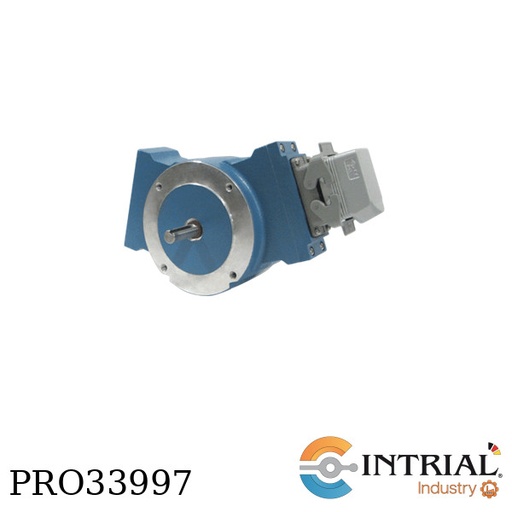

MODEL: M484L-48HS1
TACHOMETER ENCODER
BRAND: AVTRON

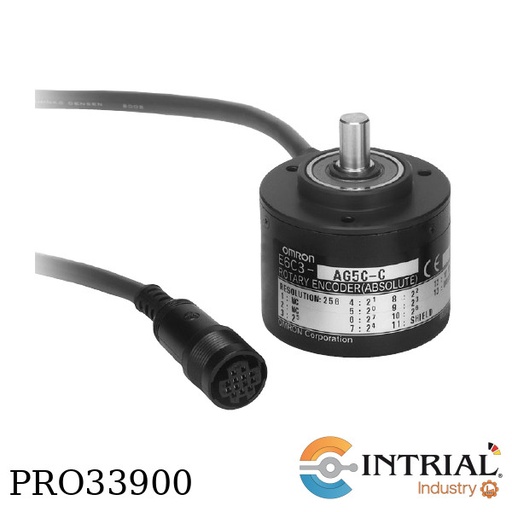

ENCODER ABSOLUTE
Brand: OMROM
Resolution per rotation: 360
Output code: Gray
Output signal: 9-bit
Power supply voltaje: 12-24 V
Output type: NPN
Cable length: 5 m

ENCODER ABSOLUTE
Brand: OMRON,
9-BIT
12-24 VDC
GRAY CODE OUTPUT
6M CABLE

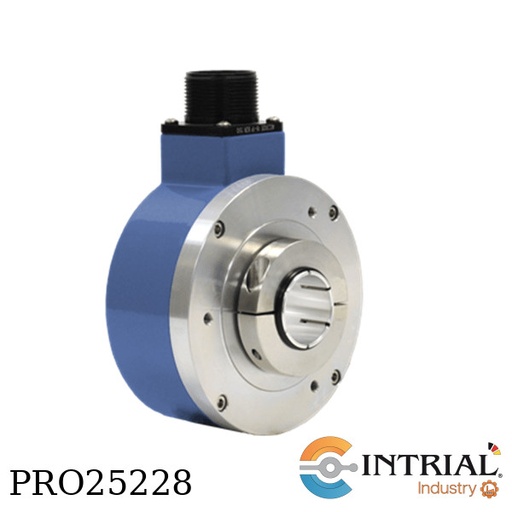

ENCODER INCREMENTAL
Brand: AVTRON
Serie HS35A
PPR [Y] : 1024 PPR
Line Driver [1] : 5-28v In/Out (7272)
Hollow Shaft Size [C] : 5/8 in. bore via insert
Connector Options [B] : 10 pin MS style w/o Plug, Dynapar HS35 pinout
Mounting  [U] : Universal (Thru & End of Shaft)
Protection [0] : None
Anti-Rotational Tether  [C] : 3/8 in.-16 T-Bolt Fan Cover Tether
Channels [A] : All Channels (A, A/, B, B/, Z, Z/)
Modifications [000] : No Special Features

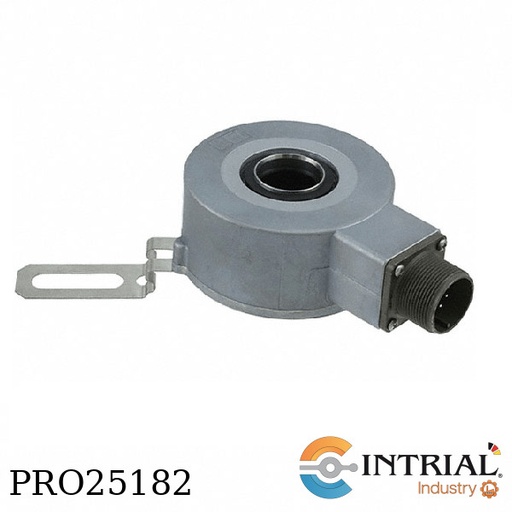

INCREMENTAL OPTICAL ENCODER
Brand: BEI
Model: HS35F-100-SS-1024-ABZC-28V/V-SM18-S
(HS35): Type, Hollow Shaft (3.5" Encoder Diameter)
(F): Housing Configuration, Standard
(100): Shaft Bore, 1.00"
(SS): Shaft Seal Configuration, Through Shaft, Rubber Seals.
(1024): Cycles per turn
(ABZ):  Nª of Channels
(C): Compliments, Complimentary Outputs
(28V/V): Voltage / Output, 5-28Vin/out
(SM18): Output Termination, MS3102R18-1P
(S): Special Features, Special Features specified on Purchase Order
