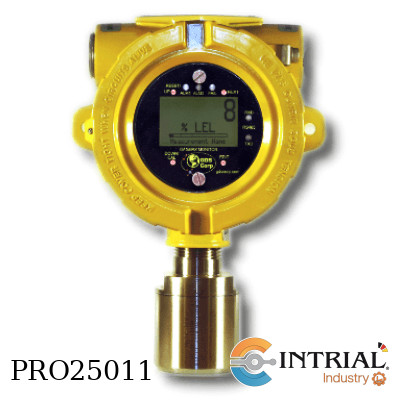

<div><span style="font-size:12px;"><strong>GMII: GASMAX II Gas MonitorSingle / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations</strong><br />
Chanel 1<br />
- 2: Sensor Head (Local sensor head with splash guard)<br />
- 14: Senor Type (Smart)<br />
- 1: Target Gas Range (0 – 1 % H2)<br />
Chanel 2<br />
- 0: Sensor Head (No sensor head)<br />
- 00: Senor Type (No sensor)<br />
- 0: Target Gas Range (None)<br />
Output<br /><span style="background-color:#FFFF00;">- 0: standard 4 -20 ma output (3-wires)</span><br />
- 0: standard temperature range<br />
GASMAX II Gas Monitor Single / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations<br />
- Power Input: 10-30VDC at < 4 watts with relay board. Additional power required for Extended Temp & GDS-IR option.<br />
- Display: Backlit 64 x 128 pixel LCD with 30-minute trend, bargraph<br />
- Electrochemical Sensor Input: Channel 1 accepts microamp-level signals from GDS Corp toxic & oxygen deficiency sensors or 4-20mA current source<br />
- Bridge Type Sensor Input: Channel 2 provides adjustable excitation voltage for SmartIR, PID and catalytic bead or 4-20mA current source<br />
- Standard Output: Standard dual 3-wire 4-20mA current source. Max loop R is 750 ohms with nominal 24VDC power supply<br />
- Optional Outputs: Dual 1500CMV isolated 4-20mA current source. Max loop R is 650 ohms with nominal 24VDC; Single or dual MODBUS slave ports; 3x program-mable alarm relays with 5A capability<br />
- Temp: Electronics -40°C to +60°C; See Echem Sensor Manual for sensor limits<br />
- Housing : Aluminum housing with epoxy paint standard; Optional #316 stainless steel housing (specify [SS] in part number)<br />
- Dimensions: Width 5.4” (137 mm), Height 8” (203 mm), Depth 5” (127 mm) Shipping weight 6.5 pounds (3 kg)<br />
- Approvals: CSA Certified for Class I, Div 1, Grps B, C, D. Suitable for XP installations<br />
- Warranty: 2 years on electronics and one year on sensors</span></div>
</div>

<strong> GMII:    GASMAX II , Gas Monitor for toxics, combustibles and VOCs</strong>
<ul><li>3:           channel 1: Local sensor head for reactive gases(non XP)</li>
<li>21:         sensor type, Ozone</li>
<li>1:           Range 0 to 1.0 PPM</li>
<li>0:            channel 2:  No sensor head</li>
<li>00:         sensor type: No sensor head</li>
<li>0:           range: none</li>
<li>0:           output: standard 4-20 ma</li>
<li>0:           standard temperature range</li>
<li></li>
<li>GASMAX II Gas MonitorSingle / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations</li>
<li>Power Input: 10-30VDC at < 4 watts with relay board. Additional power required for Extended Temp & GDS-IR option.</li>
<li>Display: Backlit 64 x 128 pixel LCD with 30-minute trend, bargraph</li>
<li>Electrochemical Sensor Input: Channel 1 accepts microamp-level signals from GDS Corp toxic & oxygen deficiency sensors or 4-20mA current source</li>
<li>Bridge Type Sensor Input: Channel 2 provides adjustable excitation voltage for SmartIR, PID and catalytic bead or 4-20mA current source</li>
<li>Standard Output: Standard dual 3-wire 4-20mA current source. Max loop R is 750 ohms with nominal 24VDC power supply</li>
<li>Optional Outputs: Dual 1500CMV isolated 4-20mA current source. Max loop R is 650 ohms with nominal 24VDC; Single or dual MODBUS slave ports; 3x program-mable alarm relays with 5A capability</li>
<li>Temp: Electronics -40°C to +60°C; See Echem Sensor Manual for sensor limits</li>
<li>Housing : Aluminum housing with epoxy paint standard; Optional #316 stainless steel housing (specify [SS] in part number)</li>
<li>Dimensions: Width 5.4” (137 mm), Height 8” (203 mm), Depth 5” (127 mm) Shipping weight 6.5 pounds (3 kg)</li>
<li>Approvals: CSA Certified for Class I, Div 1, Grps B, C, D. Suitable for XP installations</li>
<li>Warranty: 2 years on electronics and one year on sensors</li>
</ul>

Accesorios
<ul><li>05 SELLOS ANTIEXPLOSIVOS 3/4</li>
<li>15 TUBERIA FLEXIBLE CON MALLA METALICA ANTIEXPLOSIVA DE 3/4 (05 PARA SENSORES,08 PARA LUMINARIAS Y 02 PARA TABLERO)</li>
<li>13 UNION ANTIEXPLOSIVA DE 3/4</li>
<li>01 CAJA DE PASO</li>
<li>ACCESORIOS CONSUMIBLES</li>
</ul>

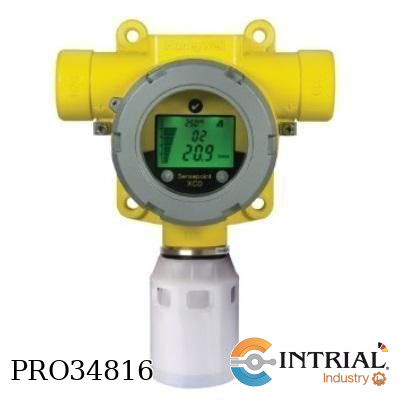

<p><span style="font-size:14px;"><span style="font-family:arial, helvetica, sans-serif;">Modelo: SPXCDULNG2<br />
• Honeywell Sensepoint XCD Gas Detector<br />
RTD Transmitter<br />
• Sensor Type: Hydrogen; 0-1,000ppm<br />
• Enclosure Material: Epoxy painted aluminum alloy<br />
• Communication: None<br />
• <span style="line-height:107%;color:rgb(51,51,51);">Range Increments   N/A</span><br />
• <span style="line-height:107%;color:rgb(51,51,51);">Class I, Division 2   Yes</span><br />
• <span style="line-height:107%;color:rgb(51,51,51);">Lower Alarm 200ppm</span><br />
• <span style="line-height:107%;color:rgb(51,51,51);">Lower Alarm Type   Rising</span><br />
• <span style="line-height:107%;color:rgb(51,51,51);">Higher Alarm 400ppm</span><br />
• <span style="line-height:107%;color:rgb(51,51,51);">Higher Alarm Type  Rising</span><br />

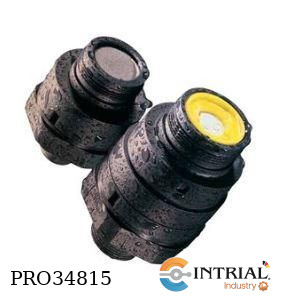

• <span style="line-height:107%;color:rgb(51,51,51);">Lowest Alarm Level 100ppm</span><br /><br /><span class="value">Modelo: 2106B1416<br />
Honeywell Analytics Sensepoint Hazardous Area Approved Gas Detector,<br />
H2 0-1000 ppm<br />
Toxic Sensor M2</span></span></span></p>

<p><span style="font-size:12px;"><span style="font-family:arial, helvetica, sans-serif;">Modelo: 2106B1416<br /><span style="line-height:107%;color:rgb(0,0,0);background:rgb(255,255,255) none repeat scroll 0% 0%;">Honeywell Analytics Sensepoint Hazardous Area Approved Gas Detector,<br />
H2 0-1000 ppm<br />
Toxic Sensor M20</span></span></span></p>

Modelo: SPXCDULNG2<br />
• Honeywell Sensepoint XCD Gas Detector<br />
• Sensor Type: Hydrogen; 0-1,000ppm<br />
• Enclosure Material: Epoxy painted aluminum alloy<br />
• Conduit Entry: 3/4 inch NPT<br />
• Communication: None

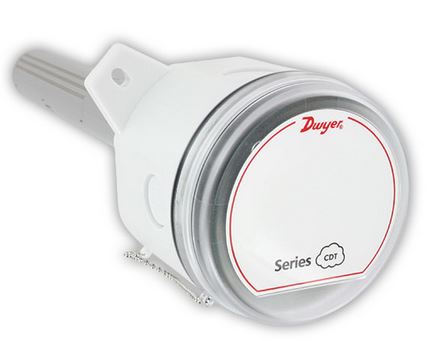

CARBON DIOXIDE TRASMITTER
Brand: DWYER
Model: CDT-2D40
[CDT] Carbon dioxide/temperature transmitter
[2] Range: 0 to 2000 PPM CO2 range
[D] Configuration: Duct mount
[4] CO2: 4-20 mA / 0 to (5 or 10) VDC
[0] Temperature Output: None

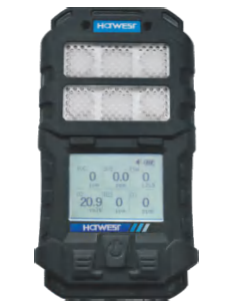

Detector Portable Multi-gas
Model: E6000-O2-CO-CO2-NO2-CH4-SO2
Modulo de Sensor Inteligente Intercambiable
Intrinsecamente seguro
Alarma visual, audible y vibrativa.
Niveles de alarma y valor de calibración ajustables.
Niveles STEL y TWA
Reloj en tiempo real
Funciones de auto diagnostico y auto corrección.

Detector Portable Multi-gas
Model: E6000-O2-CO-CO2-NO2-CH4–H2S
Modulo de Sensor Inteligente Intercambiable
Intrinsecamente seguro
Alarma visual, audible y vibrativa.
Niveles de alarma y valor de calibración ajustables.
Niveles STEL y TWA
Reloj en tiempo real
Funciones de auto diagnostico y auto corrección.
