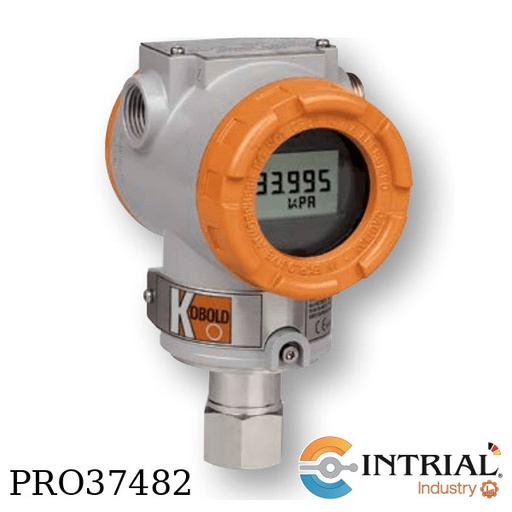

<strong>Pressure Transmitter PAS<br />
Model: PAS-P-ES-3-S-A-N-S-0-0<br />
Brand: Kobold (Alemania)</strong><br />
[PAS-P]:<br />
Pressure type, gauge pressure <br />
Accuracy (% of calibrated span) ± 0,2%<br />
measuring principle piezoresistive<br />
Medium temperature, +20..+35 °C<br />
Power supply 12-45 VDC (17,5-45 VDC with HART)<br />
[ES]: Material (Diaphrgm/other), st.steel  1.4404/1.4571; 1.4404  <br />
[3]: Measuring range:  -1...1,5 bar (-10.000…+15.000 mm H2O) <br />
[S]: Filling liquid: silicone<br />
[A]: Process connection,Flange DIN EN 1092-1/05/B1 DN25 PN16  <br />
[N]: Electr. connection: 1/2-14 NPT Epoxy-polyester painted Aluminium <br />
[S]: Approvals, Standard (IP 67) <br />
[0]: Manifold valve: without<br />
[0]: Options: without

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
MODELO URM-33-63L-I6-P<br />
Brand: Kobold (Alemania)</strong><br />
[63L] Range Full Scale: 320 Nm³/h<br />
[I6] Connection: G1<br />
[P] Contacts: 1 x PNP-Open Collector, N/O<br />
Mounting position: vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. temperature: 65 °C 100 °C<br />
Max. pressure: 6 bar...16 bar depend see data sheet<br />
Material: connection, float / seal/ ring: 1.4301 / NBR / PVC

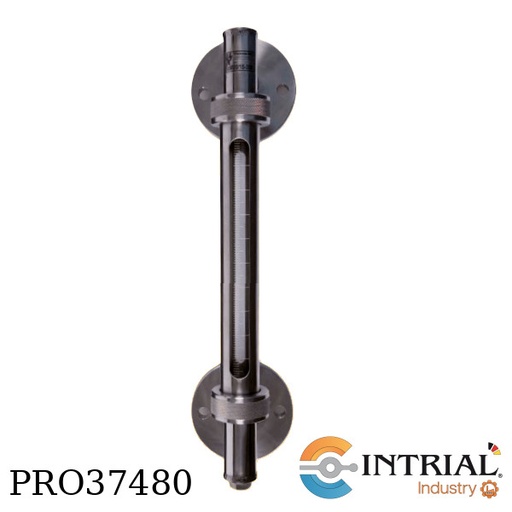

<div>MODELO: SZM-K21A4G1G10<br />
[SZM-K] Bypass-Level Indicators with glass tube<br />
[2] Version (top/bottom): top: closed, bottom: cleaning hole<br />
[1] Valves: 2 shut off valves in connection<br />
[A4] Connection:  loose flange ANSI B16.5 1/2" 150 lbs<br />
[G1] Scale: Plastic foil on meas. tube (2 mm-division)<br />
[G1] Length of sclae: Plastic foil on meas. tube (2 mm-division)<br />
[0] Limit switch: without<br />
Bypass- tube: Borosilicate glass<br />
O-ring:  FPM<br />
Protecting tube: st.steel 1.4301<br />
Connection: st.steel 1.4301<br />
Max. temperature:  100 °C<br />
Max. pressure 10 bar<br />
Max. installation length:  370....3080 mm</div>

<div>Ficha Técnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/n2gb_szm.pdf</div>

MODELO: TME-S95-206R-0-R-1-A-0-0<br />
[TME-S95] Coriolis Massflowmeter with transmitter UMC4<br />
[206R] Process connection: flange 2" Class 150 RF<br />
[0] heating/cooling element: without<br />
[R] Flow direction: right to left<br />
[1] Sensor: integrated transmitter up to 100 °C<br />
[A] Approvals: Ex II ½ G EEx ia IIC T6-T2<br />
[0] Certificates: without<br />
[0] Special versión: without<br />
Operating principle: Coriolis<br />
Mounting position: all directions<br />
Display:LCD Display<br />
max. medium temperature 180 °C<br />
Material: stainless steel<br />
Protection class: IP 65<br />
Measuring range:0-30000 kg/h<br /><br />
Ficha Tecnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_tme.pdf

<div></div>

<div></div>
Coriolis Massflowmeter with transmitter UMC4<br />
MODELO: TME-S80-201R 0 U 2000<br />
[TME-S80] Coriolis Massflowmeter with transmitter UMC4<br />
[201R] Process connection: flange ½" Class 150 RF<br />
[0] heating/cooling elemen: without<br />
[U] Flow direction: bottom to top<br />
[2] Sensor: integrated transmitter up to 150 °C<br />
[0] Approvals: wihtout<br />
[0] Certificates: without<br />
[0] Special versión: without<br />
Operating principle: Coriolis<br />
Mounting position: all directions<br />
Display: LCD Display<br />
max. medium temperature: 180 °C<br />
Material: stainless steel<br />
Protection class: IP 65<br />
Measuring range: 0-600 kg/h<br /><br />
Ficha Técnica: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_tme.pdf

MODEL: PAD-A-EE-5-S-2-N-S-0-0<br />
[PAD-A] Differential Pressure Transmitter<br />
[EE] Material (Diaphragm/other): st.steel 1.4404/1.4401<br />
[5] Measuring range: 151mbar...15 bar (15,0...1500 KPa)<br />
[S] Filling liquid: Silicone<br />
[2] Process connection: 1/4-18 NPT IG (standard)<br />
[N] Electr. Connection: 1/2-14 NPT Epoxy-polyester painted Aluminium<br />
[S] Approvals: Standard (IP 67)<br />
[0] Manifold Valve: w/o<br />
[0] Options: w/o<br />
Pressure type: Absolut<br />
Accuracy: ± 0,075%..±0,25% of calibr span<br />
measuring principle: piezoresistive<br />
Medium temperature: -30..+120 °C<br />
Power supply: 12-45 VDC (17,5-45 VDC with HART

<div>MODEL: DWU-26-A40-1-L-T-Y                <br />
[DWU-2] Flow Indicator and Switch with Paddle and Bellows<br />
[6] Material combination: st.st.<br />
[A40] Connection: Flange 1 1/2" #150 ANSI<br />
[1] Signal lamp: 110 VAC<br />
[L] Flow direction: flow from left to right<br />
[T] Location of indicator: above lead<br />
[Y] Protection IP65<br />
Scale: m³/h <br />
Operating principle: paddle-bellow<br />
Indication: pointer indication<br />
Flow direction: in direction of the arrow<br />
Output 1: microswitch/SPDT<br />
Max. Temperature: 100 °C<br />
Connection: flange</div>

<div>Ficha Técnica: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb</div>

<div>MODEL: DWU-26-A25-1-L-T-Y                 <br />
[DWU-2] Flow Indicator and Switch with Paddle and Bellows<br />
[6] Material combination: st.st.<br />
[A25] Connection: Flange 1" #150 ANSI<br />
[1] Signal lamp: 110 VAC<br />
[L] Flow direction: flow from left to right<br />
[T] Location of indicator: above lead<br />
[Y] Protection IP65<br />
Scale: m³/h <br />
Operating principle: paddle-bellow<br />
Indication: pointer indication<br />
Flow direction: in direction of the arrow<br />
Output 1: microswitch/SPDT<br />
Max. Temperature: 100 °C<br />
Connection: flange</div>

<div>Ficha Técnica: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb_dwu.pdf</div>

Variable Area Flowmeter<br />
MODELO URM 33 53L I6 P<br />
[URM 33] Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
[53L] Range Full Scale 13…130 Nm³/h<br />
[I6] Connection: G1<br />
[P] Contacts: 1 x PNP-Open Collector, N/O<br />
Mounting position: vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. temperature 65 °C<br />
Max. pressure 6 bar...16 bar depend see data sheet<br />
Material: connection, float / seal/ ring: 1.4301 / NBR / PVC<br /><br />
Ficha Técnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s2gb_urm.pdf

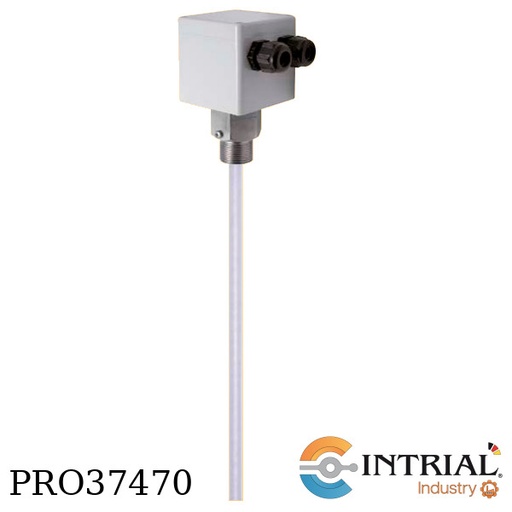

<strong>CAPACITIVE LEVEL METER FOR LIQUIDS<br />
Brand: KOBOLD<br />
Model: NMC-N-2-2-G6-0-3</strong><br />
[NMC-N]:<br />
Capacitive Level Meter for Liquids<br />
[2] Probe length: 1.20m<br />
[2] Material connection: st.st. 1.4305<br />
[G6] Connection: G 1 male<br />
[0] ATEX: without<br />
[3] Power supply: 12...35 VDC<br />
Probe version: 1-probe<br />
Version: standard<br />
Connection material: st.st. 1.4305<br />
Probe material: PTFE <br />
Max. Temperature: 90 ºC<br />
Max. Pressure: 30bar<br />
Media DC-value: εµr = min. 1.5<br />
Output: 4-20 mA<br />
Display: 4-lines LCD, alphanumeric (% and mA)<br />
Housing: Polycarbonate<br />
Protection: IP65

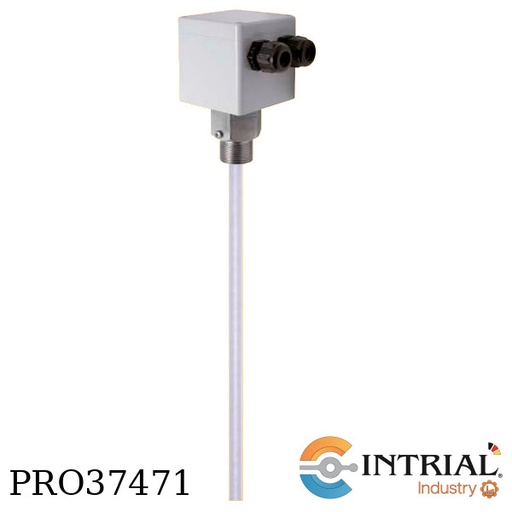

<strong>CAPACITIVE LEVEL METER FOR LIQUIDS<br />
Brand: KOBOLD<br />
MODEL: NMC-N-1-2-G6-0-3</strong><br />
[NMC-N] Capacitive Level Meter for Liquids<br />
[1] Probe length: 0.90m<br />
[2] Material connection: st.st. 1.4305<br />
[G6] Connection: G 1 male<br />
[0] ATEX: without<br />
[3] Power supply: 12...35 VDC<br />
Probe version: 1-probe<br />
Version: standard<br />
Connection material: st.st. 1.4305<br />
Probe material: PTFE <br />
Max. Temperature: 90 ºC<br />
Max. Pressure: 30bar<br />
Media DC-value: εµr = min. 1.5<br />
Output: 4-20 mA<br />
Display: 4-lines LCD, alphanumeric (% and mA)<br />
Housing: Polycarbonate<br />
Protection: IP65

MODEL: SEN- 3276 B075<br />
[SEN- 3276] Pressure sensor Heavy Duty Industrial<br />
[w/o] Output: 4-20mA, 2-wire<br />
[B075]Measuring range: 0….10 bar<br />
Version: with internal sensor <br />
Pressure type relative pressure<br />
Accuracy class 0,50% <br />
measuring principle piezoresistive<br />
Medium temperature: -30..+100 °C<br />
Pressure conn: st. Steel 1.4301 <br />
Thread: G 1/2 male<br />
Power supply 10(14)-30 VDC<br />
Protection IP 65

MODEL: TUR-2125-K-0-4-2<br />
[TUR-21] Turbine Wheel Flowmeter<br />
[2125] Connection / Measuring range: NW 25 / 0,2...5 m³/h wáter<br />
[K] ADI and ZED: Universal Control Panel Indicating unit<br />
[0] Power Supply: 100-240 VAC/DC<br />
[4] Output: 0(4)-20 mA, 0-10 v<br />
[2] Contacts: 2 changeover contacts<br />
Operating principle: Turbine Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Material: PVDF<br />
Max. Temperatura: 70 °C<br />
Max. Pressure: PN 10<br />
Accuracy: +-1% FS<br />
Protection: IP 65<br /><br />
Ficha Técnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_tur.pdf

<strong>Pressure Transmitter PAS<br />
Model: PAS-G-EE-5-S-4-N-F-0-M<br />
Brand: Kobold - Alemania</strong><br />
[PAS-G] <br />
Pressure type: gauge pressure<br />
Accuracy: ± 0,075% of calibrated span<br />
Measuring principle: piezoresistive<br />
Medium temperature: -30..+120 °C<br />
Power supply: 12-45 VDC (17,5-45 VDC with HART)<br />
[EE] Material (Diaphrgm/other): st.steel 1.4404/1.4401<br />
[5] Measuring range: 0...50 bar (0...5.000 kPa)<br />
[S] Filling liquid: Silicone<br />
[4] Process connection: 1/2-14 NPT IG (standard)<br />
[N] Electr. Connection: 1/2-14 NPT Epoxy-polyester painted Aluminium<br />
[F] Approvals: ATEX, flameproof, Exd<br />
[0] Manifold Valve: w/o<br />
[M] Options: Housing in st.steel

Termómetro de Resistencia con Transmisor Integrado<br />
MODEL: TMA064-10-8-12-1<br />
[TMA] Insertion Resistance Thermometers with Integrated Transmitter<br />
[10] Immersion length: 100 mm<br />
[8] Connection: ½  NPT<br />
[05] Measuring range: 0..+120 °C<br />
[1] Output: 0-10 V<br />
Brochure T1/T2, page: 96<br />
Probe material: st.st. 1.4571 <br />
Connecting: fixed <br />
Design: w/o stand-off <br />
Power supply 12 - 36 VDC<br />
electr. Connection plug acc. to DIN 43650<br />
Output 4-20 mA

TDA15H2R40L3M<br />
Marca: Kobold<br />
Carcasa: Acero inoxidable<br />
Salida: 4-20 mA<br />
Rango de temperatura: -20 a 120°C<br />
Display de 3 dígitos<br />
Conexión: G 1/2<br />
Longitud de sensor: corto<br />
Salida: 4 a 20 mA<br />
Conexión eléctrica: Conector enchufe M12x1<br /><br />
Ficha Tecnica<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/t2gb_tda.pdf

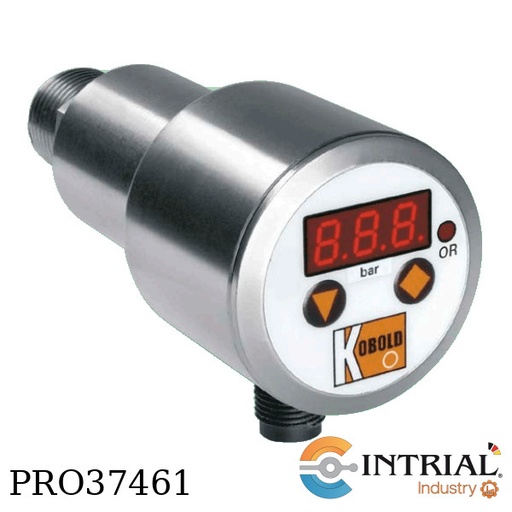

Electronic Pressure Transmitter<br />
Model: PDA-15-3-R4-B075<br />
Brand: Kobold (Alemania)<br />
[PDA-15]:<br />
Accuracy, 0,5 % of FS (1 % of FS of range B025+B035)<br />
Housing, St. st. 1.4305<br />
Carcasa: Acero Inoxidable<br />
Display 3-digit LED display<br />
Analog Output, 0(4)-20 mA<br />
Contact device, w/o<br />
Power supply, 24 VDC<br />
Medium temperature, -20..+80 °C<br />
Protection,  IP 65<br />
[3]: Electr. connection, Plug M12x1<br />
[R4]: Process connection, Connection: G 1/2<br />
[B075]: Meas. range/Switch range, 0...10 bar

Modelo: DOM-S-20H-R4-3-Z4-0<br />
[DOM-S] Oval Gear Flow Meter/Counter<br />
[20H] Measuring range: 1-40 L/min<br />
[R4] Mech. Connection: NPT 1/2 for meas. range 20H<br />
[3] Seal: PTFE encaps. FPM for meas. range 20H<br />
[Z4] Electronic: Z3 electronic with ATEX approval (Exi)<br />
[0] Accessory: Without<br />
Operating principle: Gear Wheel <br />
Mounting position:horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature:120 °C<br />
max. pressure: 12...68 bar <br />
Accuracy: ±0,5 % ...1 % of reading<br />
Housing material:st. st. 1.4401<br />
Rotor material: st. st. 1.4401 <br /><br /><br />
Ficha Técnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

<div>Modelo 1: KFR-2114</div>

<div>• KFR-21: Low Volume Flowmeter<br />
• Operating principle variable area<br />
• Mounting position vertical<br />
• Flow direction from bottom<br />
• Total length 101,6 mm<br />
• Connection material brass<br />
• Connection size 1/8 NPT female on rear<br />
• Seal NBR<br />
• 14: measuring range: 0,5...5 NL/min air</div>

<div>Hoja Técnica<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s1gb_kfr.pdf</div>

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-2112</strong><br /><br />
[KFR-21]: <br />
Operating principle, variable area<br />
Mounting position,vertical<br />
Flow direction, from bottom<br />
Total length, 102 mm<br />
Accuracy, ±5 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, brass<br />
Connection size, 1/8" NPT female on rear ( or 1/4" NPT female*)<br />
Seal, NBR<br />
[12]: Measuring range, 0,04...0,5 L/min air
