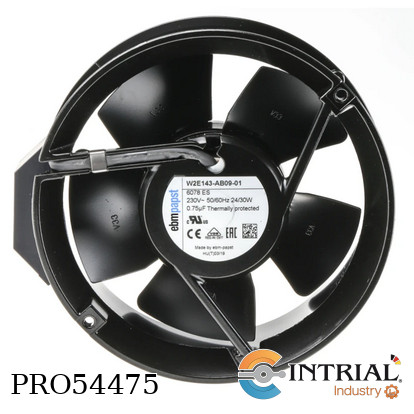

AC AXIAL COMPACT FAN<br />
Marca: EBM-PAPST<br />
Modelo: W2E143-AB09-01<br />
Nominal voltage, 230 VAC<br />
Frequency, 50 Hz<br />
Speed (rpm), 2800<br />
Power consumption, 24 W<br />
Current draw, 0.12 A<br />
Capacitor, 0.75 μF<br />
Min. ambient temperature, -25 °C<br />
Max. ambient temperature, 60 °C

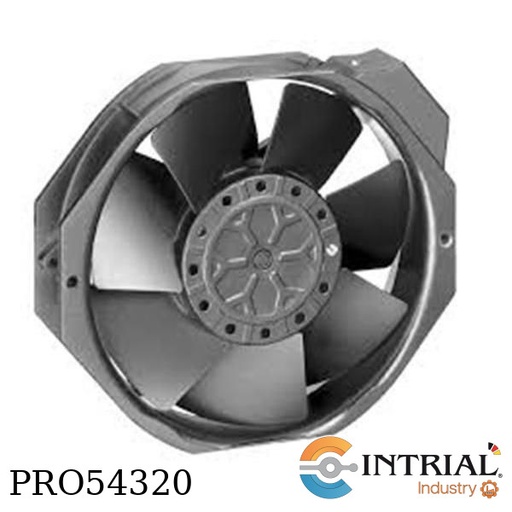

AC FAN AXIAL BALL BEARING
Brand: EBM-PAPST
Model: W2E142-BB05-87
Dimension, 172 x 150 x 38 mm
Voltage Rating, 115 V
Power Rating, 57 W
Maximum Airflow, 230 CFM
Housing Material, Die-Cast Aluminum
Operating Temperature, 0 to 80 °C

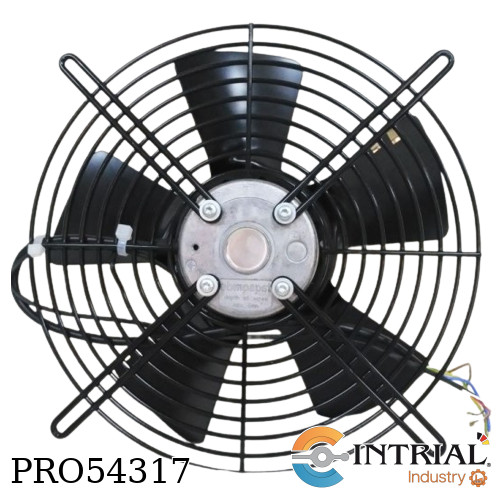

AC AXIAL FAN<br />
Brand: EBM-PAPST<br />
Model: S4S250-BA20-56<br />
Nominal voltage, 115 VAC<br />
Current, 1.12 A<br />
Power input, 80 W

VENTILADOR DE POWER FLEX 753<br />
Fan Kit Heat Sink NEMA 1 Size 3 Frame

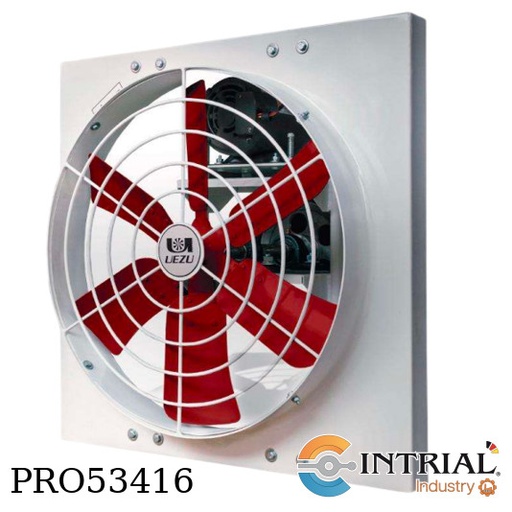

VENT. AXIAL SPF-42 F/P 1.5HP-1750RPM 220/380//440V/3F<br />
Marca: UEZU<br />
Modelo: SPF-42-1.5-3F<br />
- Inyector Centrifugo Q= 15 000 m3/h , D.L <br />
- Extractor Centrifugo Q= 15 000 m3/h , D.L

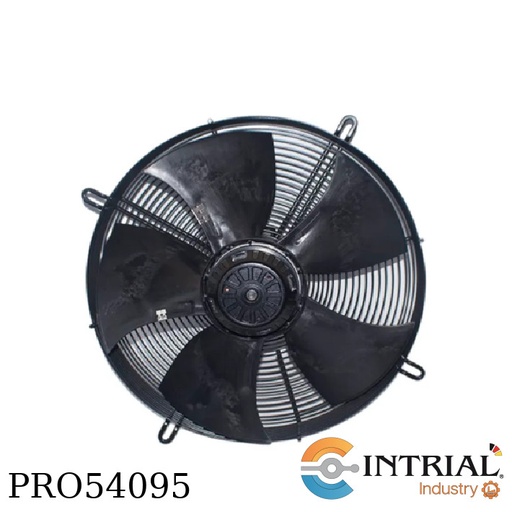

AXIAL MOTOR FAN<br />
BRAND: EBM<br />
MODEL: A6D710-AH03-03<br /><br />
WEIGHT: 19.4 KG<br />
SIZE: 710 MM<br />
MOTOR SIZE: 138<br />
ROTOR SURFACE: CAST IN ALUMINUM<br />
TERMINAL BOX MATERIAL: PP PLASTIC<br />
BLADE MATERIAL: SHEET ALUMINUM INSERT, SPRAYED WITH PP PLASTIC<br />
NUMBER OF BLADES: 5<br />
BLADE PITCH: -5°<br />
AIRFLOW DIRECTION: V<br />
DIRECTION OF ROTATION: CLOCKWISE, VIEWED TOWARD ROTOR<br />
DEGREE OF PROTECTION: IP54<br />
INSULATION CLASS: "F"

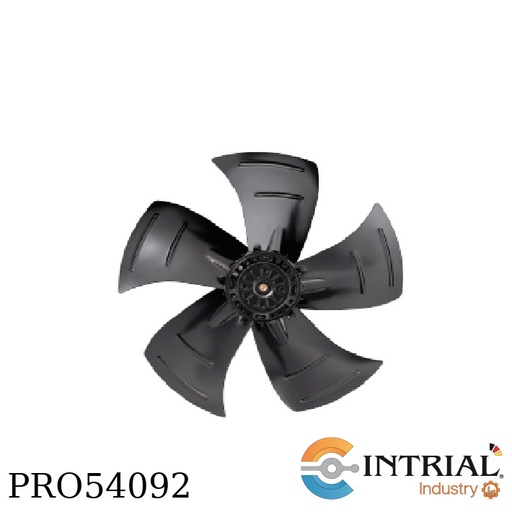

AC AXIAL FAN<br />
BRAND: EBM<br />
MODEL: S4E400-AP02-03<br /><br />
LEACKAGE CURRENT:< 0,75 MA<br />
SIZE: 400 MM<br />
OPERATION MODE: CONTINUOUS OPERATION (S1)<br />
DIRECTION OF ROTATION: COUNTER-CLOCKWISE, SEEN ON ROTOR<br />
DIRECTION OF AIR FLOW: "V"<br />
INSULATION CLASS: "B"<br />
CABLE EXIT: VARIABLE<br />
BEARING MOTOR: BALL BEARING<br />
MASS: 4.2 KG<br />
MATERIAL OF ELECTRONICS HOUSING: ROTOR: COATED IN BLACK<br />
MATERIAL OF IMPELLER: SHEET STEEL, COATED IN BLACK<br />
MOTOR PROTECTION: THERMAL OVERLOAD PROTECTOR (TOP) WIRED INTERNALLY<br />
PRODUCT CONFORMING TO STANDARD: CE<br />
OPTION: WITH TERMINAL BOX<br />
NUMBER OF BLADES: 5<br />
TYPE OF PROTECTION: IP 44 - DEPENDING ON POSITION<br />
PROTECTION CLASS: I<br />
APPROVAL: CCC; GOST

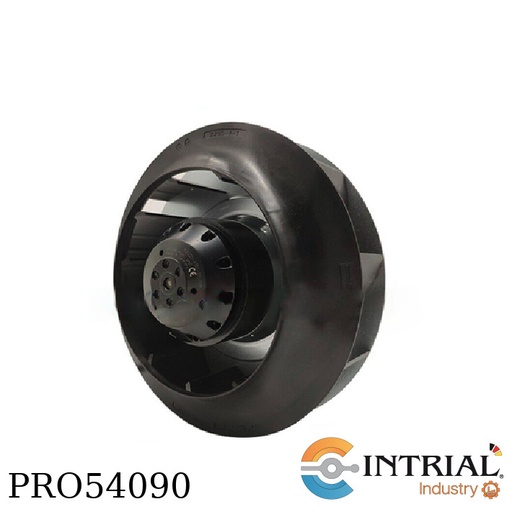

AC CENTRIFUGAL FAN<br />
BRAND: EBM<br />
MODEL: R2E225-AT51-05<br /><br />
LEACKAGE CURRENT: < 0.75 MA<br />
SIZE: 225 MM<br />
OPERATION MODE: S1<br />
DIRECTION OF ROTATION: CLOCKWISE, SEEN ON ROTOR<br />
MOUNTING POSITION: SHAFT HORIZONTAL OR ROTOR ON BOTTOM; ROTOR ON TOP ON REQUEST<br />
HUMIDITY CLASS: F1-2<br />
INSULATION CLASS: "B"<br />
CABLE EXIT: VARIABLE<br />
CONDENSATE DISCHARGE HOLES: ROTOR-SIDE<br />
MOTOR BEARING: BALL BEARING<br />
MASS: 2.1 KG<br />
MATERIAL OF IMPELLER: PA PLASTIC 6, FIBREGLASS-REINFORCED<br />
MOTOR PROTECTION: THERMAL OVERLOAD PROTECTOR (TOP) WIRED INTERNALLY<br />
PRODUCT CONFORMING TO STANDARD: CE; EN 60335-1<br />
SURFACE OF ROTOR: COATED IN BLACK<br />
NUMBER OF BLADES: 11<br />
TYPE OF PROTECTION: IP 44<br />
PROTECTION CLASS: I<br />
MAX. PERMISSIBLE AMBIENT MOTOR TEMP. (TRANSP./ STORAGE): + 80 °C<br />
MIN. PERMISSIBLE AMBIENT MOTOR TEMP. (TRANSP./STORAGE): - 40 °C<br />
APPROVAL: CCC; GOST

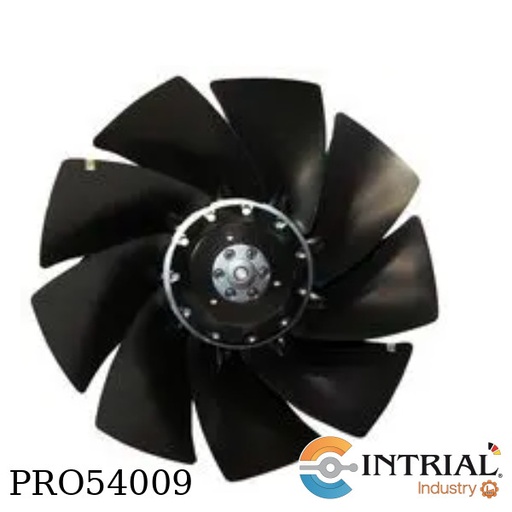

VENTILADOR AXIAL DE CA<br />
MARCA: EBM<br />
MODELO: A2E250-AM06-01 <br /><br />
VOLTAJE NOMINAL: 230 V <br />
VOLTAJE DE ALIMENTACIÓN VCA:  230V<br />
TIPO DE MARCO DE VENTILADOR: CIRCULAR<br />
VOLTAJE DE ALIMENTACIÓN: 230VAC<br />
TIPO DE VOLTAJE: AC<br />
TAMAÑO DEL MARCO DEL VENTILADOR:  250MM<br />
PROFUNDIDAD EXTERNA:  72MM <br />
TIPO DE RODAMIENTO:  RODAMIENTO DE BOLAS<br />
RANGO DE FLUJO - IMPERIAL:  1160CFM<br />
RANGO DE FLUJO - MÉTRICO:  1970M³/H<br />
FLUJO DE AIRE - CFM:  1160CFM <br />
VELOCIDAD NOMINAL:  2600RPM<br />
TIPO DE CONEXIÓN ALIMENTACIÓN: 4 CABLES CONDUCTORES <br />
CORRIENTE NOMINAL: 660MA<br />
POTENCIA NOMINAL: 150W<br />
FLUJO DE AIRE - M3/MIN: 32.834M³/MIN

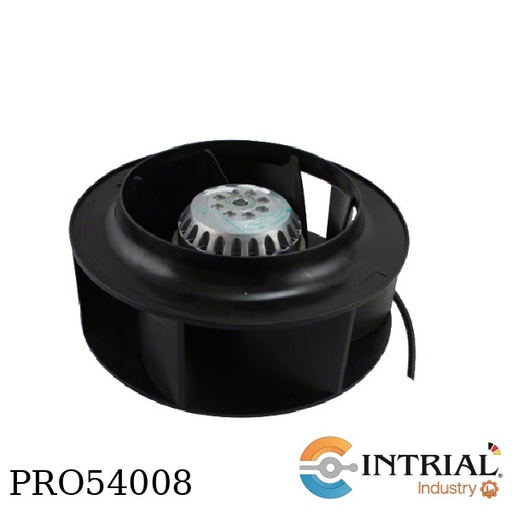

VENTILADOR CENTRÍFUGO DE CA<br />
MARCA: EBM<br />
MODELO: R2E225-BE47-09 <br /><br />
VOLTAJE NOMINAL: 230 VCA<br />
TAMAÑO/DIMENSIÓN: REDONDO - 225MM D<br />
ANCHO: 88.00MM<br />
FLUJO DE AIRE: 756.0 FT3/MIN (21.17M³/MIN)<br />
RUIDO: 75.0DB(A)<br />
POTENCIA (VATIOS): 185W<br />
RPM: 3000 RPM<br />
TERMINACIÓN: 2 EXTREMIDADES DEL HILO<br />
TEMPERATURA DE FUNCIONAMIENTO: -40 ~ 176°F (-40 ~ 80°C)<br />
PESO: 6 LB (2.7 KG)

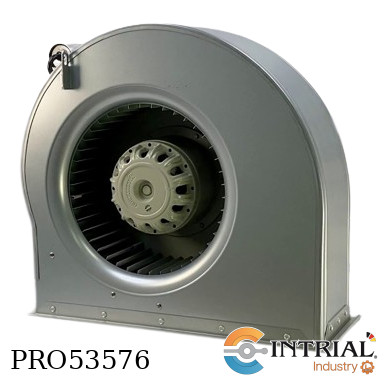

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;">SPARE PART SINAMICS/MICROMASTER PX REPLACEMENT FAN(complete assembly kit)<br />
for AC Drive/Power/Motor Module Built-in units Frame sizes G, H and J<br />
Brand: SIEMENS<br />
Model: 6SL3362-0AG00-0AA1</p>

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"></p>

<p></p>

<div>
<div class="gtx-trans-icon"></div>
</div>

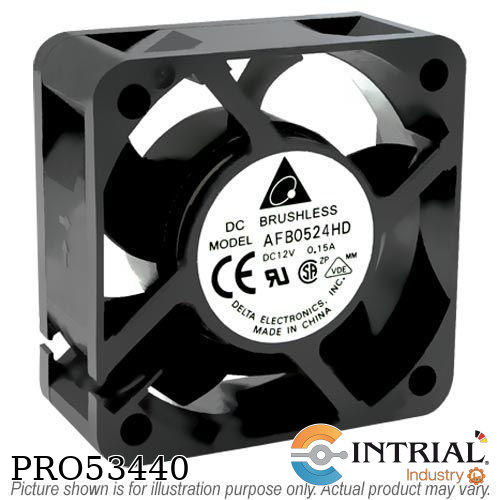

VENTILADOR DE REFRIGERACION INVERSO<br />
Marca: DELTA<br />
MODELO: AFB0524HB <br /><br />
Series AFB<br />
Part Status Enabled<br />
Voltage Rated 24 VDC<br />
Size / Dimension Square-50mm L X 50mm H<br />
Width 15.00mm<br />
Air Flow 14.13 CFM (0.400 m3/min)<br />
Static Pressure 0.240 inchH2O (6.10 mmH2O)<br />
Bearing Type Ball<br />
Fan Type Axial<br />
Noise 32.0 dB(A)<br />
Power (Watts) 1.68 W<br />
RPM 5600 RPM<br />
Termination 2 wire leads<br />
Operating Temperature -10~+70⁰C<br />
Weight gram (g) 32g<br />
Current Rating0.07 A<br />
Voltage Rating14.0 - 27.6 VDC<br />
Material Frame Plastic<br />
Material Blade Plastic<br />
Lifetime @ Temp70000 Hrs@40°C

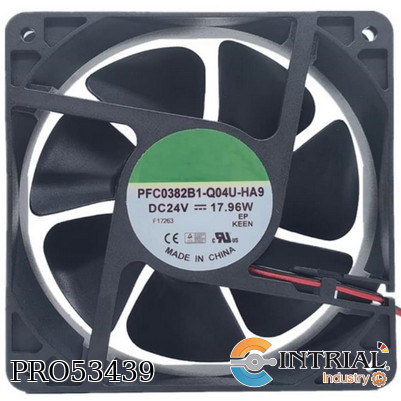

VENTILADOR<br />
Marca: SUNON<br />
Modelo: PFC0382B1-Q04U-HA9<br />
Voltaje, 24V<br />
Poder, 17.96W<br />
Tamaño, 120x120x38mm<br /><br />

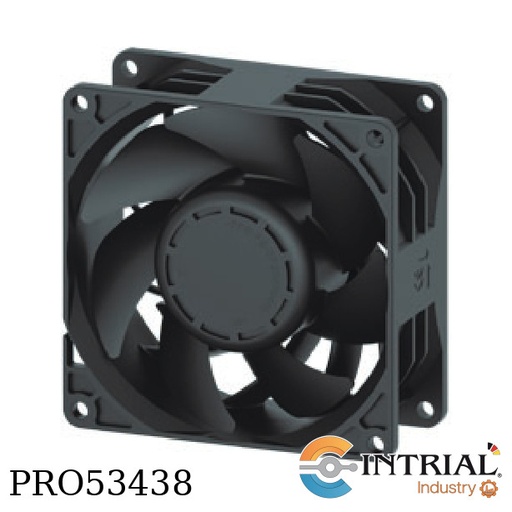

VENTILADOR INVERSOR DE 3 HILOS<br />
Marca: SUNON<br />
Modelo: PF92382B1-Q04U-HA9<br />
Tamaño, 90 mm x 90 mm x 38 mm<br />
Poder, 9.68W<br />
Terminación,3<br />
Voltaje, 24V

VENT. AXIAL SPF-36 F/P 1HP-1750RPM 220/380//440V/3F<br />
Marca: UEZU<br />
Modelo: PF-36-1-3F<br />
- Inyector Centrifugo Q= 20 000 m3/h , D.L<br />
- Extractor Centrifugo Q= 20 000 m3/h , D.L

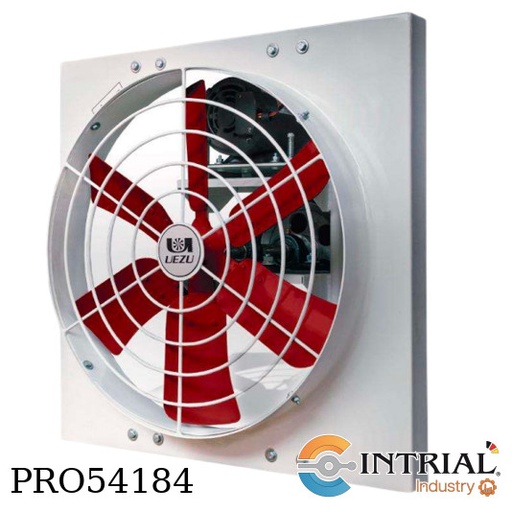

VENT. AXIAL SPF-42 F/P 1.5HP-1750RPM 220/380//440V/3F<br />
Marca: UEZU<br />
Modelo: SPF-42-1.5-3F<br />
- Inyector Centrifugo Q= 27 000 m3/h , D.L <br />
- Extractor Centrifugo Q= 27 000 m3/h , D.L

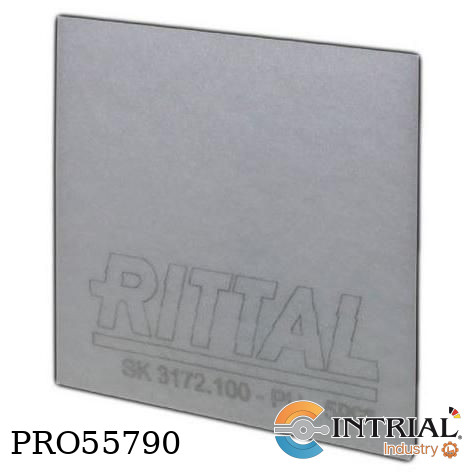

ESTERA FILTRANTE
Marca: RITTAL
Modelo: 3172100
para 3240/3241XXX
filtro clase G3 según DIN EN779

AXIAL COMPACT FAN<br />
Brand: EBM-PAPST<br />
Model: W2E143-AA15-01<br />
Nominal voltage, 115 V<br />
Frequency, 50/60 Hz<br />
Speed, 3300 min-1<br />
Power input, 26 W<br />
<br />

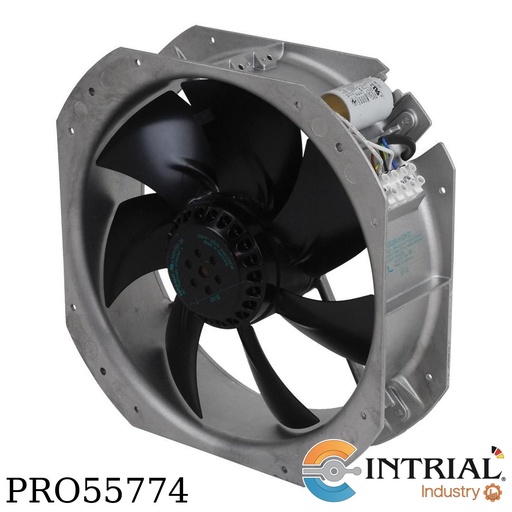

AXIAL FAN<br />
BRAND: EBM PAPST<br />
SUPPLY VOLTAGE: 115V<br />
CURRENT TYPE: AC<br />
FAN FRAME SIZE: 225 MM<br />
EXTERNAL DEPTH: 80 MM<br />
NOISE RATING: 61DBA<br />
FLOW RATE - IMPERIAL: 607CU.FT/MIN<br />
FLOW RATE - METRIC:17M /MIN<br />
BEARING TYPE: BALL<br />
ROHS COMPLIANT: YES

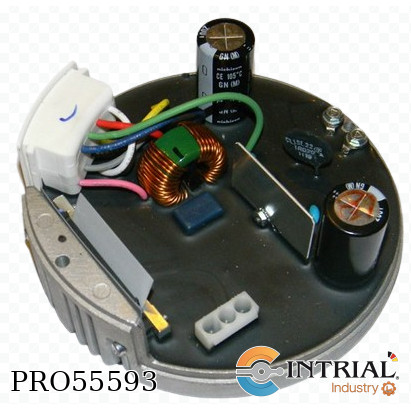

MÓDULO DE MOTOR SOPLADOR OEM HEIL<br />
Modelo: ADAP-HD52AE137<br />
1 HP <br />
208-240 V
