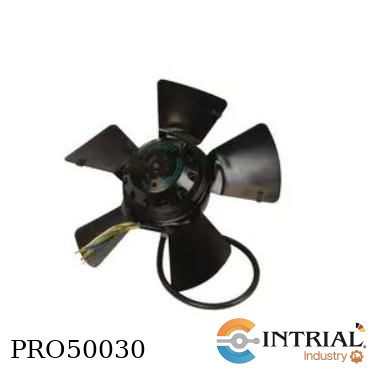

Ventilador axial de CA<br />
Marca: EBM-PAPST<br />
Modelo: A2D250-AA06-44<br />
Voltaje nominal CA: 230 V / 400 V<br />
Voltaje de Alimentación VCA: 460V<br />
Voltaje de Alimentación: 460VAC<br />
Velocidad Nominal: 2900rpm<br />
Tipo de Conexión Alimentación: 7 Cables Conductores<br />
Corriente Nominal: 220mA<br />
Rango de Producto: Serie A2D<br />
Potencia Nominal: 160W<br />
IP: IP44

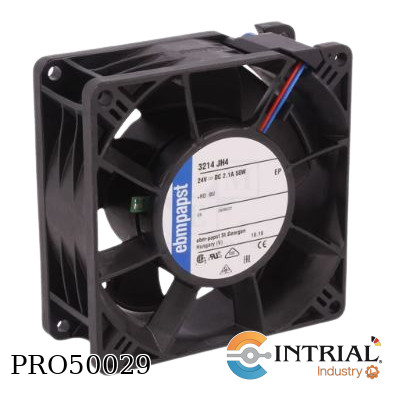

<div>Ventilador axial de CC<br />
Marca: EBM-PAPST<br />
Modelo: 3214-JH<br />
Tensión de alimentación: 24V CC<br />
Tensión de trabajo: 12...27,6V CC<br />
Toma de potencia: 9W<br />
Eficacia de ventiladores: 280m3/h<br />
Velocidad de revoluciones: 13000rot./min<br />
Salida: 2 cables</div>

Ventilador axial de CA<br />
Marca: EBM-PAPST<br />
Modelo: W2S130-AA25-01<br />
Voltaje nominal CA: 115V<br />
Voltaje de Alimentación VCA: 115V<br />
Voltaje de Alimentación: 115VAC<br />
Potencia Nominal: 38W<br />
Velocidad Nominal: 3250rpm<br />
Tipo de Conexión Alimentación: 2 Cables Conductores<br />
IP: IP20

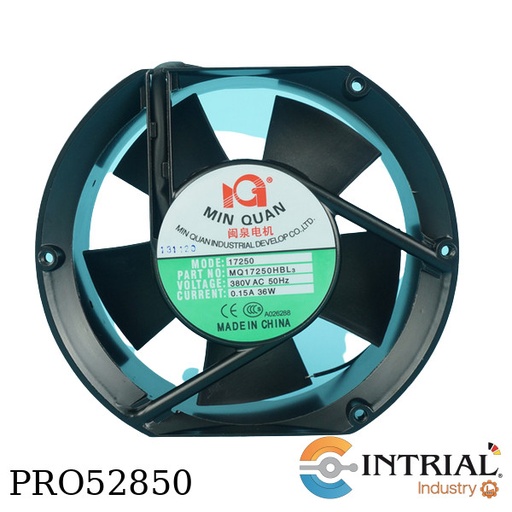

VENTILADOR<br />
Marca: MIN QUAN<br />
Modelo: MQ17250HBL3<br />
Tamaño, 150 x 172 x 50 mm<br />
Voltaje, 380V<br />
Corriente, 0.15A<br />
Poder, 36W<br />
Cable, 2

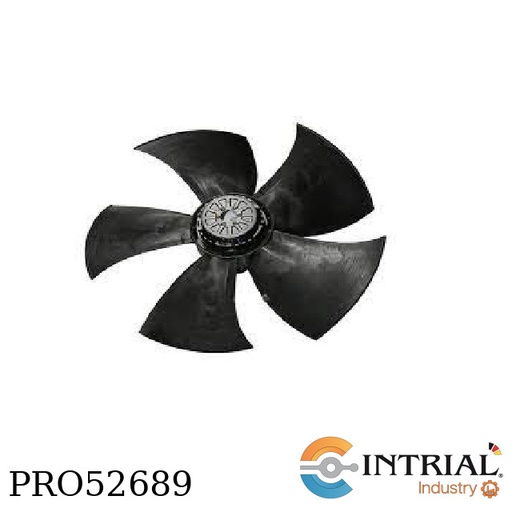

Axial Fan<br />
Brand: EBMPAPST<br />
Model: A6D6-30-AN01-01<br />
Motor, M6D110-GF<br />
Weight 9.9 kg<br />
Size 630 mm<br />
Motor size 110<br />
Rotor surface Painted black<br />
Terminal box material PP plastic<br />
Blade material Press-fitted sheet steel blank, sprayed<br />
with PP plastic<br />
Number of blades 5<br />
Airflow direction V<br />
Direction of rotation Counterclockwise, viewed toward rotor<br />
Degree of protection IP54<br />
Air flow qv / m³/h 7325

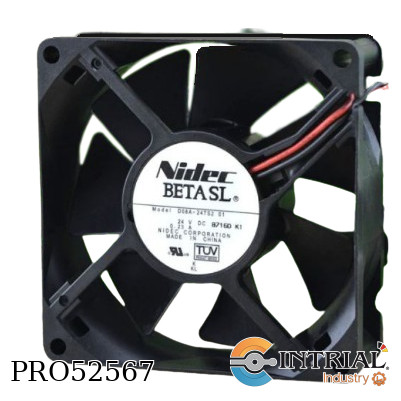

VENTILADOR<br />
Marca: NIDEC<br />
Modelo: D08A-24TS2-01<br />
Voltaje, 24V<br />
Corriente, 0.23A<br />
Cable, 2<br />
Tamaño, 80 mm x 80 mm x 25 mm

AC CENTRIFUGAL FAN<br />
Brand: EBMS-PAPST<br />
Model: R2E190-AO26-24<br />
Nominal voltage, 230 VAC <br />
Frequency, 50/60Hz <br />
Speed (rpm), 2700<br />
Fan size, 190 mm<br />
Number of blades, 7<br />
Degree of protection, IP44

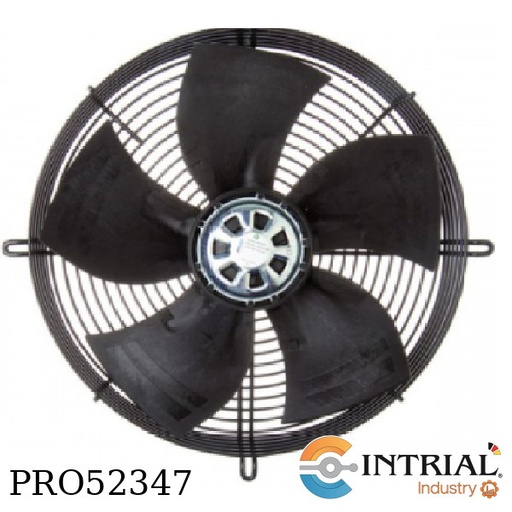

VENTILADOR AXIAL DE CA<br />
Marca: EBM-PAPST<br />
Model: S4E350-G01<br />
Tipo: Axial<br />
Caudal: 3540 m³/h<br />
Accionamiento: Directo<br />
Motor Monofásico: 190 W-1590 RPM (230 V, 60 Hz)<br />
Diámetro Hélice: Ø 350 mm<br />
Incluye: Rejilla Soporte de Motor

AXIAL FAN<br />
Brand: EBM-PAPST<br />
Model: W2S130-AA03-71<br />
Operating voltage, 230VAC<br />
Rated frequency, 50/60HZ<br />
Supply Current, 45/39W<br />
Speed, 2800/3250RPM<br />
Noise Level, 48/52DBA

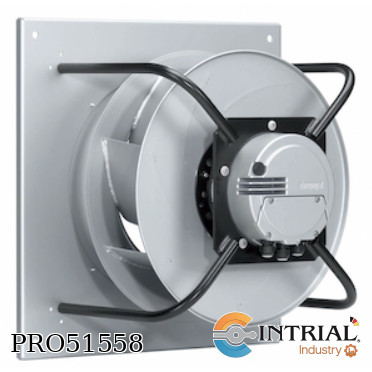

VENTILADOR CENTRIFUGO MOTOR<br />
Brand: EBMPAPST<br />
Model: K3G630-FB32-03<br />
Fase, 3<br />
Tensión nominal(VAC), 400<br />
Tensión nominal rango(VAC), 380 .. 480<br />
Frecuencia(Hz), 50/60
<div>
<div class="gtx-trans-icon"></div>
</div>

Indoor Blower Assembly Replacement Kit<br />
460v MEGA-TEC Blower rep. KIT<br />

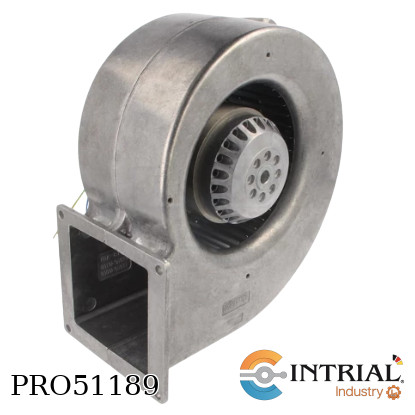

AC centrifugal fan<br />
Brand: EBM-PAPST<br />
Model: G2E160-AY47-01<br />
Operating supply voltage: 230 VAC<br />
Bearing Type: Ball<br />
Noise: 72dba<br />
Speed: 2100RPM<br />
Power Rating: 280 W<br />
Housing Material: Aluminum<br />
IP Rating: IP44<br />

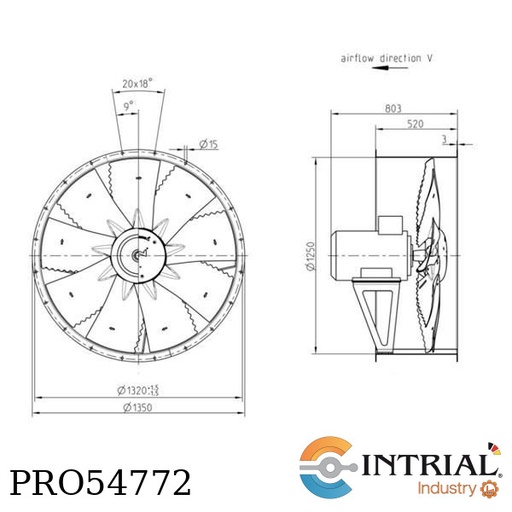

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;">AXIAL FAN<br />
Brand: ZIEHL<br />
Model: DN12V-8DK.K7.19.G9<br />
Requirement:<br />
Airflow, 18 m3/s<br />
Pressure, 50 Pa<br />
Pressure type, static<br />
Temperature, 20 °C<br />
Altitude, 4200 m<br />
Humidity, 0 %<br />
Humidity abs., 0 g/kg dry air<br />
Air Density, 0.71 kg/m3<br />
Measuring category (ISO 5801), D (ducted)<br /><br />
Fan characteristics:<br />
Design, K (short casing)<br />
Diameter, 1250 mm<br />
Temp. range, -20/50 °C<br />
ATEX range, none<br />
Casing finish, G - hot dip galv. steel<br />
Mounting position, H/V (horizontal and vertical)<br />
Location, inside<br /><br />
Impeller data:<br />
Airflow direction, V (impeller -> motor)<br />
Nb of blades, 9<br />
Blade setting., 19°<br />
Blade Material, ZAmid<br />
Impeller bolting, A2<br />
Special treatment alu parts, no<br />
Hub cover, yes<br />
Counter rotation, no<br /><br />
Achieved duty point:<br />
Airflow: 18.3 m3/s<br />
Static Pressure: 51.5 Pa<br />
Shaft power (P2): 5.13 kW<br />
Total Pressure: 131 Pa<br />
Dynamic pressure: 79.1 Pa<br />
Input power (P1): 5.74 kW<br />
Imp. static eff.: 18.3 %<br />
Current max.(D460 V): 11.1/6.43 A<br /><br />
Motor information - Rating plate data:<br />
Brand, ZA-MOTOR<br />
Size: 160L<br />
Shaft power (P2): 6.48 kW<br />
Supply: D460 V | 3~ | 60Hz<br />
Design: IM B3, IM 1001<br />
Current: 12.12 A<br />
Eff. (100%): 0.895 (IE3)<br />
Power factor: 0.75<br />
Rated speed: 870 /min (8 pole)<br />
Deg. of protection: IP55<br />
Thermal class: THCL 155<br />
Temp.range: -20/40 °C<br />
Motor protection: PTC</p>

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"></p>

<p></p>

<div>
<div class="gtx-trans-icon"></div>
</div>

AC AXIAL FAN <br />
BRAND: COMMONWEALTH<br />
MODEL: FP-108EXM-220/230<br />
<br />
VOLT (VAC): 220/230<br />
CURRENT (A): 0.25<br />
POWER (W): 38.5<br />
FREQUENCY (HZ): 50/60

AC CENTRIFUGAL FAN<br />
Brand: EBM-PAPST<br />
Model: R2E180-AS77-40<br />
Nominal voltage, 230 VAC<br />
Frequency, 50 Hz<br />
Speed (rpm), 2300<br />
Power consumption, 82 W<br />
Min. ambient temperature, -25 °C<br />
Max. ambient temperature, 60 °C<br /><br /><br /><br />

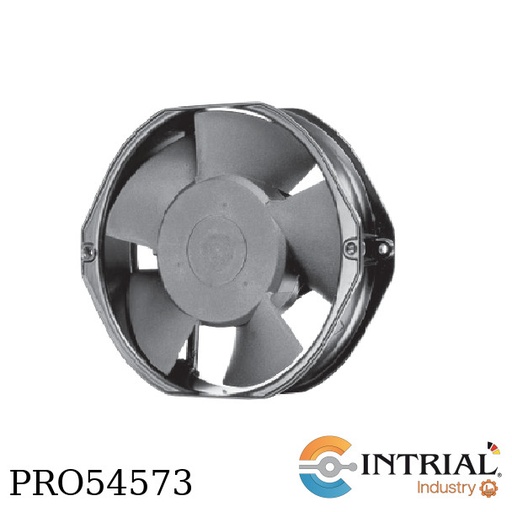

AC AXIAL FAN COMMONWEALTH 110/120 (VAC)<br />
BRAND: COMMONWEALTH<br />
MODEL: FP-108EXM<br /><br />
VOLT (VAC): 110/120<br />
FREQUENCY (HZ): 50/60<br />
AIR (CFM): 205/230<br />
VOLUME (M37MIN): 5.80/6.50<br />
CURRENT (A): 0.40/0.40<br />
POWER (W): 30/28<br />
SPEED (RPM): 2700/2900<br />
STATIC PRESSURE (INCH- H2O): 0.75/0.60<br />
NOISE (DBA): 49<br /><br /><br />

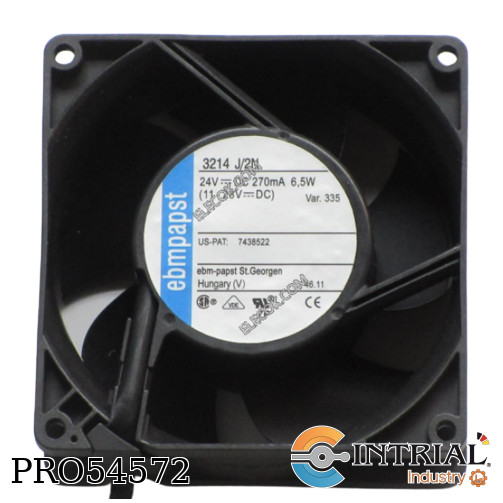

FAN<br />
BRAND: EBM-PAPST <br />
MODEL: 3214J/2N<br />
<br />
24V<br />
DC 270MA <br />
6.5W<br />
(11-28V....DC)

​DC AXIAL FAN
BRAND: NMB-MAT
MODEL: 2410ML-05W-B50
RATED VOLTAGE: 24 (V)
OPERATING VOLTAGE: 10.0 - 27.6 (V)
CURRENT: 0.10 (A)
INPUT POWER 2.40 (W)
SPEED: 4900 (MIN)

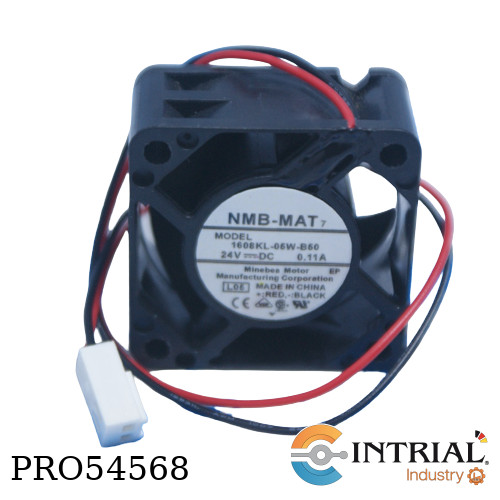

DC AXIAL FAN <br />
BRAND: NMB-MAT <br />
MODEL: 1608KL-05W-B50<br />
<br />
RATED VOLTAGE: 24 (V)<br />
OPERATING VOLTAGE: 20.0 - 25.2 (V)<br />
CURRENT: 0.08 (A)<br />
INPUT POWER 1.92 (W)<br />
SPEED: 8500 (MIN)

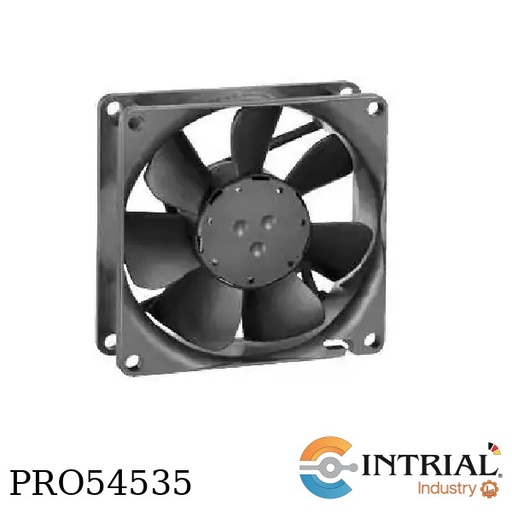

TANGENTIAL FANS<br />
BRAND: EBM <br />
MODEL: 8414NH<br /><br />
AIR FLOW M3/H: 79<br />
AIR FLOW CFM: 46.5<br />
NOMINAL VOLTAGE VDC: 24<br />
VOLTAGE RANGE VDC: 18...26<br />
SOUND PRESSURE LEVEL DB(A): 37<br />
SOUND POWER LEVEL BEL (A): 5.0<br />
BALL BEARINGS<br />
IMPU POWER WATTS:<br />
NOMINAL SPEED EPM: 3600<br />
TEMPERATURE RANGE °C: -20....+70 <br />
