Válvulas Tipo Diafragma
Alimentación. 24 vdc
Conexión: 2"
Marca  Mecair

HP Industry pump
Pump type: VBG-D-2
Flow: 120 l/h (9 bar) with 1400
min-1(RPM)
Marca HpTecnick

HP Internal gear pump up to 40 bar
Direction of rotation: Indirectcounterclockwise
(“I”)
Range: 1500 l/h at 1400 RPM
Pressure setting: “4”= 15-40 bar
Weight per unit: 7.3 Kg

Kit de brocas,
29 piezas Helicoidales
DW1969
Marca: DEWALT

Válvula Solenoide Cartridge 2/2 NC
Bobina de 24VDC
Caudal 75 l/min.
Presión: 350 bar
Marca: HYDAC(Alemania)

CONVERSOR RS-485

Válvula Manifold
Modelo: SS-V2BF8
Manifold de 2 válvulas serie V
Conexión: ½” NPT Hembra
Obturador Esférico
Material: Acero Inox. 316
Marca Swagelok

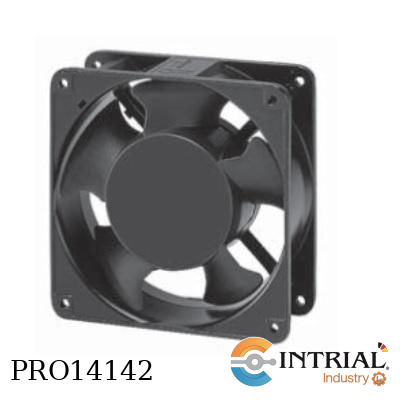

AXIAL FAN
Brand: SUNON
Model: SP100A-1123XBT.GN
Rating voltage, 115 V
Freq, 50-60 Hz
Power current, 0.26/0.24 Amp
Power consumption, 22/20 Watts
Speed, 2850/3150 RPM
Air flow, 97/117 CFM

3-PIECE NPT STAINLESS STEEL BALL VALVES
Brand: DWYER
VALVE
Service: Compatible liquids and gases.
Body: 3-piece.
Line Sizes: 3”.
End Connections: Female NPT.
Pressure Limits: 28" Hg to 1000 psi
(-0.7 to 69 bar) up to 250°F.
Wetted Materials: Body and ball: 316
SS (CF8M); Stem: 316 SS; Seat: RTFE/
PTFE; Seal, Washer, and Packing:
PTFE.
Temperature Limits: -20 to 392°F
(-29 to 200°C).
Other Materials: O-ring:
Fluoroelastomer; Handle: 304 SS;
Washer: 301 SS; Stem Nut, Locking
Device, Gland Ring: 304 SS; Handle
Sleeve: PVC.
Agency Approvals: Meets the technical
requirements of EU Directive 2011/65/
EU (RoHS II).
ACTUATORS
Pneumatic “DA”
Type: DA series is double
Normal Supply Pressure: DA: 40 to 115
psi (2.7 to 7.9 bar
Maximum Supply Pressure: 120 psi
(8.6 bar).
Air Connections: DA05: 1/4" female NPT;
Housing Material: Anodized aluminum
body and epoxy coated aluminum end
caps.
Temperature Limits: -40 to 176°F (-40
to 80°C).
Accessory Mounting: NAMUR
standard.
[WE02]: series, model.
[JDA05]: Size and Actuador, 3" double acting.

3-PIECE NPT STAINLESS STEEL BALL VALVES
Brand: DWYER
VALVE
Service: Compatible liquids and gases.
Body: 3-piece.
Line Sizes: 2”.
End Connections: Female NPT.
Pressure Limits: 28" Hg to 1000 psi
(-0.7 to 69 bar) up to 250°F.
Wetted Materials: Body and ball: 316
SS (CF8M); Stem: 316 SS; Seat: RTFE/
PTFE; Seal, Washer, and Packing:
PTFE.
Temperature Limits: -20 to 392°F
(-29 to 200°C).
Other Materials: O-ring:
Fluoroelastomer; Handle: 304 SS;
Washer: 301 SS; Stem Nut, Locking
Device, Gland Ring: 304 SS; Handle
Sleeve: PVC.
Agency Approvals: Meets the technical
requirements of EU Directive 2011/65/
EU (RoHS II).
ACTUATORS
Pneumatic “DA”
Type: DA series is double
Normal Supply Pressure: DA: 40 to 115
psi (2.7 to 7.9 bar
Maximum Supply Pressure: 120 psi
(8.6 bar).
Air Connections: DA03: 1/4" female NPT;
Housing Material: Anodized aluminum
body and epoxy coated aluminum end
caps.
Temperature Limits: -40 to 176°F (-40
to 80°C).
Accessory Mounting: NAMUR
standard.
[WE02]: series, model.
[HDA03]: Size and Actuador, 2" double acting.

3-PIECE NPT STAINLESS STEEL BALL VALVES
Brand: DWYER
VALVE
Service: Compatible liquids and gases.
Body: 3-piece.
Line Sizes: 1”.
End Connections: Female NPT.
Pressure Limits: 28" Hg to 1000 psi
(-0.7 to 69 bar) up to 250°F.
Wetted Materials: Body and ball: 316
SS (CF8M); Stem: 316 SS; Seat: RTFE/
PTFE; Seal, Washer, and Packing:
PTFE.
Temperature Limits: -20 to 392°F
(-29 to 200°C).
Other Materials: O-ring:
Fluoroelastomer; Handle: 304 SS;
Washer: 301 SS; Stem Nut, Locking
Device, Gland Ring: 304 SS; Handle
Sleeve: PVC.
Agency Approvals: Meets the technical
requirements of EU Directive 2011/65/
EU (RoHS II).
ACTUATORS
Pneumatic “DA”
Type: DA series is double
Normal Supply Pressure: DA: 40 to 115
psi (2.7 to 7.9 bar
Maximum Supply Pressure: 120 psi
(8.6 bar).
Air Connections: DA02: 1/4" female NPT;
Housing Material: Anodized aluminum
body and epoxy coated aluminum end
caps.
Temperature Limits: -40 to 176°F (-40
to 80°C).
Accessory Mounting: NAMUR
standard.
[WE02]: series, model.
[EDA02]: Size and Actuador, 1" double acting.

3-PIECE NPT STAINLESS STEEL BALL VALVES
Brand: DWYER
VALVE
Service: Compatible liquids and gases.
Body: 3-piece.
Line Sizes: 1/2.
End Connections: Female NPT.
Pressure Limits: 28" Hg to 1000 psi
(-0.7 to 69 bar) up to 250°F.
Wetted Materials: Body and ball: 316
SS (CF8M); Stem: 316 SS; Seat: RTFE/
PTFE; Seal, Washer, and Packing:
PTFE.
Temperature Limits: -20 to 392°F
(-29 to 200°C).
Other Materials: O-ring:
Fluoroelastomer; Handle: 304 SS;
Washer: 301 SS; Stem Nut, Locking
Device, Gland Ring: 304 SS; Handle
Sleeve: PVC.
Agency Approvals: Meets the technical
requirements of EU Directive 2011/65/
EU (RoHS II).
ACTUATORS
Pneumatic “DA”
Type: DA series is double
Normal Supply Pressure: DA: 40 to 115
psi (2.7 to 7.9 bar
Maximum Supply Pressure: 120 psi
(8.6 bar).
Air Connections: DA01: 1/8" female
NPT;
Housing Material: Anodized aluminum
body and epoxy coated aluminum end
caps.
Temperature Limits: -40 to 176°F (-40
to 80°C).
Accessory Mounting: NAMUR
standard.
[WE02]: series, model.
[CDA01]: Size and Actuador, 1/2" double acting

Modelo: 3/4-19096MCO-1-CC-DA-31-26-10-LAMarca: ConsolidatedFamilia: 19000 SeriesCaracterísticas:
Diametro de entrada 3/4"
Área de orificio: 0.096 in2
Presón de trabajo 20.06-137.9 bar
Temperatura de trabajo ≤ 800°F (427°C)
Material Estandar, Liquidos
Asiento Suave (Soft Seat)
Tipo Entrada: 1500# Flanged Ring Joint
Tipo Salida: 300# Flanged Raised Face

Modelo: 3/4-19096MCF-2-CC-MS-31-12-05-LAMarca: ConsolidatedFamilia: 19000 SeriesCaracterísticas:
Diametro de entrada 3/4"
Área de orificio: 0.096 in2
Presión de trabajo 20.06-137.9 barg
Temperatura de trabajo ≤ 800°F (427°C)
Material Estandar, Liquidos
Asiento Metálico (Metal Seat)
Tipo Entrada: 600# Flanged Raised Face
Tipo Salida: 150# Flanged Raised Face

Modelo: 1905-00EC-2-CC-MS-31-RF-GS-HPMarca: ConsolidatedFamilia: 1900 SeriesCaracterísticas:
Diametro de entrada 1"
Área de orificio: 0.228 in2 (ASME)
Clase Presión: 150
Material Estandar, Gas
Asiento Metálico (Metal Seat)
Tipo Entrada: Raised Face Serrated

Modelo: 3/4-19096LCF-2-CC-MS-31-05-05-LAMarca: ConsolidatedFamilia: 19000 SeriesCaracterísticas:
Diametro de entrada 3/4"
Área de orificio: 0.096 in2
Presión de trabajo 0.34-19.99 barg
Temperatura de trabajo ≤ 800°F (427°C)
Material Estandar, Liquidos
Asiento Metálico (Metal Seat)
Tipo Entrada: 150# Flanged Raised Face
Tipo Salida: 150# Flanged Raised Face

Modelo: 1905-00PC-2-CC-MS-31-RF-LA-HP
Marca: Consolidated
Familia: 1900 Series
Características:
Servicio Liquidos
Área de orificio: 7.417 in2
4” 150# RF X 6” 150# RF
Clase de presión 15
Temperatura de trabajo ≤ 800°F (427°C)
Material Estandar, Liquidos
Asiento Metalico
Tipo Entrada: Raised Face Serrated

17ft / 5m EXTENSION CABLE FOR WATER & FLOODING SENSOR
Brand: SERVERSCHECK
Extension cable for the flooding sensor
Max length per flooding leak cable is 102m /330ft
Only for newest generation of flooding sensors

MOTION SENSORS
Brand: SIEMENS AG
Measuring principle: Disruption of magnetic field by
ferrous target.
Typical application: Monitors absence or presence
of motion in harsh conditions.
Design: Probe body: Aluminum.
Process mounting:  2" NPSL.
Connection box: Aluminum, ¾" NPT conduit
entrance, 5 screw terminals plus
grounding terminal for electrical
connection, max. 12 AWG
(3.30 mm2) wire size.
Gasketing: Neoprene.
Display: Red LED for verification of pulses.
Enclosure rating Type NEMA 4x, 6, IP67.
Dynamic range: Minimum 6 or 12 pulses per minute
Maximum 3 000 pulses per minute.
Shipping weight 2 kg (4.4 lb).
Power supply : 115 V AC/50 ... 60 Hz, 7 VA.
Certificates and approvals CSAUS/C, CE, C-TICK.
[7MH7158-0-A-A-0-0]:
A heavy-duty zero-speed alarm switch that does
not require a controller. Model, 115 V AC.
