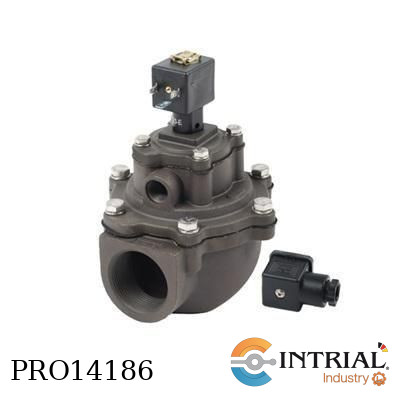

<b>Válvulas Tipo Diafragma<br />
Alimentación. 24 vdc<br />
Conexión: 2"<br />
Marca  Mecair</b>

HP Industry pump<br />
Pump type: VBG-D-2<br />
Flow: 120 l/h (9 bar) with 1400<br />
min-1(RPM)<br />
Marca HpTecnick

HP Internal gear pump up to 40 bar<br />
Direction of rotation: Indirectcounterclockwise<br />
(“I”)<br />
Range: 1500 l/h at 1400 RPM<br />
Pressure setting: “4”= 15-40 bar<br />
Weight per unit: 7.3 Kg

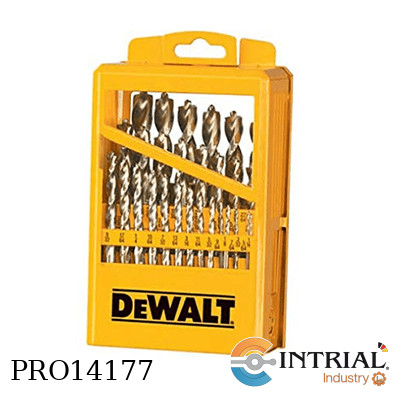

Kit de brocas,<br />
29 piezas Helicoidales<br />
DW1969<br />
Marca: DEWALT

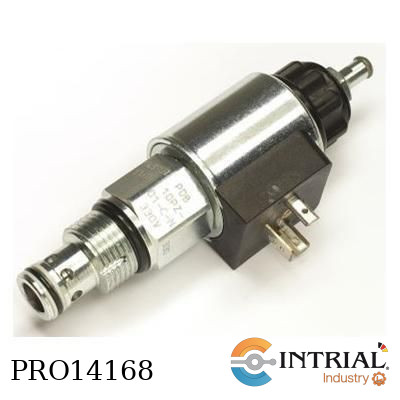

Válvula Solenoide Cartridge 2/2 NC<br />
Bobina de 24VDC<br />
Caudal 75 l/min.<br />
Presión: 350 bar<br />
Marca: HYDAC(Alemania)

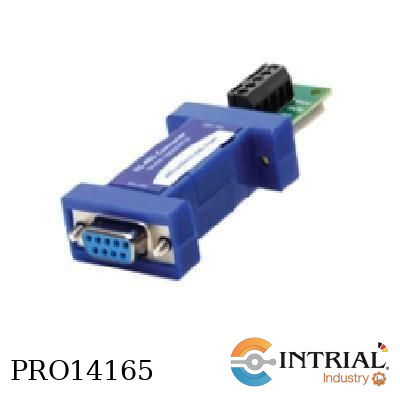

CONVERSOR RS-485<br />
MARCA B&B-ELECTRONICS

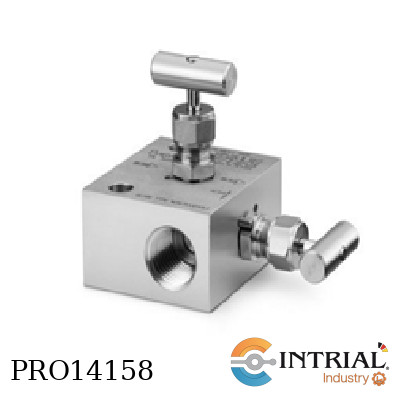

Válvula Manifold<br />
Modelo: SS-V2BF8<br />
Manifold de 2 válvulas serie V<br />
Conexión: ½” NPT Hembra<br />
Obturador Esférico<br />
Material: Acero Inox. 316<br />
Marca Swagelok

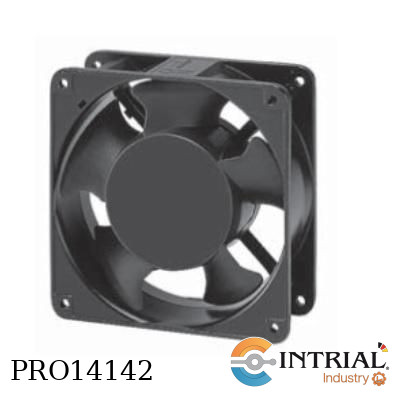

VENTILADOR<br />
Marca: SUNON<br />
115 V<br />
50-60 Hz<br />
0.26/0.24 Amp

3-PIECE NPT STAINLESS STEEL BALL VALVES<br />
Brand: DWYER<br />
VALVE<br />
Service: Compatible liquids and gases.<br />
Body: 3-piece.<br />
Line Sizes: 3”.<br />
End Connections: Female NPT.<br />
Pressure Limits: 28" Hg to 1000 psi<br />
(-0.7 to 69 bar) up to 250°F.<br />
Wetted Materials: Body and ball: 316<br />
SS (CF8M); Stem: 316 SS; Seat: RTFE/<br />
PTFE; Seal, Washer, and Packing:<br />
PTFE.<br />
Temperature Limits: -20 to 392°F<br />
(-29 to 200°C).<br />
Other Materials: O-ring:<br />
Fluoroelastomer; Handle: 304 SS;<br />
Washer: 301 SS; Stem Nut, Locking<br />
Device, Gland Ring: 304 SS; Handle<br />
Sleeve: PVC.<br />
Agency Approvals: Meets the technical<br />
requirements of EU Directive 2011/65/<br />
EU (RoHS II).<br />
ACTUATORS<br />
Pneumatic “DA” <br />
Type: DA series is double <br />
Normal Supply Pressure: DA: 40 to 115<br />
psi (2.7 to 7.9 bar<br />
Maximum Supply Pressure: 120 psi<br />
(8.6 bar).<br />
Air Connections: DA05: 1/4" female NPT;<br />
Housing Material: Anodized aluminum<br />
body and epoxy coated aluminum end<br />
caps.<br />
Temperature Limits: -40 to 176°F (-40<br />
to 80°C).<br />
Accessory Mounting: NAMUR<br />
standard.<br />
[WE02]: series, model.<br />
[JDA05]: Size and Actuador, 3" double acting.

3-PIECE NPT STAINLESS STEEL BALL VALVES<br />
Brand: DWYER<br />
VALVE<br />
Service: Compatible liquids and gases.<br />
Body: 3-piece.<br />
Line Sizes: 2”.<br />
End Connections: Female NPT.<br />
Pressure Limits: 28" Hg to 1000 psi<br />
(-0.7 to 69 bar) up to 250°F.<br />
Wetted Materials: Body and ball: 316<br />
SS (CF8M); Stem: 316 SS; Seat: RTFE/<br />
PTFE; Seal, Washer, and Packing:<br />
PTFE.<br />
Temperature Limits: -20 to 392°F<br />
(-29 to 200°C).<br />
Other Materials: O-ring:<br />
Fluoroelastomer; Handle: 304 SS;<br />
Washer: 301 SS; Stem Nut, Locking<br />
Device, Gland Ring: 304 SS; Handle<br />
Sleeve: PVC.<br />
Agency Approvals: Meets the technical<br />
requirements of EU Directive 2011/65/<br />
EU (RoHS II).<br />
ACTUATORS<br />
Pneumatic “DA” <br />
Type: DA series is double <br />
Normal Supply Pressure: DA: 40 to 115<br />
psi (2.7 to 7.9 bar<br />
Maximum Supply Pressure: 120 psi<br />
(8.6 bar).<br />
Air Connections: DA03: 1/4" female NPT;<br />
Housing Material: Anodized aluminum<br />
body and epoxy coated aluminum end<br />
caps.<br />
Temperature Limits: -40 to 176°F (-40<br />
to 80°C).<br />
Accessory Mounting: NAMUR<br />
standard.<br />
[WE02]: series, model.<br />
[HDA03]: Size and Actuador, 2" double acting.

3-PIECE NPT STAINLESS STEEL BALL VALVES<br />
Brand: DWYER<br />
VALVE<br />
Service: Compatible liquids and gases.<br />
Body: 3-piece.<br />
Line Sizes: 1”.<br />
End Connections: Female NPT.<br />
Pressure Limits: 28" Hg to 1000 psi<br />
(-0.7 to 69 bar) up to 250°F.<br />
Wetted Materials: Body and ball: 316<br />
SS (CF8M); Stem: 316 SS; Seat: RTFE/<br />
PTFE; Seal, Washer, and Packing:<br />
PTFE.<br />
Temperature Limits: -20 to 392°F<br />
(-29 to 200°C).<br />
Other Materials: O-ring:<br />
Fluoroelastomer; Handle: 304 SS;<br />
Washer: 301 SS; Stem Nut, Locking<br />
Device, Gland Ring: 304 SS; Handle<br />
Sleeve: PVC.<br />
Agency Approvals: Meets the technical<br />
requirements of EU Directive 2011/65/<br />
EU (RoHS II).<br />
ACTUATORS<br />
Pneumatic “DA” <br />
Type: DA series is double <br />
Normal Supply Pressure: DA: 40 to 115<br />
psi (2.7 to 7.9 bar<br />
Maximum Supply Pressure: 120 psi<br />
(8.6 bar).<br />
Air Connections: DA02: 1/4" female NPT;<br />
Housing Material: Anodized aluminum<br />
body and epoxy coated aluminum end<br />
caps.<br />
Temperature Limits: -40 to 176°F (-40<br />
to 80°C).<br />
Accessory Mounting: NAMUR<br />
standard.<br />
[WE02]: series, model.<br />
[EDA02]: Size and Actuador, 1" double acting.

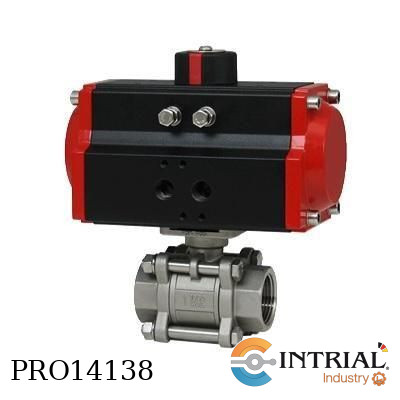

3-PIECE NPT STAINLESS STEEL BALL VALVES<br />
Brand: DWYER<br />
VALVE<br />
Service: Compatible liquids and gases.<br />
Body: 3-piece.<br />
Line Sizes: 1/2.<br />
End Connections: Female NPT.<br />
Pressure Limits: 28" Hg to 1000 psi<br />
(-0.7 to 69 bar) up to 250°F.<br />
Wetted Materials: Body and ball: 316<br />
SS (CF8M); Stem: 316 SS; Seat: RTFE/<br />
PTFE; Seal, Washer, and Packing:<br />
PTFE.<br />
Temperature Limits: -20 to 392°F<br />
(-29 to 200°C).<br />
Other Materials: O-ring:<br />
Fluoroelastomer; Handle: 304 SS;<br />
Washer: 301 SS; Stem Nut, Locking<br />
Device, Gland Ring: 304 SS; Handle<br />
Sleeve: PVC.<br />
Agency Approvals: Meets the technical<br />
requirements of EU Directive 2011/65/<br />
EU (RoHS II).<br />
ACTUATORS<br />
Pneumatic “DA” <br />
Type: DA series is double <br />
Normal Supply Pressure: DA: 40 to 115<br />
psi (2.7 to 7.9 bar<br />
Maximum Supply Pressure: 120 psi<br />
(8.6 bar).<br />
Air Connections: DA01: 1/8" female<br />
NPT; <br />
Housing Material: Anodized aluminum<br />
body and epoxy coated aluminum end<br />
caps.<br />
Temperature Limits: -40 to 176°F (-40<br />
to 80°C).<br />
Accessory Mounting: NAMUR<br />
standard.<br />
[WE02]: series, model.<br />
[CDA01]: Size and Actuador, 1/2" double acting
<div>
<div class="gtx-trans-icon"></div>
</div>

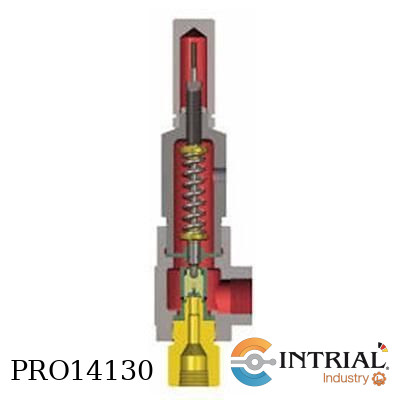

<strong>Modelo:</strong> 3/4-19096MCO-1-CC-DA-31-26-10-LA<br /><strong>Marca:</strong> Consolidated<br /><strong>Familia:</strong> 19000 Series<br /><strong>Características:</strong><br />
Diametro de entrada 3/4"<br />
Área de orificio: 0.096 in2<br />
Presón de trabajo 20.06-137.9 bar<br />
Temperatura de trabajo ≤ 800°F (427°C)<br />
Material Estandar, Liquidos<br />
Asiento Suave (Soft Seat)<br />
Tipo Entrada: 1500# Flanged Ring Joint<br />
Tipo Salida: 300# Flanged Raised Face

<strong>Modelo:</strong> 3/4-19096MCF-2-CC-MS-31-12-05-LA<br /><strong>Marca:</strong> Consolidated<br /><strong>Familia:</strong> 19000 Series<br /><strong>Características:</strong><br />
Diametro de entrada 3/4"<br />
Área de orificio: 0.096 in2<br />
Presión de trabajo 20.06-137.9 barg<br />
Temperatura de trabajo ≤ 800°F (427°C)<br />
Material Estandar, Liquidos<br />
Asiento Metálico (Metal Seat)<br />
Tipo Entrada: 600# Flanged Raised Face<br />
Tipo Salida: 150# Flanged Raised Face

<strong>Modelo:</strong> 1905-00EC-2-CC-MS-31-RF-GS-HP<br /><strong>Marca:</strong> Consolidated<br /><strong>Familia:</strong> 1900 Series<br /><strong>Características:</strong><br />
Diametro de entrada 1"<br />
Área de orificio: 0.228 in2 (ASME)<br />
Clase Presión: 150<br />
Material Estandar, Gas<br />
Asiento Metálico (Metal Seat)<br />
Tipo Entrada: Raised Face Serrated

<strong>Modelo:</strong> 3/4-19096LCF-2-CC-MS-31-05-05-LA<br /><strong>Marca:</strong> Consolidated<br /><strong>Familia:</strong> 19000 Series<br /><strong>Características:</strong><br />
Diametro de entrada 3/4"<br />
Área de orificio: 0.096 in2<br />
Presión de trabajo 0.34-19.99 barg<br />
Temperatura de trabajo ≤ 800°F (427°C)<br />
Material Estandar, Liquidos<br />
Asiento Metálico (Metal Seat)<br />
Tipo Entrada: 150# Flanged Raised Face<br />
Tipo Salida: 150# Flanged Raised Face

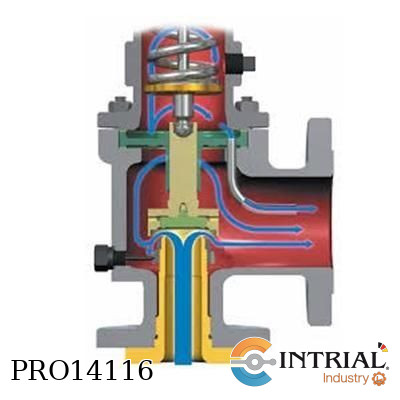

<span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;">Modelo: 1905-00PC-2-CC-MS-31-RF-LA-HP<br />
Marca: Consolidated<br />
Familia: 1900 Series<br />
Características:</span></span>
<ul><li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;">Servicio Liquidos</span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;">Área de orificio: 7.417 in2</span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;">4” 150# RF X 6” 150# RF</span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;">Clase de presión 15</span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;">Temperatura de trabajo ≤ 800°F (427°C)</span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;">Material Estandar, Liquidos</span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;">Asiento Metalico</span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;">Tipo Entrada: Raised Face Serrated</span></span></li>
</ul>

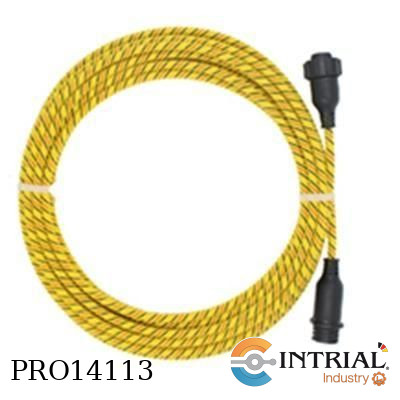

<strong>17ft / 5m EXTENSION CABLE FOR WATER & FLOODING SENSOR <br />
Brand: SERVERSCHECK</strong><br />
Extension cable for the flooding sensor <br />
Max length per flooding leak cable is 102m /330ft<br />
Only for newest generation of flooding sensors

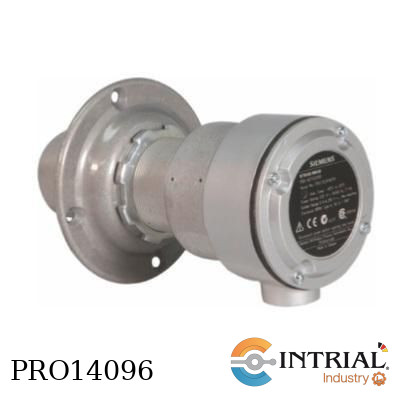

MOTION SENSORS<br />
Brand: SIEMENS AG<br />
Measuring principle: Disruption of magnetic field by<br />
ferrous target.<br />
Typical application: Monitors absence or presence<br />
of motion in harsh conditions.<br />
Design: Probe body: Aluminum.<br />
Process mounting:  2" NPSL.<br />
Connection box: Aluminum, ¾" NPT conduit<br />
entrance, 5 screw terminals plus<br />
grounding terminal for electrical<br />
connection, max. 12 AWG<br />
(3.30 mm2) wire size.<br />
Gasketing: Neoprene.<br />
Display: Red LED for verification of pulses.<br />
Enclosure rating Type NEMA 4x, 6, IP67.<br />
Dynamic range: Minimum 6 or 12 pulses per minute<br />
Maximum 3 000 pulses per minute.<br />
Shipping weight 2 kg (4.4 lb).<br />
Power supply : 115 V AC/50 ... 60 Hz, 7 VA.<br />
Certificates and approvals CSAUS/C, CE, C-TICK.<br />
[7MH7158-0-A-A-0-0]: <br />
A heavy-duty zero-speed alarm switch that does<br />
not require a controller. Model, 115 V AC.
