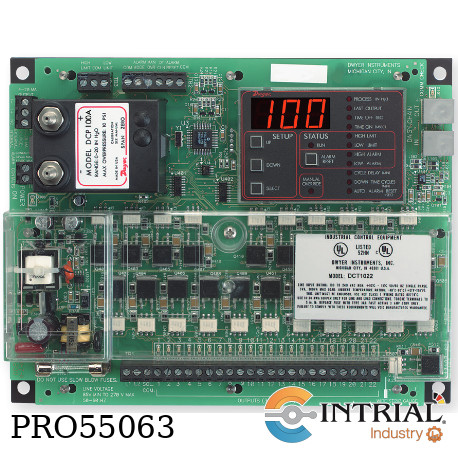

DUST COLLECTOR TIMER CONTROLLER<br />
Brand: DWYER<br />
Model: DCT1022-WP<br />
[DCT1022]:<br />
Description, Master controller<br />
No. of channels, 22<br />
[WP]: Weatherproof housing only<br />
Output Channels, 6, 10, & 22 channels.<br />
Expandable to 255 channels using<br />
DCT1122 & DCT1110 channel expander boards.<br />
Power Requirements, 85 to 270 VAC, 50 or 60 Hz.<br />
Power Consumption, 5 W.<br />
Solenoid Supply, 3 A max per channel.<br />
Fuse, 3 A @ 250 VAC. Low voltage control circuitry is isolated from the line voltage for system safety.<br />
Temperature Limits, -40 to 140°F (-40 to 60°C).<br />
Storage Temperature Limits, -40 to 176°F (-40 to 80°C).<br />
On Time, 10 ms to 600 ms, 10 ms steps.<br />
On Time Accuracy, ±10 ms.<br />
Off Time, 1 s to 255 s, 1 s steps.<br />
Off Time Accuracy, ±1% of the value or<br />
±50 ms, whichever is greater.<br />
Weight, 1 lb 3.0 oz (538.6 g).<br />
Agency Approvals, cULus

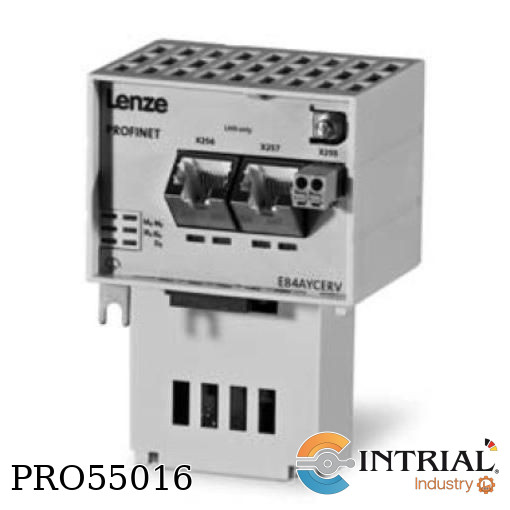

PROFINET communication module<br />
Marca: LENZE<br />
Modelo: E84AYCERV/S<br />
• 5 LEDs for status display<br />
• 2 RJ45 connections with LEDs for link and activity<br />
• TCP/IP channel<br />
• Connection option for separate 24 V supply<br />

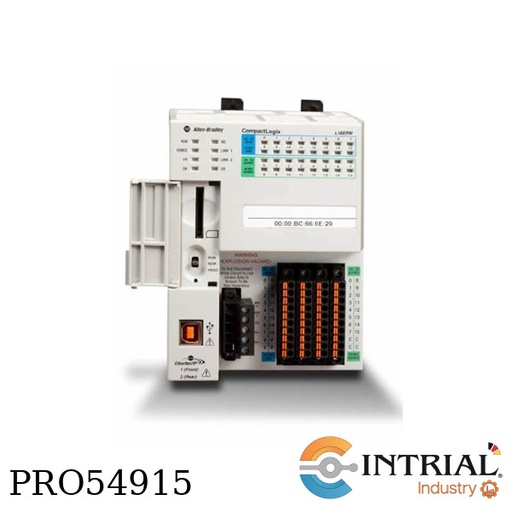

COMPACTLOGIX 5370 L1 CONTROLLER PRODUCT SPECIFICATIONS<br />
BRAND: ALLEN BRADLEY <br />
MODEL: 1769-L19ER-BB1B<br />
<br />
USER MEMORY: 1MB<br />
CONTROLLER TASKS: 32<br />
PROGRAMS PER TASK: 100<br />
PACKAGE SIZE: 100MM WIDE X 130MM HIGH X 105MM DEEP<br />
CERTIFICATIONS:CULH (CLASS I DIVISION 2), KCC / UL (UL 508), ULH (CLASS I & II, DIVISION 2 AND CLASS III, DIVISIONS 1 & 2) / ATEX, CE, C-TICK, GOST-R, MARINE<br />
LOCAL EXPANSION I/O POINTS: 96<br />
LOCAL EXPANSION MODULES: 8<br />
EMBEDDED I/O: 16 DIGITAL INPUTS, 16 DIGITAL OUTPUTS<br />
FLASH MEMORY CARD: INDUSTRIALLY RATED AND CERTIFIED SECURE DIGITAL (SD) MEMORY CARD (1 AND 2 GB OPTIONS); ALL CONTROLLERS SHIPPED WITH 1 GB CARD<br />
ETHERNET I/O IP NODES: 8<br />
VIRTUAL AXES: 100<br />
SOFTWARE / FIRMWARE: STUDIO 5000 V28 AND RSLINX V2.59 OR LATER. FIRMWARE V28.XXX OR LATER

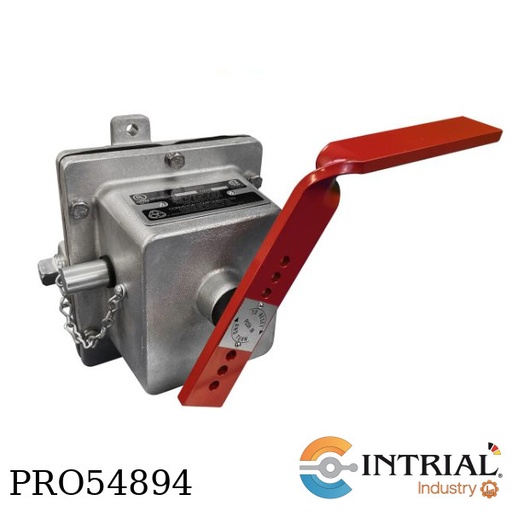

CABLE OPERATED SAFETY STOP RS<br />
BRAND: CONVEYOR<br />
MODEL: RS-5E<br />
<br />
2 DOUBLE POLE DOUBLE THROW (DP/DT) MICROSWITCHES<br />
15A <br />
AT 120 <br />
240 VAC<br />
NEMA 4<br />
4X <br />
WEIGHT: 13 LBS<br />
DP/DT MICRO SWITCHES AND EPOXY COATED HOUSING

SAFETY SWITCH
BRAND: CONVEYOR
MODEL: RS-2E
CABLE PULL, 20AMP
125/250/480 VAC
6 WATT,2 SPDT
NO LIGHT, CAST ALUMINUM
3/4" NPT CONDUIT OPENINGS
​MICRO SWITCHES AND EPOXY COATED HOUSING.

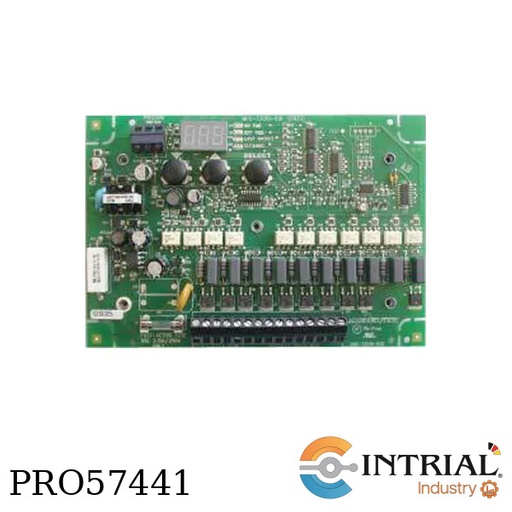

DUST COLLECTOR CONTROLS<br />
Brand: AMETEK<br />
Model:DNC-T2010-R20<br />
Max. N° of outputs, 10<br />
Input Voltage, 95 – 265 VAC 50/60 Hz<br />
Power Consumption, 6.30 VA<br />
Display, 3 digit, 7 segment, green LED<br />
Dimentions- Inch<br />
A: 8.75"<br />
B: 6.875"<br />
C: 8.25"<br />
D: 6.25"<br />
E: .313

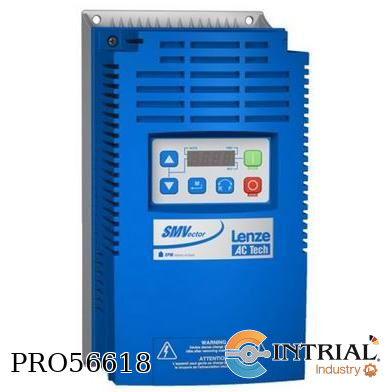

SMVector - Frequency Inverter<br />
Brand: LENZE<br />
Model: ESV112N04TXB<br />
[112]: Power rating, 1.1kW (1.5HP)<br />
[N0]: Installed I/O & Communication Module(s), No Communications installed<br />
[4]: Input Voltage, 400/480 VAC<br />
[T]: Input Phase, Three Phase Input only<br />
[X]: Input Line Filter, Integrated Disconnect Switch (NEMA 4X/IP65 Models only)<br />
[B]: Enclosure, NEMA 1/IP31; Indoor only<br />
<br />


SMVector - Frequency Inverter<br />
Brand: LENZE<br />
Model: ESV751N04TXB<br />
[751]: Power rating, 0.75 kW (1HP)<br />
[N0]: Installed I/O & Communication Module(s), No Communications installed<br />
[4]: Input Voltage, 400/480 VAC<br />
[T]: Input Phase, Three Phase Input only<br />
[X]: Input Line Filter, Integrated Disconnect Switch (NEMA 4X/IP65 Models only)<br />
[B]: Enclosure, NEMA 1/IP31; Indoor only<br />
<br />

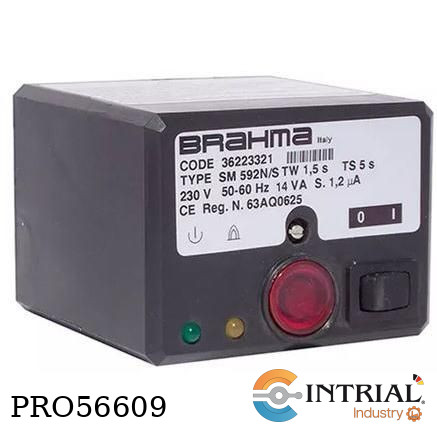

BOARD FOR IGNITION PANEL<br />
Brand: BRAHMA<br />
Model: SM592N/S<br />
Power supply, 230V 50/60Hz<br />
Operating temperature range, -20°C to +60°C<br />
<br />

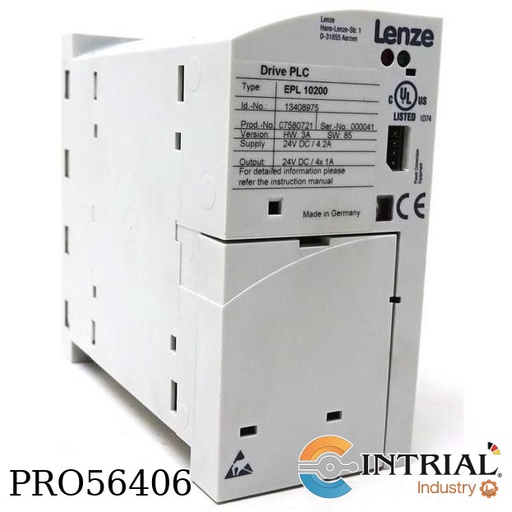

DRIVE PLC<br />
Brand: LENZE<br />
Model: EPL-10200<br />
Supply voltage, 24 V DC<br />
Digital inputs/outputs, 8 / 4<br />
Analog inputs/outputs, 3 / 1<br />
System bus (CAN), 1

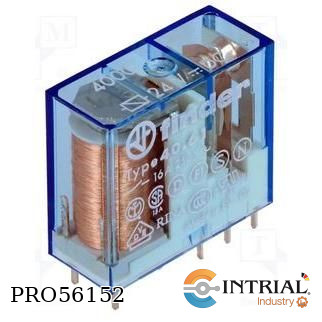

Miniature PCB Relays<br />
Brand: FINDER<br />
Model: 40.52.7.024.0000<br />
[5]: Type, PCB - 5 mm pinning<br />
[2]: No. of poles, 2 pole 8 A<br />
[7]: Coil version, Sensitive DC<br />
[024]: Coil voltage, 24 V<br />
[0]: Contact material, Standard AgNi<br />
[0]: Contact circuit, CO (nPDT)<br />
[0]: Options, None<br />
[0]: Special versions, Standard

Miniature PCB Relay<br />
Brand: FINDER<br />
Model: 40.61.9.024.4000<br />
[6]: Type, PCB - 5 mm pinning<br />
[1]: No. of poles, 1 pole<br />
[9]: Coil version, DC<br />
[024]: Coil voltage, 24 V<br />
[4]: Contact material, AgSnO2<br />
[0]: Contact circuit, CO (nPDT)<br />
[0]: Options, None<br />
[0]: Special versions, Standard

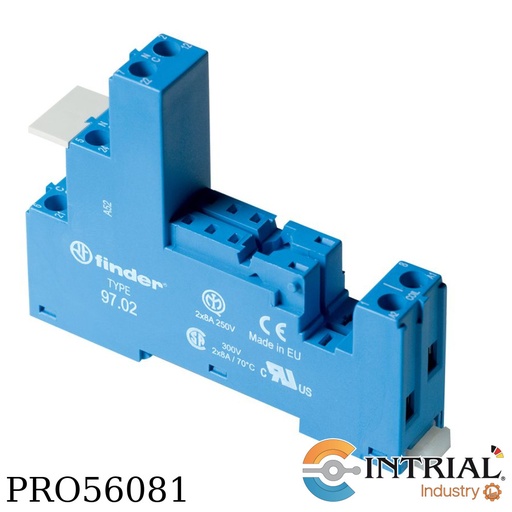

ZOCALO RECTANGULAR <br />
Modelo : 97.02SPA<br />
Marca : FINDER<br />
P/RELE ENCH.8PIN 8A S.4652..TORNILLO

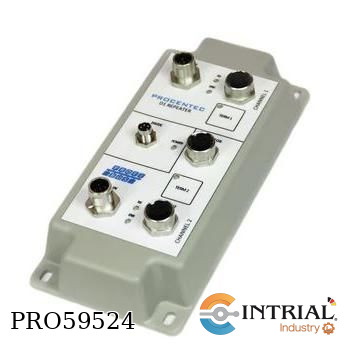

D1 Repeater<br />
Brand: PROCENTEC<br />
Model: 16121<br />
PROFIBUS<br />
 1 Channel (2 segments)<br />
 Transparent for all PROFIBUS DP protocols<br />
 Suitable for PROFIsafe and MPI<br />
 9.6 kbps - 12 Mbps (auto detection)<br />
 31 bus-loads per channel<br />
 1200 m cable length (depends on baudrate)<br />
 No limit in cascading<br />
 Termination switches<br />
 No address required<br />
Connectors<br />
 M12 monitoring port: 2x M12 male-female per segment + 1 M12 for ProfiTrace<br />
  pin 1: VPP<br />
  pin 2: PB-A<br />
  pin 3: DGND<br />
  pin 4: PB-B<br />
 Thread: Shield (PROFIBUS standard)<br />
M8 power supply<br />
 pin 1: +24 VDC<br />
 pin 2: +24 VDC<br />
 pin 3: GND<br />
 pin 4: GND<br />
 Thread: Shield<br />
Current consumption: 125 mA @ 24 VDC<br />
Operating voltage: 9 .. 31 VDC<br />
<br />

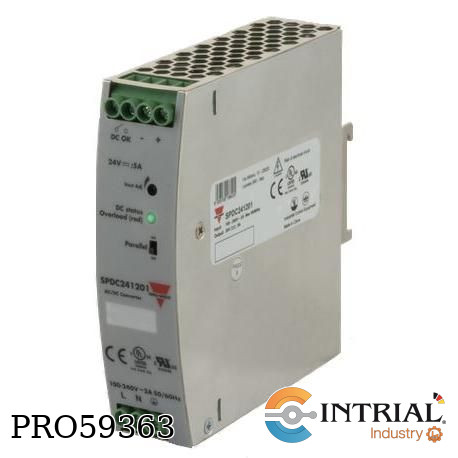

<p class="MsoNormal">Industrial DIN rail power supply<br />
Brand: CARLO GAVAZZI<br />
Model: SPDC241201<br />
Rated output voltage DC, 24 V<br />
Power output, 120 W<br />
Max. output current DC, 5 A<br />
Terminal type, Screw connection<br />
Rail mounting possible, Yes<br />
Wall mounting possible, No<br />
Degree of protection (IP), IP20<br />
Width, 32 mm<br />
Height, 124 mm<br />
Depth, 119 mm<br />
<br />
 </p>

Anybus ProfiHub B2+R
Brand: PROCENTEC
Model: 17210R
2 Isolated repeater channels (3 segments)
Connection speed: 9.6 Kbps .. 12 Mbps (auto detection)
1200 m segment length (depends on baudrate)
31 devices per channel
Bus redundancy option
Transparent for all PROFIBUS DP protocols
Power supply operating voltage, 12 to 24 VDC

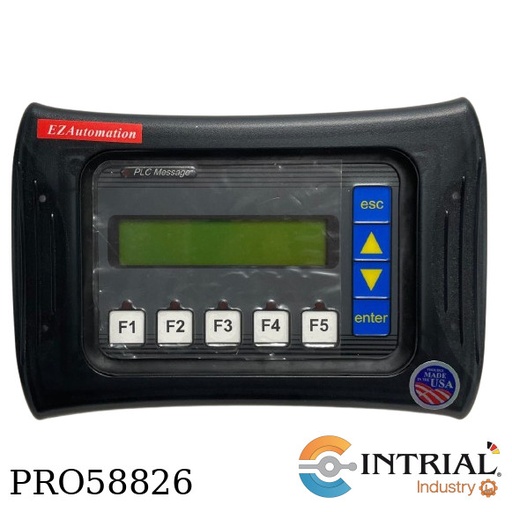

MONITOR<br />
Brand: EZA Automation<br />
Model: EZ-220

User Memory:50MB (Includes program, data and documentation)<br />
Memory Type: Flash and Battery Backed RAM<br />
Display OLED, 4x10 characters, 8 control buttons<br />
5 Integrated Ports<br />
ETHERNET: (10/100Mbps Ethernet)<br />
REMOTE I/O: 16 GS Series Drives,8 Remote Base Groups, 4 ProtosX TCP couplers, 4PS-AMC modules<br />
RS-232: (RJ12, 1200-115.2k Baud) ASCII, Modbus<br />
RS-485: Removable Terminal Included, (1200–115.2 kBaud) ASCII, Modbus RTU.<br />
<div>
<div class="gtx-trans-icon"></div>
</div>

<div>
<div class="gtx-trans-icon"></div>
</div>

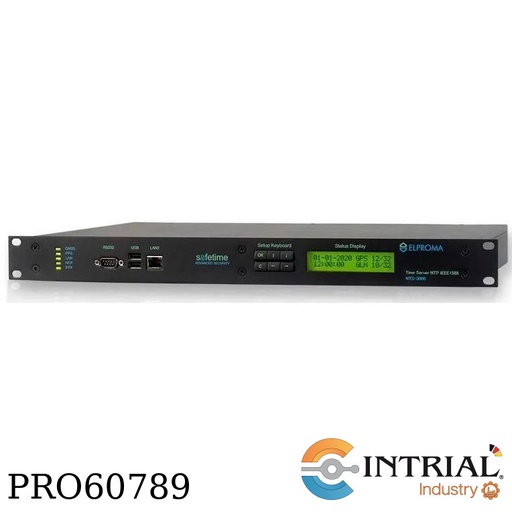

NTP/PTP IEEE1588 Network Time Server
Brand: ELPROMA
Model: NTS-3000
Configuration:
- LAN1/2: 10/100Mbps,
- single power supply 230V AC;
The set includes:
- 1pcs. Time server 1U rack”19,
- 1pcs. Satellite GNSS receiver (GPS, Galileo) with built-in antenna,
- 1pcs. boom 0.5m for mounting the antenna on the roof, wall, etc.,
- 1 set of cables (power and LAN UTP cat 5 1m long)

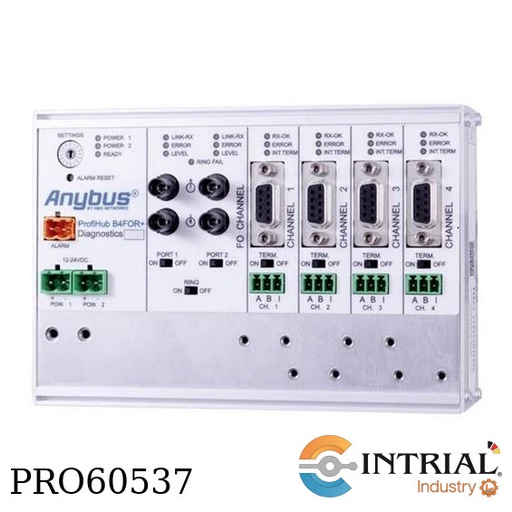

REPETIDOR PROFIHUB B4F05<br />
Marca: ANYBUS<br />
Modelo: 17420<br />
Operating voltage, 12V DC 24V DC<br />
Max. operating temperature, 70°C<br />
Min. operating temperature, -25 °C<br />
Operating voltage, 12-24V DC<br />
Operating temperature, -25 up to 70 °C<br />
Height, 43mm<br />
Width, 113mm<br />
