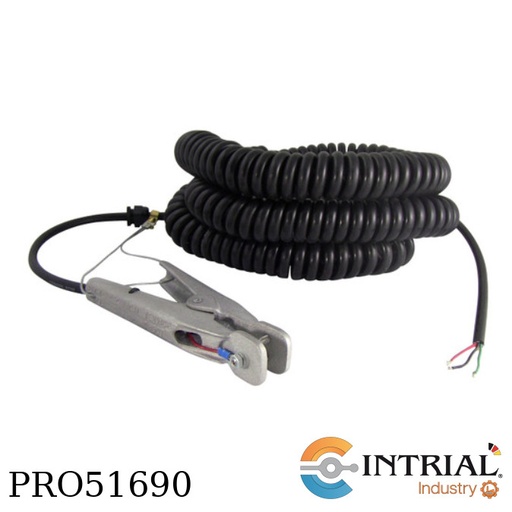

GROUND VERIFY CLAMP AND CORDSET, 30' COILED CORD<br />
Brand: CIVACON<br />
Model: 7720-COIL

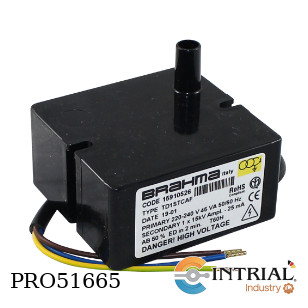

TRANSFORMADOR <br />
Marca: BRAHMA<br />
Model: TD1STCAF<br />
Primary, 220/240V, 50/60Hz, 45 VA<br />
Secondary, 1 x 15kV AMPL. -25 mA

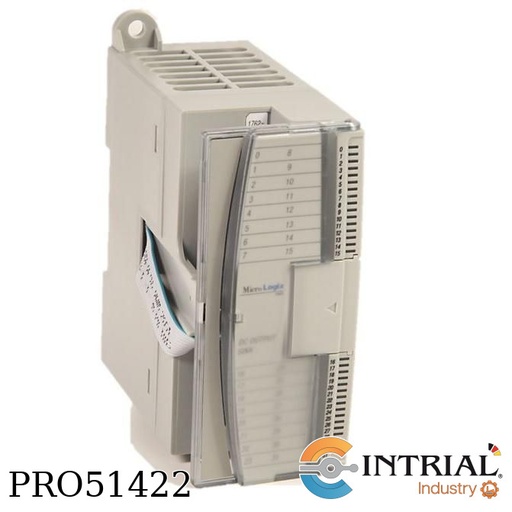

8 Point 24 VDC Sink/Source Input Module<br />
Marca: ALLEN BRADLEY<br />
Modelo: 1762-IQ8<br />
Tipo de Accesorio: Módulo de E/S PLC<br />
Tipo de Entrada: Digital<br />
Corriente de Salida: 8 mA

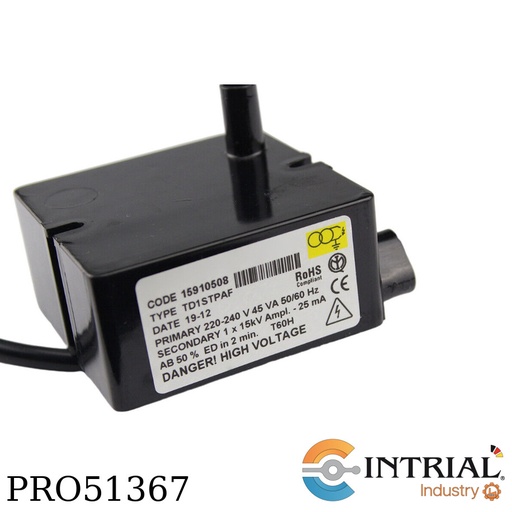

IGNITION TRANSFORMER<br />
Marca: BRAHMA<br />
Modelo: TD1STPAF<br />
N° de item: 15910508<br />
Primary: 230V 45VA 50/60HZ<br />
Secundary: 1 x 15KV<br />
AMPL: 25mA

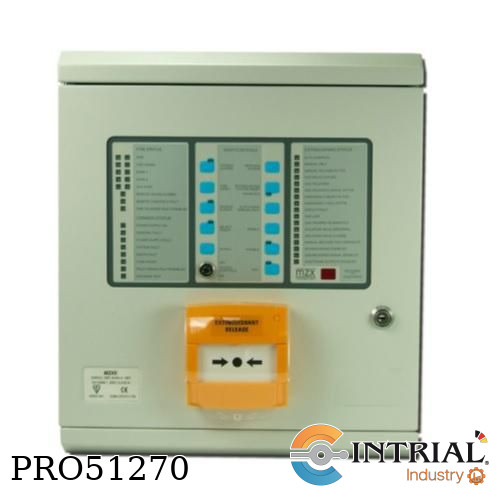

EXTINGUISHING CONTROL PANEL<br />
Barnd: ZETTLER<br />
508.033.050.EA<br />
Articulo: 31190005323<br />
Mains supply voltage:230VAC [+10% -15%]<br />
Mains supply frequency:50/60Hz.<br />
Power supply output voltage:<br />
19.0-28.3V, ripple 0.7V maximum<br />
Maximum power supply output:5A<br />
Alarm current (Mains failed):<br />
160mA<br />
+ 20mA to 50mA for each zone in alarm<br />
+ Ancillary equipment current<br />
+ Alarm circuit current<br />
+ Solenoid circuit current<br />
Mains Failed current:<br />
60mA + Ancillary equipment current<br />
Integral charger output, Quiescent:<br />
5 Amps, minus mains failed current<br />
Integral charger output, Alarm:<br />
5 Amps, minus Alarm current<br />
Maximum Auxiliary 24VDC supply:1.0A<br />
Alarm circuit rating:<br />
3 at 0.5A each (electronically fused)<br />
Actuator circuit rating:<br />
2 at 1A each (electronically fused)<br />
Internal Battery size:<br />
2 x 12Ah Sealed lead acid<br />
Enclosure Dimensions (mm):<br />
370 high x 325 wide x 125 deep<br />
Weight (excluding batteries):4.85kg.<br />
Cable Size Accepted by Terminals:<br />
1.0mm to 2.5mm CSA.<br />
(Cross Sectional Area)<br />
Maximum Detectors per Zone:<br />
32-dependant on type & EOL monitoring<br />
device<br />
(not allowed on Manual Release Zone)<br />
Maximum Call Points Per Zone:No Limit<br />
(not allowed on zones 1&2)<br />
***El modelo solicitado se encuentra obsoleto y fuera de produccion, fabrica recomienda<br />
el modelo: MZX-E como reemplazo directo***<br /><br />

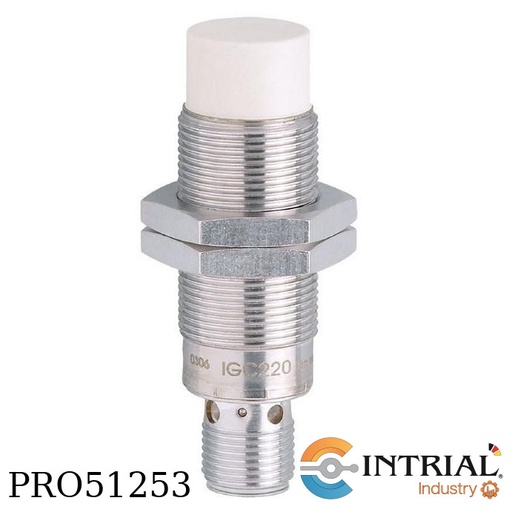

SENSOR INDUCTIVO<br />
Marca: IFM<br />
Modelo: IGC002<br />
P/N: IGK2012-ARKA/M/LS-104AK<br />
Función de salida, normalmente abierto<br />
Alcance, 12 mm<br />
Carcasa, Tipo con rosca<br />
Dimensiones, M18 x 1 mm<br />
Tensión de alimentación, 20...140 V AC/DC

15” Panel Mount Touchscreen LCD Display<br />
Brand: STEALTH<br />
Model: SV-1505L-PM-PCT-HB-SS-USB<br />
- 15.0” diagonal LCD Display c/w LED Backlighting; 1024 x 768 resolution<br />
- Sunlight readable, 1600 nits (adjustable brightness)<br />
- includes external Light Sensor for auto brightness adjustment<br />
- includes Multi-Touch (PCT / PCAP) Touchscreen, USB Interface<br />
- NEMA 4X Stainless Steel front Panel Mount bezel<br />
- HDMI, DVI-I and DisplayPort inputs<br />
- Rear-mounted control panel with On-screen Display<br />
- (+12) VDC power input to monitor c/w 100-240 VAC Power Adapter<br />
- Dimensions: 16.4”W x 14.0”H x 1.5”D (approx.)

17” All Weather LCD Display (LCD DISPLAY)<br />
Brand: STEALTH<br />
Model: SAW-1700-PCT-USB<br />
- 17” diagonal LCD Display with LED Backlighting; 1024 x 768 resolution<br />
- High brightness, 1600 nits (adjustable)<br />
- NEMA 12, IP65 Front Panel<br />
- Projected Capacitive Touch (Multi-Touch), with USB interface<br />
- Inputs: Analog VGA / HD-15 x (2), Digital DVI x (2), Composite x (3)<br />
- Front-mounted control buttons with on-screen display<br />
- (9 - 36) VDC power input to monitor via Terminal Block<br />
- Wide Temp Operation, -30C - +85C<br />
- Supports Panel Mount (Flush Mount), VESA 100 or 75 mount<br />
- Dimensions: 15.15”W x 13.7”H x 2.24”D

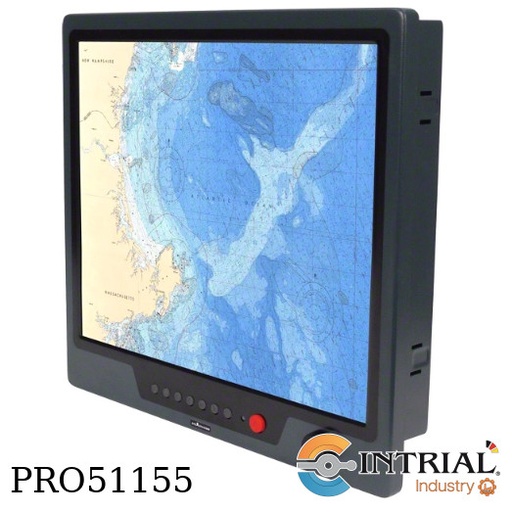

17” All Weather Touchscreen LCD Display (LCD Display)<br />
Brand: STEALTH<br />
Model: SVM-1700-RT-USB<br />
17” diagonal LCD Display c/w LED Backlighting; 1280 x 1024 resolution<br />
- Sunlight readable, 1000 nits (adjustable brightness)<br />
- Panel Mount Enclosure with NEMA 12/IP65 front panel<br />
- Resistive Touchscreen c/w USB interface<br />
- Supports Picture in Picture: Child, Split or Wide Screen<br />
- Inputs: Analog VGA / HD-15 x (2), Digital DVI x (2), Composite x (3)<br />
- Front-mounted control buttons with on-screen display<br />
- (9 - 36) VDC power input to monitor via Terminal Block<br />
- Supports Panel Mount (Flush Mount), VESA 100 or 75 mount<br />
- Dimensions: 15.15”W x 13.7”H x 2.24”D

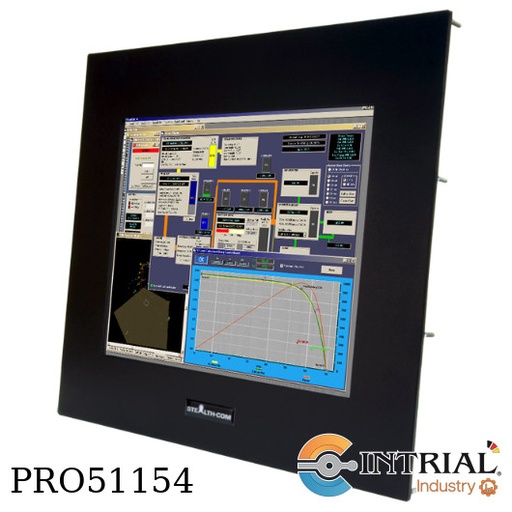

17“ Panel Mount Touchscreen LCD Display<br />
Brand: STEALTH<br />
Model: SV-1705-PM-RT-SS<br />
- 17” diagonal TFT Active Matrix Display c/w LED Backlighting, 1280 x 1024 resolution<br />
- NEMA 4X Stainless Steel Panel Mount front bezel<br />
- Resistive Touchscreen with DB9 (serial) and USB interface<br />
- DVI-I, HDMI and DisplayPort inputs<br />
- Includes DVI to VGA Adapter<br />
- Rear-mounted touch control panel with On-screen Display<br />
- (9-36) VDC input with rear-mounted 100-240 VAC Power Supply<br />
- Operating Temperature: (-10) Deg C to (+60) Deg. C<br />
- Dimensions: 21.0“W x 17.5”H x 2.58“D (add 1.34” with AC Adapter)

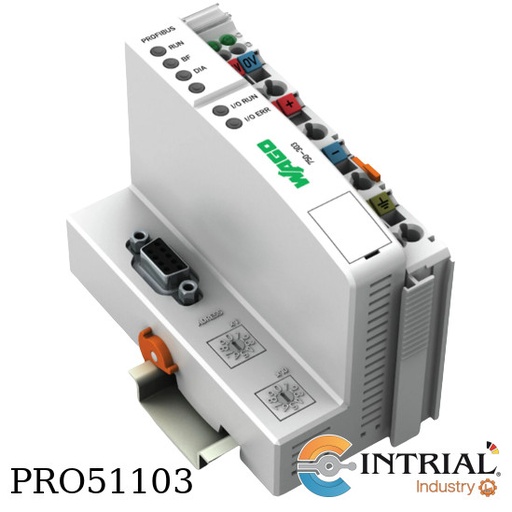

PROFIBUS DP fieldbus coupler; 1. Generation; 12 MBd<br />
Brand: WAGO<br />
Model: 750-303<br />
Transmission speed: 9.6 kBd … 12 MBd<br />
Bus segment length (max.): 1200 m<br />
Number of modules per node (max.): 64<br />
Input and output process image (fieldbus) (max.): 128 bytes/128 bytes<br />
Supply voltage (system): 24 VDC<br />
Number of outgoing power contacts: 3<br />
Mounting type: DIN-35 rail<br />
Protection class: IP20

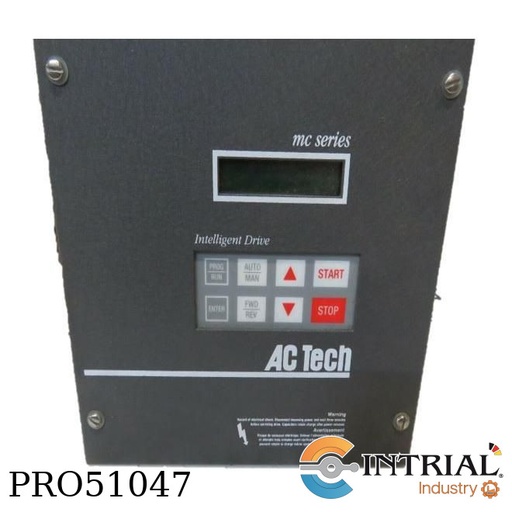

MC SERIE SMART DRIVE<br />
Brand: AC TECH-LENZE<br />
Model: M1110SC<br />
HP: 1//KW: 0.75<br />
Input:<br />
- Volts: 120/240<br />
- Hz: 50/60<br />
- Phase: 1<br />
- Amps: 16.2/8.1<br />
Output:<br />
- Volts: 0/230<br />
- Hz: 0/120<br />
- Phase: 3<br />
- Amps: 4.0<br />


(RS-2L)<br />

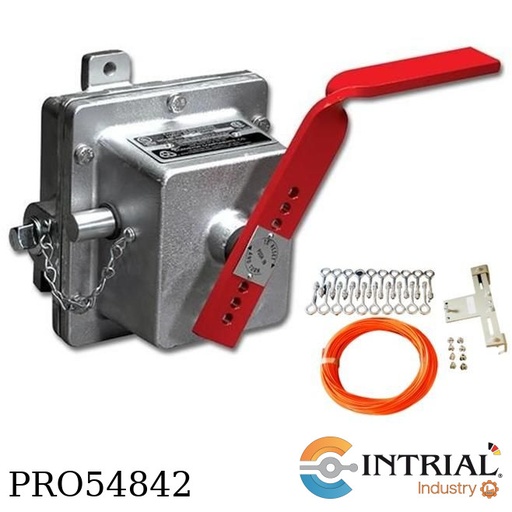

CABLE OPERATED SAFETY STOP CONTROL WITH 2 SP/DT<br />
BRAND: CONVEYOR-COMP<br />
Temperature Rating 40 °C [104 °F]<br />
Enclosure Material 319 cast aluminum<br />
Enclosure Rating NEMA 4, 4X.<br />
Contact Rating 20A AT 120, 240, 480 VAC. 110 VAC SIGNAL LAMP.<br />
Switch Type SPDT x 2<br />
Contact Type Dry contact<br />
Electrical Connection ¾" NPT x 3<br />
Cable Length Maximum 100’ [30.5 m] on each side of the unit (maximum 200’ [61 m] total)<br /><br />
(RS-K)<br />
RS / RSB HARDWARE KIT<br />
CONVEYOR<br />
INCLUDES: 210 FT RS-25 CABLE (2 PIECES EACH AT 105 FT)<br />
20 RS-27 EYEBOLTS<br />
8 RS-28 CABLE END FITTINGS<br />
& 1 RS-30 MOUNTING BRACKET
<div>
<div class="gtx-trans-icon"></div>
</div>

Belt Misaligment Switch <br />
Brand: KBT<br />
Model: NSR66-BM<br />
Body: Aluminum Casting<br />
Contact: 2NO-2NC<br />
Voltage: 230 V AC 8A

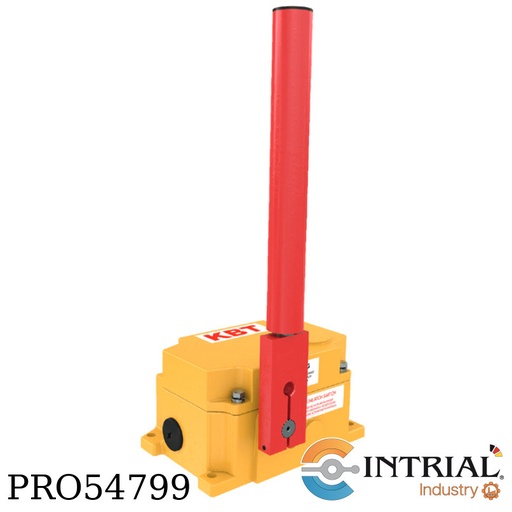

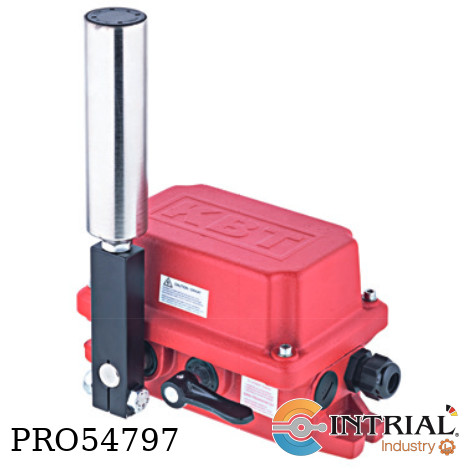

BELT MISALIGNMENT SWITCHES<br />
Brand: KBT<br />
Model: NSR22-BM<br />
Body, Aluminum Casting<br />
Micro Switch Values, 400VAC 6A / 230VAC 8A / 24VDC 10A<br />
Output Signal, (1) SPDT shutdown, alarm can be added upon request.<br />
Cable Entry, 2xM25<br />
Temperature Rating, -55°C - +100°C<br />
Movement Angle, 15° and 35°<br />
Contact Status, Snap - Action<br />
Protection Class, IP68<br />
Casing Color, Red (RAL 3020)<br />
Weight, 3.9 Kg<br />
Mounting Structure, It is suitable for double-sided use.

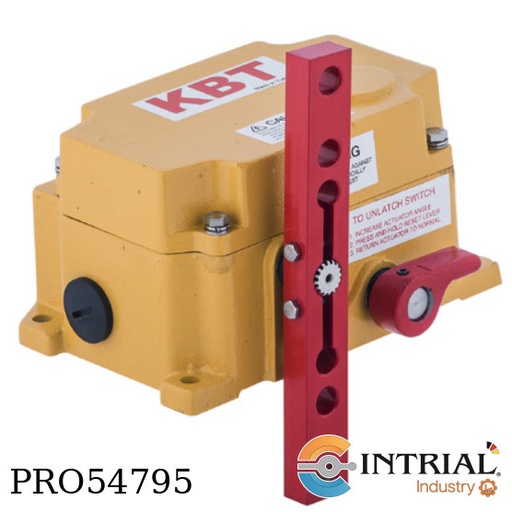

PULL CORD SWITCHES<br />
Brand: KBT<br />
Model: NSR66-PR<br />
Body, Aluminum Casting NEMA-4<br />
Micro Switch Values, 15A @ 115-230 VAC, 30 VDC<br />
Output Signal, (2) SPDT shutdown (Alarm,Closure)<br />
Cable Entry, 2xM25<br />
Movement Angle, 25°<br />
Temperature Rating, -42°- 80°C<br />
Mounting Structure, It is suitable for double-sided use.<br />
Protection Class, IP67

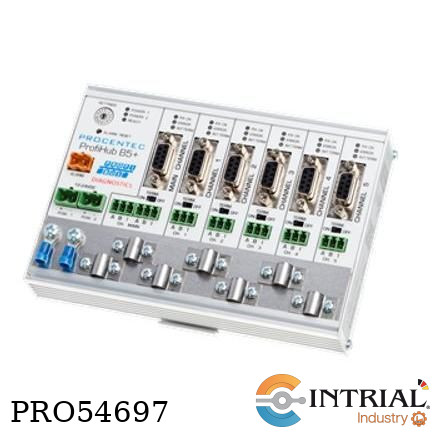

PROFIHUB B5+R<br />
MARCA: PROCENTEC SERIE: PROFIHUB B5+R<br />
MODELO: 17020R<br /><p class="MsoNormal">Repetidor de 6 segmentos con 1 línea principal y una línea derivada de 5 canales para redes DP clasificación IP 20,</p>

<p class="MsoNormal">Terminales de tornillo para conexión de bus y conectores DB9 para fines de mantenimiento</p>

<p class="MsoNormal">Esclavo de diagnóstico integrado como modo de funcionamiento seleccionable.</p>

<p class="MsoNormal">2 canales redundantes opcionales para redundancia de línea</p>

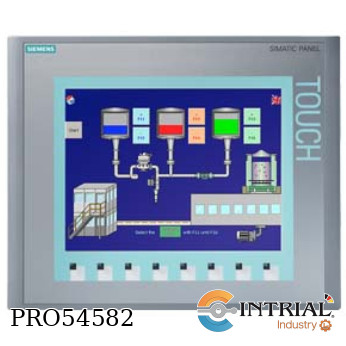

KTP1000 Basic color PN<br />
Brand: SIEMENS<br />
Model: 6AV6647-0AF11-3AX0<br />
Tipo de display, TFT<br />
Diagonal de pantalla, 10,4 in<br />
Achura del display, 211,2 mm<br />
Altura del display, 158,4 mm<br />
Nº de colores, 256<br />
Resolución de imagen horizontal, 640 pixel<br />
Resolución de imagen vertical. 480 pixel<br />
Valor nominal (DC), 24 V<br />
Consumo (valor nominal), 0,6 A
<div>
<div class="gtx-trans-icon"></div>
</div>

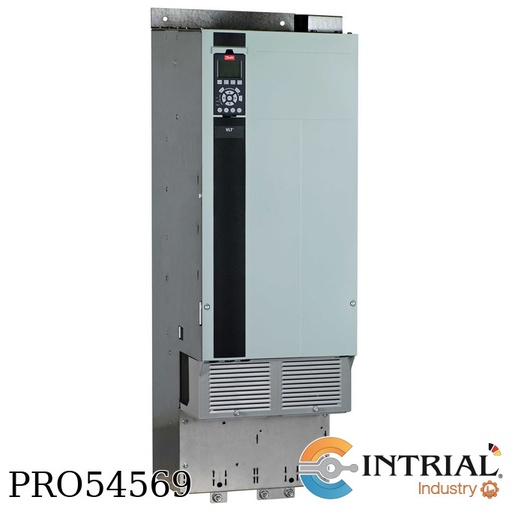

Modelo: FC-302N110T5E20H2XGCXXXSXXXXAXBXCXXXXDX<br />
VARIADOR DE VELOCIDAD<br />
Marca: DANFOSS<br />
Model: FC-302N110T5E20H2XGCXXXSXXXXAXBXCXXXXDX<br />
P/N: 134F0300<br />
Potencia, 110 kW / 150 Hp<br />
Alimentacion, 380-500V<br />
Amperaje trabajo continuo, 260 Amp<br />
Filtro RFI, Clase A2<br />
Sin Chopper de Frenado<br />
Display (LCP), Grafico<br />
Tarjetas Barnizadas Extra<br />
Grado de proteccion, IP20<br />
Comunicacion, Modbus

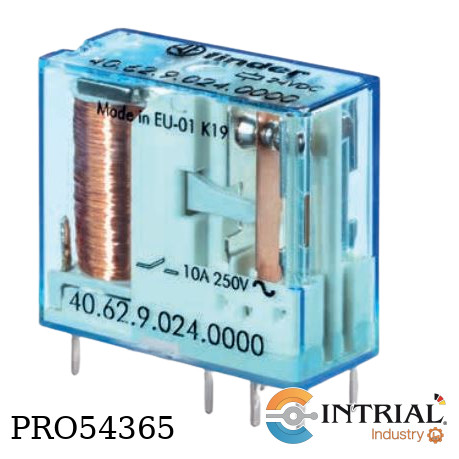

Miniature PCB Relays<br />
Brand: FINDER<br />
Model: 40.62.9.024.0000<br />
[40]: Series<br />
[6]: Type, PCB/Plug-in - 5 mm pinning<br />
[2]: No. of poles, 2 pole<br />
[9]: Coil version, Standard DC, 0.65 W<br />
[024]: Nominal voltage: 24V<br />
Operating range: Umin: 17.5V // Umax: 36V<br />
Resistance: R: 900Ω<br />
Rated coil consumption: I at UN: 27mA<br />
[0]: Contact material, 0 (AgNi) - 4 (AgSnO2)<br />
[0]: Contact circuit, CO (nPDT)<br />
[0]: Options, Pin length 5.3 mm (Plug-in relays)<br />
[0]: Special versions, Standard
