TERMOPOZO ROSCADO RECTO<br />
Model:TERMOPOZO-254mm<br />
USO: USO: (PARA SENSOR DIAM.1/4”X278MM,1/2”NPT)<br />
TERMOPOZO: Fabricado de barra solida en Acero Inoxidable C-304.<br />
LONGITUD DE INSERCION DEL TERMOPOZO: De 254mm.<br />
CONEXION AL SENSOR: Con rosca hembra de 1/2” NPT.<br />
CONEXION A PROCESO: Rosca macho de 1/2’’NPT<br />

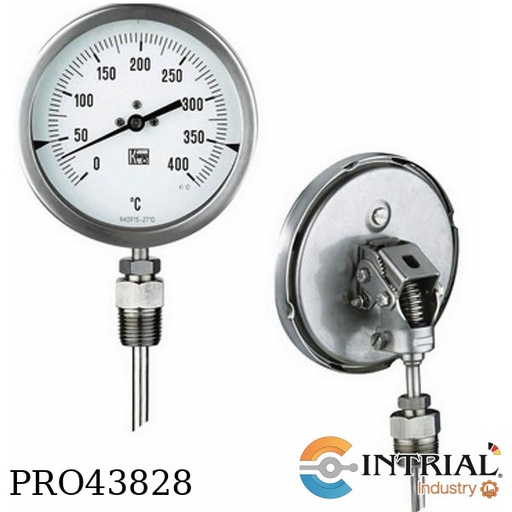

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-3-C12-9A-6-C40-C01</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[3] Diameter: 150 mm<br />
[C12] Measuring Range: 0 ... +120 °C<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[6] Bulb diameter/-length: 6 mm / 278 mm<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[C01] Calibration report

<strong>Rod Thermostats general application<br />
Brand: Kobold (Alemania)<br />
Model: TEA-K31-29-1-0</strong><br />
 [TEA-K31]<br />
Probe: copper<br />
Housing: plastic<br />
Switching difference: 2...20 K<br />
Thermostat versión: single-level<br />
Contact: change over switch<br />
[29]: Range: 20°...90 °C<br />
[1]: capillary length: 1,5 m<br />
[0]: Option: w/o

<strong>Rod Thermostats general application<br />
Brand: Kobold (Alemania)<br />
Model: TEA-K31-06-1-0</strong><br />
 [TEA-K31]<br />
Probe: copper<br />
Housing: plastic<br />
Switching difference: 2...20 K<br />
Thermostat versión: single-level<br />
Contact: change over switch<br />
[06]: Range: 0...60 °C<br />
[1]: capillary length: 1,5 m<br />
[0]: Option: w/o

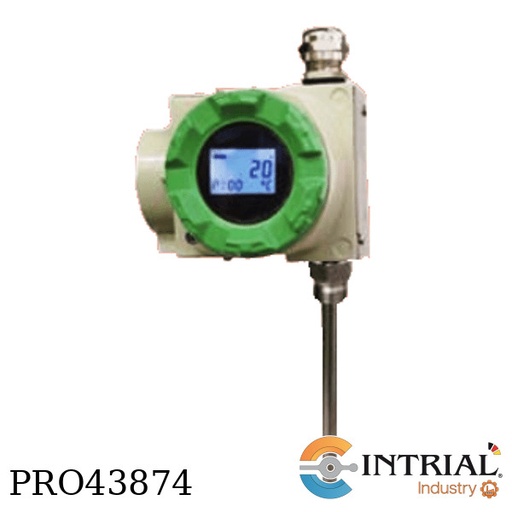

<strong>Thermoresistance  MWD<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-A-N15-A-3-E-0-0</strong><br />
[MWD-L]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[A]: Diameter / length thermowell, 10 mm / 100 mm<br />
[N15]: Process Connection,  1/2" NPT male<br />
[A]: Sensor, 1x Pt100, cat. B,  (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[E]: Terminal Head, Anschlusskopf<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

<strong>Screw-In Thermocouples<br />
Brand: Kobold (Alemania)<br />
Model: TTE-56417P-J1-E</strong><br />
[TTE-56417P]<br />
Protective tuve: st. st. 1.4571<br />
Protective tube diameter: 6 mm<br />
Temperature range: 0...400 °C<br />
Connection cable: 2,5 m<br />
[J1] Type of sensor: 1x FeCu-Ni<br />
[E] Connection cable: 2,5 m, st. st. stranded wire

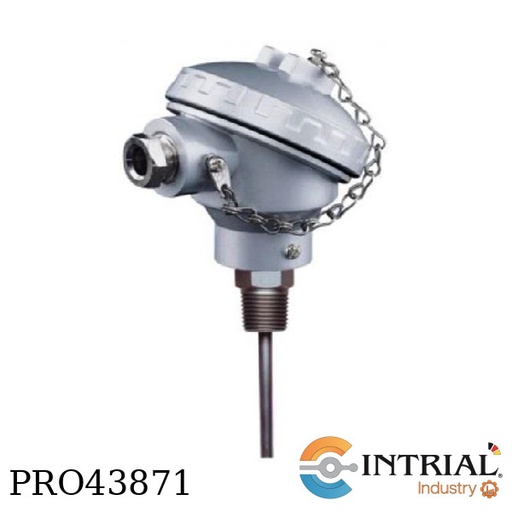

<strong>Thermoresistance MWD<br />
Brand: Kobold (Alemania)<br />
Model: MWD- L-9-N20-C-3-G-A-0</strong><br />
[MWD-L]: <br />
Aluminum connection head type BR screw-cap IP67<br />
PT100 3-wire, class B. Operating temperature -70…+250ºC<br />
Process connection G 1/2 - M<br />
Ceramic terminal block / Prepared for transmitter mounting<br />
Immersión L Ø9<br />
[9]: Inmersion tube diameter and inmersión length, Tube Ø9 mm<br />
[N20]: Process connection, 3/4" NPT male<br />
[C]: Sensor type: 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: RTD Wiring, 3 Wires<br />
[G]: Terminal Head: screw cap with chain, aluminum<br />
[A]: Head Transmitter, programable 2 wire transmitter model 5334D<br />
[0]: Options, without

Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-BN4A-0 (150mm)<br />
Brand: Kobold<br />
[TWL-0000]<br />
Thermowell,welded<br />
Material neckpipe/sensor/thermowell,st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval,ATEX II 2 GD Ex d IIC T6<br />
[N],Connection neckpipe,1/2" NPT male<br />
[BN4A],Connection thermowell,1/2" NPT male, PN 25<br />
Immersion length (U), 6"(150mm)<br />
[0],Lagging extension (T),w/o lagging extension

Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-BN4A-0 (75mm)<br />
Brand: Kobold<br />
[TWL-0000]<br />
Thermowell,welded<br />
Material neckpipe/sensor/thermowell,st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval,ATEX II 2 GD Ex d IIC T6<br />
[N],Connection neckpipe,1/2" NPT male<br />
[BN4A],Connection thermowell,1/2" NPT male, PN 25<br />
Immersion length (U), 6"(75mm)<br />
[0],Lagging extension (T),w/o lagging extension

<strong>Bimetallic Thermometers<br />
Model: TBE-1-3-C16-3A-6-000 (111 mm)<br />
Brand: Kobold (Alemania)</strong><br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[3]: Diameter, 150 mm<br />
[C16]: Measuring Range, Scale °C, ranges acc. data sheet (0-160°C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 36 mm / 75 mm<br />
[000]: Options: w/o

<strong>Thermowells for Stem and Capillary Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TSH-3-C33-16      </strong><br />
[TSH-3]:<br />
Material, st.st. 1.4571<br />
Protection sleeve for, screw-in<br />
max. pressure, 25 bar <br />
Thermometer connection, G 1/2 IG<br />
[C33]: Process connection, G 3/4 male for 10 mm-probe<br />
[16]: Length of sleeve, 160 mm<br />

<strong>Bimetallic Thermometers<br />
Model: TBE-1-3-C16-3A-6-000 (186 mm)<br />
Brand: Kobold (Alemania)</strong><br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[3]: Diameter, 150 mm<br />
[C16]: Measuring Range, Scale °C, ranges acc. data sheet (0-160°C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 36 mm / 150 mm<br />
[000]: Options: w/o

Thermowells for Stem and Capillary Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TSH-3-C32-10<br />
[TSH-3]:<br />
Material, st.st. 1.4571<br />
Protection sleeve for, screw-in<br />
max. pressure, 25 bar <br />
Thermometer connection, G 1/2 IG<br />
[C32]: Process connection, G 1/2 male 10 mm-probe<br />
[10]: Length of sleeve, 100 mm<br />

<strong>Bimetallic Thermometers<br />
Model: TBE1-1-C16-3A-6-000 (111 mm)   <br />
Brand: Kobold (Alemania)</strong><br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[1]: Diameter, 100 mm<br />
[C16]: Measuring Range, Scale °C, ranges acc. data sheet (0-160°C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 36 mm / 75 mm<br />
[000]: Options: w/o

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-C50-9A-7-C40-P00+TERMOPOZO-212</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[C50] Measuring Range: 0 ... +500 °C<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[7] Bulb diameter/-length: 6,4 mm mm / 238 mm<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[P00] Suitable for glycerine filling IP 67<br />
*Incluye Terpomopozo<br />
TERMOPOZO-212/SS

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-C40-9A-7-C40-P00+TERMOPOZO-186</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[C40] Measuring Range: 0 ... +400 °C<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[7] Bulb diameter/-length: 6,4 mm mm / 212 mm<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[P00] Suitable for glycerine filling IP 67<br />
*Incluye Terpomopozo<br />
TERMOPOZO-186/SS

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-C20-9A-7-C40-P00+TERMOPOZO-212</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[C20] Measuring Range: 0 ... +200 °C<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[7] Bulb diameter/-length: 6,4 mm mm / 238 mm<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[P00] Suitable for glycerine filling IP 67<br />
*Incluye Terpomopozo<br />
TERMOPOZO-212/SS

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-C20-9A-7-C40-P00+TERMOPOZO-186</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[C20] Measuring Range: 0 ... +200 °C<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[7] Bulb diameter/-length: 6,4 mm mm / 212 mm<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[P00] Suitable for glycerine filling IP 67<br />
*Incluye Terpomopozo<br />
TERMOPOZO-186/SS

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-C10-9A-7-C40-P00+TERMOPOZO-212</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[C10] Measuring Range: 0 ... +100 °C<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[7] Bulb diameter/-length: 6,4 mm mm / 238 mm<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[P00] Suitable for glycerine filling IP 67<br />
*Incluye Terpomopozo<br />
TERMOPOZO-212/SS

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-C10-9A-7-C40-P00+TERMOPOZO-186</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[C10] Measuring Range: 0 ... +100 °C<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[7] Bulb diameter/-length: 6,4 mm mm / 212 mm<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[P00] Suitable for glycerine filling IP 67<br />
*Incluye Terpomopozo<br />
TERMOPOZO-186/SS
