<strong>BimetaThermowells for Temperature Sensors<br />
Model: TWL-0000-N-DA95-0-0 <br />
Brand: Kobold (Alemania)</strong><br />
[TWL-0000]:<br />
Thermowell, tapered drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[DA95]: Connection thermowell, ANSI-flange 2" 150 lbs<br />
Immersion length (U), 22"<br />
[0]: Lagging extension (T), w/o lagging extension

<strong>Bimetallic Thermometers TBE-2<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-2-F14-9A-6-C40-P00-R10-C01-T25</strong><br />
[TBE-2]<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
[2] Diameter, 125 mm<br />
[F14] Measuring Range, 0 ... +250 °F<br />
[9A] Probe type/Process connection,sliding male and swivel nut 1/2 NPT<br />
[6] Bulb diameter/-length: 6mm /  620 mm<br />
[C40] Options, Case and ring stainless steel AISI 316<br />
[P00] Suitable for glycerine filling IP 67<br />
[R10] Glycerine filling (max. 160 °C) IP 67<br />
[C01] Calibration report<br />
[T25] stainless steel lable for initialing (AISI 316) <br />
<br />


Temperature Transmitter<br />
Brand: Kobold <br />
Model: TMA-100DR1360<br />
KOBOLD TEMP XMTR<br />
<br />
PRODUCTO DE FABRICACIÓN ESPECIAL

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-C-3-G-B-0</strong><br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6] Diameter / length thermowell, 6 mm / 195 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C) <br />
[3] Wiring, 3 Wires<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[B] head-mounted transmitter, <br />
2 wire transmitter with HART protocol model 5337D <br />
[0] Options, without

<strong>Thermocouples Exd<br />
Brand: Kobold(Alemania)<br />
Model: TTL-1-7-2-B-N-GN4B-A-0</strong><br />
[TTL-1]<br />
Version: standard<br />
Thermowell: Cylindrical<br />
Material neckpipe/sensor/thermowell: st.st. 1.4404<br />
Connection head: Form XD with chain, M20 x 1,5<br />
Approval: ATEX II 2 GD Ex d IIC T6<br />
[7] Sensor; 1x NiCr-Ni (type K), cat.1<br />
[2] Wiring; 2 wire<br />
[B] Head-mounted transmitter; <br />
2 wire transmitter with HART protocol model 5337D<br />
[N] Connection neckpipe; 1/2" NPT male<br />
[GN4B] Connection thermowell*; w/o thermowell<br />
1/2" NPT male, PN 100<br />
Immersion length (U): 170 mm<br />
[A] Neckpipe/lagging extension (HL/T); <br />
Standard neckpipe (130 mm)w/o lagging extension<br />
[0] Options; w/o

<strong>RTD Sensor with Built-in Temperature Transmitter<br />
Model: TST-A4-040-M12-04-NE+807.007/5M<br />
Brand: Kobold ( USA)</strong><br />
[TST]<br />
[A4] Fitting: 1/2" NPT<br />
[040] Immersion Depth: 4.0"<br />
[M12] Electrical Connection: Micro-DC, 5-pin Male<br />
[04] Range: 0...200 °F<br />
[NE] Options: No Extension (1" Std)<br />
Include:<br />
[807.007 / 5M]<br />
Accessory: 5-pin Micro-DC connecting cable,<br />
5 meters in length for electrical connection type ..M12

Stem Thermometers diam. 100 acc. to DIN EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNS-0F-2-16-01A<br />
[TNS-0F]<br />
Diameter, 100 mm <br />
Probe material, st.st.<br />
Class 1,0<br />
[2]: Housing material, st.st.<br />
[16]: Range, 0...160 °C<br />
[01A]: Probe, 1/2 NPT sl. nut + 2 nipple<br />

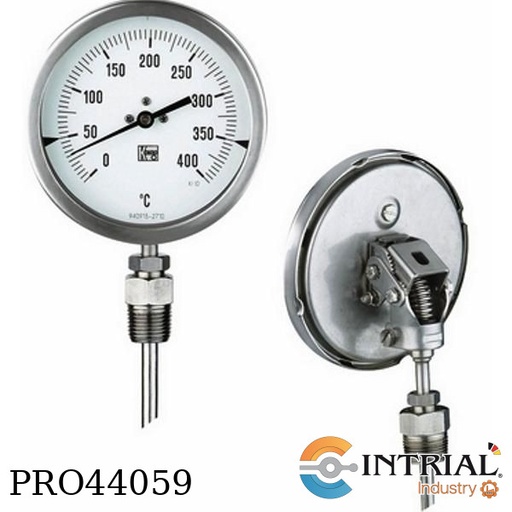

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-C16-9A-6-C40</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[C16] Measuring Range: 0 ... +100 °C<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[6] Bulb diameter/-length: 6 mm / 100 mm<br />
[C40] Options; Case and ring stainless steel AISI 316

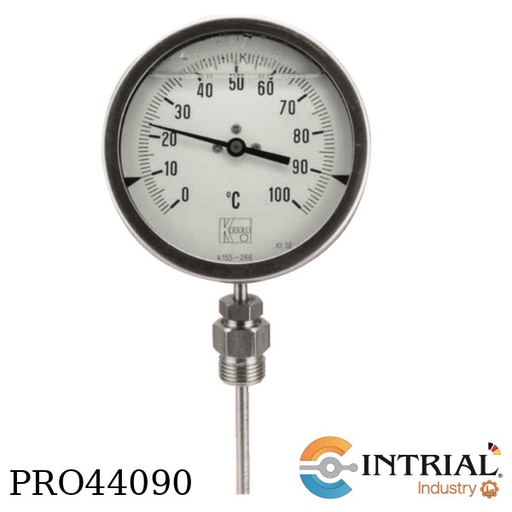

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-1-C10-3A-6-000 (125 mm)<br />
[TBE-2]<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
Min. order quantity 5 pieces per order<br />
[1] Diameter, 100mm<br />
[C10] Measuring Range, 0 ... +100 °C<br />
[3A] Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]Bulb diameter/-length, 6 mm / 125 mm<br />
[000] Options, without<br />

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-1-C10-3A-6-000-100mm<br />
[TBE-2]<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
Min. order quantity 5 pieces per order<br />
[1] Diameter, 100mm<br />
[C10] Measuring Range, 0 ... +100 °C<br />
[3A] Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]Bulb diameter/-length, 6 mm / 100 mm<br />
[000] Options, without

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-1-C10-3A-6- (50 mm)<br />
[TBE-2]<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
Min. order quantity 5 pieces per order<br />
[1] Diameter, 100mm<br />
[C10] Measuring Range, 0 ... +100 °C<br />
[3A] Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]Bulb diameter/-length, 6 mm / 50 mm<br />

<p class="MsoNormal"><span style="font-size:13.5pt;line-height:107%;color:#000000;">Bimetallic Thermometers</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Brand: Kobold (Alemania)</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Model: TBE-3-1-C16-9A-6-C40 (180mm)<br />
<span style="float:none;word-spacing:0px;">[TBE-3]:</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Housing material st.st.</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Accuracy (DIN 16203) class 1</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Connection to, bottom</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Probe st.st.</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">[1]: Diameter, 100 mm</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">[C06]: Measuring Range, 0-60°C</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
<span style="float:none;word-spacing:0px;">[6]: Bulb diameter/-length, 6 mm / 180mm<br />
<span style="float:none;word-spacing:0px;">[C40]: Options, Case and ring stainless steel AISI 316</span></span></span></span></p><p></p>

TERMOPOZO ROSCADO RECTO<br />
Mode: TERMOPOZO-150mm<br />
USO: (PARA SENSOR DIAM.8mm.)<br />
TERMOPOZO: Fabricado de barra solida en Acero Inoxidable C-304.<br />
LONGITUD DE INSERCION DEL TERMOPOZO: De 150mm.<br />
CUERPO DEL TERMOPOZO: De Ø 16mm<br />
DIAMETRO INTERNO DEL TERMOPOZO: Ø 8.5mm (Para sensor de Ø 8mm). <br />
CONEXION AL SENSOR: Con rosca hembra de 1/2” NPT. <br />
CONEXION A PROCESO: Rosca macho de 1/2’’ NPT

<strong>Electronic temperature sensor with 3 digit LED Display<br />
Brand: Kobold (Alemania)<br />
Model: TDA-15H3-D6-1-P-3M</strong><br />
[TDA-15H3]<br />
Housing (mm), st. st.<br />
Output, 0(4)-20 mA (switch output)<br />
max. pressure, 80 bar<br />
max. temperature, 120 °C<br />
Display, 3 digit LED display<br />
Measuring range, -50...+125 °C<br />
Version, seperately<br />
[D6] Connection, separ. mount. version, M25x1, smooth sensor<br />
[1] Sensor length,  100 mm<br />
[P] Output, 0(4)-20 mA, PNP switch output<br />
[3M] Electrical connection, M12x1 plug connector<br /><br />
Include:<br />
Accessories Plug Connector from Z2<br />
Model: ZUB-KAB-12D500<br />
M12x1 box with screw terminals

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-3-1-C06-9B-6-C40<br />
[TBE-3]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to, bottom<br />
Probe st.st.<br />
[1]: Diameter, 100 mm<br />
[C06]: Measuring Range, 0-60°C<br />
[9B]: Probe type/Process connection, sliding male and swivel nut 3/4 NPT<br />
[6]: Bulb diameter/-length, 6 mm / 3"<br />
[C40]: Options, Case and ring stainless steel AISI 316

<strong>Thermowells for Temperature Sensors<br />
Brand: Kobold<br />
Model: TWL-0000-N-DN6C-0</strong><br />
[TWL-0000]<br />
Thermowell, tapered<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N] Connection neckpipe, 1/2 NPT<br />
[DN6C] Connection thermowell, 1" NPT male, PN 250<br />
[0] Lagging extension (T), w/o lagging extension<br />
*90 mm

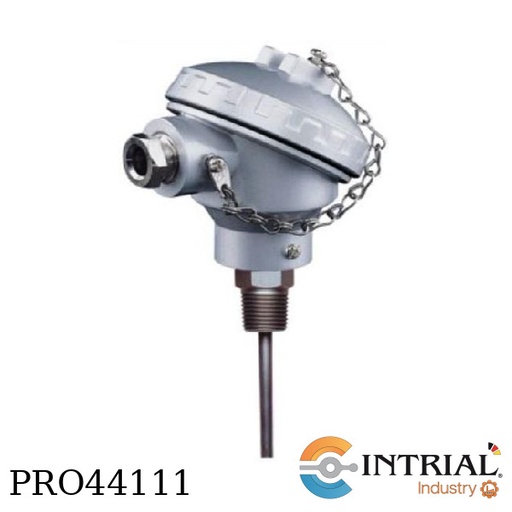

<div><strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-B-8-N15-C-3-G-A-0</strong><br />
[MWD-B]<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe HL: 130 mm<br />
Electrical connection: M20x1.5<br />
[8] Diameter / length thermowell, 8 mm / 134 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[G] Terminal head, screw cap with chain, aluminium <br />
[A] Head-mounted transmitter, <br />
programable 2 wire transmitter 5333D transmit-ter  4 - 20  mA 2-wire<br />
[0] Options, without</div>

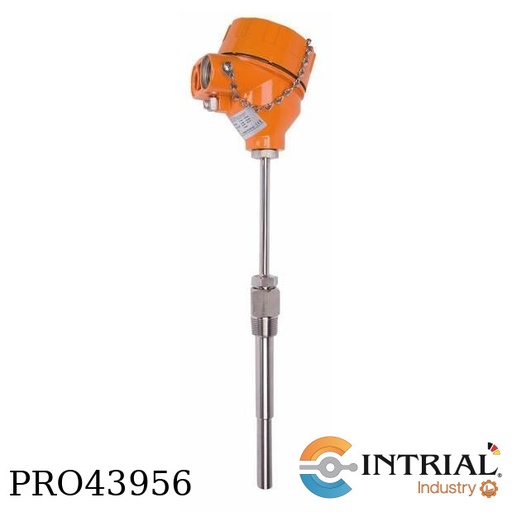

<strong>Resistance Thermometers Exd<br />
Model: TWL-1-5-3-A-N-GN4B-A-0<br />
Brand: Kobold</strong><br />
[TWL-1]<br />
Version standard<br />
Thermowell cylindrical<br />
Material neckpipe/sensor/thermowell st.st. 1.4404<br />
Connection head Form XD with chain, M20 x 1,5<br />
Approval ATEX II 2 GD Ex d IIC T6<br />
[5] Sensor: 1x Pt100, cat. A, (-30..+550 °C)<br />
[3] Wiring: 3 wires<br />
[A] Head-mounted transmitter Model 5333D<br />
[N] Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell 1/2" NPT male, PN 100<br />
Immersion length U= 6 " (152.4 mm)<br />
[A] Neckpipe/lagging extension (HL/T),<br />
Standard neckpipe (130 mm)w/o lagging extension<br />
[0] Options,w/o

<strong>Screew-in-/Insert- Resistance Thermometers Ex ia<br />
Brand: Kobold(Alemania)<br />
Model: TWL-L-8-N15-C-3-G-A-0</strong><br />
[TWL-L]<br />
Sensor; PT100<br />
Electr. Connection; M20x1.5<br />
Neck pipe HL; no<br />
Version; Fixed thread<br />
Max. Pressure; 30 bar (at 20°C)<br />
Material; st. st. 1.4404<br />
Protection tube; nach DIN 43772, gefüllt mit Magnesiumoxyd<br />
Temperature; -70…+250°C<br />
ATEX-approval; II 1 GD Exia IIC T4…T6/Ex iaD 20 IP65 <br />
[8] Immersion leght and Protective tube diameter (D); Tube Ø8 (50mm)<br />
[N15] Process Connection; 1/2" NPT-M<br />
[C] Sensor type/ category; 1xPT100 class A (-70…+250°C) <br />
[3] RTD wiring; 3-wire<br />
[G] Terminal Head; screw-cap with chain, aluminium<br />
[A] Head transmitter; 5333D transmitter 4-20 mA 2-wire<br />
[0] Sonderoptionen; ohne
<div>
<div class="gtx-trans-icon"></div>
</div>

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold Alemania<br />
Model: MWD-L-6-N15-D-2-G-A</strong><br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, Fixed connection<br />
Neckpipe, without <br />
[6] Diameter / length thermowell, 6 mm/100 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[D] Sensor, 2x Pt100, cat. A, (-70..+250 °C) <br />
[2] 2 Wire<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[A] Head-mounted transmitter, programable 2 wire transmitter model 5333D <br />
[0] Options, without
