DANAHER CONTROLS ,INCREMENTAL ENCODERS

ENCODER
Avtron HS35M Encoders
Marca: AVTRON
Modelo: HS35M
Código: HS35MYX6FCU1DA00
Procedencia: USA
Especificaciones Tecnicas:
- Left PPR: Y - 1024 PPR
- Right PPR: X - No Right Output
- Line Driver: 6 - 5-28v In/Out (7272)
- Bore Size: F - 1 in. Bore
- Connector Options: C - 10 Pin MS Style w/Plug, Avtron/BEI Pin Out
- Mounting Style: U - Universal (Thru & End of Shaft)
- Protection: 1 - Protective Basket Included
- Tether: D - All T-Bolt Fan Cover Tethers - A, B, C
- Channels and Modifications: A00 - Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\)

AV6AP1C23KA1A000
DESCRIPTION:
==========’
Bus                            (P):  Profibus DP (slave) Communication
Flange                         (1):  58mm Flange clamp style, 36mm male pilot, 3X M3, 3X M4 @ 48mm BC
Shaft Size                     (C) : 10mm Solid Shaft w/flat
Turns/bits                     (2):  4096 Turns/12 bits
PPR/bits Per Turn     (3):  8192 Counts per Revolution/13 bits
Connector                  (K): 3x Cable Entry (rear terminal box w/grommets)
Connector Exit         (A): Side/Radial exit
Output                      (1): Binary Bit Coding
IP Rating                  (A): IP66 Shaft Seals, aluminum housing
Modifications         (000): No Special Features

Modular C-Face Mount

PART NUMBER: AV850UPF8WXXP000

BRAND: AVTRON

• Rotor Bore Size (UP): GE CD400 Motor Shaft Adapter & Universal 5/8 in. Rotor for 2-3/8” * Cover Plates (F): Flat Outboard Cover

• Left Module Line Driver (8): 5-24v in, 5-15v out hi-power standard (4125)

• Left Module PPR (W): 1000 PPR

• Right Module Line Driver (X): No Right Output

• Right Module PPR (X): No Right Output

• Connector Options (P): Industrial EPIC Style w/Plug

• Modifications (000): None

Modular C-Face Mount
PART NUMBER: AV850UFF8WXXP000
•    Rotor Bore Size    (UF):  GE CD180-320 Motor Shaft Adapter & Universal 5/8 in. Rotor for 1-1/8”
•    Cover Plates (F): Flat Outboard Cover
•    Left Module Line Driver (8): 5-24v in, 5-15v out hi-power standard (4125)
•    Left Module PPR (W): 1000 PPR
•    Right Module Line Driver (X): No Right Output
•    Right Module PPR (X): No Right Output
•    Connector Options (P): Industrial EPIC Style w/Plug
•    Modifications (000):  None

AVTRON HS35M Encoder
MAGNETIC, Mill Duty Incremental /Hollow Shaft Mount
• Left PPR (Y): 1024 PPR
• Right PPR (X): No Right Output
• Line Driver (6): 5-28v In/Out (7272)
• Bore Size: (Q): 14mm via insert
• Connector Options (W): 18 in. Sealed Cable (or Special Length)
• Mounting Style (U): Universal (Thru & End of Shaft)
• Protection (0): No Protective Basket
• Tehther (U): All Tether Kits A-F
• Channels and Modifications (910): 10'/3m Cable, All channels (A,A\,B,B\,Z,Z\)

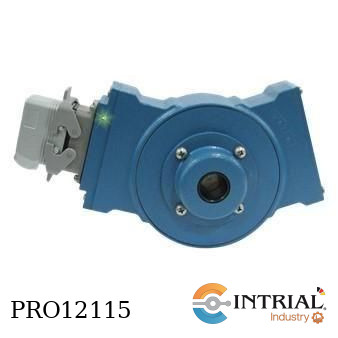

SMARTach III Severe Mill Duty Hollow Shaft Magnetic Encoder, 1 1/8" Bore
Brand: AVTRON
Part Number: AV685N1E8YXXT000
[N]: Temperature Rating, -20°C to +80°C (Standard)
[1]: Anti-Rotational Tether, 12 inch Threaded Rod Tether (B32809)
[E]: Shaft Mounting, Standard (End of Shaft) Mount
[8]: Left Output Line Driver, 5-24v in, 5-24v out hi-power standard (HX)
[Y]: Left Output PPR, 1024 PPR
[X]: Right Output Line Driver, No Right Output
[X]: Right Output PPR, No Right Output
[T]: Connector Options, 5 ft. Flex Conduit with Terminal Box
[000]: Modifications, None

ENCODER INCREMENTAL EJE HUECO DE ALTA RESOLUCIÓN  PARA APLICACIONES INDUSTRIALES
Marca: HOHNER
59: Serie
1: Opción Mecánica : Abrazadera posterior
2: Eje Hueco : Ø 12 mm
1: Señales Salida : AA+BB+00
1: Conexión : Cable radial
1: Alimentación / Salida Electrónica : 11...30 VDC / Line driver
1024: Número de impulsos : 1024

MODULAR C-FASE Mounting
•    Housing Type:    1 - Single Output
•    Rotor Bore Size: CB - 5/8 in. bore Cam Screw Thru-Shaft Rotor
•    Cover Style:  E - Extended (Pie-Pan Style) Cover
•    Line Driver:  6 - 5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no A/,B/,Z/)
•    Left Output PPR: W - 1000 PPR
•    Right Output PPR:  X - No Right Output, Single Output Only
•    Connector Options:  C - 10 pin MS style w/ Plug, Avtron/BEI HS35 Pinout
•    Modifications:  000 - None

AV85A1DEE6DXG000
DESCRIPTION:
(1)    Housing Type: Single Output
(DE) Rotor Bore Size: 19mm bore Cam Screw Thru-Shaft Rotor
(E) Cover Style:  Extended (Pie-Pan Style) Cover
(6) Line Driver:  5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no A/,B/,Z/)
(D) Left Output PPR:  4096 PPR
(X) Right Output PPR: No Right Output, Single Output Only
(G) Connector Options: Ind'l w/Northstar Pinout (EPIC Style connector), w/mating plug, LED diagnostics
(000) Modifications: None

AV685N1E8Y8YP000
Encoder MAGNETICO (Aplicaciones Severas)
DESCRIPTION:
(N) Temperature Rating:  -20°C to +80°C (Standard)
(1) Tether: 12" Threaded Rod Tether (B32809)
(E) Shaft Mounting Style:  Standard (End of Shaft) Mount
(8) Left Module Line Driver: - 5-24v in, 5-15v out hi-power standard (4125) differential line driver.
(Y) Left Module PPR: 1024 PPR
(8) Right Module Line Drive:  5-24v in, 5-15v out hi-power standard (4125)
(Y) Right Module PPR: 1024 PPR
(P) Connector Options: Industrial EPIC Style w/Plug
(000) Modifications :  None

ENCODER Optico INCREMENTAL:
PPR (4):     2048 PPR
Line Driver (1):     5-28v In/Out (7272)
Bore Size (P):     12mm via insert
Connector Options (W): Cable (18 in. or special length)
Mounting Style (U): Universal (Thru & End of Shaft)
Protection (0): None
Anti-Rotation Tether Options (U): A-F All Tethers
Channels (A): All Signals (A,A NOT,B,B NOT,Z,Z NOT)
Modifications (905): 5 ft./1.5m Cable

ENCODER Magnetico INCREMENTAL

Brand: AVTRON

HS35M4X6PWU0U905

DESCRIPTION:

Left PPR (4): 2048 PPR

Right PPR (X): No Right Output

Line Driver (6): 5-28v In/Out (7272)

Bore Size (P): 12mm via insert

Connector Options (W):  18 in. Sealed Cable (or Special Length)

Mounting Style (U): Universal (Thru & End of Shaft)

Protection (0): No Protective Basket

Tether (U): All Tether Kits A-F

Channels and Modifications (905):  5' / 1.5m Cable, All channels (A, A\, B, B\, Z, Z\)

HS25AY1QWE0UA910
DESCRIPTION:
PPR (Y): 1024 PPR
Line Driver (1): 5-28v In/Out (7272)
Bore Size (Q): 14mm via insert
Connector Options (W): Cable (18 in. or special length)
Mounting Style (E): End of Shaft (only)
Protection (0): None
Anti-Rotation Tether Options (U): A-F All Tethers
Channels (A): All Signals (A,A NOT,B,B NOT,Z,Z NOT)
Modifications (910): 10 ft./3m Cable

PPR:                    P - 300 PPR
Line Driver:                2 - 5-28v In/OC Out (7273)
Bore Size:                L - 6 mm via insert
Connector Options:            G - 6 pin MS style w/plug, Avtron/BEI pinout
Mounting Style:            E - End of Shaft (only)
Protection:                0 - None
Anti-Rotation Tether Options:    E - 4.5 in. C-Face Tether
Channels:                 E - A, B, Z (no complements, marker)
Modifications:                000 - No Special Features

PPR:                    G - 100 PPR
Line Driver:                2 - 5-28v In/OC Out (7273)
Bore Size:                L - 6 mm via insert
Connector Options:            G - 6 pin MS style w/plug, Avtron/BEI pinout
Mounting Style:            E - End of Shaft (only)
Protection:                0 - None
Anti-Rotation Tether Options:    E - 4.5 in. C-Face Tether
Channels:                E - A, B, Z (no complements, marker)
Modifications:                000 - No Special Features

CONTROL REMOTO (TRANSMISOR)

• Marca: SAGA

• S/N: A03073

• CH: 048

Part Number: HS45WADXX6CGA000
HS45 HOLLOW SHAFT HEAVY MILL DUTY MAGNETIC ENCODER
Including the following features & options:
•    20mm bore via insert: universal end of shaft and thru shaft fit
•    Left Output: 4096 PPR
•    Right Output: No Right Output
•    5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no A/,B/,Z/)
•    10 pin MS style w/Plug, Avtron/BEI Pinout, LED Diagnostics
•    Threaded rod arm kit, adjustable 70-500mm (4.25"-19")
•    Output Channels: Standard, All Channels A,A\,B,B\,Z,Z\
•    Special Options: No Special Options
•    Accessories: None

HS453ASXX6WUA905
*HS45 HOLLOW SHAFT HEAVY MILL DUTY MAGNETIC ENCODER
*Including the following features & options:
-30mm bore via insert: universal end of shaft and thru shaft fit
-Left Output: 600 PPR
-Right Output: No Right Output
-5-24v in, 5-24v out (7272) recommended for single-ended wiring
(A,B,Z no A/B/Z/)  1.5m/5' Special Cable Length, No Connector
-Universal Tether/Arm Kit (includes all standard tethers)
-Output Channels: Standard, All Channels A,A\,B,B\,Z,Z\
-Special Options: 1.5m/5' Special Cable Length, No Connector

HS453AYXX6WUA905
*HS45 HOLLOW SHAFT HEAVY MILL DUTY MAGNETIC ENCODER
*Including the following features & options:
-30mm bore via insert: universal end of shaft and thru shaft fit
-Left Output: 1024 PPR
-Right Output: No Right Output
-5-24v in, 5-24v out (7272) recommended for single-ended wiring
(A,B,Z no A/B/Z/)  1.5m/5' Special Cable Length, No Connector
-Universal Tether/Arm Kit (includes all standard tethers)
-Output Channels: Standard, All Channels A,A\,B,B\,Z,Z\
-Special Options: 1.5m/5' Special Cable Length, No Connector
