HS35AY1FCU0UA000
DESCRIPTION: OPTION
HS35A: Light Mill Duty Optical Hollow Shaft
(Y): 1024 PPR
(1): Line Driver 5-28v In/Out (7272)
(F): Hollow Shaft Size 1 inch bore
(C ): Connector Options 10 pin MS style w/Plug, Avtron/BEI pinout
(U): Universal Mounting (Thru & End of Shaft)
(O) Protection None
(U): Universal Anti-Rotational Tether (All Tether Options)
(A): All Channels (A, A/, B, B/, Z, Z/)
Modifications (000): No Special Features

Contactor de Fuerza TeSys D, 3P, 50A AC-3, 80A AC-1,<br />
B:24V AC, 1NA+1NC; 2 LC1D50AB7 - SCHNEIDER ELECTRIC

REL. FASE ORDEN AUSENCIA ASIMETRIA TENSI RM17TE00 - SCHNEIDER <br />
1 ELECTRIC

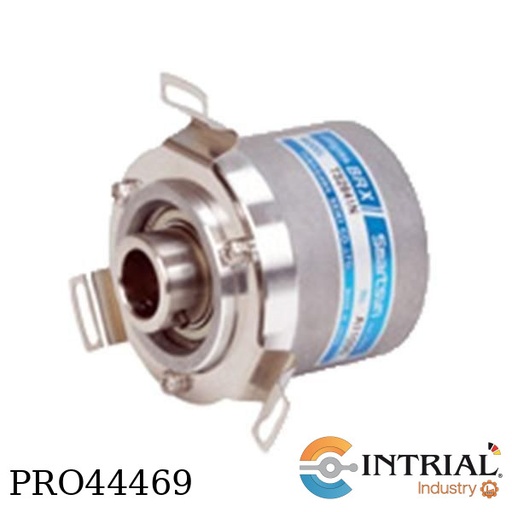

ENCODER<br />
BRAND: TAMAGAWA<br />
SMART-SYN<br />
SCALE 1/1<br />
3RD ANGLE PROJECTION<br />

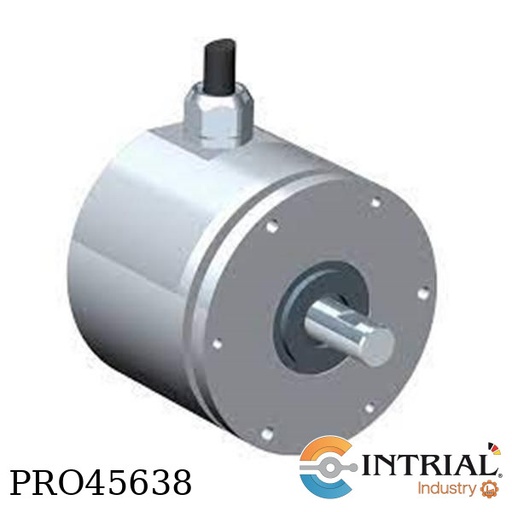

INCREMENTAL ENCODER<br />
Brand: LEINE LINDE<br />
Operating temperature 40 °C...+70 °C<br />
Ingress protection class [IEC 60529] IP67 (IP66 at shaft inlet)<br />
Shaft load (axial/radial) 50 N / 60 N<br />
Rotational speed max 6000 rpm<br />
Shaft material Stainless steel<br />
Cover material Aluminium (Anodized)<br />
Resolution 1024 ppr<br />
Power supply 930 Vdc<br />
Connection type Cable<br />
Connecting direction Radial<br />
Cable length 1.50 m<br />

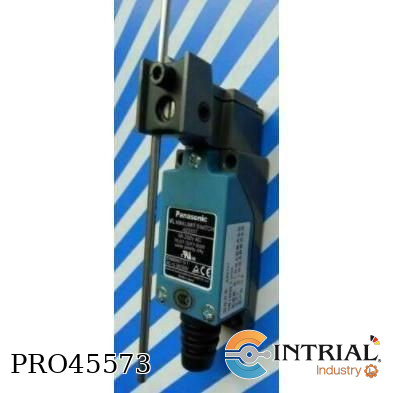

Mini interruptor de límite <br />
Model: AZ8107 <br />
Panasonic VL Mini interruptor de límite AZ8107 AZ-8107

<strong>SENSOR DE POSICION<br />
Model: MHC0250MT10A3A01<br />
Brand: TEMPOSONICS MTS SENSORS </strong><br />
SENSOR DE POSICION DE 4-20 mA.<br />
"The code S05 has been replaced by T10, it is the <br />
same sensor but the cable will be 1 meter long instead <br />
of 500 m, the end user can cut the cable if they need it <br />
to be shorter"

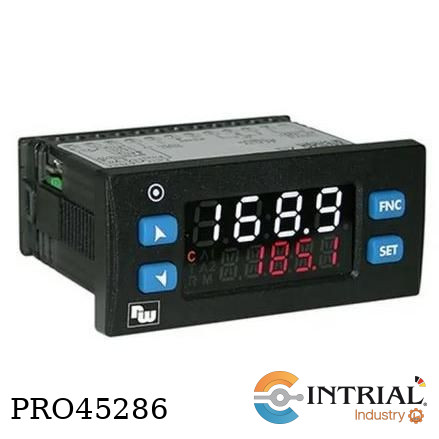

CONTROLADOR UNIVERSAL<br />
Marca: Pixsys<br />
1 entrada analógica <br />
2 relés 5 A  <br />
1 D.I /O – <br />
Alimentación 24.230 V AC / DC<br />

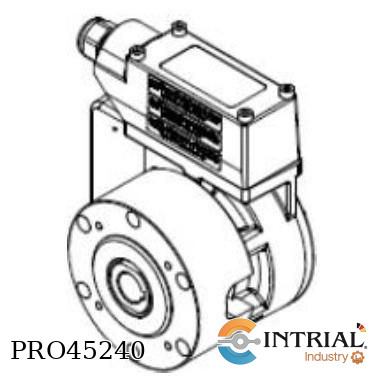

ENCODER AVTRON INCREMENTAL<br />
• 500 PPR 1 SALIDA 5/24V IN OUT<br />
• 20mm CENTER BOLT TERMINAL BOX W (V)-12-30VDC(W/)-<br />
• 1 EA AXIAL TIGHTENINGDISC WITH CHEESE HEAD SCREW M6X40 DIN9124EA TENSILOK SCREW M6X16(U/O)-<br />
• SHAFT 500(SPEC)-500IMP/UCPR<br />
• Part Number: 4896434

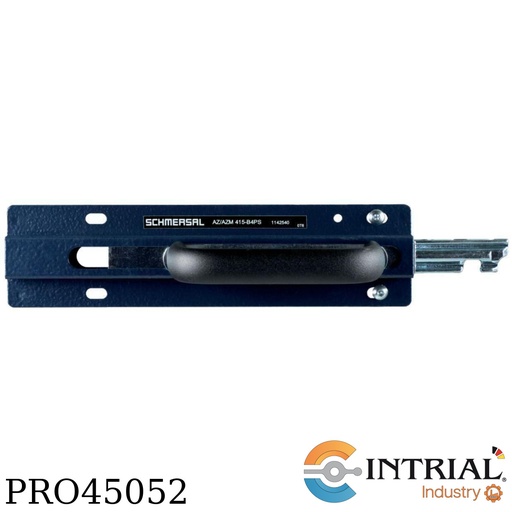

ACTUADOR<br />
Marca: SCHMERSAL<br />
Actuador, recto, con perno de bloqueo<br />
y pestillo de bola para puertas correderas<br />
Datos mecánicos <br />
Actuador recto <br />
Fuerza esquiladora 12.500 N <br />
Datos mecánicos <br />
Dimensiones <br />
Longitud del actuador 237 mm <br />
Anchura del actuador 60 mm <br />
Alta del actuador 69,5 mm

ENCODER INCREMENTAL KUBLER<br />
Brand: KUBLER<br />
[8.A02H]: Order code Hollow shaft<br />
[3]: Flange, with spring element, long<br />
[2]: Through hollow shaft, ø 38 mm [1.50“]<br />
[1]: Output circuit (with inverted signal) / power Supply, RS422 / 5 V DC<br />
[2]: type of connection, radial M23 connector, 12-pin<br />
[1024]:  Pulse rate, SinCos version only available with pulses ≥ 1024

ENCODER INCREMENTAL<br />
Brand: AUTONICS<br />
Shaft outer diameter: Ø8mm<br />
Max. response frequency: 300kHz<br />
Max. allowable revolution: 5000rpm<br />
Starting torque Max. 70gf.cm(max. 0.00686N.m)<br />
Resolution: 2000P/R<br />
Output pase: A, B, Z<br />
Control output: Totem pole<br />
Power Supply: 12-24VDC<br />
Connection type: Axial cable type<br />
Protection structure: IP50<br />
Environment_Ambient temperatura: -10 to 70℃, storage: -25 to 85℃<br />
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH

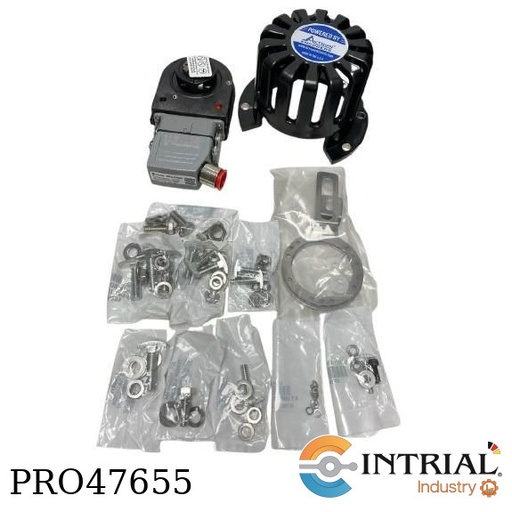

Avtron HS35M Encoders
Brand: AVTRON
Model: HS35MYX6CPU1MA00
DESCRIPTION:
HS35M Model
[Y]: Left Output PPR, 1024 PPR
[X]: Right Output PPR, No Right Output
[6]: Line Driver, 5-28v In/Out (7272)
[C]: Bore Size, 5/8 in. via insert
[P]: Connector Options, 10 Pin Mini-Epic Style with Plug
[U]: Mounting, Universal (Thru & End of Shaft)
[1]: Protection, Protective Basket Included
[M]: Anti-Rotational Tether, D and E Tether Kits
[A00]: Channels and Modifications, Standard, No Special Features,
All Channels A, A\, B, B\, Z, Z\

<strong>Avtron HS35M Encoders<br />
Brand: AVTRON<br />
Modelo: HS35MYX6FCU0UA00</strong><br />
DESCRIPTION:<br />
- HS35M Model<br />
- Left Output PPR (Y), 1024-PPR<br />
- Right Output PPR (X), No Right Output<br />
- Line Driver (6), 5-28v  In/Out (7272)<br />
- Bore Size (F), 1 in. (Native Bore)<br />
- Connector Options (C), 10 Pin MS Style with Plug, Avtron/BEI Pin Out<br />
- Mounting (U), Universal (Thru & End of Shaft)<br />
- Protection (0), No Protective Basket<br />
- Tether (U), All Tether Kits A-F<br />
- Channels and Modifications (A00), Standard, No Special Features, AII Channels A,A\,B

AVTRON M4 Heavy Duty Mill Magnetic Hollow Shaft Encoder<br />
DESCRIPTION:    OPTION:<br />
Rotor Bore Size (7): 2-3/8 inch Hollow Shaft<br />
Mounting     (S): Standard End-of-Shaft Mounting<br />
Line Driver    (3): 12-24V In/Out (Hi-Power Outputs)<br />
Left Output    1024:  PPR<br />
Right Output    (H): High Res.<br />
Base PPR    (51): Base PPR (used for 256/512/1024)<br />
Marker Pulse    (Z): Marker Pulse<br />
Connector Options (P): 10 Pin EPIC w/ Plug<br />
Modifications    (004): Insulated Conduit Adapter (P/N 431023) & 12" Threaded Road Torque Arm Mount (P/N B27239)

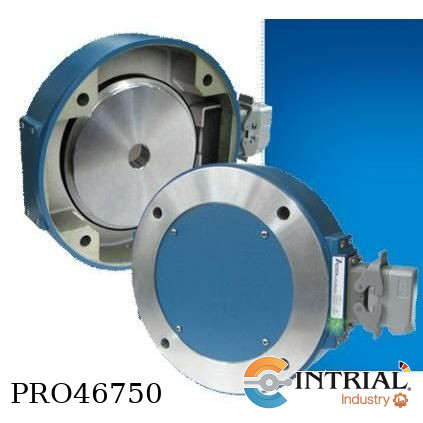

Avtron AV125 SMARTach Encoders<br />
Model: AV125DFT9YXXW000<br />
Brand: Avtron <br />
Specification:<br />
[AV125] Model<br />
[DF] Rotor Bore Size: 160mm Thru-Shaft Rotor<br />
[T] Cover Plates: Outboard Seal Plate and V-Ring Seal for Thru-Shaft<br />
[9] Left Output Line Driver: 5-24V In 5V Out (7272)<br />
[Y] Left Output PPR: 1024 PPR<br />
[X] No Rigth Output<br />
[X] No Rigth Output<br />
[W] Connector Options: 3 ft. Sealed Cable with Leads<br />
[000] Nome

INCREMENTAL ENCODER<br />
Brand: LEINE LINDE<br />
Model: XHI-801 (744757-01)<br />
Operating temperature -40 °C...+85 °C<br />
Ingress protection class [IEC 60529] IP67 <br />
(IP66 at shaft inlet)<br />
Vibration [IEC 60068-2-64] ≤ 20 g, 55-2000 Hz<br />
Shock [IEC 60068-2-27] ≤ 400 g, 3.5 ms<br />
Shaft load (axial/radial) 100 N / 300 N<br />
Rotational speed max 6000 rpm<br />
Shaft material Stainless steel with insulated hybrid bearings<br />
Cover material Aluminium (anodized)<br />
Resolution 1024 ppr<br />
Power supply 9-30 Vdc

PHOTOELECTRIC SENSOR CONVERGENT-REFLECTIVE<br />
Brand: Panasonic<br />
Connector Type: Connector<br />
Max Operating Temperature: 55 °C<br />
Max Supply Voltage (DC): 24 V<br />
Max Voltage Rating (DC): 24 V<br />
Min Operating Temperature: -10 °C<br />
Min Supply Voltage (DC): 5 V<br />
Output Configuration: NPN - Open Collector<br />
Output Current : 100 mA<br />
Response Time : 800 ns<br />
Sensing Distance: 8 mm<br />
Termination: Connector

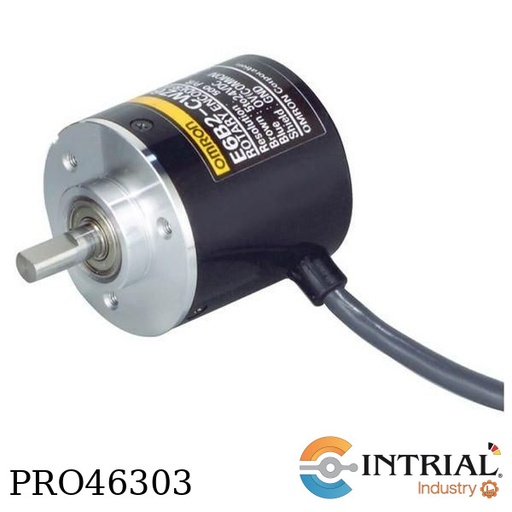

INCREMENTAL ENCODER<br />
Brand: OMRON<br />
Construction size: 40 mm<br />
Pulses per rotation: 1000<br />
Signal outputs: A, B, Z<br />
Shaft diameter: 6 mm<br />
Power supply voltaje: 5-24 V<br />
Output type: NPN<br />
Connection method: Cable<br />
Cable length: 0.5 m<br />

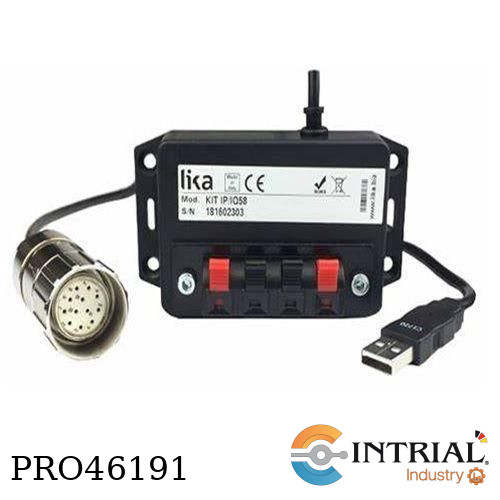

KIT PROGRAMMER ENCODER <br />
Marca : LIKA<br />
