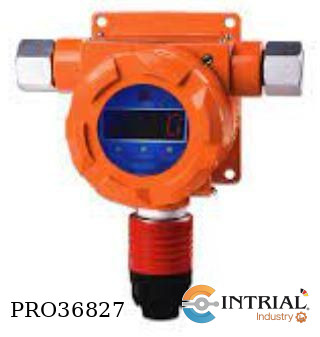

Fixed Gas Detector
Model : BS03-O2

Fixed Gas Detector
Model : TC100N-CH4

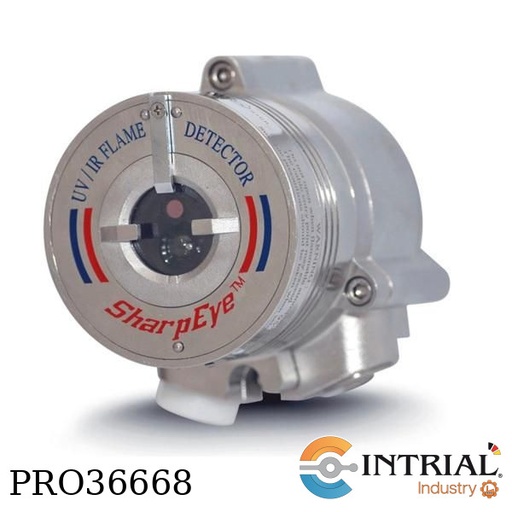

FLAME DETECTOR WITH UV (ULTRAVIOLET) AND IR(INFRARED)
Brand: SHARPEYE
sensor for hydrocarbon-based fuel and gas fires
hydroxyl and hydrogen fires
metal and inorganic fires.
3 Relays (Alarm, Fault and Auxiliary)
0-20mA stepped
compatible with RS-485 Modbus.
Built-in-test (BIT) optional.
Ex approved for Zone 1, ATEX, IECEx, FM and CSA Class I Div 1.

CARBON DIOXIDE TRANSMITTER
Brand: DWYER
Gas Concentration Range: 2000 ppm
Mounting Configuration: North American Wall Mount
Carbon Dioxide Output: 0 to 5 vdc, 0 to 10 vdc, 4 to 20 ma
Temperature Output: 20K ohm NTC Thermistor
Accuracy: CO2: ±40 PPM ±3% of reading; Temperature: ±1°C @ 25°C.
Temperature Dependence: ±8 PPM/°C at 1100 PPM.
Non-Linearity: 16 PPM.
Pressure Dependence: 0.13% of reading per mm of Hg.
Response Time: 2 min for 99% step change.
Duct Air Velocity Range: 0-4000 FPM (20.32 m/s).
Temperature Limits: 32 to 122°F (0 to 50°C).
Humidity Limits: 10 to 95% RH (non-condensing).

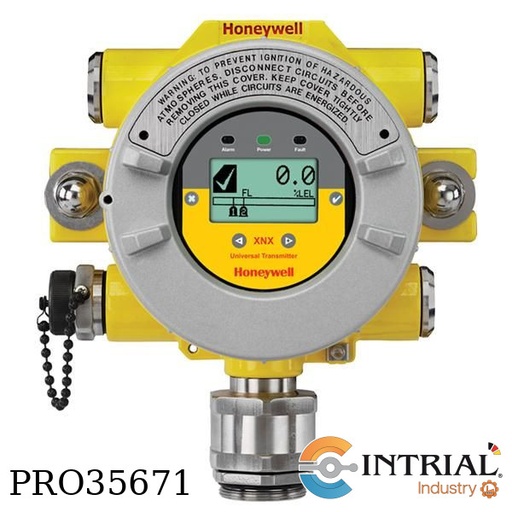

Modelo: XNX-UTAV-RHNNN

Honeywell Universal Gas
Universal gas transmitter
UL/CSA approval
3/4" NPT port
Sensor personality: millivolt
Local HART
Relay output option

MPD-UTCB1


Honeywell Gas Sensor, P/N
Modelo: MPD-UTCB1
Gas sensor
% LEL detection

Honeywell Gas Sensor, P/N
Modelo: MPD-UTCB1
* Gas sensor
* % LEL detection

Modelo: XNX-UTAV-RHNNN

Honeywell Universal Gas
Universal gas transmitter
UL/CSA approval
3/4" NPT port
Sensor personality: millivolt
Local HART
Relay output option

<ul><li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;">Detector Portable Multi-gas (6 gases)</span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Model : </span></span></span>E6000-CH4,CO,H2S,O2,NO2,CO2</li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Gases : </span></span></span>CH4,CO,H2S,O2,NO2,CO2</li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Modulo de Sensor Inteligente Intercambiable</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Intrinsecamente seguro</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Alarma visual, audible y vibrativa.</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Niveles de alarma y valor de calibración ajustables.</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Niveles STEL y TWA</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Reloj en tiempo real</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Funciones de auto diagnostico y auto corrección.</span></span></span></li>
</ul><br /><br />

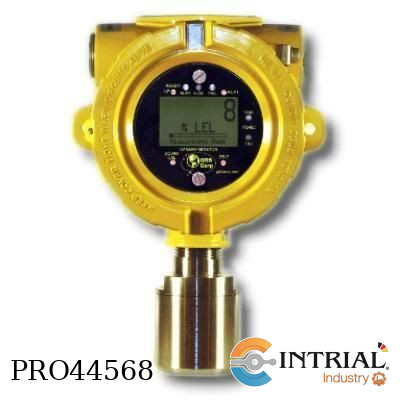

GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications<br />
- Power Input 10-30VDC at less than 0.75 watts<br />
- Display 64 x 128 pixel LCD with 30-minute trend, bargraph and<br />
- engineering units display.<br />
- Input Accepts microamp-level signals from local or remote<br />
- GDS Corp toxic or oxygen deficiency sensors<br />
- Accuracy +/- 5% of full scale range (typical)<br />
- Standard<br />
- Output<br />
- Standard 2-wire 4-20mA current sink output. Max loop R<br />
- is 600 ohms with nominal 24VDC power supply.<br />
- Temp Electronics -40°C to +60°C. See Echem Sensor Manual<br />
- for additional information<br />
- Housing Aluminum housing with epoxy paint standard; #316<br />
- stainless steel optional<br />
- Dimensions Width 5.4” (137 mm), Height 8” (203 mm), Depth 5”<br />
- (127 mm) Shipping weight 6.5 pounds (3 kg)<br />
- Approvals CSA Certified Div 1 & 2 Groups B, C, D. Suitable for<br />
- explosion-proof installations<br />
- CSA Certified Div 1 & 2 Groups A, B, C, D. Intrinsically<br />
- safe. IMPORTANT: Intrinsically Safe installations<br />
- require IS barrier #10-0263 (MTL 7787P+) or equivalent.<br />
- ATEX Certified EX II 2 G EEx d IIB + H2 T5<br />
- Warranty Two years on electronics and one year on sensors.<br />
//////////CODIGOS PARA ORDENAR///////<br />
- GM-EC: GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications<br />
- 3: Sensor Head (Local sensor head for reactive gases IS)<br />
- 20: Sensor Type (Ammonia)<br />
- 6:  Target Gas Range (0 - 100 ppm)

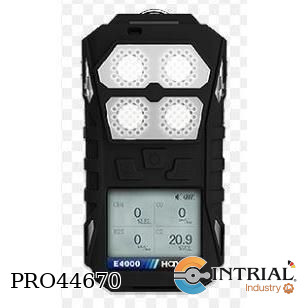

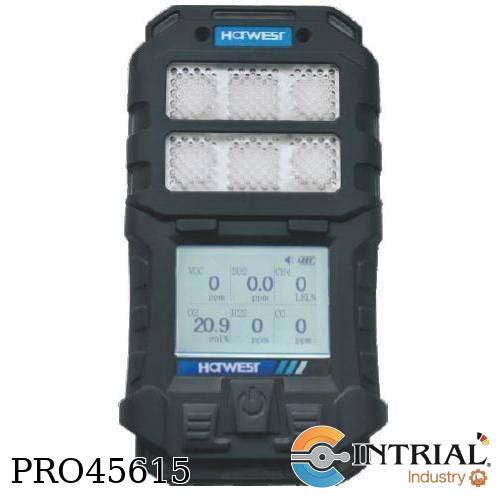

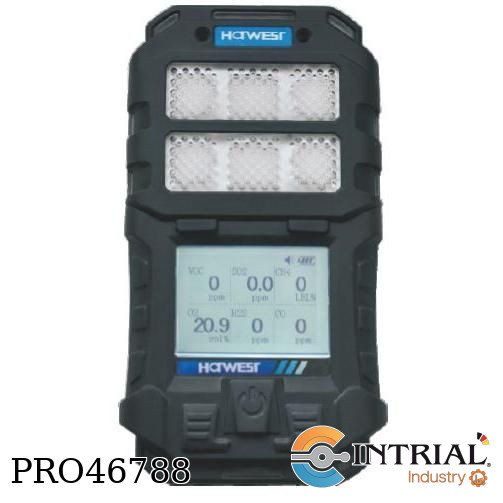

Portable Multi Gas Detector<br /><span lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Model : </span>
<ul><li><span lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">E4000-CH4-O2</span></li>
<li lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Modulo sensor intercambiable</li>
<li lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Niveles ajustables de Alarma y valores de calibraciòn</li>
<li lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Funcion de auto diagnostico y auto correción</li>
<li lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Intrinsicamente seguro</li>
<li lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Alarma de STEL y TWA para gases toxicos</li>
<li lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Reloj en tiempo real</li>
<li><span lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Alarmas visual y audible</span></li>
</ul>

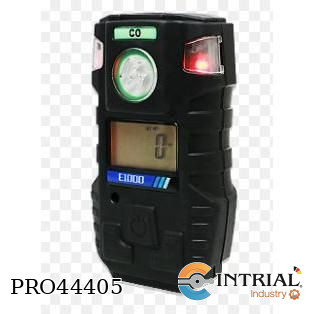

Single Gas Detector
Model : E1000-Fosfina
Marca Hanwei
Dislplay : LCD Screen
Audible : >80dB at 1m
Alarm method : Visual, audible, and vibrative signals
Battery : DC3, 7v 1800mAh, Lithium battery
Charging Time : 4 a 6 hrs
Protección : IP66
Exgrade : Ex Ib IIC T4
Weight : 190g
Dimensions ; 108mm, 61mm, 36mm

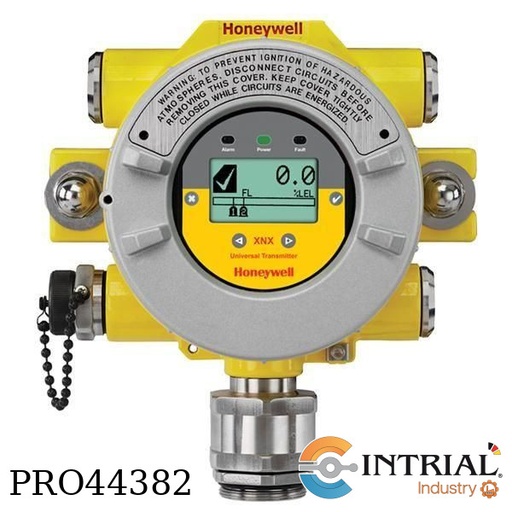

Modelo: XNX-UTSI-NNIV1
<ul><li>Honeywell Gas Transmitter</li>
<li>U : Aprovación UL/CSA</li>
<li>T : 3/4" NPT</li>
<li>S : Material Acero Inox</li>
<li>I : Interfaz para productos infrarrojos</li>
<li>N : Ninguna opcion instalada</li>
<li>N : Ninguna opcion instalada</li>
<li>IV1 : IR 0-100% LEL (o 0-5% vol.) Metano</li>
</ul>

<ul><li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;">Detector Portable Multi-gas (6 gases)</span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Model : </span></span></span>E6000-CH4-CO-O2-NH3-H2S</li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Gases : CH4-CO-O2-NH3-H2S</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Modulo de Sensor Inteligente Intercambiable</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Intrinsecamente seguro</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Alarma visual, audible y vibrativa.</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Niveles de alarma y valor de calibración ajustables.</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Niveles STEL y TWA</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Reloj en tiempo real</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Funciones de auto diagnostico y auto corrección.</span></span></span></li>
</ul><br /><br />


<div class="MsoNormal" style="line-height:normal;"><strong>GASMAX II Gas Monitor for Toxics, Combustible and VOCs<br />
Model: GMII-1-15-6-0-00-0-1-0<br />
Brand: Brand: GDS Corp Headquarters - USA</strong><br />
Technical Specification:<br />
- Power Input : 10-30VDC at < 4 watts (167 mA) with relay board.<br />
Max Inrush current < 5x steady state current for < 33 mSec<br />
- Display: 64 x128 pixel LCD with engineering units, bar graph and 30-minute trend<br />
- Channel One Input : Microamp-level input for local or remote GDS Corp toxic gas sensors / Optional 4-20mA input for remote sensor transmitters, GDS-IR, GDS-50 or other 4-20mA source<br />
- Accuracy +/- 5% of full scale (typical)<br />
Standard Output: Dual three-wire 4-20mA current source outputs with fault and overrange indication.<br />
Maximum loop resistance is 750 ohms with standard 24VDC supply<br />
- Temperature:  Electronics -40°C to +60°C. See Sensor Manual for additional details<br />
- Memory: On-board non-volatile memory retains all user settings<br />
- Housing:  Aluminum housing with epoxy paint standard; #316 stainless steel optional<br />
- Approvals:  CSA Certified Division 1 & 2 Groups B, C, D. Suitable for explosion-proof installations with flame arrestor<br />
//////////CODIGOS PARA ORDENAR///////<br />
[GMII] GASMAX II Gas Monitor for Toxics<br />
[1] Local sensor head<br />
[15] Sensor Type: Hydrogen Sulfide<br />
[6] Target Gas Range: 0 -100 ppm<br />
[0] No sensor head<br />
[00] No sensor<br />
[0] None<br />
[1] Output: Alarm Relay Board (3x 5A SPDT) and RS-485 Modbus RTU<br />
[0] Standar temperature range</div>

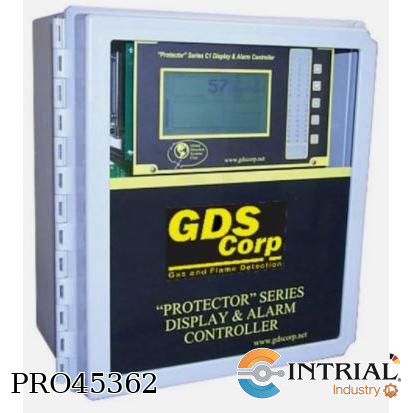

<strong>C1 Protector 8/16 Channel Controller <br />
Model: C1-N4-10-00-0-0-0-0-1-0-0-0-0-5<br />
Brand: GDS Corp Headquarters - USA</strong><br />
Technical Specification:<br />
- Power Input: 10-30VDC or 110/220 V 50/60Hz AC; 150W AC <br />
power supply included; 12 Watts MAX for electronics<br />
- Display: Backlit 240x128 pixel LCD shows trend, bargraph and<br />
engineering units; 52 discrete LEDs show channel status<br />
in real time<br />
- MODBUS I/O: MODBUS master RS-485 half or full duplex port<br />
capable of reading remote GASMAX sensors, other<br />
compatible slave devices or wireless<br />
MODBUS slave RS-485 half or full duplex port capable<br />
of being read by remote MODBUS master device<br />
-  Temp: -25°C to +65°C <br />
- Approvals: CSA C22.2 No. 1010.1 & 152 for combustibles & ISA <br />
S82.02; UL 1604 / C22.2 No 213 (Div 2 Groups A, B, <br />
C, D); EN55011 & EN61000 (CE Mark).<br /><br />
//////////CODIGOS PARA ORDENAR///////<br />
[C1/N4] - Nema 4x Enclosure Corrosion / Moisture Resistant<br />
[10] Input: 10-0158 8 Channel Analog Input Board<br />
[00] No input Board Selected (MODBUS or Wreless Input Only)<br />
[0] Outputs: No Aux Alarm Relay Board<br />
[0] No Analog 4-20 mA Output Boards<br />
[0] No Discrete Alarm Relay Boards                                                                                                                                                                                                   <br />
[0] No Digital Interface<br />
[1] Outputs: 1#1000-1892 100dB Piezo Audible Alarm<br />
[0] No Expansion Plate<br />
[0] No Nema 4X Expansion Enclosure<br />
[0] Acknowledge alarm on controller dispaly<br />
[0] No wireless radio<br />
[5] Red strobe (not rated)

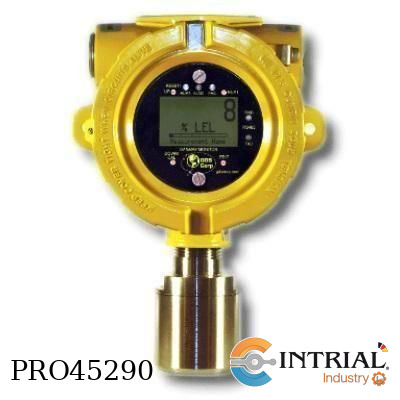

GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications<br />
- Power Input 10-30VDC at less than 0.75 watts<br />
- Display 64 x 128 pixel LCD with 30-minute trend, bargraph and<br />
- engineering units display.<br />
- Input Accepts microamp-level signals from local or remote<br />
- GDS Corp toxic or oxygen deficiency sensors<br />
- Accuracy +/- 5% of full scale range (typical)<br />
- Standard<br />
- Output<br />
- Standard 2-wire 4-20mA current sink output. Max loop R<br />
- is 600 ohms with nominal 24VDC power supply.<br />
- Temp Electronics -40°C to +60°C. See Echem Sensor Manual<br />
- for additional information<br />
- Housing Aluminum housing with epoxy paint standard; #316<br />
- stainless steel optional<br />
- Dimensions Width 5.4” (137 mm), Height 8” (203 mm), Depth 5”<br />
- (127 mm) Shipping weight 6.5 pounds (3 kg)<br />
- Approvals CSA Certified Div 1 & 2 Groups B, C, D. Suitable for<br />
- explosion-proof installations<br />
- CSA Certified Div 1 & 2 Groups A, B, C, D. Intrinsically<br />
- safe. IMPORTANT: Intrinsically Safe installations<br />
- require IS barrier #10-0263 (MTL 7787P+) or equivalent.<br />
- ATEX Certified EX II 2 G EEx d IIB + H2 T5<br />
- Warranty Two years on electronics and one year on sensors.<br />
//////////CODIGOS PARA ORDENAR///////<br />
- GM-EC:  GASMAX/EC Two-Wire Gas Monitor<br />
- 1: Sensor Head (Local sensor head (XP, IS)<br />
- 15: Sensor Type (H2S)<br />
- 6:  Target Gas Range (0 - 100 ppm)

Kit de montaje en ducto - inox. 316<br />
PN: 10114373<br />
BRAND: MSA

<ul><li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;">Detector Portable Multi-gas (6 gases)</span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Model : </span></span></span>E6000-CH4-CO-O2-H2S-SO2</li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Gases : CH4-CO-O2-H2S-SO2</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Modulo de Sensor Inteligente Intercambiable</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Intrinsecamente seguro</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Alarma visual, audible y vibrativa.</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Niveles de alarma y valor de calibración ajustables.</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Niveles STEL y TWA</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Reloj en tiempo real</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Funciones de auto diagnostico y auto corrección.</span></span></span></li>
</ul><br /><br />

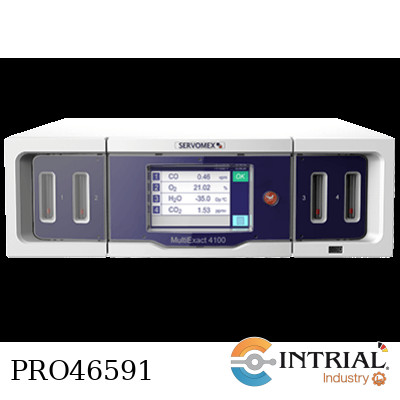

Sensor-Humeda-4100-Multiexact

Modelo:  MULTIEXACT(O2 Purity)    <br />
•    Supply    European Power Lead(220 VAC)<br />
•    Gas Module 1:    O2 Purity(2 Decimales)<br />
o    Technology Paramagnetic<br />
o    Range 0-100%<br />
o    Accuracy (intrinsic error) <0.01% O2<br />
o    Repeatability <0.01% O2<br />
o    Zero drift/week <0.01% O2<br />
o    T90 in secs <10@200ml/min<br />
o    <br />
•    Sample System Module 1:        Flow Driven Paramagnetic    <br />
•    Sample Flowmeter:            No Supply<br />
•    External Filter Module 1        Supply<br />
•    Flow Alarm:                 not required    <br />
•    Analogue Outputs:            mA Analogue Output    <br />
•    Valve Block:                not required    <br />
•    Mounting:                19" Rack Mount Ears Only
