Modelo : 096-3493-01 + KIT

Cabezal Controlador de Gases (para DOS  sensores)

ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP

Version: 3-4  WIRE CONFIGURATION

KIT :

096-3483 - NPT to NPT Wire Gland Assembly (1 unidad)

096-3559-01 : Explosion Proof Junction box (3 unidades)

069-0097-100) : Cable 100ft (30.5 Metros) (2 unidades)

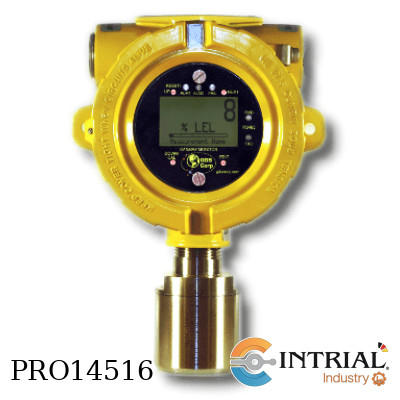

Modelo: GMII-0-00-0-2-51-6-0-0



• GASMAX II Gas Monitor Single / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations

• Power Input: 10-30VDC at < 4 watts with relay board. Additional power required for Extended Temp & GDS-IR option.

• Display: Backlit 64 x 128 pixel LCD with 30-minute trend, bargraph

• Electrochemical Sensor Input: Channel 1 accepts microamp-level signals from GDS Corp toxic & oxygen deficiency sensors or 4-20mA current source

• Bridge Type Sensor Input: Channel 2 provides adjustable excitation voltage for SmartIR, PID and catalytic bead or 4-20mA current source

• Standard Output: Standard dual 3-wire 4-20mA current source. Max loop R is 750 ohms with nominal 24VDC power supply

• Optional Outputs: Dual 1500CMV isolated 4-20mA current source. Max loop R is 650 ohms with nominal 24VDC; Single or dual MODBUS slave ports; 3x program-mable alarm relays with 5A capability

• Temp: Electronics -40°C to +60°C; See Echem Sensor Manual for sensor limits

• Housing : Aluminum housing with epoxy paint standard; Optional #316 stainless steel housing (specify [SS] in part number)

• Dimensions: Width 5.4” (137 mm), Height 8” (203 mm), Depth 5” (127 mm) Shipping weight 6.5 pounds (3 kg)

• Approvals: CSA Certified for Class I, Div 1, Grps B, C, D. Suitable for XP installations

• Warranty: 2 years on electronics and one year on sensors




//////////CODIGOS PARA ORDENAR///////



• GMII: GASMAX II Gas MonitorSingle / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations



o Chanel 1

• 0: Sensor Head (No sensor head)

• 00: Senor Type (No sensor)

• 0: Target Gas Range (None)



o Chanel 2

• 2: Sensor Head (Local sensor head with splash guard)

• 51: Senor Type (SmartIR 0 to 100% LEL Propane)

• 6: Target Gas Range (0 - 100% LEL)



o Output

• 0: standard 4 -20 ma output (3-wires)

• 0: standard temperature range

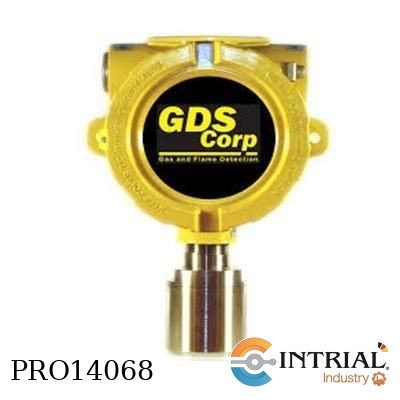

GAS DETECTOR FLUORIDE OF HYDROGEN
Brand: GDS Corp. GASMAX/EC
Two-Wire Gas Monitor
with Local sensor head for reactive gases (IS)
configured for Hydrogen Fluoride
with range 0-10.0
ppm with 4-20mA output

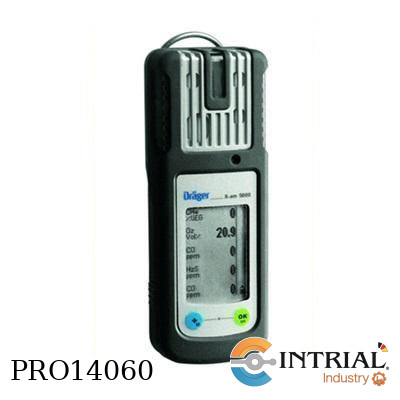

GAS DETECTOR FLUORIDE OF HYDROGEN
Brand: DRAGER
Range: 0 - 30 ppm
Draeger 4542153 X-am 5100 series 0 - 30 ppm impact resistant single gas detector with LCD display,
audible/visual/vibrating alarm and alkaline battery which detects hydrogen chloride/hydrogen fluoride at 0.1
resolution

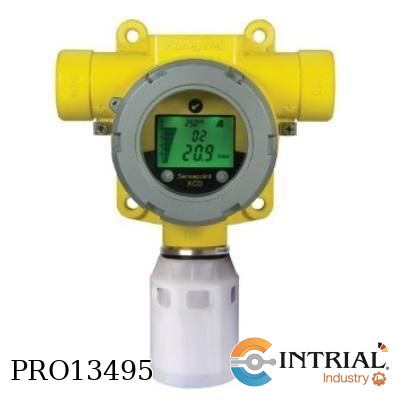

Modelo: SPXCDULNG1
• Honeywell Sensepoint XCD Gas Detector
• Certification: UL/CSA/In metro (+$104.00)
• Sensor Type: Hydrogen; 0-1,000ppm
• Enclosure Material: Epoxy painted aluminum alloy
• Conduit Entry: 3/4 inch NPT
• Communication: None

GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications
- Power Input 10-30VDC at less than 0.75 watts
- Display 64 x 128 pixel LCD with 30-minute trend, bargraph and
- engineering units display.
- Input Accepts microamp-level signals from local or remote
- GDS Corp toxic or oxygen deficiency sensors
- Accuracy +/- 5% of full scale range (typical)
- Standard
- Output
- Standard 2-wire 4-20mA current sink output. Max loop R
- is 600 ohms with nominal 24VDC power supply.
- Temp Electronics -40°C to +60°C. See Echem Sensor Manual
- for additional information
- Housing Aluminum housing with epoxy paint standard; #316
- stainless steel optional
- Dimensions Width 5.4” (137 mm), Height 8” (203 mm), Depth 5”
- (127 mm) Shipping weight 6.5 pounds (3 kg)
- Approvals CSA Certified Div 1 & 2 Groups B, C, D. Suitable for
- explosion-proof installations
- CSA Certified Div 1 & 2 Groups A, B, C, D. Intrinsically
- safe. IMPORTANT: Intrinsically Safe installations
- require IS barrier #10-0263 (MTL 7787P+) or equivalent.
- ATEX Certified EX II 2 G EEx d IIB + H2 T5
- Warranty Two years on electronics and one year on sensors.
//////////CODIGOS PARA ORDENAR///////
- GM-EC: GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications
- 3: Sensor Head (Local sensor head for reactive gases IS)
- 12: Sensor Type (chlorine)
- 5:  Target Gas Range (0 - 50 ppm)

GMII:         GASMAX II Gas MonitorSingle / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Location Chanel 1
0:    Sensor Head (No sensor head)
00:    Senor Type (No sensor)
0:      Target Gas Range (None)
 Chanel 2
2:    Sensor Head (Local sensor head with splash guard)
50:    Senor Type (SmartIR 0 to 100% LEL Methane)
6:          Target Gas Range (0 - 100% LEL)
 Output
0:    standard 4 -20 ma output (3-wires)
0:    standard temperature range

GASMAX II Gas Monitor Single / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations
Power Input:    10-30VDC at < 4 watts with relay board. Additional power required for Extended Temp & GDS-IR option.
Display:        Backlit 64 x 128 pixel LCD with 30-minute trend, bargraph
Electrochemical Sensor Input:    Channel 1 accepts microamp-level signals from GDS Corp toxic & oxygen deficiency sensors or 4-20mA current source
Bridge Type Sensor Input:        Channel 2 provides adjustable excitation voltage for SmartIR, PID and catalytic bead or 4-20mA current source
Standard Output:            Standard dual 3-wire 4-20mA current source. Max loop R is 750 ohms with nominal 24VDC power supply
Optional Outputs:        Dual 1500CMV isolated 4-20mA current source. Max loop R is 650 ohms with nominal 24VDC; Single or dual MODBUS slave ports; 3x program-mable alarm relays with 5A capability
Temp:        Electronics -40°C to +60°C; See Echem Sensor Manual for sensor limits
Housing :        Aluminum housing with epoxy paint standard; Optional #316 stainless steel housing (specify [SS] in part number)
Dimensions:        Width 5.4” (137 mm), Height 8” (203 mm), Depth 5” (127 mm) Shipping weight 6.5 pounds (3 kg)
Approvals:        CSA Certified for Class I, Div 1, Grps B, C, D. Suitable for XP installations
Warranty:        2 years on electronics and one year on sensors

Numero de parte:  40012041
Conjunto de Escudo contra clima
Marca : Scott

PLASTIC END CAP
For “MERIDIAN UNIVERSAL GAS DETECTOR”

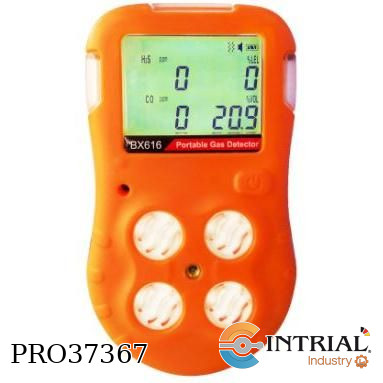

Multi Gas Detector
Model : EXPLO-4001
4 Gases (CH4-CO-H2S-O2)
* Metano (LEL)
* Monoxido (CO)
* Oxigeno (O2)
* Hidrogeno Sulfidico (H2S)
Talla pequeña y peso ligero
Operación simple con solo 1 botón
Niveles de alarma ajustables y valor de calibración de intervalo
Alarma STEL y TWA para gases tóxicos
Autoprotección para sensor de gas combustible contra alta concentración
Alerta de batería baja tensión
Autoprueba después del encendido
Función de autodiagnóstico y autocorrección.

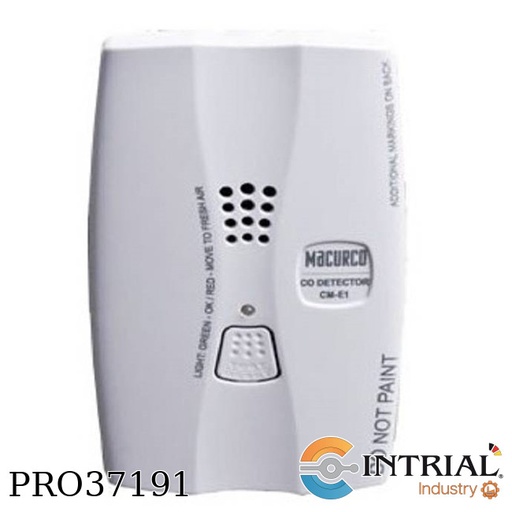

DETECTOR DE MONOXIDO DE CARBONO
Marca: MACURCO
Voltaje: 9-32 VDC
Corriente (normal / alarma): 15mA / 35mA @ 9-32V
Tamaño: 3-1/8 X 5-1/8 X 1-1/2 pulgada (7.94 x 13.02 x 3.81 cm)
Relevador de Alarma: SPST, 100mA, 40VDC
Relevador de Avería: SPST, 100mA, 40VDC
Calificación de Sonador/Bocina: 85 dBA a 10 Pies
Temperatura de funcionamiento. Rango: 40° F a 100° F (4.4 ° C a 37.8° C)

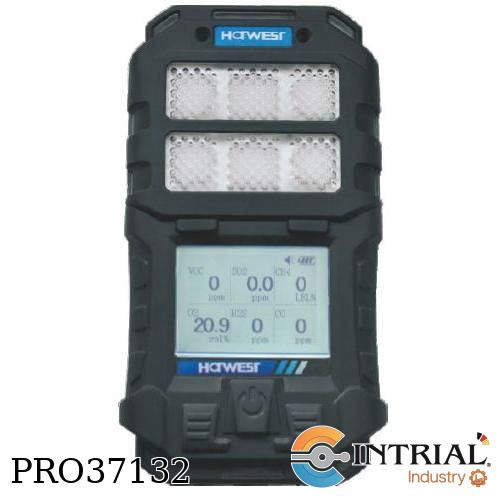

Detector Portable Multi-gas (6 gases)
Model : E6000-CH4-CO-CO2-O2-NH3-VOC
Gases : CH4-CO-CO2-O2-NH3-VOC
Modulo de Sensor Inteligente Intercambiable
Intrinsecamente seguro
Alarma visual, audible y vibrativa.
Niveles de alarma y valor de calibración ajustables.
Niveles STEL y TWA
Reloj en tiempo real
Funciones de auto diagnostico y auto corrección.

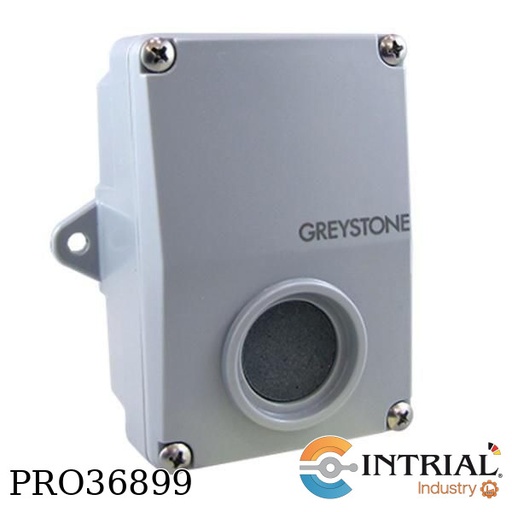

CARBON MONOXIDE DETECTOR (CO)
Brand: GREYSTONE
Electrochemical
Loop-powered
Enclosure: Duct Gray ABS
Relay (s): No Relay
Operating Conditions -20˚ to 50˚C (-4˚ to 122˚F), 15 to 95% RH
Sample Method Di usion
Stability <5% signal loss/year
Response Time <35 seconds for 90% step change
Measurement Range: Analog: 0-300 PPM Modbus: 0-500 PPM
Output Signal 4-20 mA loop-powered, 4-20 mA sourcing with relay option
Output Drive at Capability 550 ohms max. @ 24 Vac/Vdc

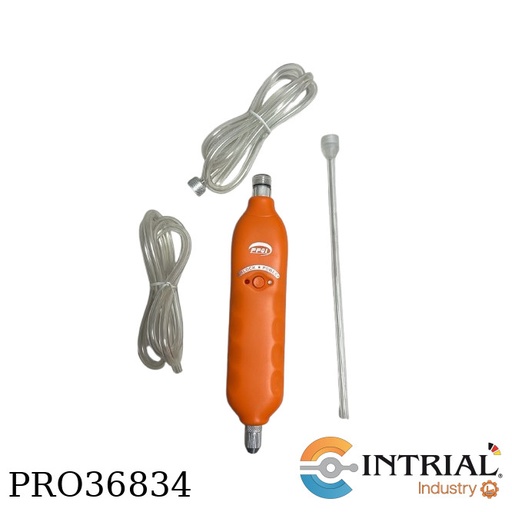

Sampling-PumpModel : Pump-E4000

Sampling-Pump
Model : PP01
Bomba, Sonda y Manguera
Para detector EXPLO-4001
Incluye : Maleta de transporte

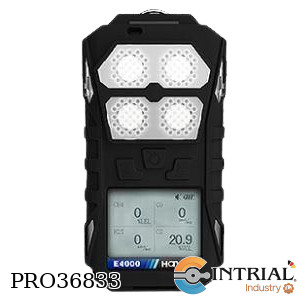

Portable Multi Gas Detector
Model : E4000-CH4-CO-H2S-O2
4 Gases (CH4-CO-H2S-O2)
* Metano (LEL)
* Monoxido (CO)
* Oxigeno (O2)
* Hidrogeno Sulfidico (H2S)
Modulo sensor intercambiable
Niveles ajustables de Alarma y valores de calibraciòn
Funcion de auto diagnostico y auto correción
Intrinsicamente seguro
Alarma de STEL y TWA para gases toxicos
Reloj en tiempo real
Alarmas visual y audible

Single Gas Detector
Model : E1000-Combustible
Marca Hanwei
Dislplay : LCD Screen
Audible : >80dB at 1m
Alarm method : Visual, audible, and vibrative signals
Battery : DC3, 7v 1800mAh, Lithium battery
Charging Time : 4 a 6 hrs
Protección : IP66
Exgrade : Ex Ib IIC T4
Weight : 190g
Dimensions ; 108mm, 61mm, 36mm

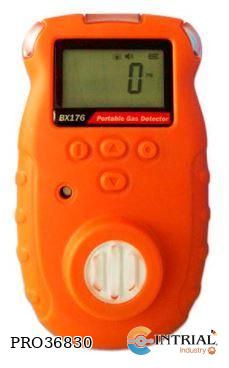

Single Gas Detector
Model : BX176-CombustibleDislplay : LCD Screen
Audible : >80dB at 1m
Alarm method : Visual, audible, and vibrative signals
Battery : DC3V, 1300mAh Lithium battery
Protección : IP66
Exgrade : Ex Ia IIC T3


Detector de Gas Portàtil
Model : BX171-H2S
Marca : HANWEI
Monogas de H2S
Rango de Mediciòn : 100 ppm
Duracion de la bateria : 8 horas
Vida util del sensor : 2 años

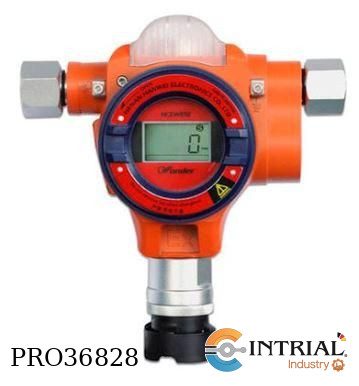

Fixed Gas Detector
Model : GT-WD2200
