Sistema de Despacho de Oxígeno
•    01 Tablero mural Rittal para instalación
•    01 PLC.
•    01 Panel Tactíl  Comfort, interfaz Ethernet y USB.
•    01 Fuente de alimentación 24Vdc@2.5A.
•    01 Adaptador USB industrial para montaje en tablero 0.5mts.
•    Llaves de alimentación y borneras de interconexión.
•    Accesorios de montaje.
•    Servicio de cableado de equipos suministrados en el gabinete.
•    Servicio de programación y puesta en marcha de sistema de registro con
•    función de exportación a excel.
•    Desarrollo de manual de operaciones de sistema desarrollado.
•    Entrega de copias de respaldo del sistema.
Premisas y Exclusiones
•    Se asume que el tablero será instalado en una zona protegida del ambiente exterior y ventilada con temperatura de ambiente máxima de 30°C.
•    No se incluye el servicio de montaje en campo del tablero o tendido de  líneas de alimentación ni instrumentos.
S/ 11,134.22 11134.22 PEN

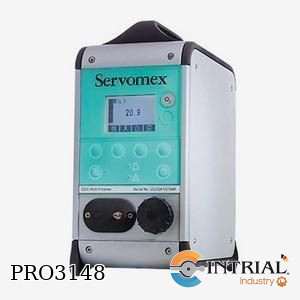

Analizador pureza de CO2 100%
Modelo: 05230A--CO2(0-100%)
•    SERVOFLEX analizador portátil de CO2 para aplicaciones Industriales
•    Con la siguiente configuración:
•    Celda de Medición 1: 0-100% CO2
•    Inlet Coupler 1/4” Barb
•    Exhaust / Vent Outlet Rear Panel
•    Manual en ingles
•    Sampling System (analyser with AFCD)
•    mA Output Single
S/ 41,540.60 41540.6 PEN
Analizador pureza de Oxigeno 100%
Modelo: 05230A1-Oxicusco-22-07-2014
SERVOFLEX Mini MP Portable Analyser
•    With the following configuration:
•    Supply Power: Rechargeable Battery Euro
•    Measurement 1:Oxygen, Standard Accuracy
•    sampling System:  AFCD
•    Inlet Coupler
•    1/4" Barb Exhaust / Vent Outlet
•    Rear Panel
•    User Manual English
•    Printer   : Not Supplied
•    Transport Case : Not Supplied
•    Notice: Certain versions of the 5100/5200 can contain batteries, in such cases the battery details are as follows: Lithium Ion batteries, Not restricted PI 967, Battery rating  two 3.8V 2.4Ah cells. Total 7.6V 18.2 Wh
S/ 27,173.72 27173.72 PEN
DETECTORES DE CO, 4-20 input, 4 to 20 mA, 24VDC, -25°C to 50°C
Modelo 2: 093-0438+093-0439+093-0440

• 7200 Plus including 4-20 input board, NEMA 4X enclosure, audible alarm

• System Specifications

• Inputs: Sensor input PCB’s are available for combustible

• sensor, and 4 to 20 mA. All versions may be

• configured for 4 to 20 mA inputs.

• Analog Outputs: 10 bit 4 to 20 mA output. Max load 800 ohms

• (Optional) with nominal 24VDC power supply

• Common Alarm Two 5 amp 30VDC or 250VAC resistive Form C

• Relays: (Standard)

• Discrete Alarm Six 5 amp 30VDC or 250VAC resistive Form C

• Relays: (Optional)

• Serial Port: Master & Slave RS-485 port equipped with

• (Optional) Tx/Rx LED’s. Protocol = MODBUS® RTU.

• 10-BaseT ethernet with MODBUS TCP protocol

• Display: 128 x 64 pixel graphic LCD with backlight displays

• bar graphs, 30-minute trends and engineering units.

• Six discrete LED’s indicate alarm status for three

• alarms per channel

• Ambient -25°C to 50°C

• Temperature Range:

• Humidity: 0 to 90% R.H. Non-Condensing

• Power Supply: 100 to 240VAC or 24VDC are standard primary

• power supplies. AC power source generates

• 24VDC at 8 watts auxilliary power.

• Housing NEMA 4X wallmount CSA certified for

• Options: Class I Div 2 Groups A,B,C,D

• NEMA 7 explosion-proof wallmount for

• Div 1 areas

• Approvals: UL 1604 C22.2 No 213 (Div 2 Groups A,B,C,D); EN55011 &, EN61000 (CE Mark). CSA File # = 219995 and may be seen at: www.CSA-International.org.



NOTA.- special option included on price and model

• 093-0438 RS-232 / RS-485 MODBUS RTU Addressable Interface

• 093-0439 100db Piezo Audible Alarm (added to NEMA 4X Enclosure)

• 093-0440 , Dual ligth stack(non hazardous- General purpose, amber/Red)
S/ 9,033.72 9033.72 PEN
DETECTORES DE CO, 0-250 PPM, 3/4 NPT , 4-20mA OUTPUT
MODELO 1: 6082-70-E-1-2-3-0-1-N-N

BASE 6000    CODIGO:       6082-70-E-1-2-3-0-1-N-N

82: GAS MODEL: CARBON MONOXIDE (CO) (50, 100, 250, 500, 1,000 PPM range only)

70: GAS RANGES:   0-250 PPM

E: SENSOR TECHNOLOGY:          E CHEM

1: ENCLOSURE/ENV SHIELDS:    ALUMINUM 3/4 NPT

2: APPROVAL:          cCSAus CLASS 1, DIV 2

3: ACCESSORIES:   CALIBRATION ADAPTER

0: OUTPUT:   STD 4-20mA OUTPUT

1: CONNECTION:     INTEGRAL

0: (FT)  - LENGTH OF CABLE:        NO ADDITIONAL CABLE REQUIRED

0: ALARM PANEL/FLOW PANEL:  NONE

N: ID TAGS(Y/N):      NO TAG SELECTED

N: TYPE (METAL OR PAPER)OR (N) NONE:      NO TAG SELECTED
S/ 6,494.12 6494.12 PEN

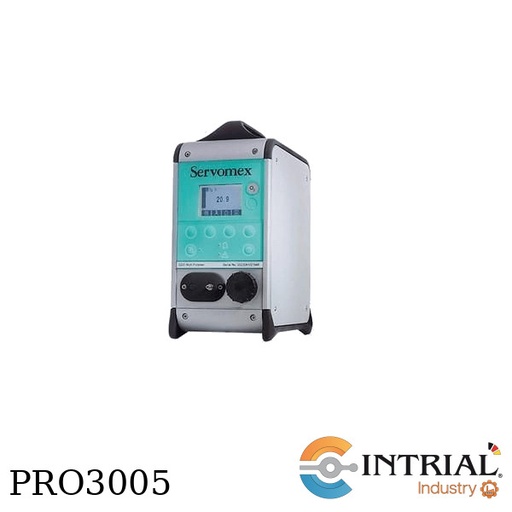

Analizador pureza de Oxigeno 100%
Modelo: 05230A1-OXICAX-13-06-2014
SERVOFLEX Mini MP Portable Analyser
•    With the following configuration:
•    Supply Power: Rechargeable Battery Euro
•    Measurement 1:Oxygen, Standard Accuracy
•    sampling System:  AFCD
•    Inlet Coupler
•    1/4" Barb Exhaust / Vent Outlet
•    Rear Panel
•    User Manual English
•    Printer   : Not Supplied
•    Transport Case : Not Supplied
•    Notice: Certain versions of the 5100/5200 can contain batteries, in such cases the battery details are as follows: Lithium Ion batteries, Not restricted PI 967, Battery rating  two 3.8V 2.4Ah cells. Total 7.6V 18.2 Wh
S/ 27,173.72 27173.72 PEN
Analizador pureza de Oxigeno 100%
Modelo: 05230A1-3H INDUSTRIALES-06-06-2014
SERVOFLEX Mini MP Portable Analyser
•    With the following configuration:
•    Supply Power: Rechargeable Battery Euro
•    Measurement 1:Oxygen, Standard Accuracy
•    sampling System:  AFCD
•    Inlet Coupler
•    1/4" Barb Exhaust / Vent Outlet
•    Rear Panel
•    User Manual English
•    Printer   : Not Supplied
•    Transport Case : Not Supplied
•    Notice: Certain versions of the 5100/5200 can contain batteries, in such cases the battery details are as follows: Lithium Ion batteries, Not restricted PI 967, Battery rating  two 3.8V 2.4Ah cells. Total 7.6V 18.2 Wh
S/ 27,173.72 27173.72 PEN
Analizador pureza de Oxigeno 100%, SERVOFLEX
Modelo: 05230A1-Linde-24-04-2014
SERVOFLEX Mini MP Portable Analyser
•    With the following configuration:
•    Supply Power: Rechargeable Battery Euro
•    Measurement 1:Oxygen, Standard Accuracy
•    sampling System:  AFCD
•    Inlet Coupler
•    1/4" Barb Exhaust / Vent Outlet
•    Rear Panel
•    User Manual English
•    Printer   : Not Supplied
•    Transport Case : Not Supplied
•    Notice: Certain versions of the 5100/5200 can contain batteries, in such cases the battery details are as follows: Lithium Ion batteries, Not restricted PI 967, Battery rating  two 3.8V 2.4Ah cells. Total 7.6V 18.2 Wh
S/ 27,173.72 27173.72 PEN
Biolyzer-ChemicalFilter(0003-3400200)
Biolyzer-Chemical Filter
• 3 chem. Filter
S/ 1,052.12 1052.1200000000001 PEN
Biolyzer-Filterset(0001-3400200)
3 fine filter, each 1 filter aerosol-, ambient-, chem. filter, 2 cabinet housing filter)
-Brand : AFRISO
S/ 1,142.82 1142.82 PEN
096-1960-0025 (Sensor de Oxigeno 0 a 25%)
096-1960-0025 (Sensor de Oxigeno 0 a 25%)

Brand: Scott Health & Safety

Replacement Sensors

Oxygen (O2) - Model 80

[0 a 25% STANDARD RANGE]



S/ 1,596.32 1596.32 PEN

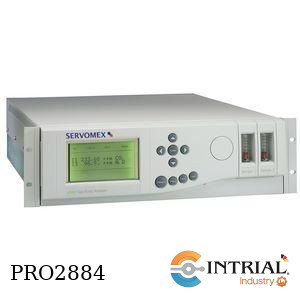

Gas Purity Analyser (Mod) ,With the following configuration:,Voltage: EUR 170-264V 50/60Hz,
SERVOPRO 4100 Gas Purity Analyser (Mod) ,With the following configuration:,Voltage: EUR 170-264V 50/60Hz,Module 1: 0-50/500vpm CO,Sample System Module 1: Flow Driven,Module 3: 0-5/100vpm CO2,Sample System Module 3: Flow Driven,Chassis Type: Long Chassis,Left Flowmeter: 2500ml/min Fitted to Module 1,Right Flowmeter: 2500ml/min Fitted to Module 3,Internal Sample Filter: Not Fitted,Autocalibration: Not Fitted,Mounting 19": Rack Mount Ears Only
S/ 86,709.20 86709.2 PEN
HYDROGEN CYANIDE (HCN) 0-100 PPM, CLASS 1, DIV 2
• 64  GAS MODEL: HYDROGEN CYANIDE (HCN) STD RH (25, 100 PPM range only)
55  GAS RANGES: 0-100 PPM
E  SENSOR TECHNOLOGY: E CHEM
5  ENCLOSURE/ENV SHIELDS:ALUMINUM 3/4 NPT (CONDENSING HUMIDITY SENSOR HEAD)
2  APPROVAL: cCSAus CLASS 1, DIV 2
2  ACCESSORIES: RAIN SHIELD
2  OUTPUT: MODBUS/RELAYS (3)
1  CONNECTION: INTEGRAL
0  (FT)  - LENGTH OF CABLE: NO ADDITIONAL CABLE REQUIRED
0  ALARM PANEL/FLOW PANEL: NONE
N  ID TAGS(Y/N):NO TAG SELECTED
 N  TYPE (METAL OR PAPER)OR (N) NONE:NO TAG SELECTED
S/ 7,981.60 7981.6 PEN
Alquiler Analizador Oxigeno 5200
Codigo: Alquiler-05230A1(SERVOFLEX Mini MP Portable Analyser)
  SERVOFLEX Mini MP Portable Analyser
• Brand: Servomex
• Supply Power:   European Main
• Measurement 1: Oxygen, Standard Accuracy
S/ 181.40 181.4 PEN
SERVOFLEX Mini Spares
Codigo: S5200KIT1
  SERVOFLEX Mini Spares
• Brand: Servomex
• 5x 2377-3608 / Filter Elements
• 1x 2323-7029 / O-Ring Viton A 0221-16 BS4518
S/ 616.76 616.76 PEN
Analizador pureza de Oxigeno 100%
Codigo: 05230A1-Aris Industrial-20-02-2014
  SERVOFLEX Mini MP Portable Analyser
• Brand: Servomex
• Supply Power:   European Main
• Measurement 1: Oxygen, Standard Accuracy
• Sampling System: AFCD
• mA Output: Single
• Inlet Coupler: 1/4" Barb
• Exhaust / Vent Outlet: Rear Panel
• User Manual English
• Printer: Not Supplied
• Transport: Case Not Supplied
• NOTA.- No included: Lithium Ion batteries, Not restricted PI 967 • Battery rating  two 3.8V 2.4Ah cells. Total 7.6V 18.2 Wh
S/ 26,810.92 26810.920000000002 PEN
Regulador Gas Calibración
VF100-C10-ST
•    Regulators for Non -Refillable cylinders
•    Adjustable flow rates : 0.75, 1.0, 2.0, 2.5, 3.0, 4.0, 5.0 l/min
•    Attachable cylinders: 34DA, 60DA, 103DS, 112DA
•    Valve: C10
•    Material. Stainless steel
S/ 1,995.40 1995.4 PEN
1800 OXYGEN ANALYSER, SAFE AREA
1800 OXYGEN ANALYSER, SAFE AREA
•    Brand: SERVOMEX
•    With the following configuration:
•    Sampling Options: Viton+Flow Alarm+AFCD+BPR
•    Display Type: 3.5 Digit
•    Sample Inlet: Standard 1/4" NPT(F)
•    Conduit Entry: Options 3/4"NPT
•    Mounting Wall
•    Quickstart Manual: English
•    Mapics F&O Code Ref: 01800B1GEN, 07,00,1,0,0,1,0,1,0
S/ 25,345.21 25345.21 PEN
Sensor Infrarrojo de Metano)(0 - 5% CH4)
Sensor Infrarojo Metano093-0500 (Infrared Sensor Methane)Brand: Scott0015217951Range: 0 - 5% CH4


S/ 2,307.41 2307.41 PEN
Tubos de conexion (068-0005)
Tubos de conexion:Teflon Tubing
S/ 725.60 725.6 PEN
