•    01 Tablero mural Rittal para instalación<br />
•    01 PLC.<br />
•    01 Panel Tactíl  Comfort, interfaz Ethernet y USB.<br />
•    01 Fuente de alimentación 24Vdc@2.5A.<br />
•    01 Adaptador USB industrial para montaje en tablero 0.5mts.<br />
•    Llaves de alimentación y borneras de interconexión.<br />
•    Accesorios de montaje.<br />
•    Servicio de cableado de equipos suministrados en el gabinete.<br />
•    Servicio de programación y puesta en marcha de sistema de registro con<br />
•    función de exportación a excel.<br />
•    Desarrollo de manual de operaciones de sistema desarrollado.<br />
•    Entrega de copias de respaldo del sistema.<br />
Premisas y Exclusiones<br />
•    Se asume que el tablero será instalado en una zona protegida del ambiente exterior y ventilada con temperatura de ambiente máxima de 30°C.<br />
•    No se incluye el servicio de montaje en campo del tablero o tendido de  líneas de alimentación ni instrumentos.

Modelo: 05230A--CO2(0-100%)<br />
•    SERVOFLEX analizador portátil de CO2 para aplicaciones Industriales<br />
•    Con la siguiente configuración:<br />
•    Alimentación 220VAC, Incluye baterías<br />
•    Celda de Medición 1: 0-100% CO2<br />
•    Accuracy in stalbe enviroment: 1%<br />
•    Inlet Coupler 1/4” Barb<br />
•    Exhaust / Vent Outlet Rear Panel<br />
•    Manual en ingles<br />
•    (Flow Meter (analyser with AFCD)<br />
•     *******Batería de Litio incluido(Not restricted PI 967)

Modelo: 05230A1-Oxicusco-22-07-2014<br /><br />
SERVOFLEX Mini MP Portable Analyser                                                    <br />
•    With the following configuration:<br />
•    Supply Power: Rechargeable Battery Euro<br />
•    Measurement 1:Oxygen, Standard Accuracy<br />
•    sampling System:  AFCD<br />
•    Inlet Coupler<br />
•    1/4" Barb Exhaust / Vent Outlet<br />
•    Rear Panel<br />
•    User Manual English<br />
•    Printer   : Not Supplied                                     <br />
•    Transport Case : Not Supplied<br />
•    Notice: Certain versions of the 5100/5200 can contain batteries, in such cases the battery details are as follows: Lithium Ion batteries, Not restricted PI 967, Battery rating  two 3.8V 2.4Ah cells. Total 7.6V 18.2 Wh

<div>Modelo 2: 093-0438+093-0439+093-0440</div>

<div>•<span> </span>7200 Plus including 4-20 input board, NEMA 4X enclosure, audible alarm </div>

<div>•<span> </span>System Specifications</div>

<div>•<span> </span>Inputs: Sensor input PCB’s are available for combustible</div>

<div>•<span> </span>sensor, and 4 to 20 mA. All versions may be</div>

<div>•<span> </span>configured for 4 to 20 mA inputs.</div>

<div>•<span> </span>Analog Outputs: 10 bit 4 to 20 mA output. Max load 800 ohms</div>

<div>•<span> </span>(Optional) with nominal 24VDC power supply</div>

<div>•<span> </span>Common Alarm Two 5 amp 30VDC or 250VAC resistive Form C</div>

<div>•<span> </span>Relays: (Standard)</div>

<div>•<span> </span>Discrete Alarm Six 5 amp 30VDC or 250VAC resistive Form C</div>

<div>•<span> </span>Relays: (Optional)</div>

<div>•<span> </span>Serial Port: Master & Slave RS-485 port equipped with</div>

<div>•<span> </span>(Optional) Tx/Rx LED’s. Protocol = MODBUS® RTU.</div>

<div>•<span> </span>10-BaseT ethernet with MODBUS TCP protocol</div>

<div>•<span> </span>Display: 128 x 64 pixel graphic LCD with backlight displays</div>

<div>•<span> </span>bar graphs, 30-minute trends and engineering units.</div>

<div>•<span> </span>Six discrete LED’s indicate alarm status for three</div>

<div>•<span> </span>alarms per channel</div>

<div>•<span> </span>Ambient -25°C to 50°C</div>

<div>•<span> </span>Temperature Range:</div>

<div>•<span> </span>Humidity: 0 to 90% R.H. Non-Condensing</div>

<div>•<span> </span>Power Supply: 100 to 240VAC or 24VDC are standard primary</div>

<div>•<span> </span>power supplies. AC power source generates</div>

<div>•<span> </span>24VDC at 8 watts auxilliary power.</div>

<div>•<span> </span>Housing NEMA 4X wallmount CSA certified for</div>

<div>•<span> </span>Options: Class I Div 2 Groups A,B,C,D</div>

<div>•<span> </span>NEMA 7 explosion-proof wallmount for</div>

<div>•<span> </span>Div 1 areas</div>

<div>•<span> </span>Approvals: UL 1604 C22.2 No 213 (Div 2 Groups A,B,C,D); EN55011 &, EN61000 (CE Mark). CSA File # = 219995 and may be seen at: www.CSA-International.org.</div>

<div></div>

<div>NOTA.- special option included on price and model</div>

<div>•<span> </span>093-0438 RS-232 / RS-485 MODBUS RTU Addressable Interface </div>

<div>•<span> </span>093-0439 100db Piezo Audible Alarm (added to NEMA 4X Enclosure)</div>

<div>•<span> </span>093-0440 , Dual ligth stack(non hazardous- General purpose, amber/Red)</div>

<div>MODELO 1: 6082-70-E-1-2-3-0-1-N-N</div>

<div>BASE 6000    CODIGO:       6082-70-E-1-2-3-0-1-N-N</div>

<div>82: GAS MODEL: CARBON MONOXIDE (CO) (50, 100, 250, 500, 1,000 PPM range only)                             </div>

<div>70: GAS RANGES:   0-250 PPM                             </div>

<div>E: SENSOR TECHNOLOGY:          E CHEM                                </div>

<div>1: ENCLOSURE/ENV SHIELDS:    ALUMINUM 3/4 NPT                        </div>

<div>2: APPROVAL:          cCSAus CLASS 1, DIV 2                              </div>

<div>3: ACCESSORIES:   CALIBRATION ADAPTER                           </div>

<div>0: OUTPUT:   STD 4-20mA OUTPUT                                 </div>

<div>1: CONNECTION:     INTEGRAL                            </div>

<div>0: (FT)  - LENGTH OF CABLE:        NO ADDITIONAL CABLE REQUIRED       </div>

<div>0: ALARM PANEL/FLOW PANEL:  NONE                        </div>

<div>N: ID TAGS(Y/N):      NO TAG SELECTED                                   </div>

<div>N: TYPE (METAL OR PAPER)OR (N) NONE:      NO TAG SELECTED</div>

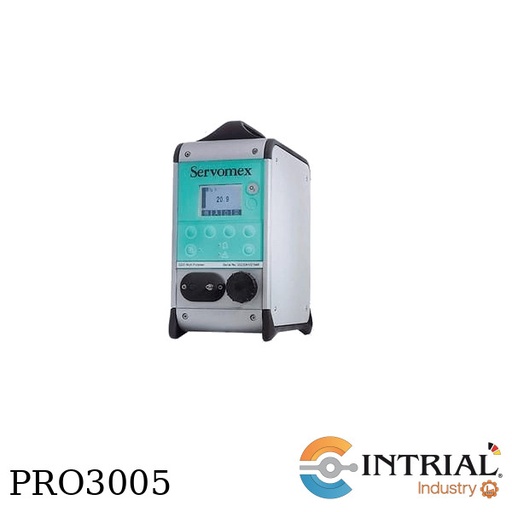

Modelo: 05230A1-OXICAX-13-06-2014<br /><br />
SERVOFLEX Mini MP Portable Analyser                                                    <br />
•    With the following configuration:<br />
•    Supply Power: Rechargeable Battery Euro<br />
•    Measurement 1:Oxygen, Standard Accuracy<br />
•    sampling System:  AFCD<br />
•    Inlet Coupler<br />
•    1/4" Barb Exhaust / Vent Outlet<br />
•    Rear Panel<br />
•    User Manual English<br />
•    Printer   : Not Supplied                                     <br />
•    Transport Case : Not Supplied<br />
•    Notice: Certain versions of the 5100/5200 can contain batteries, in such cases the battery details are as follows: Lithium Ion batteries, Not restricted PI 967, Battery rating  two 3.8V 2.4Ah cells. Total 7.6V 18.2 Wh

Modelo: 05230A1-3H INDUSTRIALES-06-06-2014<br /><br />
SERVOFLEX Mini MP Portable Analyser                                                    <br />
•    With the following configuration:<br />
•    Supply Power: Rechargeable Battery Euro<br />
•    Measurement 1:Oxygen, Standard Accuracy<br />
•    sampling System:  AFCD<br />
•    Inlet Coupler<br />
•    1/4" Barb Exhaust / Vent Outlet<br />
•    Rear Panel<br />
•    User Manual English<br />
•    Printer   : Not Supplied                                     <br />
•    Transport Case : Not Supplied<br />
•    Notice: Certain versions of the 5100/5200 can contain batteries, in such cases the battery details are as follows: Lithium Ion batteries, Not restricted PI 967, Battery rating  two 3.8V 2.4Ah cells. Total 7.6V 18.2 Wh

Modelo: 05230A1-Linde-24-04-2014<br /><br />
SERVOFLEX Mini MP Portable Analyser                                                    <br />
•    With the following configuration:<br />
•    Supply Power: Rechargeable Battery Euro<br />
•    Measurement 1:Oxygen, Standard Accuracy<br />
•    sampling System:  AFCD<br />
•    Inlet Coupler<br />
•    1/4" Barb Exhaust / Vent Outlet<br />
•    Rear Panel<br />
•    User Manual English<br />
•    Printer   : Not Supplied                                     <br />
•    Transport Case : Not Supplied<br />
•    Notice: Certain versions of the 5100/5200 can contain batteries, in such cases the battery details are as follows: Lithium Ion batteries, Not restricted PI 967, Battery rating  two 3.8V 2.4Ah cells. Total 7.6V 18.2 Wh

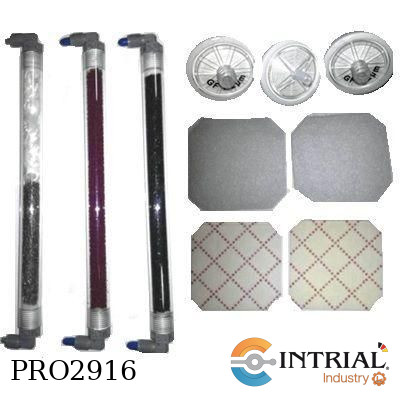

Biolyzer-Chemical Filter<br />
• 3 chem. Filter

3 fine filter, each 1 filter aerosol-, ambient-, chem. filter, 2 cabinet housing filter)<br />
-Brand : AFRISO

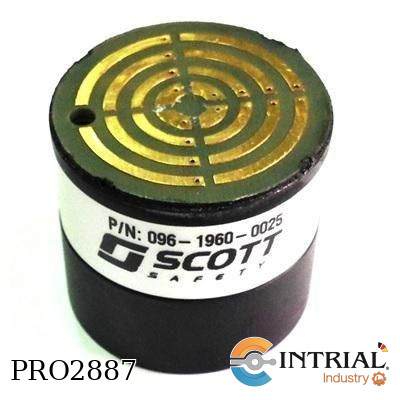

<div>096-1960-0025 (Sensor de Oxigeno 0 a 25%)</div>

<div>Brand: Scott Health & Safety</div>

<div>Replacement Sensors</div>

<div>Oxygen (O2) - Model 80</div>

<div>[0 a 25% STANDARD RANGE]</div>

<div>
<div class="gtx-trans-icon"></div>
</div>

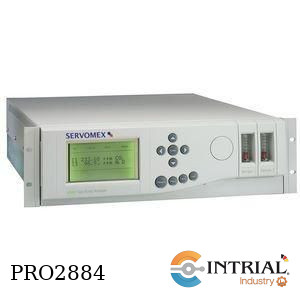

SERVOPRO 4100 Gas Purity Analyser (Mod) ,With the following configuration:,Voltage: EUR 170-264V 50/60Hz,Module 1: 0-50/500vpm CO,Sample System Module 1: Flow Driven,Module 3: 0-5/100vpm CO2,Sample System Module 3: Flow Driven,Chassis Type: Long Chassis,Left Flowmeter: 2500ml/min Fitted to Module 1,Right Flowmeter: 2500ml/min Fitted to Module 3,Internal Sample Filter: Not Fitted,Autocalibration: Not Fitted,Mounting 19": Rack Mount Ears Only

• 64  GAS MODEL: HYDROGEN CYANIDE (HCN) STD RH (25, 100 PPM range only)<br />
55  GAS RANGES: 0-100 PPM<br />
E  SENSOR TECHNOLOGY: E CHEM<br />
5  ENCLOSURE/ENV SHIELDS:ALUMINUM 3/4 NPT (CONDENSING HUMIDITY SENSOR HEAD)<br />
2  APPROVAL: cCSAus CLASS 1, DIV 2<br />
2  ACCESSORIES: RAIN SHIELD<br />
2  OUTPUT: MODBUS/RELAYS (3)<br />
1  CONNECTION: INTEGRAL<br />
0  (FT)  - LENGTH OF CABLE: NO ADDITIONAL CABLE REQUIRED<br />
0  ALARM PANEL/FLOW PANEL: NONE<br />
N  ID TAGS(Y/N):NO TAG SELECTED<br />
 N  TYPE (METAL OR PAPER)OR (N) NONE:NO TAG SELECTED

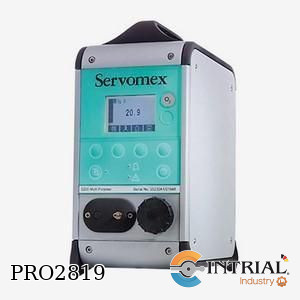

Codigo: Alquiler-05230A1(SERVOFLEX Mini MP Portable Analyser)<br />
  SERVOFLEX Mini MP Portable Analyser                                                    <br />
• Brand: Servomex<br />
• Supply Power:   European Main<br />
• Measurement 1: Oxygen, Standard Accuracy

Codigo: S5200KIT1       <br />
  SERVOFLEX Mini Spares                                                                               <br />
• Brand: Servomex<br />
• 5x 2377-3608 / Filter Elements<br />
• 1x 2323-7029 / O-Ring Viton A 0221-16 BS4518

Codigo: 05230A1-Aris Industrial-20-02-2014<br />
  SERVOFLEX Mini MP Portable Analyser                                                    <br />
• Brand: Servomex<br />
• Supply Power:   European Main<br />
• Measurement 1: Oxygen, Standard Accuracy<br />
• Sampling System: AFCD<br />
• mA Output: Single<br />
• Inlet Coupler: 1/4" Barb<br />
• Exhaust / Vent Outlet: Rear Panel<br />
• User Manual English<br />
• Printer: Not Supplied<br />
• Transport: Case Not Supplied<br />
• NOTA.- No included: Lithium Ion batteries, Not restricted PI 967 • Battery rating  two 3.8V 2.4Ah cells. Total 7.6V 18.2 Wh

VF100-C10-ST<br />
•    Regulators for Non -Refillable cylinders<br />
•    Adjustable flow rates : 0.75, 1.0, 2.0, 2.5, 3.0, 4.0, 5.0 l/min<br />
•    Attachable cylinders: 34DA, 60DA, 103DS, 112DA<br />
•    Valve: C10<br />
•    Material. Stainless steel

1800 OXYGEN ANALYSER, SAFE AREA<br />
•    Brand: SERVOMEX<br />
•    With the following configuration:<br />
•    Sampling Options: Viton+Flow Alarm+AFCD+BPR<br />
•    Display Type: 3.5 Digit<br />
•    Sample Inlet: Standard 1/4" NPT(F)<br />
•    Conduit Entry: Options 3/4"NPT<br />
•    Mounting Wall<br />
•    Quickstart Manual: English<br />
•    Mapics F&O Code Ref: 01800B1GEN, 07,00,1,0,0,1,0,1,0

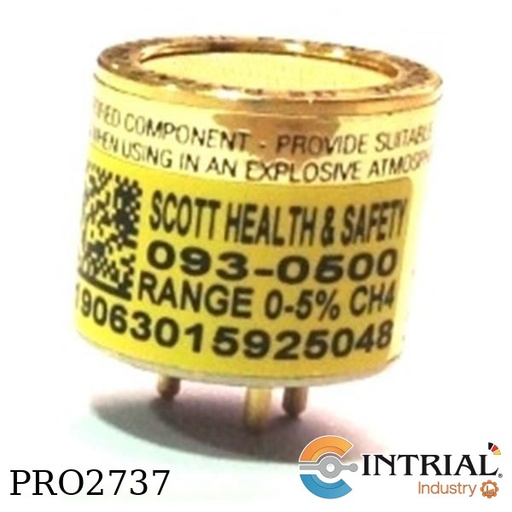

<span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Sensor Infrarojo Metano</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">093-0500 (Infrared Sensor Methane)</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Brand: Scott</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">0015217951</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Range: 0 - 5% CH4</span>
<div>
<div class="gtx-trans-icon"></div>
</div>

Tubos de conexion:Teflon Tubing
