Modelo 2: DAG-A14-3-0-0-0-R



• Digital Indicator

• DAG-A1: Housing (mm) 48 x 24

• 4: Input, Pt 100 (2-/3-wire/ -200...+850 °C)

• 3-0-0-0: Supply voltaje: 24VDC

• R: Indication, RED



Ficha Técnica

http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/z2gb_dag-a.pdf

Transmisor de Temperatura con display
Modelo 1: TMA-06410-1-05-4

• Insertion Resistance Thermometers with Integrated Transmitter

• TMA-064: Design w/o stand-off

• 10: Immersion length, 100mm

• 1: Connection: G1/4

• 5: Measuring range, 0..+50 °C

• 4: Output, 4 to 20 ma

DOM-S-35H-A9-1-Z3-S
[DOM-S]Oval Gear Flow Meter/Counter
[35H]Measuring range: 30-450 L/min
[A9]Mech. Connection: ANSI flange 2" 150 lbs for range 35H and 40H
[1] Model + Code: Seal: FPM (Standard)
[Z3] Electronic: LCD totaliser with rate
[S] Accessory: Special gear wheels for viscosity > 1000 cP for range 35H
Operating principle:Gear Wheel
Mounting position: horizontal / vertical
Flow direction: in direction of the arrow
max. temperature: 120 °C
max. pressure: 12...68 bar
Accuracy: ±0,5 % ...1 % of reading
Housing material:st. st. 1.4401
Rotor material: st. st. 1.4401


MODEL: DOM-S35H-A9-1-Z3-0
[DOM-S]Oval Gear Flow Meter/Counter
[35H]Measuring range: 30-450 L/min
[A9]Mech. Connection: ANSI flange 2" 150 lbs for range 35H and 40H
[1] Model + Code: Seal: FPM (Standard)
[Z3] Electronic: LCD totaliser with rate
[0] Accessory: without
Operating principle:Gear Wheel
Mounting position: horizontal / vertical
Flow direction: in direction of the arrow
max. temperature: 120 °C
max. pressure: 12...68 bar
Accuracy: ±0,5 % ...1 % of reading
Housing material:st. st. 1.4401
Rotor material: st. st. 1.4401
Ficha Técnica:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

Oval Gear Flow Meter/Counter
MODEL:   DOM-S-30H-A8-1-Z3-0
[DOM-S]Oval Gear Flow Meter/Counter
[30H]Measuring range: 15-250 L/min
[A8]Mech. Connection: ANSI flange 1½" 150 lbs for range 30H
[1] Model + Code: Seal: FPM (Standard)
[Z3] Electronic: LCD totaliser with rate
[0] Accessory: without
Operating principle:Gear Wheel
Mounting position: horizontal / vertical
Flow direction: in direction of the arrow
max. temperature: 120 °C
max. pressure: 12...68 bar
Accuracy: ±0,5 % ...1 % of reading
Housing material:st. st. 1.4401
Rotor material: st. st. 1.4401
Ficha Tecnica:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

MODEL NUMBER SENSOR: TMU-S025-XXXX-A00-A0-10-0
Wetted parts : 1.4571 (316Ti)/1.4404 (316L)
Range : min. 0-3000 kg/h max. 0-30000 kg/h
Process connection : 2-1/2" SMS welding liner (on inlet and outlet side)
Pressure rating : 16 bar
Secondary Containment : 1.4571 (316Ti)/1.4301 (304L)
Pressure rating sec. containment: 0 bar
Ingress protection Sensor : IP65 (EN60529)
Heating/cooling : without
Connection for heating/cooling : without
Sensor configuration : Integral mount
Temperature service rating : -20 to 100°C
Sensor cable connection : -
Calibration flow : 3-point
Calibration density : without
Installation length : ~600 mm
MODEL NUMBER TRANSMITTER: UMC3-B11F00
Mounting: Integral mount
Connection to sensor cable: -
Conduit port opening: M20x1,5
Display/Interface board: Integral within transmitter housing
Power supply: 90-265V AC, 50/60Hz
Electrical output: MODBUS RTU (RS485)
Analog output 1: 0/4-20 mA with HART®-protocol mass flow
Pulse output 1: ... Imp/kg passive
Status output 2: passive
Approval: without
Type of protection Signal output: without
Ambient temperature : -20 to +60°C
Ingress protection transmitter: IP65 (EN60529)

MODEL NUMBER SENSOR: TMU-S025-XXXX-A00-A0-10-0
Wetted parts: 1.4571 (316Ti)/1.4404 (316L)
Range: min. 0-3000 kg/h max. 0-30000 kg/h
Process connection: 2-1/2" SMS welding liner (on inlet and outlet side)
Pressure rating: 16 bar
Secondary Containment: 1.4571 (316Ti)/1.4301 (304L)
Pressure rating sec. containment: 0 bar
Ingress protection Sensor: IP65 (EN60529)
Heating/cooling: without
Connection for heating/cooling: without
Sensor configuration: Integral mount
Temperature service rating: -20 to 100°C
Sensor cable connection: -
Calibration flow: 3-point
Calibration density: without
Installation length: ~600 mm
MODEL NUMBER TRANSMITTER: UMC4-B11A00
Mounting : Integral mount
Connection to sensor cable : -
Conduit port opening : M20x1,5
Display/Interface board : Integral within transmitter housing
Power supply : 90-265V AC, 50/60Hz
Analog output 1 : 0/4-20 mA with HART®-protocol mass flow
Analog output 2 : 0/4-20 mA mass flow, temperature, volume flow, density
Pulse output 1 : ... Imp/kg passive
Type of protection Signal output: without
Ambient temperature : -20 to +60°C
Ingress protection transmitter: IP65 (EN60529)

V-Form Glass Thermometers for Machines
MODEL: TGL-2120-F-160-N
[TGL-21] V-Form Glass Thermometers for Machines
[20] Meas. range/scaling: 0...200 °C / 2°
[F] Scale: Dual scale ° C /° F
[160] Imm. Length: 160 mm
[N] Connection:  1/2 NPT male


Pelton Wheel Flow Meter
Model: DRB-11-25-N9-C34P
Brand: Kobold
[DRB-11]:
Operating principle, Pelton Wheel (4-vane)
Mounting position / flow direction:
in all directions/ in direction of the arrow
Protection IP 65
Max. temperature 80 °C
Max. pressure, 16bar
Accuracy of final value, +/-3%
Material Housing Brass casting
Material Axis Hard metal
[25]: Measuring range, 30-350 L/min
[N9]: Mech. connection, for MR-Code: 25 2 NPT female
[C34P]: Electronic, Compact electronics, 4-20 mA, 1x PNP

Paddle Type Flow Switch
Brand: KOBOLD (Alemania)
Model: PSR-12-258-N-25-R-1
[PSR-12]:
Operating principle, paddle
Mounting position, all directions
incl. fitting, st.st.
Body material, st.st.
max. pressure, 250 bar
[258]: Measuring range/paddle, 7.4-18.2 L/min paddle: 8
[N]: Connection, NPT-thread
[25]: Connection, 1"
[R]: Contact version, N/O
[1]: Connecting cable, PVC-cable 1.5 m (standard)

Limit Contacts
Brand: Kobold(Alemania)
Model: NBK-R
Contact operation: bistable changeover contact
Switching hysteresis: approx. 15 mm
Max. switching capacity: 60 W/VA, 230 V AC/DC, 1A
Resistance: 100 megaohmio
Medium temperature: -40°C...+100°C
Ambient temperature: -40°C...+75°C
Connection: 3m PVC-cable
Housing: Polycarbonate
Protection: IP67

Electronic Turbine Wheel Flowmeter
Model: EDM-4S-14
Brand: Kobold (Alemania)
Measurement range: 8...80 L/min water
Connection: Rc ¾
Operating principle: Turbine Wheel
Housing material: st.st.
Max. Pressure: 100 bar
Power supply: 2 Lithium batteries

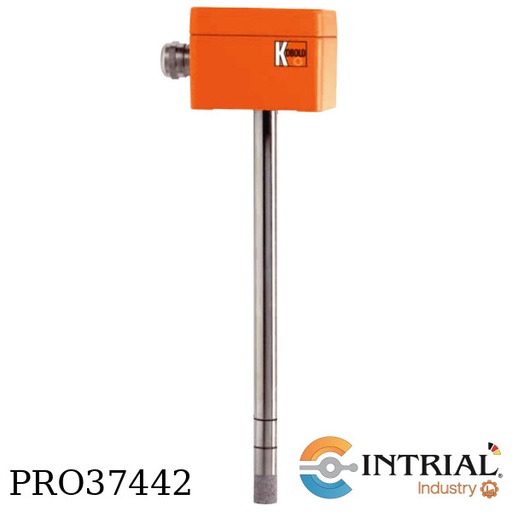

Humidity/Temperature Measuring Unit
Model: AFK-G-2T
Brand: Kobold (Alemania)
[AFK-G]
Version Standard
Digital display w/o
Humidity measuring method, kapazitiv
Temperature measuring option
Output, 4-20 mA
Working range [rH], 5...95%
[2T] Version: High temperature Humidity/temp.-measur.

INSERTION RESISTANCE THERMOMETERS WITH INTEGRATED TRANSMITTER
TMA-064: Insertion Resistance Thermometers with Integrated Transmitter
10: Immersion length: 100 mm
8: Connection: 1/2 NPT
12: Measuring range: 0..+120 °C
4: Output: 0-5 V
AUF-1000: Plug-On Display

MODEL: NWS-N25-2ES-0117
NWS: Liquid Level Switches
N25: 1” NPT male
2ES: ATEX-approval, plug M12x1
0117: 117 mm extended

MODEL: NBK-06-N20-RP-E-F-0(CC:1016mm)
NBK-06: Bypass-level Indicators,
ATEX-Version,
Bypass tube St. St. 1.4571,
Max. Temperature PP-roller-indicator 120°C,
Max. Pressure PN40 (580 PSI)
N20: ¾ NPT male
RP: PP-roller indicator
E: Reed chain / 4-20 mA, 2 wire
F: 0.54 kg/dm3, Titanium
0: without options
Distance center to center: 1016mm

MODEL: NBK-03-N20-RP-T-F-0(CC:1016)
NBK-03: Bypass Level Indicators Model NBK-03
N20: ¾ NPT male
RP: PP-roller indicator
T: magnetostrictive  probe/4 ... 20 mA,
F: 0.54 kg/dm3, Titanium
Distance center to center: 1016mm

Calorimetric Meter/Switch KAL-A(K)
Model: KAL-AK5-3-15-AS-PG
Brand: Kobold (Alemania)
[KA-AK5]: Calorimetric Flow Meter / Monitor, Compact Version
[3]: Probe material: st.st. 1.4301
[15]: Connection: 1/2"
[AS]: Output: N/O NPN/PNP; 4-20 Ma
[PG]: Electron. Connection: M16x1,5 PNP/NPN

Rotating Vane Flow Indicator DIH
Brand: Kobold (Alemania)
Model: DIH-1-1-08H-R-25_DM
Operating principle, Rotating vane
Mounting position, all directions, rotating vane axle horizontal
Flow direction, in direction of the arrow
max. temperature, 80 °C
max. pressure, 16 bar
*Maletin DEMO*

Flowindicator for Horizontal Mounting
Model: DKB-11-04H-R-15
Brand: Kobold (Alemania)
[DKB]:
Operating principle, Ball
Mounting position, horizontal
Flow direction in direction of the arrow
Housing material, brass
max. temperature, 120 °C
max. pressure, 6 bar
[11]: Material (rotating vane or ball); POM
[04H]: Nom. diameter/ind. Range; 1/2" 0,07...50 L/min water
[R]: Thread, G-thread female
[15]: Connection, 1/2"
