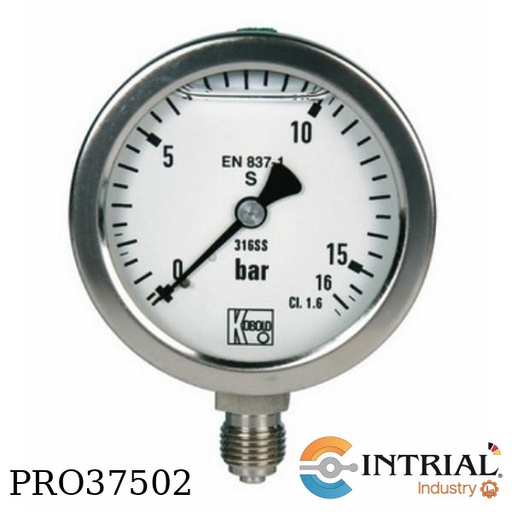

All Stainless Steel- Pressure Gauges with Bourdon Tube
Brand: Kobold (Alemania)
Model: MAN-RF76-B9
[MAN-RF76]:
Accuracy class: 1.0
Diameter: 100 mm
Housing: st. st., filled*
*Standard filling: Glycerin
Connection: St.St.
Process Connection: G 1/2 male
Max. medium temperature: 80°C
[B9] Indication range: 0...25 bar

MODELO: DRB-1130-NB-L303
[DRB-11] Pelton Wheel Flow Meter
[30] Measuring range: 50-750 L/min
[NB] Mech. Connection: 30 3 NPT female
[L303] Electronic Analogue output 0-20 mA, M12x1, 3-wire
Operating principle : Pelton Wheel (4-vane)
Mounting position / flow direction:  in all directions/ in direction of the arrow
Protection: IP 65
Max. temperature: 80 °C
Max. pressure: 16 bar
Accuracy of final value:  +/-3%
Material Housing : al. + bronze
Material Axis : Ceramic

Paddle Bellows Flow Switch for Liquids
Model: FPS-6200P
Brand: Kobold Usa
Stainless Steel Design, Paddle: stainless steel 316L
Max. Media Temperature: -40 ... 250°F
Max. Ambient Temp: -30 ... 150°F
Max. Allowed Pressure: Stainless Steel 435 PSIG
Max. Pressure Loss: Approx. 0.15 ... 0.44 PSIG
Process Connection: 1" NPT male
Inlet/Outlet Pipe Section: 5 times nominal pipe size
Electrical DetailsSwitch: SPDT contact
Switching Voltage: Max. 24 ... 250 VAC
Switching Current: Max. 8 A (inductive load)
Max. 15 A (resistive load)
Electrical Connection: Cable gland
Case: Base: ABS,
Cover: PC (transparent)
Protection Type: IP 65
Special Switching Ranges Series FPS-6
Pipe Size 1" a 8 "
check technical sheet

MODELO: DMH-1-L50-H-1-1-A-1-5
[DMH-1] Magnetic Inductive Flow Meter with flange
[L50] Connection flange ASME 16.5: 2" 150 lbs max. 0..62 m³/h
[H] Lining: hard rubber
[1] Electrodes material: st.st.
[1] Grounding Electrodes material: st.st.
[A] Version/cable length: compact version, 1/2 NPT connection
[1] Electronic: UMF2-Electronic without HART®
[5] Power supply/Cable entries: 230 VAC 1/2 NPT
Mounting position : all directions
Display / Protection class: LCD Display / IP 67
Output: Analogue, frequency, connection and status output
Max. medium temperature:  80°C
Connection: steel
Coating: Hard rubber

MODELO: DMT-2-L25-T-33A15
[DMH-2] Magnetic Inductive Flow Meter with flange
[L25] Connection flange ASME 16.5: 1" 150 lbs max. 0..17 m³/h
[T] Lining: PTFE
[3] Electrodes material: Hastelloy C4
[3] Grounding Electrodes material: Hastelloy C4
[A] Version/cable length: compact version, 1/2 NPT connection
[1] Electronic: UMF2-Electronic without HART®
[5] Power supply/Cable entries: 230 VAC 1/2 NPT
Mounting position : all directions
Display / Protection class: LCD Display / IP 67
Output: Analogue, frequency, connection and status output
Max. medium temperature:  150°C
Connection: St.  steel
Coating: Hard rubber

Pressure sensor with ceramic sensor element
Brand: Kobold Alemania
Model: SEN-9601-0-B155-A-0

[SEN-9601] Pressure sensor with ceramic sensor element
[0] Output/ power supply: 4....20 mA (8-30 VDC), standard
[B155] Measuring range: 0...400 bar}
[A] Mech. Connection: G 1/2, standard, male
[0] Options: without
Version: with internal sensor
Pressure type: relative pressure
Accuracy: < +/- 1% of range
Medium temperature: -25..+85 °C
Pressure conn. :AISI 316 L
Options: see below
Protection: IP 65
measuring principle: ceramic

OEM Pressure sensor with ceramic sensor element
Brand: Kobold (Alemania)
Model: SEN-9601-0-B075-A-0
[SEN-9601]
Version with internal sensor
Pressure type relative pressure
Accuracy  <= +/- 0.5 % of full scale
Medium temperature  -25..+85 °C
Pressure conn. AISI 316 L
Options see below
Protection IP 65
measuring principle ceramic
[0] Output/ power supply: 4....20 mA (8-30 VDC), standard
[B075] Measuring range: 0...10 bar
[A] Mech. Connection: G 1/2, standard, male
[0] Options: without

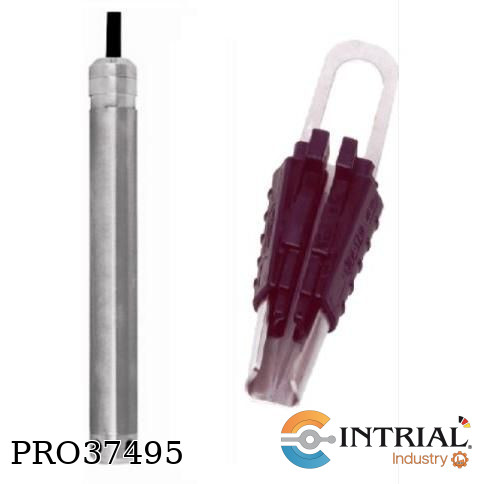

Hydrostatic Pressure Sensor
Brand: Kobold (Alemania)
Model: NTB-13-05-10
[NTB-13]:
Sond- material: stainless steel
Cable-material: Polyurethane
Output signal (2 wire): 4..20 mA
Power supply : 12...30 VDC
Overloading: 3x measuring range
[05] Measuring range: 5 mWs
[10] Length of cable: 10 mInclude:
Accessory for Mounting
Model: NTB-NAA-209
[NTB-NAA]:
[209] Design: mounting clamp

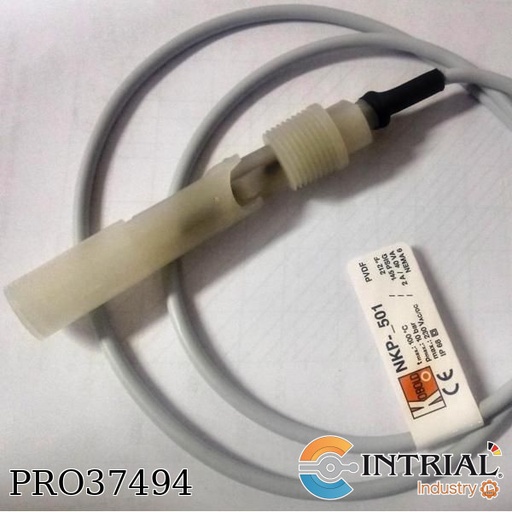

Plastic Level Switch
Model: NKP-2501-3
Brand: Kobold
[NKP-2501]
Housing material: PVDF
Max. Temperature: 100 °C
Max. Pressure: 10 bar
Min. Density: 0.95 kg/dm³
Contact: N/O or N/C (each acc. to mounting)
Mechanical connection: 1/2 NPT
[3] Cable length: with 3 m PVC cable

Hydrostatic Pressure Sensor NTB-131H-YY (220m)
[1H] Measuring range: 100 mWs
[YY] Length of cable: other lengths greater 10 m (€/1 m)
LENGTH OF CABLE: 220 m.
Sond- material stainless steel
Cable-material Polyurethane
Output signal (2 wire) 4..20 mA
Power supply 9...30 VDC
Overloading 100 %
Ficha técnica:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/n2gb_ntb.pdf

Accessories Overload-Protection
Model: NTB-OVP-12
Brand: Kobold
[NTB-OVP]:
Pull-up 13 Ohm
Pulse performance 600 W / 1 ms
Maximum voltage slow 90 V pp
Maximum voltage fast 30 V pp
[12] Housing: Field mounting IP54

Accessory for Mounting
Model: NTB-NAA-209
Brand: Kobold (Alemania)
[209]: Design, mounting clamp

PDD-15-3-N4-B075
[PDD-15] Electronic Pressure Transmitter
[3] Electr. Connection: Plug M12x1
[N4] Process connection: Connection: 1/2 NPT
[B075] Measuring range/Switch range: 0 bis 10 bar
Accuracy: +/- 0,5 % of FS (1 % of FS of meas.range B025 and B035)
Housing: stainless steel 1.4305
Display: 3-digit LED display
Contact device: 1xNPN
Power supply: 24 VDC
Medium temperature: -20..+ 80 °C
Protection IP 65




MODELO: PSE-11-520-N-15-U-1
[PSE-11] Paddle Type Flow Switch
[520] Measuring range/paddle: Paddle length: 52 mm(58 mm for NPT)
[N] Connection: NPT-thread
[15] Connection: 1/2"
[U] Contact versión: SPDT
[1] Connecting cable: PVC-cable 1.5 m (standard)
Operating principle: paddle
Mounting position: horizontal
Approvals: w/o
Body material: brass
max. pressure* 100 bar
Ficha técnica: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb_psr.pdf

MODELO: PDD-75-3-N4-B075
[PDD-75] Electronic Pressure Transmitter
[3] Electr. Connection: Plug M12x1
[N4] Process connection: Connection: 1/2 NPT
[B075] Measuring range/Switch range: 0 bis 10 bar
Accuracy: +/- 0,5 % of FS (1 % of FS of meas.range B025 and B035)
Housing: stainless steel 1.4305
Display: 3-digit LED display
Contact device: 2xNPN
Power supply: 24 VDC
Medium temperature: -20..+ 80 °C
Protection IP 65
Ficha técnica:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/p3gb_pdd.pdf

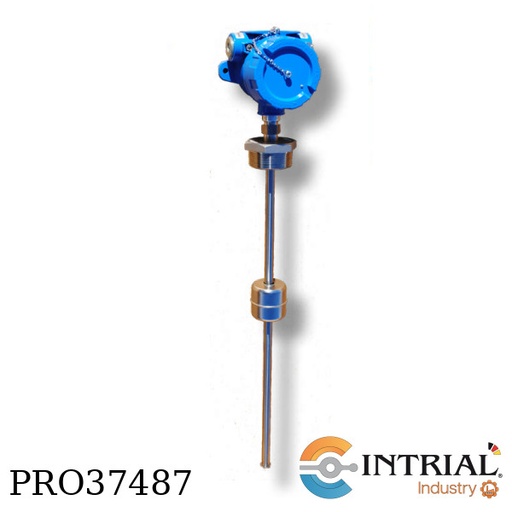

Float Level Transducer
Brand: Kobold
Model: NML-2-N9-FS2-RT-J L=60’’
[NML] Float Level Transducer
[2] Stem/Fitting Material: Stainless Steel
[N9] Fitting Style: 2" NPT
[FS2] Float Type: 316 Stainless Steel 2" dia. S.G. - 0.59
[RT] Output: 4-20 mA (2-wire)
[J] Enclosure: Aluminum
[L] Measuring Length: 60’’

Flujómetro VORTEX multivariable
MODELO: DVH-V-501-S-L-L-2-S-0
Brand: Heinrichs (Alemania)
[DVH-V] Vortex Flow Meter with Flange
[501] Connection (ASME B16.5.2003): Flange ANSI 2 inch 150 lbs
[S] Material Measuring Tube/Connection: Stainless steel 1.4404/316L
[L] Transmitter Version/ Mounting: compact incl. Display
[L] Supply voltaje: 12-36 VDC, loop powered 1)
[2] Output: 4-20 mA, HART, 1x Pulse, loop powered
[S] Process temperatura: -200..+260°C (-330..+500°F) (standard)
[0] Option Pressure Sensor: without
Version:  Standard
Integrated temperature sensor: no
Integrated pressure sensor: no
Transmitter Housing: Aluminium

MODELO: UMC4-B11A21
[UMC4] Transmitter IP65, Aluminium painted, display cover out of safety class
[B] Mounting of transmitter: integrated, M 20x1,5
[1] Display/Interface board: integrated in transmitter housing, max.60°C
[1] Power supply: 90-265 VAC, 50/60 Hz
[A] Output: 1x 0(4)-20 mA with HART®,1x 0(4)-20 mA, pulse/status output passive
[2] Approvals: II(1)2G EEx d [ia Ga] IIC T3-T4 Gb up to 60°C
[1] Ignition protection signal output: EEx ia

MODELO: SEN-3297-B045-F-0
[SEN-3297] Pressure sensor for standard application
Output/ power supply: 4....20 mA (8-30 VDC), standard: ohne
[B045] Measuring range: 0...2,5 bar
[F] Mech. Connection: 1/2 NPT, male
[0] Electr. Connection: DIN plug form A
Version:  with internal sensor
Pressure type:  relative pressure
Accuracy class: 1,0
Medium temperature: -30..+100 °C
Pressure conn:. st. Steel 1.4404
Electr. Connection: see below
Protection: IP 65 (IP 67)
measuring principle: piezoresistive
Ficha Técnica:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/de/p2de_sen-3297.pdf

MODELO: SEN87-0-0-C525-N
[SEN87] Pressure sensor with ceramik sensor element
[0] Electr. Connection: DIN plug form A
[0] Accuracy: 0,5 % of FS
Output: 4-20 mA, 2-wire: w/o
[C525]  Measuring range: -1...3 bar
[N]Option: NPT thread
Version:  with internal sensor
Pressure type:  relative pressure
Accuracy: 0,5 %/1 % of FS
measuring principle: thick film
Medium temperature: -40..+85 °C
Pressure conn. : st. Steel 1.4301
Thread: G 1/4 male
Power supply: 15-32 VDC
Electr. Connection: DIN plug form A
Protection: IP 65
Ficha Técnica:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/es/p2es_sen-86-87.pdf
