Termometro Bimetalico
Modelo BTB22551
Marca : Dwyer
Materiales Mojados: Acero inoxidable 304.
Carcasa: Acero inoxidable serie 300.
Caratula: Vidrio.
Exactitud: ±1% de la escala completa.
Rango : 0 a 250ºF
Limites de temperatura: Cabezal: 200 °F (93 °C); tallo: no debe exceder un 50% de exceso de rango o 1000 °F (538 °C) o 800 °F (427 °C) de manera continua.
Conexión de proceso: NPT de 1/4"
Diámetro de tallo: 1/4" diámetro externo.
Profundidad de inmersión: Mínimo 2" (51 mm) en líquidos, 4" (102 mm) en gas.
Tiempo de respuesta: ≤40 segundos.

182011
Formic Acid Reagent
60 days Supply that  Includes:
*(1) x 1L bottle formic acid reagent and
*(1) x 2 ft diffusion tubing with O-rings

096-3363
Filament Detector Guard Assembly (Combustible). for FREEDOM 6000

Modelo:096-3349
LEL Sensor Housing Assembly for Scott Freedom 6000 for combustible application

LAMPARA EN SAFIRO PARA TURBIDIMETRO
MARCA: KOBOLD
ORIGEN: ALEMANIA
CALIDAD: ISO 9001-2008
REFERENCIA DEL TURBIDIMETRO:
modelo 556 Serial 56200
REFERENCIA DEL MODELO DE LA LAMPARA TF56, Serial 55977

MANOMETRO TIPO FENOLICO RF130PG Gly,D602(0-250 PSI)
VERSION CON GLYCERINA
Marca: AFRISO(Alemania)
Dial Ø: 4 ½ “
Conexión, ½ NPT- Inferior
Rangos, 0-250 PSI
Escala Kpa/PSI
MD30 (31417W)(1/2”NPT)
SELLO DE DIAFRAGMA EN ACERO INOXIDABLE 316
Conexión al proceso: 1/2” NPTM

Modelo: RF130PG Gly,D602(0-100 PSI) + MD30 (31417WS)(1/2”NPT)



RF130PG Gly,D602(0-100 PSI)

             MANOMETRO TIPO FENOLICO

             VERSION CON GLYCERINA

• Marca: AFRISO(Alemania)

• Dial Ø: 4 ½ “

• Carcaza: PP-GF 20, negra

• Elemento de medición: Acero Inoxidable 316Ti/316 L

• Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5 %)

• Conexión: ½ NPT- Inferior

• Rangos: 0 – 100 PSI

• Doble escala en Kpa; PSI



MD30 (31417W)(1/2”NPT)

SELLO DE DIAFRAGMA EN ACERO INOXIDABLE 316

• Marca: AFRISO (Alemania)

• Conexión a Instrumento: Conexión soldada

• Presión Nominal: PN25

• Conexión al proceso: 1/2” NPTM

• Montaje: Inferior

INDICADOR DE TEMPERATURA
Marca: ASHCROFT

RTD-TIPO DE SENSOR SPRING
•    Conexión  1/2"
•    Marca: ROSEMOUNT

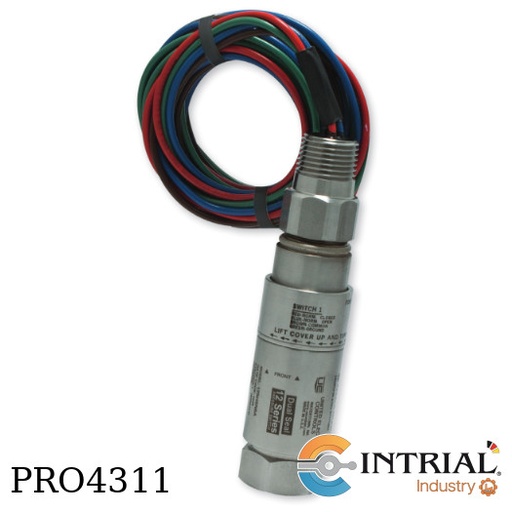

SWITCH DE PRESIÓN ALTO (PSH)
Marca: UNIT ELECTRIC CONTROL
Modelo: 12SHDN5G
[12]: SERIES, Designation for 12 series product line
[H]: HOUSING MATERIAL, 316 Stainless Steel
[D]: SWITCH OUTPUT, DPDT
[N]: ELECTRICAL CONDUIT, 1/2" NPT male
[5]: SENSOR TYPE, 316L stainless steel diaphragm, Viton® O-ring, 1/2" NPT (female) pressure connection
[G]: RANGE,  1000 to 3200 PSI, 68,9 to 220,6 bar

CONTROL DIGITAL DE TEMP, 4 DÍG
• Marca : AUTONICS
• W48xH48mm,
• Ent universal
• Alim 100-240VAC
• Sal 4-20mA + 1alarma

SENSOR PT-100 SIMPLE 3 HILOS
Elemento clase A, DIN 100 Ohms a 0°C.
Rango temperatura -50 + 500°C.
bulbo inoxidable SS316 Ø1/4"
Largo bulbo 100mm incluido hilo de conexión a proceso 1/2 He NPT fijo.
Sin cabezal, con 2 metros cable
funda silicona 3x0,22mm.
Marca:INTRIAL

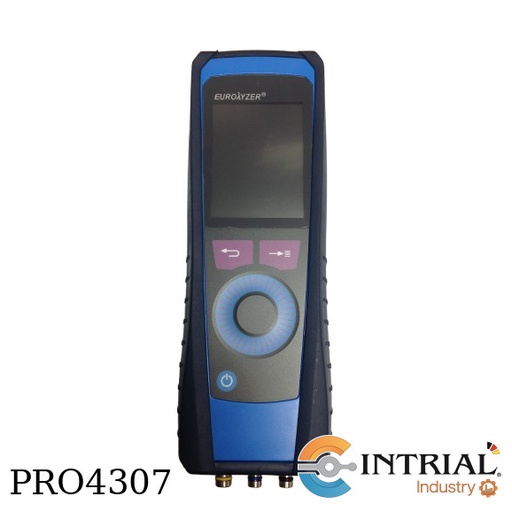

Modelo:  P04229115(EUROLYZER STe Set 1)

• EUROLYZER STe, O2, COH2, CO2(calculated values),  (differential) temperature

• Measuring ranges (measured values)

• Flue gas temperature/differential temperature 0/1,000 °C

• Air temperature/combustion air temperature: -20/+200 °C

• Draft:50 hPa, Differential pressure: 130 hPa

• O2: 0/21 % by volume

• COH2: 0/9,999 ppm (max.)

• Indication (calculated values)

• CO2, CO undiluted (air-free), lambda, dew point,

• eta efficiency, flue gas losses qA

• Operating temperature range: Ambient: 5/40 °C,Storage: -20/+50 °C

• Weight (housing): Approx. 500 g

• Dimensions: W x H x D 70 x 215 x 40 mm

• Display:TFT colour display

• W x H: 45 x 60 mm

• Connections:Draft/pressure: Ø 7 mm, Gas: Ø 8 mm

• Supply voltage: NiMH battery (4.8 V/2,000 mAh)

• Hours of operation (Eco mode): 12 hours

• Data memory: MicroSD card, max. 2 GB

• Interfaces:USB, infrared, Bluetooth®, MicroSD card slot

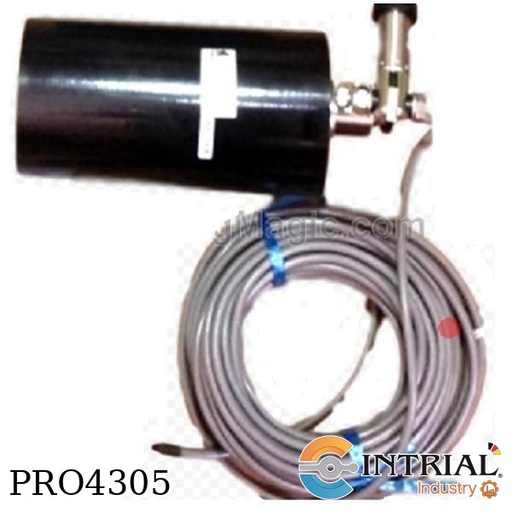

ORCA Remote Sonar Transducer 150Khz, 15mts, 25mts Range
* 150 kHz for Industrial and Mining Application
* Full Fiberglass high temp version for Facing & Housing Material
* No Approval standard required
* End Connection: 1" NPT
* IP 68 Sealed
* 15 mts cable

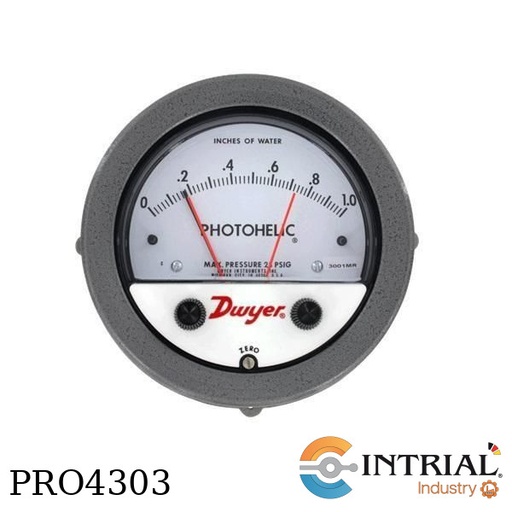

Modelo: PHOTOHELIC SERIES 3000MR (3002MR)
PHOTOHELIC® SWITCH/GAGES
Combines Differential Pressure Gage
with Low/High Set-Points, Compact Size
Brand: DWYER
Range 3003MR: In w.c.: 0 - 2.0
Service: Air and non-combustible,
compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±2% of FS (3000-0 ±3% of FS). (3000-00 ±4% of FS).
Pressure Limit: -20" Hg. to 25 psig
(-0.677 bar to 1.72 bar). MP option: 35
psig (2.41 bar), HP option: 80 psig (5.52 bar).
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Process Connections: 1/8" female NPT
(duplicated side and back).
Size: 4" (101.6 mm) dial face, 5" (127mm) OD x 3-1/8" (79.38 mm).
Weight: 1.8 Ib (816 g).
SWITCH SPECIFICATIONS 3000MR
Switch Type: Each setpoint has 1 form C relays (SPDT).
Relay Contacts: (Resistive load) 1 form C rated 1.0A @ 30 VDC, 0.3A
@ 110 VDC or 0.5A @ 125 VAC.
Gold over clad silver - suitable for dry circuits.
Electrical Connections: 18" (46 cm)
cable assembly with 8 conductors.
Optional lengths to 100´ (30.5 m).

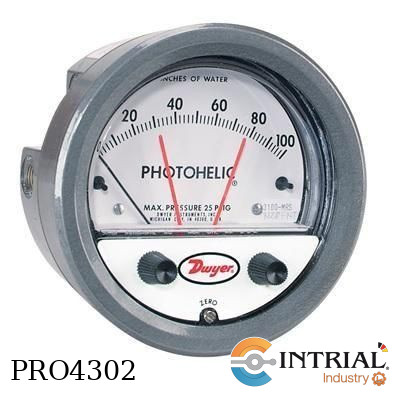

PHOTOHELIC SWITCH/GAGES
Combines Differential Pressure Gage
with Low/High Set-Points, Compact Size
Brand: DWYER
Range 3003MR: In w.c.: 0 - 3.0
Service: Air and non-combustible,
compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±2% of FS (3000-0 ±3% of FS). (3000-00 ±4% of FS).
Pressure Limit: -20" Hg. to 25 psig
(-0.677 bar to 1.72 bar). MP option: 35
psig (2.41 bar), HP option: 80 psig (5.52 bar).
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Process Connections: 1/8" female NPT
(duplicated side and back).
Size: 4" (101.6 mm) dial face, 5" (127mm) OD x 3-1/8" (79.38 mm).
Weight: 1.8 Ib (816 g).
SWITCH SPECIFICATIONS 3000MR
Switch Type: Each setpoint has 1 form C relays (SPDT).
Relay Contacts: (Resistive load) 1 form C rated 1.0A @ 30 VDC, 0.3A
@ 110 VDC or 0.5A @ 125 VAC.
Gold over clad silver - suitable for dry circuits.
Electrical Connections: 18" (46 cm)
cable assembly with 8 conductors.
Optional lengths to 100´ (30.5 m).

CAPSUHELIC DIFFERENTIAL PRESSURE GAGES
Measures Pressure, Vacuum or Differential
Suitable for Internal Pressures to 500 psig
Brand: DWYER
Range; 4006: Inches of Water: 0 - 6.0
Service: Aluminum case: Air and compatible gases and oil based liquids;
Brass case: Air and compatible gases and water based liquids.
Wetted Materials: Consult factory.
Housing: Die cast aluminum with impregnated hard coating, standard.
Special material diaphragms available, contact factory.
Accuracy: ±3% of FS at 70°F (21.1°C
Pressure Limits: -20" Hg to 500 psig (-0.677 bar to 34.4 bar).
Temperature Limits: 20 to 200°F (-6.67 to 93.3°C).
Size: 4" (101.6 mm) diameter dial face.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other
position orientations.
Process Connections: 1/4" female NPT high and low pressure taps, duplicated -
one pair top for air and gas, and one pair bottom for liquids.

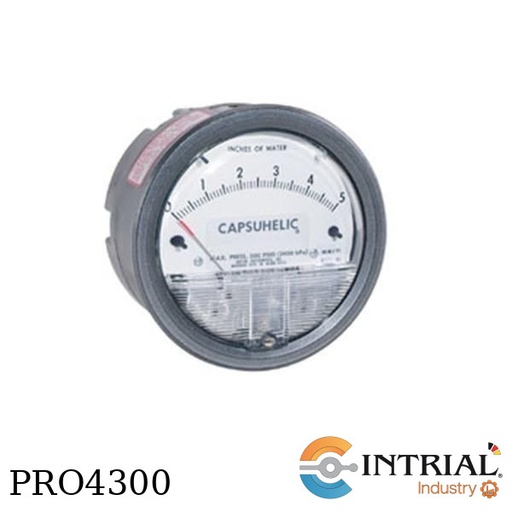

CAPSUHELIC SERIES
CAPSUHELIC® DIFFERENTIAL PRESSURE GAGES
Measures Pressure, Vacuum or Differential
Suitable for Internal Pressures to 500 psig
Brand: DWYER
Range, 4002: Inches of Water: 0 - 2.0
Service: Aluminum case: Air and compatible gases and oil based liquids;
Brass case: Air and compatible gases and water based liquids.
Wetted Materials: Consult factory.
Housing: Die cast aluminum with impregnated hard coating, standard.
Special material diaphragms available, contact factory.
Accuracy: ±3% of FS at 70°F (21.1°C
Pressure Limits: -20" Hg to 500 psig (-0.677 bar to 34.4 bar).
Temperature Limits: 20 to 200°F (-6.67 to 93.3°C).
Size: 4" (101.6 mm) diameter dial face.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other
position orientations.
Process Connections: 1/4" female NPT high and low pressure taps, duplicated -
one pair top for air and gas, and one pair bottom for liquids.

• RANGO 0 to 10 bar/0 to 145 psi

• Manómetro tipo Bourdon

• Marca AFRISO(Alemania)

• Diámetro de Carcasa 2 1/2''(63mm)

• Precisión 1.6(EN 837-1/6)

• Temperatura operación Max 120°C

• Conexión INFERIOR,1/4''NPT

• Material :caja y conexión en acero inoxidable 1.4571.

• Con/sin glicerina (Especificar al ordenar,no afecta el precio)



MD30 (31417W)(1/2”NPT)

DIAFRAGMA DE ACERO INOXIDABLE

• Marca: AFRISO (Alemania)

• Conexión a Instrumento: Conexión soldada

• Presión Nominal: PN25

• Conexión al proceso: 1/2” NPT Acero inoxidable 1.4571 (Hembra)

• Montaje: Inferior

OSIRT302S4XC6
•    ORCA Remote Sonar Transducer
•    Brand: HAWK
•    Made In: Australia
•    150 kHz for Industrial and Mining Application
•    Full Fiberglass High Temperature Version (Max 80C)
•    No Approval standard required
•    IP 68 Sealed with 15 mts cable
OSIRSCA
•    Automatic Scum Cleaner
•    24VDC Electric Actuator incl. Mounting Accessories
OSIRDFX
•    Sonar Level Transmitter
•    Standard feautures: 3 relay Alarms,Modbus
•    Aditional Communication: Foundation Filedbus
•    Power: 90-250VAC and 12-30VDC2
•    Brand: HAWK
•    Made in: Australia
