FLOWSWITCH
•    Brand: HAWS

Sonda LDO de Hach
Modelo 2
​Oxígeno disuelto
Número de parte: 9020000

ORION PH Sensor 1.0 inch
Range: 0-14 pH
ROSS Electrode
Resolution: 0.01 PH
Accuracy: 0.1 pH
Precision: 0.05 pH - 0.5C
Temperature: -5 to 95C
Pressure: 0 - 100 Psi
Maximun Flow Rate: 10 ft/sec
Proces Conection: 1" NPT
Sensor Material: PEEk
O-ring : VITON
Cable Lenght 20' (6.10 mts)
Sensor temperature: PT-1000 (-5 to 200C)
Brand: Thermo Scientific
More details: See PDF Attached

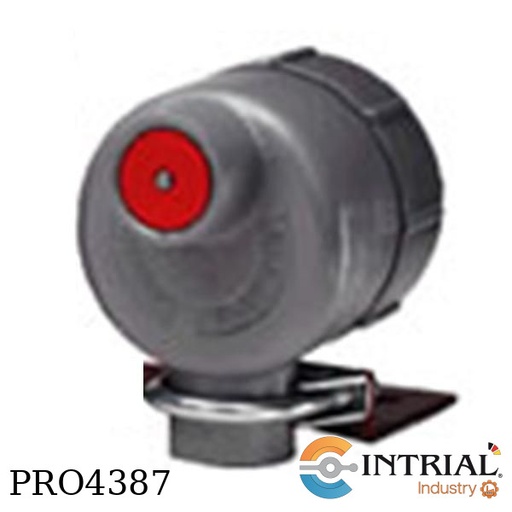

ADJUSTABLE SELF CONTAINED SPEED SWITCH
BRAND: PCS
Power Requirements: 115 VAC, ± 10%; 50/60 Hz
Sensor To Target Tolerance: 1/8” - 1”
Sensor Construction: Anodized Aluminum; Epoxy Encapsulated
Sensor Cable: 9” Pigtail/ 18 Gauge
Switch Output: One SPDT-5A Relay; @115/230 VAC

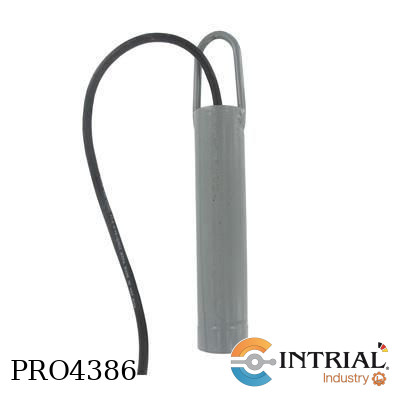

SERIES LTS TILT SWITCH PROBES - Standard (Probe Material Stainless Steel)
Size: Standard
Probe Material: SS
Service: Powder and bulk.
Temperature Limit: -4 to 104°F (-20 to 40°C).
Switch Type: SPST, normally closed.
Electrical Rating: < 50 mA @ 12 VDC as supplied by Series LTC controller.
Electrical Connection: 3-wire +12 VDC (supplied by controller).
Cable Length: 25´ (7.6 m) unless otherwise specified.
Probe Length: Standard: 9" (23 cm)
Contact Rating: When not used with LTC controller: 60 V max., 0.25 A max.
Actuation Angle: 25° from vertical.
Material: 302/304 SS.
Switch Surrounding: Epoxy encapsulated.
Mounting Orientation: Vertical.
Weight: Standard: 4.75 lb (2.15 kg)
Agency Approvals: Meets NEMA 4.

Termopozos para termometro industrial,
Modelo : IT-W14
Marca DWYER
acero inoxidable 304,
5" de longitud de inserción.

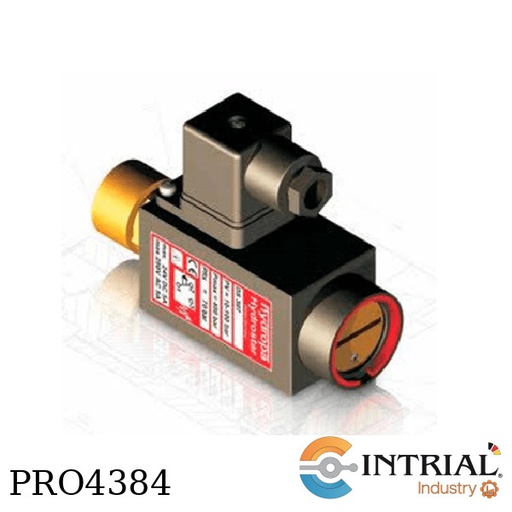

INTERRUPTOR DE PRESION
Marca: HYDROPA-OELHYDRAULIK GMBH
Rango presión: 20-350 BAR
Montaje Panel
Escala y boton tirador

1 ppb Standard SILICA
ORION 2230 Silica Analyzer

AIR FLOW SWICTH
Brand: DWYER
Range 400-1600 FPM mounted on top of horizontal duct.
Service: Air and non-combustible gas flow.
Wetted Materials: Contact factory.
Vane: Stainless steel.
Temperature Limit: 180°F (82°C).
Switch Type: SPDT.
Electrical Rating: 125 VAC - 9.8 amp full load 58.8 amp locked rotor; 250 VAC -
4.9 amp full load 29.4 amp locked rotor; Pilot rating: 470 VA at 125, 250 VAC;
Resistive: 15 amp at 125, 250, or 480 VAC.
Electrical Connections: Screw type terminal.
Conduit Connection: 7/8" conduit hole.
Mounting Orientation: Horizontal duct flow.
Set Point Adjustment: Screw type.
Weight: 1 lb 1 oz (481.94 g)
Agency Approvals: CE, CSA, UL.

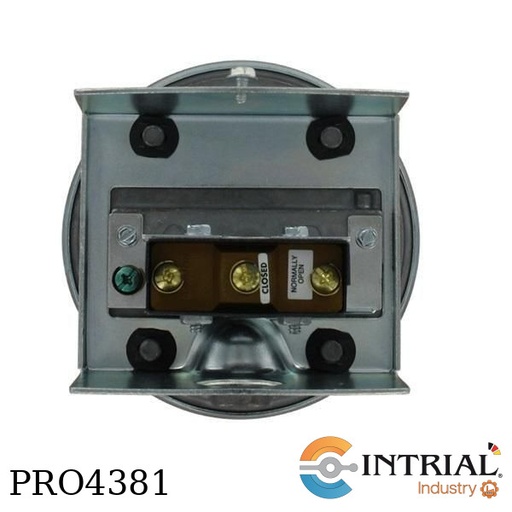

LOW DIFFERENTIAL PRESSURE SWITCHES FOR GENERAL INDUSTRIAL SERVICE
Set Points from 0.07 in w.c. to 85 in w.c. Repetitive Accuracy within 2%
Brand: DWYER
Range: 0.5 to 2.0  In w.c.
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Temperature Limits: -30 to 180°F (-34 to 82.2°C); 1823-00: -20 to 180°F (-28.9 to 82.2°C).
Pressure Limits: 10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge.
Switch Type: Single-pole double-throw (SPDT).
Repeatability: ±2%.
Electrical Rating: 15 A @ 120-480 VAC, 60 Hz. Resistive 1/8 HP @125 VAC, 1/4
HP @ 250 VAC, 60 Hz. De-rate to 10 A for operation at high cycle rates.
Electrical Connections: 3 screw type, common, normally open and normally closed.
Process Connections: 1/8" female NPT.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other
position orientations.
Set Point Adjustment: Screw type inside mounting spud.
Agency Approvals: CE, CSA, FM, UL. Optional-EXPL explosion-proof enclosure
does not possess any agency approvals.

BIMETAL THERMOMETER
Brand: Dwyer Instruments
5" dial
4" stem length
Range 0/250°F (-20/120°C)
2°F (2°C) div
Connection: 1/2" NPT; Adjustable; Back
Wetted Materials: 304 SS
Housing Material: Series 300 SS

Modelo: DCH 40
Conexion al Manometro 1/2" NPT hembra
Sifon conexion a proceso 1/2" NPT Macho
Acero 304 SS

AWRT40T6TN20XC15XX
Ultrasonic Remote Transducer 2" Thread
40kHz for liquid applications up to 7m
Facing Material: Tefzel 80°C (176°F)
Housing: Tefzel
End Cap Thread Size: 2” NPT
Connection: IP 68 sealed Unit with Cable
Cable Length: 15 mts
Bean Angle: 7.5°
Compensation Temperature: YES

Modelo 4: 096-3473-13

MERIDIAN HYDROGEN SENSOR - H2  ( Low Relative Humidity )

RF160Ch,D402(0 a 100 bar)
RANGO :0 to 100 bar/ 0 to 1450 psi

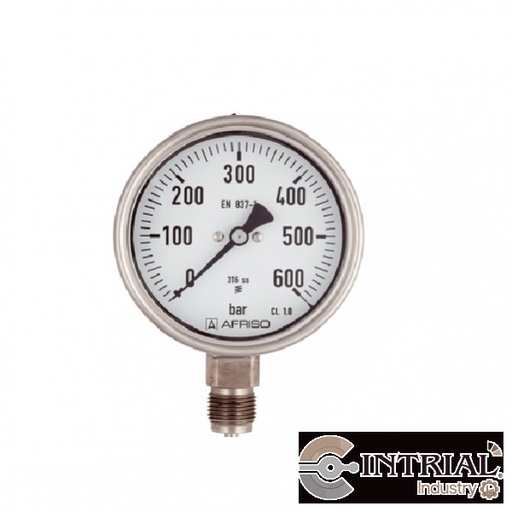

Manómetro tipo Bourdon
Marca AFRISO(Alemania)
Diámetro de Carcasa 6''(160mm)
Precisión 1.6(EN 837-1/6)
Temperatura operación Max 120°
Conexión INFERIOR, 1/2"" NPT"
Material:caja y conexión en acero inoxidable 1.4571.
con/sin glicerina(Especificar al ordenar, no afecta el precio.


(16.1) RSL-2500-37 (01 Unit)
=====================
RSL RETRIEVER TOOL KIT
Made: COSASCO - USA
* Pressure Rating: 2500 Psi
* Temperature rating: (-26C - 204C)
* Short length - non-telescoping design
* Compatible with industry standard COSASCO access fittings
* Stroke length: 37"
* REMOVAL CLEARANCE: 60.75”
* Meets NACE MR0175 and MR0103
(16.2) RSL-2500-37 (01 Unit)
=====================
RSL RETRIEVER TOOL KIT
Made: COSASCO-USA
* Pressure Rating: 2500 Psi
* Temperature rating: (-26C - 204C)
* Short length - non-telescoping design
* Compatible with industry standard COSASCO access fittings
* Stroke length: 37"
* REMOVAL CLEARANCE: 60.75”
* Meets NACE MR0175 and MR0103
(16.3) RSL-2500-25 (01 Unit)
======================
RSL RETRIEVER TOOL KIT
Made: COSASCO-USA
* Pressure Rating: 2500 Psi
* Temperature rating: (-26C - 204C)
* Short length - non-telescoping design
* Compatible with industry standard COSASCO access fittings
* Stroke length: 25"
* REMOVAL CLEARANCE: 48.75”
* Meets NACE MR0175 and MR0103
INCLUDES
=========
Two-Inch System Service Valve Kit (601001) 03 Units)
============================================
* Pressure Rating 3600 Psi
* Temperature Rating (93 C)
* By-Pass Bleed Valve
* Meets Nace MR0175 and MR0103
Includes:
- Service Valve Assembly w/Extension lever
- O-rings
- Brass Hammer
- Field Service Box
