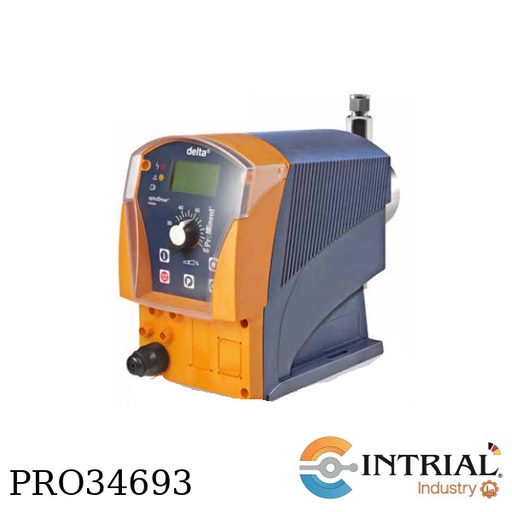

CONTROLADOR BOMBA DOSIFICADORA<br />
Marca: PROMINENT<br />
Anti-inscrustante Prominent<br />
Serial: 2015061266
<div>
<div class="gtx-trans-icon"></div>
</div>

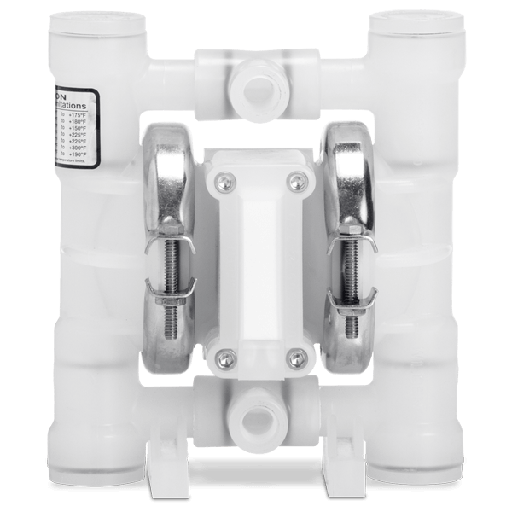

WILDEN PUMP
Brand: WILDEN
Model: P.025/PPPPP/WFS/TF/PWF
[PP]: WETTED PARTS & OUTER PISTON, POLYPROPYLENE/POLYPROPYLENE
[PP]: CENTER SECTION, POLYPROPYLENE
[P]: AIR VALVE, POLYPROPYLENE
[WFS]: DIAPHRAGMS, WIL-FLEX™ [Santoprene® (Orange Dot)]
[TF]: VALVE BALL, PTFE (White)
[P]: VALVE SEAT, POLYPROPYLENE
[WF]: WIL-FLEX™ [Santoprene®
Air Inlet: 3 mm (1/8")
Outlet: 6 mm (1/4")
Max. Flow Rate: 18.1 lpm (4.8 gpm)

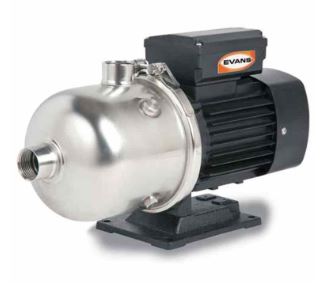

BOMBA MULTIETAPA
Marca: EVANS
Modelo: SSXH25ME0150
Tipo de Motor, Eléctrico
Potencia del Motor, 1.50 HP
RPM del Motor, 3450 RPM
Voltaje, 220 - 440 V
Fases del motor, Trifásico
Corriente, 4.6 - 2.3 A
Flujo Optimo, 100.00 LPM
Altura Optima, 35.00 m
Numero de etapas, 4 etapas
Diametro de succion, 1.25 pulg
Diametro de descarga, 1.00 pulg
Tipo de impulsor, Cerrado
Material del cuerpo, Acero Inoxidable
Material del impulsor, Acero Inoxidable
Material del sello mecanico, Cerámica, carbón, acero inoxidable y/o Vitón®
Temperatura Maxima del Agua, 100 C

BOMBA AGUA
Marca: SUNBRUSH
Modelo: 71369

UNIGEAR WORM GEAR MOTOR
Brand: LAIPPLE KEB
Model: NMS40HU-5/1-71L/2-TB-DI
0,55 kW
2800 min-1
230/400 V
50 Hz
IP 55
Isol. Kl. F
i = 5
n2 = 560 min-1
temperature protection normally closed contact encoder VFS60B
2500 Inkr./rpm.
5 V / RS422
with connector
without mating connector

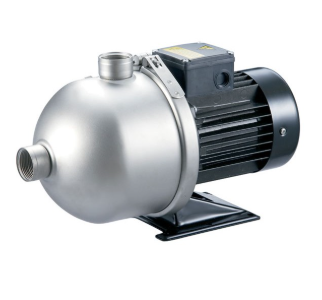

Electrobomba centrifuga multietápica horizontal
Marca: STAIRS PUMPS
Modelo: HBN-4-50
Bomba : Acero inoxidable AISI 316
Potencia : 1.5 HP
Fase : Trifásica
Tensión : 220/380/440V 60 Hz
Eficiencia : Alta IE2
Proteccion : IP54
Succion : 1 ¼” roscada
Descarga : 1 ¼” roscada
Altura : 65 mts maximo
Caudal : 150 lts x min maximo

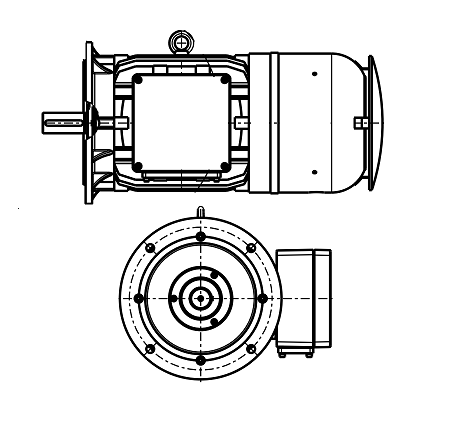

DC-COMPOUND WOUND-MOTOR
Brand: WINKELMANN
Model: GNRFZE 132/3
P/N: 100073
Output, 3.7 kW (5 HP)
Speed, 1800 min-1
Rotor voltage, 125 V
Current, 35 A
Terminal box (site), right/R IP55
Rotation, CCW (facing DE)
Cable entries, 1x M40X1.5 + 2x M20x1.5
