PUMP<br />
Brand: IMO<br />
Model: AA3G/NVPSCB143SE<br />
[N]: Hardened screw set, no<br />
[V]: Seal, Fluorocarbon bellows maechanical seal, carbon on<br />
Ni-resist, Fluorocarbon O-rings<br />
[P]: Case material and outlet port, Iron case, SAE 4-bolt port pad<br />
[S]: Inlet port, Radial inlet 4-bolt port pad<br />
[C]: Mounting, SAE flange mount<br />
[B]: Relief valve set range, 60/75 psi defferential<br />
[143SE]: Size/Lead/Rotation, 1.7D, CCW

HP Industry pump Pump<br />
BRAND: HP-TECHNICK<br />
type: VBF-D-2<br />
Flow: 160 l/h (9 bar) with 1400 min-1 Marca Hp Technik
<div>
<div class="gtx-trans-icon"></div>
</div>

PUMP SERIES: VB<br />
BRAND: HP-TECHNICK<br />
TYPE: VBM-I-2-10<br />
VOLTAGE: 230/400 V, FREC: 50 HZ<br />
FLOW_RATE: 80 L/H, 1400 MIN-1
<div>
<div class="gtx-trans-icon"></div>
</div>

<div>
<div class="gtx-trans-icon"></div>
</div>

SERVICE KIT - 221 HEAD SZ 4 PVC/E/SS, PARA BOMBA DMX96684264<br />
BRAND: GRUNDFOS PUMP CORP<br />
MAINTENANCE KIT TYPE: 220, 221 GASKET: EPDM BALL: 316 L SEAT:<br />
EPDM DIAPHRAGM: PTFE NOMINAL<br />
WIDTH: DN8 VALVE BODY MATERIAL: PVC<br />
DOSING HEAD SIZE: 4 TYPE2: 12, 26, 50
<div>
<div class="gtx-trans-icon"></div>
</div>

KIT DE MANTENIMIENTO PARA BOMBA DMX95708573 TYPE: 226L,<br />
BRAND: GRUNDFOS PUMP CORP<br />
226L/2, 226M, 226M/2 GASKET: EPDM BALL: PTFE SEAT: PTFE<br />
DIAPHRAGM: PTFE NOMINAL WIDTH:<br />
DN20 DOSING HEAD SIZE: 2 TYPE2: 160M,<br />
199L, 230M, 280L, 37M, 82M, 95L USE:<br />
VALVE PVC
<div>
<div class="gtx-trans-icon"></div>
</div>

SERVICE KIT - 226M/L SZ 2 PVC/V/G ,PARA BOMBA DMX96697769<br />
BRAND: GRUNDFOS PUMP CORP<br />
SPARES KIT : TYPE: 226L, 226M GASKET: FKM, VITON BALL: GLASS<br />
SEAT: PTFE DIAPHRAGM: PTFE<br />
NOMINAL WIDTH: DN20 DOSING HEAD SIZE: 2<br />
TYPE2: 160M, 199L, 230M, 280L, 82M, 95L<br />
USE: VALVE PP, VALVE PVC

BOMBA SF<br />
Marca: STEIMEL<br />
Rango: 120L/MIN <br />
3BAR<br />
MODEL: SF4/80RD-VLFM

DRILL PUMPS <br />
Brand: JABSCO<br />
PUMPS UP TO 3.5 GPM (13 LPM)<br />
SELF-PRIMING TO 3FT (1M). 1/4" (6.5MM) <br />
DIAMETER SHAFT. SUPPLIED WITH 3/4" GARDEN HOSE<br />
THREAD ORTADAPTERS<br />
INCLUDES ACCESSORIES FOR OIL<br />
CHANGING.

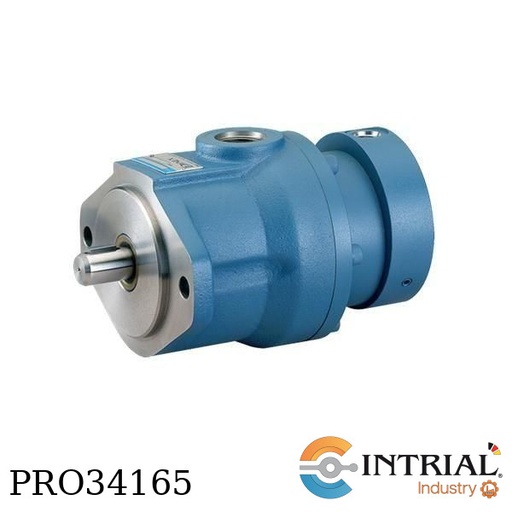

PUMP<br />
Brand: DYNEX<br />
Model: PF2006-1807<br />
Output flow at 1500 rpm, 3.3 GPM / 12.6 L/min<br />
Output flow at 1800 rpm, 4.0 GPM / 15.1 L/min<br />
Rated pressure, 6000 PSI / 420 bar<br />
Maximum intermittent, 8000 PSI / 560 bar<br />
Rated speed, 2000 rpm<br />
Maximum speed, 2400 rpm<br />
<br />


MANIFOLD DE 4 VALVULAS, PARA REFRIGERANT R134<br />
MARCA : CPS<br />
PART NO: MV4DP5

PREMIUM VACUUM PUMP OIL<br />
1 GALON<br />
MARCA : CPS, PART<br />
VP0G6 PARA BOMBA VACIO MODEL VP6D<br />
PART NO: VP0G6

TWO STAGE VACUUM PUMP<br />
MARCA CPS,<br />
DUAL VOLTAGE 115 & 220VAC<br />
1/2 HP<br />
2880/3440RPM<br />
ULTIMATE VACUUM 15 MICRONES

KARCHER HIDROLAVADORA K3 / KARCHER /  <br /><br />

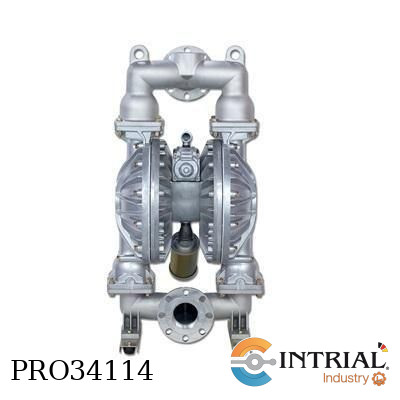

VALVE SEAT, 100PSI<br />
MODEL:NDP-50BSV<br />
FABRICANTE: YAMADA AMERICA, INC.<br />
100PSI<br />
OPERATED DIAPHAGM<br /><div>
<div class="gtx-trans-icon"></div>
</div>

MODEL:  Y-770605<br />

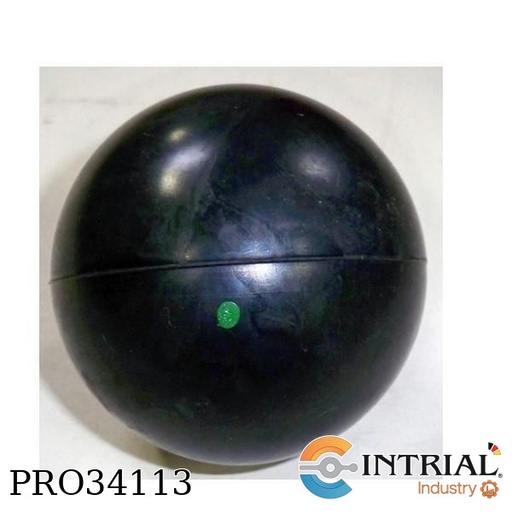

BALL<br />
USO: BOMBA YAMADA DE 3"<br />
FILTRO PLACAS Y LODOS SX<br />
FABRICANTE: YAMADA AMERICA, INC.

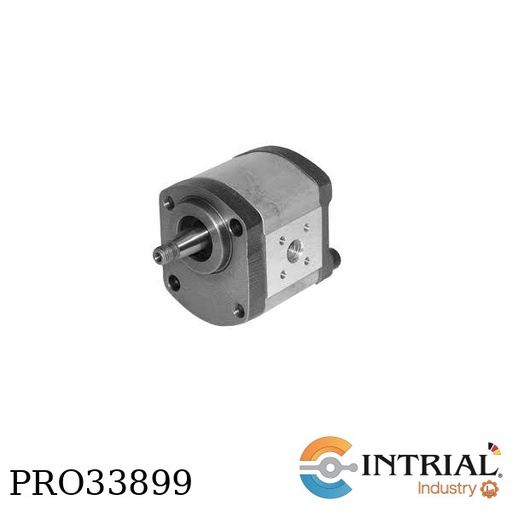

HIGH PRESSURE GEAR PUMPS<br />
Brand: KRACHT<br />
[KP]: Product code<br />
[1]: Size, 1<br />
[11]: Nominal displacement, 11

GEAR PUMP<br />
Brand: KRACHT<br />
Materials<br />
Material Housing Grey cast iron EN-GJL 250<br />
Material End cover Grey cast iron EN-GJL 250<br />
Material Gears Steel, case hardened<br />
Seal material FKM<br />
Shaft sealing Double radial lip-type seal for vacuum operation<br />
with connection possibility for Quench<br />
quench tank has to be ordered separately<br />
Bearing Multi component sleeve bearings P10<br />
Product data<br />
Geometrical Displacement 12,58 cm³/r<br />
Direction of rotation clockwise (seen on shaft end)<br />
Type of fixation DIN flange<br />
Outboard bearing no<br />
Type of pipe connection Threaded connection G 3/4"<br />
Shaft end cylindrical ø 14mm<br />
integrated valve no<br />
Mounting position Shaft end horizontal, fluid buffer connection top<br />
Specific data<br />
Operating pressure (suction side) -0,9...+0,2 bar<br />
max. operating pressure (pressure side) 25 bar<br />
(depending on viscosity, speed and power)<br />
Fluid temperature -20°C...+150°C<br />
Ambient temperature -20°C...+60°C<br />
Minimum viscosity 1.4 mm²/s (max. 3 bar)<br />
6 mm²/s (max. 12 bar)<br />
12 mm²/s (max. operating pressure)<br />
Maximum viscosity depending on suction conditions, speed and power<br />
Speed range 200...3600 rpm<br />
(depending on pressure, viscosity and power)<br />
<div>
<div class="gtx-trans-icon"></div>
</div>

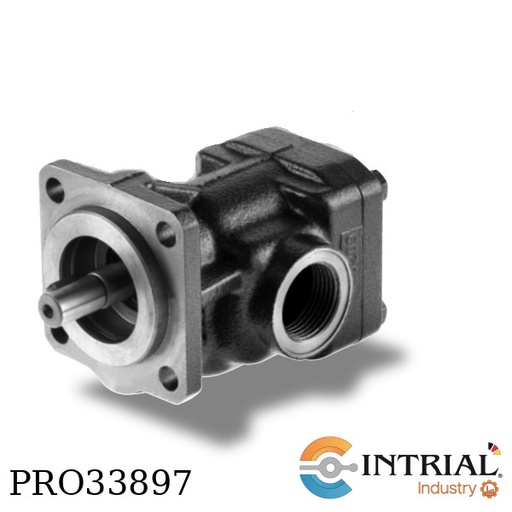

TRANSFER GEAR PUMPS<br />
Brand: KRACHT<br />
Product name, KF<br />
[80]: Nominal size, 80<br />
[R]: Direction of rotation, Right<br />
[F]:Mounting, DIN flange without outboard bearing<br />
[7]: Seal type, Double rotary shaft seal FKM<br />
[74]: Pump with double rotary shaft lip seal<br />
for vacuum operation with mounting hole for<br />
liquid seal (quench), inner rotary shaft lip seal
<div>
<div class="gtx-trans-icon"></div>
</div>

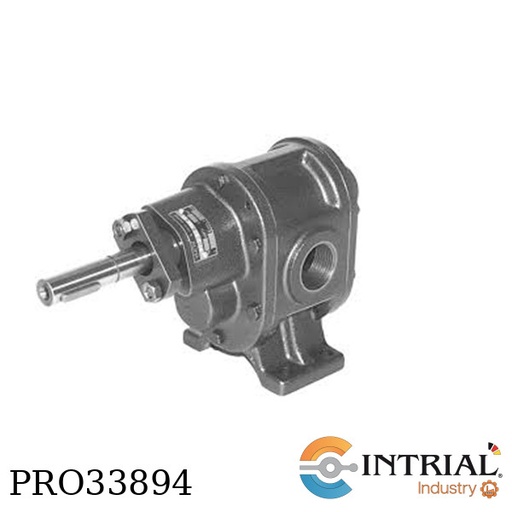

TRANSFER GEAR PUMPS<br />
Brand: KRACHT<br />
Direction of rotation; Whitworth pipe thread<br />
Construction of housing and friction bearing; iron bearing bush<br />
Construction of gear unit; Steel shafts and gear <br />
Kind of sealing; Arolan
