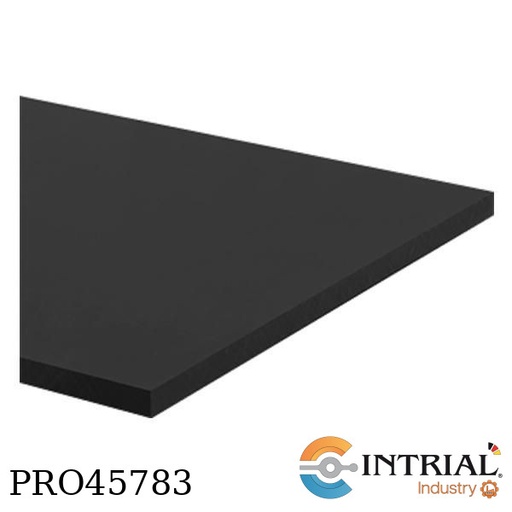

UHMW POLYETHYLENE SHEETS <br />
BRAND: MCMASTER<br />
12 ’’ X 12 ’’ Y 1 ’’ thick<br />
Color: Black<br />
Temperature Range: -40° to 180° F<br />
Tensile Strength: 2,600-5,800 psi (Poor)<br />
Impact Strength: No Break (Excellent)<br />
Hardness: Durometer 60D-65D (Medium)<br />
For Use Outdoors: Yes<br />
Specifications Met: UL 94 HB

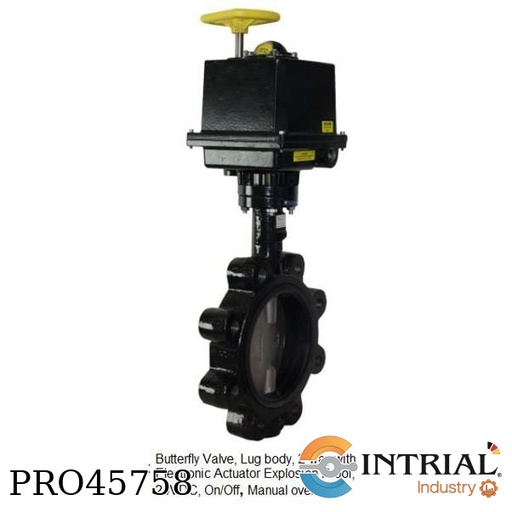

<strong>SERIES WE20 | W.E. ANDERSON BUTTERFLY VALVE<br />
Brand: Dwyer<br />
Model: WE20-DTH05-LE-D<br />
SPECIFICATIONS:</strong><br />
Service: Compatible liquids, gases, and steam.<br />
Body:  2-way, wafer, or lug butterfly.<br />
Line Sizes:  2˝ to 12˝.<br />
End Connections: Lug and wafer<br />
pattern designed for flanges that are<br />
ANSI Class 125 (B16.1) and ANSI Class<br />
150 (B16.5) dimension.<br />
Pressure Limits: 225 psi (15.5 bar).<br />
Standard Features: Position indicator<br />
and two limit switches<br />
Housing Material: Powder coated aluminum.<br />
Temperature Limits: -22 to 140°F (-30 to 60°C).<br />
Electrical Connection: 1/2˝ female NPT<br />
Modulating Input: 4-20 mA.<br />
Enclosure Rating, NEMA 7, designed to meet hazardous locations: Class I, Group C <br />
& D; Class II, Group E, F, & G; Division I & II.<br />
[WE20] SERIES Butterfly valve<br />
[DTH05] Valve Size, 4˝  Explosion Proof Electric Two-Position<br />
[LE] Body Type & Liner: Lug, EDPM<br />
[D] Electric Actuator Voltage 24VDC

<strong>SERIES WE20 | W.E. ANDERSON BUTTERFLY VALVE<br />
Brand: Dwyer<br />
Model: WE20-ATH03-LE-D</strong><br />
SPECIFICATIONS:<br />
Service: Compatible liquids, gases, and steam.<br />
Body:  2-way, wafer, or lug butterfly.<br />
Line Sizes:  2˝ to 12˝.<br />
End Connections: Lug and wafer<br />
pattern designed for flanges that are<br />
ANSI Class 125 (B16.1) and ANSI Class<br />
150 (B16.5) dimension.<br />
Pressure Limits: 225 psi (15.5 bar).<br />
Standard Features: Position indicator<br />
and two limit switches<br />
Housing Material: Powder coated aluminum.<br />
Temperature Limits: -22 to 140°F (-30 to 60°C).<br />
Electrical Connection: 1/2˝ female NPT<br />
Modulating Input: 4-20 mA.<br />
Enclosure Rating, NEMA 7, designed to meet hazardous locations: Class I, Group C <br />
& D; Class II, Group E, F, & G; Division I & II.<br />
[WE20] SERIES Butterfly Valve<br />
[ATH03] Valve Size, 2", Explosion Proof Electric Two-Position<br />
[LE] Body Type & Liner: Lug, EDPM<br />
[D] Electric Actuator Voltage 24VDC

<strong>VENTILATEUR PORTABLE GAINABLE <br />
Brand: SECOMAT chauffage<br />
Model : B30</strong><br />
DIAMETRE 300mm<br />
DEBIT DE AIRE 3900 M3/h<br />
Alimentacion: 230 - 1 50 Hz<br />
PUISSANCE 520W<br />
PRESSION DISPONIBLE 370 Pa<br />
Longitud  de GAINE MAXI 10 M<br />
INDICE DE PROTECTION IP22<br />
PEUT ETRE EN SOUFFLAGE OU EN ASPIRATION
<div></div>

Accessories Mounting systems<br />
Brand: SICK<br />
One-sided stator coupling<br />
slot, slot radius 32.25 mm to 141.75 mm<br />
slot width 5.1 mm<br />

BOMBA DOSIFICADORA INVIKTA<br />
Marca: SEKO<br />
5 LPH - 5BAR - 230VAC<br />
CON OPCION SALIDA A NIVEL 31.7 GPD

FAN<br />
BRAND: DELTA GROUP<br />
12 VDC<br />
50 X 50 MM<br />
.16 AMP<br />
1.92 WATTS<br />
AIR FLOW 20.3 CFM<br />
7000 RPM<br />
2 WIRE LEADS

VALVULA ESFERICA<br />
Marca: APOLLO<br />
Medida nominal: 3”<br />
Estilo final: FNPT<br />
La calificación de presión: 150 psig<br />
Tipo de puerto Estándar<br />
Material de la bola: Acero inoxidable 316<br />
Cuerpo material: Acero inoxidable<br />
Material de acabado: Vástago de acero inoxidable 316 y asiento MPTFE

ELECTROBOMBAS CENTRÍFUGAS<br />
Marca: SPERONI<br />
Potencia 1 (kW):0.75<br />
Potencia 2 (kW):1.2 <br />
Corriente (A):5.5<br />
Voltaje (Vac):220

SOLENOID VALVE<br />
Marca: BURKERT<br />
Numero de Parte: 2031-393595<br /><br />
Especificaiones:<br />
Model: 2031-A-2-25,0-AD-VP-GM86-C-F-NO01+NO05+PX51<br />
[2031]  Tipo     2031<br />
[A] función control     NORMALMENTE CERRADA<br />
[2] Vias/posiciones 2 VIAS / 2 POSICIONES<br />
[25,0] Tamaño orificio   25 25 25MM (1"")<br />
[AD] Material junta    EPDM (CERTIFICADO FDA, E03)<br />
[VP] Material     24602<br />
[GM86] Conexión  1" GAS<br />
[C ] Versión actuador       ESTANDARD-MODEL / INOX (PA-A CTU<br />
[F] Tamaño actuador    DM 80MM<br />
Carasterística especial<br />
[NO01] EXTERIOR GRANALLADO RA<br />
[NO05] INTERIOR GRANALLADO RA<br />
[PX51] EPS 18 ATEX 2 008 X / <br />
IECEx EPS 18.0007 X mech. Ex h IIC T4 Gb / Ex h IIIC <br />
T135°C Db<br />

Válvulas a solenoide de dos vías.<br />
Marca: Jefferson.<br />
Posición: Horizontal.<br />
Diámetro: 3” npt<br />
Cuerpo de latón forjado.<br />
Asiento de teflón (PTFE) hasta 180°C.<br />
Bobina a prueba de explosión 12 Vdc.

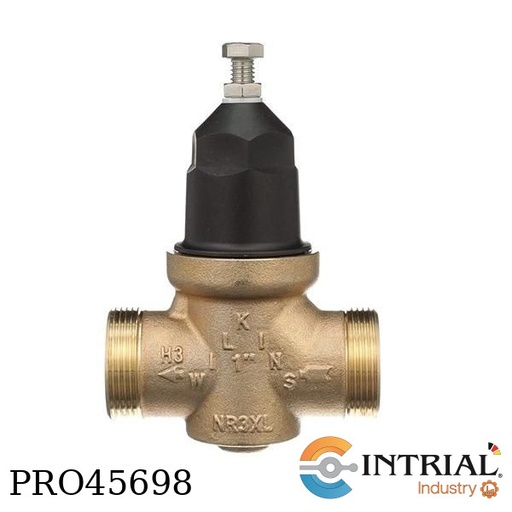

VÁLVULA REDUCTORA DE PRESIÓN<br />
Marca: ZURN<br />
Material: Latón<br />
Tipo de conexión de salida: FNPT<br />
Conexión: ½”

FAN KIT<br />
BRAND:  ALLEN BRADLEY<br />
WITH HEAT SINK<br />
POWERFLEX 70

COIL<br />
BRAND:GW LISK<br />
1-5/16 INCH OUTSIDE DIAMETER<br />
1 INCH INSIDE DIAMETER<br />
110/120V COIL<br />
50/60 HZ<br />
12V DC<br />
2 WIRE<br />

SOLENIOD VALVE DIRECTIONAL<br />
BRAND: PARKER<br />
110/120 VAC<br />
50/60HZ<br />
D3W SERIES<br />
DOUBLE SOLENOID<br />
3 POSITION<br />
SPRING CENTERED<br />
NFPA D05 (CETOP 5NG 10)<br />

FILTER PAPER<br />
Brand: Stauff<br />
10mm<br />
Diameter: 93.2 (3.67)<br />
Length: 147 (5.76)<br />
Element Thread: 1-12 UNF<br />
Beta Ratio: ß10 ≥ 2<br />
Dirt Holding Capacity: 14.4<br />
Maximum Working Pressure: 14 bar (200 PSI)<br />


<strong>Gear pump SF 3/50 RD - VLFM<br />
Brand: STEIMEL<br />
Model: ASF3-50RD</strong><br />
gear pump unit : SF 3/50 RD - VLFM<br />
STEIMEL part-no. : ASF3/50RD-(...) R<br />
dimensional drawing : DPA053D-112LFM-R31<br />
list of spare parts : DET053050RD--165R<br />
suction and pressure<br />
connections : SAE 1 1/2<br />
materials:<br />
casing parts : EN-GJL-250 (GG-25)<br />
pinion shafts,<br />
noise optimised : 16MnCrS5, egh., helical toothed<br />
bearing : multilayer MD<br />
shaft seal : radial shaft seal<br />
elastomers : FKM<br />
flow medium : lube oil<br />
viscosity : 50-5000 cSt<br />
flow rate : approx. 56 ltr/min<br />
pressure : 5 bar<br />
speed : 1170 1/min<br />
pressure reliev valve<br />
range of adjustment : 2-18 bar<br />
opening pressure : 8 bar<br />
sense of rotation : clockwise<br /><br /><strong>coupling : BKUA055-1928-301</strong><br />
base bracket of pump : BLF053250128LA21<br /><br /><strong>three phase motor : LDM ...</strong><br />
power : 3,0 HP (2,2 kW) <br />
speed : 1200 1/min<br />
voltage : 265/460 Volt<br />
efficiency class : IE3<br />
frequency : 60 Hz<br />
degree of protection : IP 55<br />
Insulation class : F<br />
special feature : Design according to<br />
UL Acceptance test certificate<br />
according to EN10204-3.1<br />
form of construction : B 5<br />
finish : without<br />
name plate : ETY924-D/E-PE02<br /><strong>*Serial no PU121046</strong>

Gear pump SF6/132RD-O<br />
Brand: STEIMEL<br />
Model: BZP056132RD--165R<br />
Spesifcinations:<br />
gear pump : SF 6/132 RD<br />
SEIMEL part-no. : BZP056132RD--165R<br />
list of spare parts : DET056132RD--165R<br />
suction and pressure<br />
connections : SAE 2 ½<br />
casing parts : EN-GJL-250 (GG-25)<br />
shafts : 16 Mn Cr S 5, hardened<br />
gear wheels, noise-optimized : EN-GJS-400-15 (GGG-40)<br />
helical toothed, ionitrided<br />
shaft sealing : radial shaft sealing ring<br />
elastomers : FKM<br />
bearing : multilayer MD<br />
flow medium : Schmieröl<br />
viscosity : 50 - 5000 cSt.<br />
temperature : 10-60°C<br />
flow rate : approx. 185 / 222 ltr/min.<br />
pressure : 5 bar<br />
speed : 1450 / 1750 1/min.<br />
pressure relief valve<br />
range of adjustment : 2-16 bar<br />
opening pressure : 8 bar<br />
sense of rotation : clockwise<br />
test run : yes, with HLPD 46<br />
finish : primer HDO058<br />
type plate : ETY924-D-E--PE01<br />
<br />
* Serial no. PU132238

<strong>Gear pump<br />
Brand: STEIMEL<br />
Model: PSF6-132RD132238R</strong><br />
Spesifcinations:<br />
gear pump : SF 6/132 RD - VLF<br />
part-no. : PSF6-132RD132238R<br />
dimensional drawing : DPA056D-160LFM-R31<br />
list of spare parts : DET056132RD--165R<br />
suction and pressure<br />
connections : SAE 2 ½<br />
casing parts : EN-GJL-250 (GG-25)<br />
shafts : 16 Mn Cr S 5, case-hardened<br />
gear wheels, noise-optimized : EN-GJS-400-15 (GGG-40),<br />
helical toothedn ionitrided<br />
shaft sealing : radial shaft sealing ring<br />
elastomers : FKM <br />
bearing : multilayer <br />
flow medium : lube oil<br />
viscosity : 50 - 5000 cSt.<br />
temperature : 10-60°C<br />
flow rate : approx. 185 ltr/min.<br />
pressure : 5 bar<br />
speed : 1450 1/min.<br />
pressure relief valve<br />
opening pressure : 8 bar<br />
range of adjustment : 2-16 bar<br />
sense of rotation : clockwise<br />
test run : yes, with HLPD 46<br /><br /><strong>coupling : BKUA095-2442-301</strong><br />
pump mount with base : BLF056350188LA21<br />
suitable for<br />
three-phase motor:<br />
form / size : B 5 / IEC 160<br />
finish : primer HDO058-green<br />
type plate : ETY924-D-E--PE01<br />
motor installation screws : 4 x IBO16x035/10.9VZ (zinced loose<br />
screwed in pump mount<br />
* Serial no: PU132238

PUMP REPAIR KIT<br />
BRAND: WARREN RUPP SANDPIPER<br />
2 IN PUMP<br />
Diaphragms; Gasket; Check Balls
