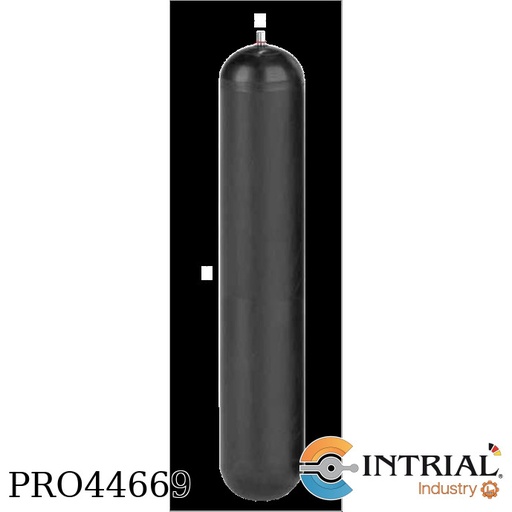

VEJIGA ACUMULADOR EHV50-330/90 D22 MM<br />
CON LA CAÑA DE VALVULA CON DIAMETRO 50MM, PRESION MAXIMA 330 BAR. THE OLAER GROUP<br />
11044600225

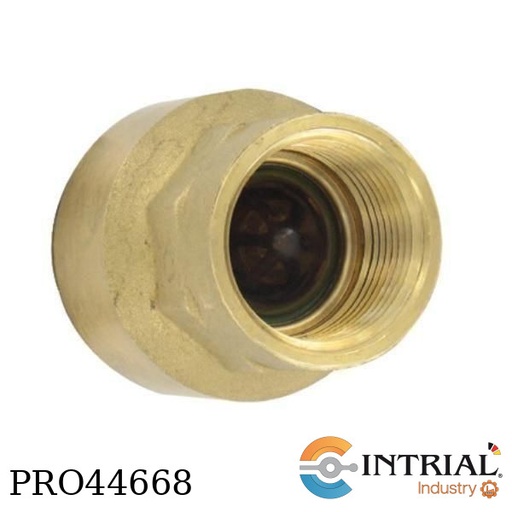

BRASS INLINE CHECK VALVE<br />
Brand: DWYER<br />
Service: Liquids and gases compatible with wetted material.<br />
Body: 1-piece.<br />
Process Connection: Female NPT.<br />
Process Connection: Female NPT.<br />
Connection Size: 1/2˝<br />
Pressure Limits: 400 PSI<br />
Wetted Materials: Fluoroelastomer

BRASS INLINE CHECK VALVE<br />
Brand: DWYER<br />
Service: Liquids and gases compatible with wetted material.<br />
Body: 1-piece.<br />
Process Connection: Female NPT.<br />
Process Connection: Female NPT.<br />
Connection Size: 1˝<br />
Pressure Limits: 400 PSI<br />
Wetted Materials: Fluoroelastomer

BRASS INLINE CHECK VALVE<br />
Brand: DWYER<br />
Service: Liquids and gases compatible with wetted material.<br />
Body: 1-piece.<br />
Process Connection: Female NPT.<br />
Process Connection: Female NPT.<br />
Connection Size: 3/4˝<br />
Pressure Limits: 400 PSI<br />
Wetted Materials: Fluoroelastomer

BRASS INLINE CHECK VALVE<br />
Brand: DWYER<br />
Service: Liquids and gases compatible with wetted material.<br />
Body: 1-piece.<br />
Process Connection: Female NPT.<br />
Process Connection: Female NPT.<br />
Connection Size: 1-1/2˝<br />
Pressure Limits: 400 PSI<br />
Wetted Materials: Fluoroelastomer

BRASS FLAP CHECK VALVE<br />
Brand: DWYER<br />
Service: Gases, steam and liquids compatible with wetted materials.<br />
End Connections: 1/2˝ NPT.<br />
Maximum Pressure: 200 psi (13.8 bar); 150 psi steam (10.3 bar).<br />
Temperature Limit: -20 to 180°F (-28.9 to 82°C).<br />
Wetted Materials: Body and disc: Brass.<br />
Other Materials: Cap and nut: Brass.

BRASS FLAP CHECK VALVE<br />
Brand: DWYER<br />
Service: Gases, steam and liquids compatible with wetted materials.<br />
End Connections: 1˝ NPT.<br />
Maximum Pressure: 200 psi (13.8 bar); 150 psi steam (10.3 bar).<br />
Temperature Limit: -20 to 180°F (-28.9 to 82°C).<br />
Wetted Materials: Body and disc: Brass.<br />
Other Materials: Cap and nut: Brass.

BRASS FLAP CHECK VALVE<br />
Brand: DWYER<br />
Service: Gases, steam and liquids compatible with wetted materials.<br />
End Connections: 3/4˝ NPT.<br />
Maximum Pressure: 200 psi (13.8 bar); 150 psi steam (10.3 bar).<br />
Temperature Limit: -20 to 180°F (-28.9 to 82°C).<br />
Wetted Materials: Body and disc: Brass.<br />
Other Materials: Cap and nut: Brass.

BRASS FLAP CHECK VALVE<br />
Brand: DWYER<br />
Service: Gases, steam and liquids compatible with wetted materials.<br />
End Connections: 1-1/2˝ NPT.<br />
Maximum Pressure: 200 psi (13.8 bar); 150 psi steam (10.3 bar).<br />
Temperature Limit: -20 to 180°F (-28.9 to 82°C).<br />
Wetted Materials: Body and disc: Brass.<br />
Other Materials: Cap and nut: Brass.

FILTRO P/COMBUSTIBLE 1"NPT<br />
Marca: CIM TEK<br />
30MIC<br />
25GPM

PORTA FILTRO DOBLE<br />
Marca: CIM-TEK<br />
1.5"<br />
60GPM<br />
C/ELEM.30MIC.

PORTA FILTRO SIMPLE 1"<br />
Marca: CIM-TEK<br />
30GPM<br />
C/ELEMENTO

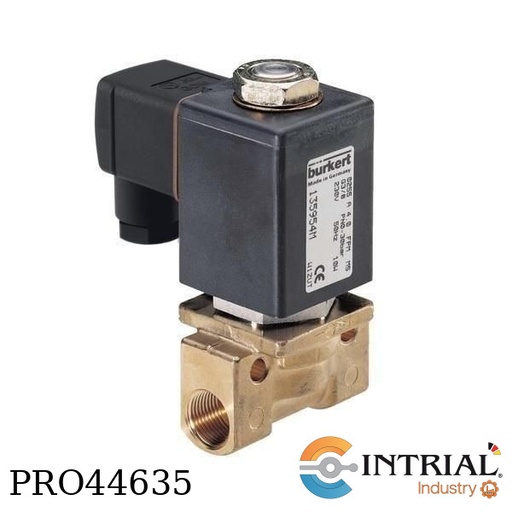

Modelo: 0255-A-06,0-EF-VA-GM84-024/50-10+JH78+KC74<br />
ELECTROVALVULA 2/2<br />
Marca: BURKERT<br />
Tipo 0255<br />
A: Función circuito 2/2 VIAS; NORMALMENTE CERRAD<br />
06,0: Tamaño orificio 6,0MM (1/4"")<br />
EF: Material junta PTFE-ASIENTO / JUNTA - FKM<br />
VA: Material ACERO INOXIDABLE<br />
GM84: Conexión ROSCA G1/2<br />
024: Voltaje 24 V<br />
50: Frecuencia 50 Hz<br />
10: Consumo 10 W<br />
JH78: Cable plug type 2518 (00361687), without wiring 3 poles, 0-250 V AC/DC, silicone seal<br />
KC74: CON YOKE DE MONTAJE

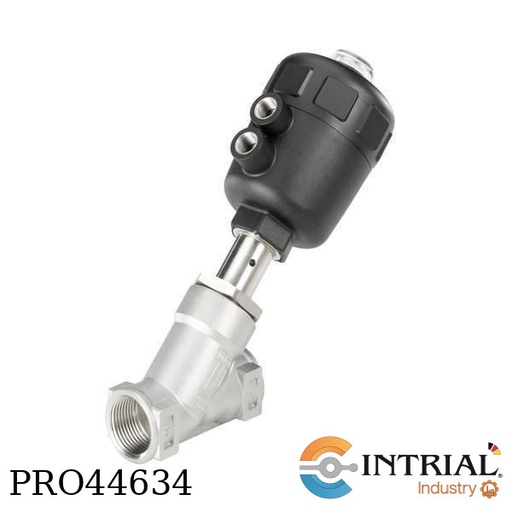

Modelo: 2000-A-2-20,0-EE-VA-GM85-D-D+MC13+MS74+PX51<br />
2/2-WAY ANGLE SEAT VALVE<br />
Marca: BURKERT<br />
Tipo 2000<br />
A:Función control NORMALMENTE CERRADA<br />
2:Vías/posiciones 2 VIAS / 2 POSICIONES<br />
20.0: Tamaño orificio 20MM (3/4"")<br />
EE: Material junta PTFE<br />
VA: Material ACERO INOXIDABLE<br />
GM85: Conexión ROSCA G3/4<br />
D: Versión actuador-ALTA TEMP. / INOX <br />
D: Tamaño actuador: 50MM<br />
MC13: Característica especial FLUJO POR ENCIMA DEL ASIE NTO<br />
MS74: MONTAJE ACC 2000BG21 AN<br />
PX51: EPS 18 ATEX 2 008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4 Gb / Ex h IIIC T135°C Db

GEAR PUMP<br />
Brand: KRACHT<br />
Materials<br />
Material Housing Grey cast iron EN-GJL 250<br />
Material End cover Grey cast iron EN-GJL 250<br />
Material Gears Steel, case hardened<br />
Seal material FKM<br />
Shaft sealing Single radial lip-type seal<br />
Bearing Multi component sleeve bearings P10<br />
Product data<br />
Geometrical Displacement 20,10 cm³/r<br />
Direction of rotation clockwise (seen on shaft end)<br />
Type of fixation DIN flange<br />
Outboard bearing no<br />
Type of pipe connection Flange connection G 1"<br />
Shaft end cylindrical ø 14mm<br />
Integrated valve D-valve 0...15 bar<br />
Version noise optimized for fluids with increased air<br />
percentage<br />
Mounting position optional<br />
Specific data<br />
Operating pressure<br />
(suction side) -0.4...+4 bar (max 1500 rpm),<br />
-0.4...+3 bar (max 2000 rpm)<br />
-0.4...+2 bar (max 3000 rpm),<br />
-0.4...+1.5 bar (max 3600 rpm)<br />
Fluid temperature -20°C...+150°C<br />
Ambient temperature -20°C...+60°C<br />
Minimum viscosity 1.4 mm²/s (max. 3 bar)<br />
6 mm²/s (max. 12 bar)<br />
12 mm²/s (max. operating pressure)<br />
Maximum viscosity depending on suction conditions, speed and power<br />
Speed range 200...3600 rpm<br />
(depending on pressure, viscosity and power)<br />


GEAR PUMP<br />
Brand: KRACHT<br />
Materials<br />
Material Housing Grey cast iron EN-GJL 250<br />
Material End cover Grey cast iron EN-GJL 250<br />
Material Gears Steel, case hardened<br />
Seal material FKM<br />
Shaft sealing Single radial lip-type seal<br />
Bearing Multi component sleeve bearings P10<br />
Product data<br />
Geometrical Displacement 12,58 cm³/r<br />
Direction of rotation clockwise (seen on shaft end)<br />
Type of fixation DIN flange<br />
Outboard bearing no<br />
Type of pipe connection Flange connection G 3/4"<br />
Shaft end cylindrical ø 14mm<br />
Integrated valve D-valve 0...15 bar<br />
Version noise optimized for fluids with increased air<br />
percentage<br />
Mounting position optional<br />
Specific data<br />
Operating pressure<br />
(suction side) -0.4...+4 bar (max 1500 rpm),<br />
-0.4...+3 bar (max 2000 rpm)<br />
-0.4...+2 bar (max 3000 rpm),<br />
-0.4...+1.5 bar (max 3600 rpm)<br />
max. operating pressure (pressure side) 25 bar<br />
(depending on viscosity, speed and power)<br />
Fluid temperature -20°C...+150°C<br />
Ambient temperature -20°C...+60°C<br />
Minimum viscosity 1.4 mm²/s (max. 3 bar)<br />
6 mm²/s (max. 12 bar)<br />
12 mm²/s (max. operating pressure)<br />
Maximum viscosity depending on suction conditions<br />
speed and power<br />
Speed range 200...3600 rpm<br />
(depending on pressure, viscosity and power<br /><br /><br />

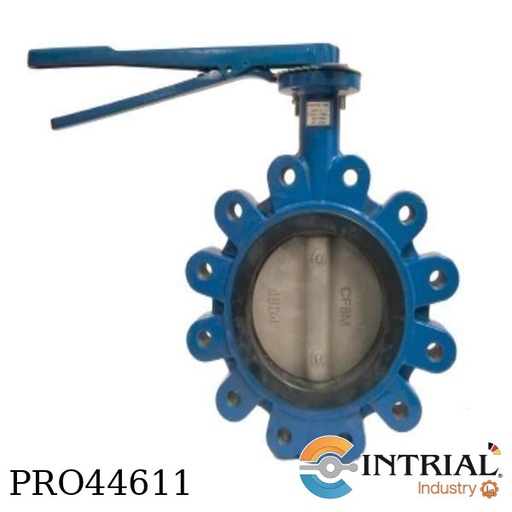

VALVULA MARIPOSA <br />
Marca: AMERICAN WHEATLEY<br />
4" <br />
EPDM Seat<br />

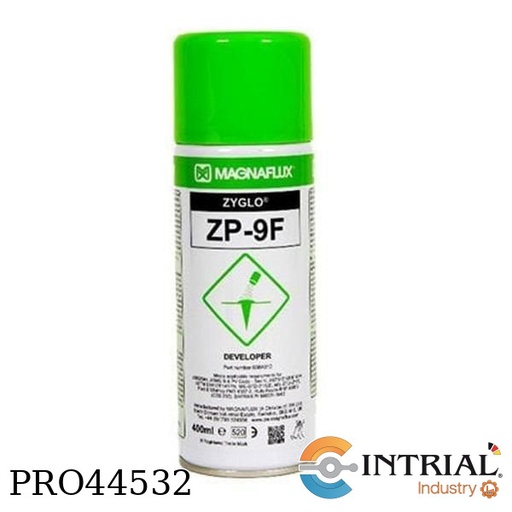

REVELADOR BASE SOLVENTE<br />
Brand: MAGNAFLUX<br />
Formas: d/e<br />
Tipo: 1y 2<br />
Densidad: 6,5 lb/gal (780 g/L)<br />
Sin NPE: Sí<br />
Cobertura: 1 lata de aerosol cubrirá aproximadamente 65 ft2 (6 m2) 1 gal cubrirá aproximadamente 800 ft2 (74 m2)<br />
QPL SAE AMS 2644<br />

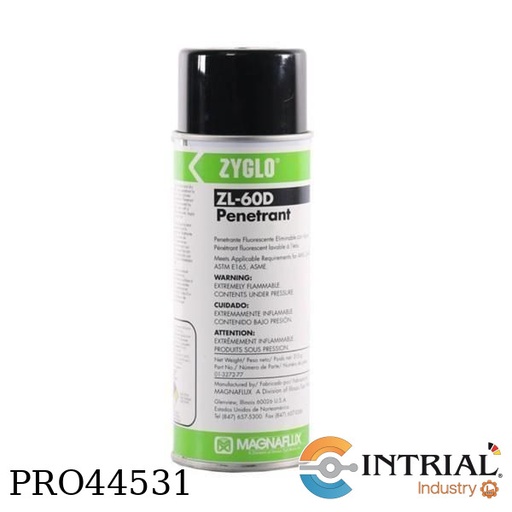

PENETRANTE FLUORESCENTE NIVEL 2 LAVABLE AL AGUA<br />
Marca: MAGNAFLUX<br />
Punto de inflamación >200 °F/93 °C<br />
Densidad 0,92 g/cc/7,65 lb/gal<br />
Viscosidad (a 100 °F/38 °C) 10,27 cs<br />
Sin NPE Sí<br />

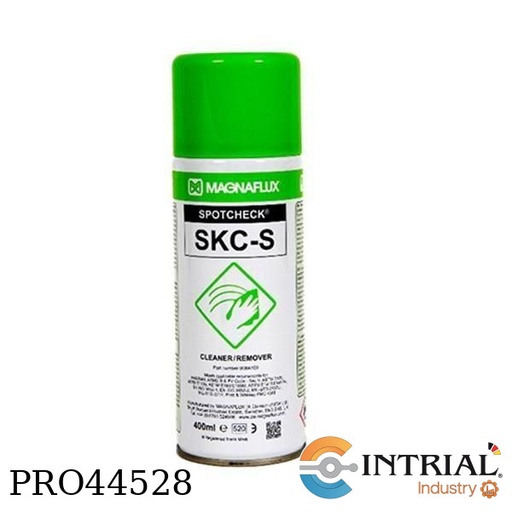

LIMPIADOR Y REMOVEDOR PARA NDT<br />
Marca: MAGNAFLUX<br />
270 gr.<br />
Removedor no halogenado AMS 2644<br />
clase 2<br />
Secado rápido<br />
No deja residuos<br />
Adecuado para usarse en bajas temperaturas<br />
Compatible con aleaciones<br />
