FILTER ELEMENT<br />
Brand: INTERNORMEN

PUMP<br />
Brand: GENERAL PUMPS<br />
Maximum Volume: 0.8 GPM<br />
Maximum Discharge Pressure 1,500 PSI<br />
Maximum Pump Speed 1750 RPM<br />
Rated Inlet Pressure 125 PSI<br />
Plunger Bore (in / mm) .709/18 mm<br />
Plunger Stroke (in / mm): .118 in/3mm<br />
Crankcase Oil Capacity 8.5 oz.<br />
Maximum Fluid Temperature 185o F<br />
Inlet Port Thread 1/2" NPT-F<br />
Discharge Port Thread 3/8" NPT-F<br />
Shaft Diameter 5/8" Hollow

ELBOW<br />
Brand: CAT PUMPS<br />
Assembly<br />
2-1/2

FITTING <br />
Brand: CAT PUMPS<br />
2 NPT

FITTING<br />
Brand: CAT PUMPS<br />
1-1/2 NPT

INLET STABILIZERS<br />
Brand: CAT PUMPS<br />
2-1/2"

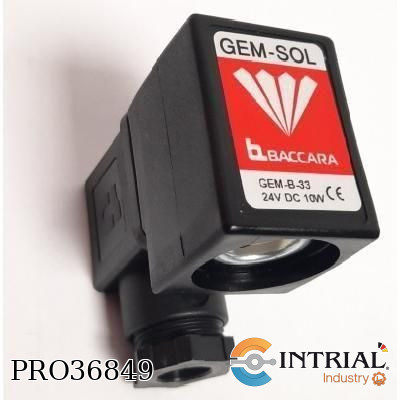

SOLENOID VALVES<br />
Brand: BACCARA<br />
VOLTAGE: 24<br />
POWER: DC10W<br />
Coil winding insulation H 180ºC<br />
Temperature range Coil : -20ºC to 150ºC | Ambient : -20ºC to 70ºC<br />
Duty cycle 100% ED

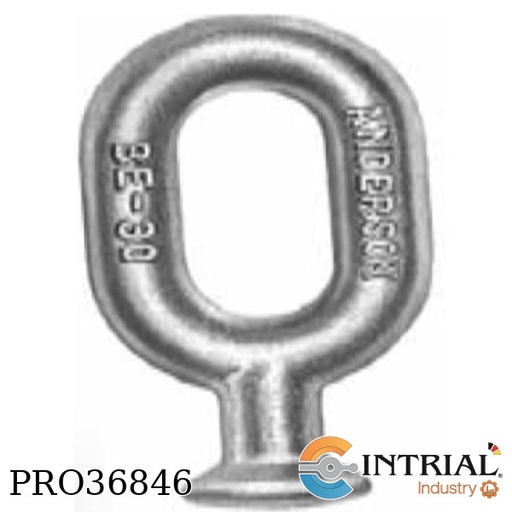

BALL EYE<br />
Brand: HUBBELL<br />
Forged Steel<br />
Eye: 1.000 x 2.000" Opening x 0.688" Thick<br />
UTS 30,000 lb<br />
For use with ANSI class 52-3 & 5<br />

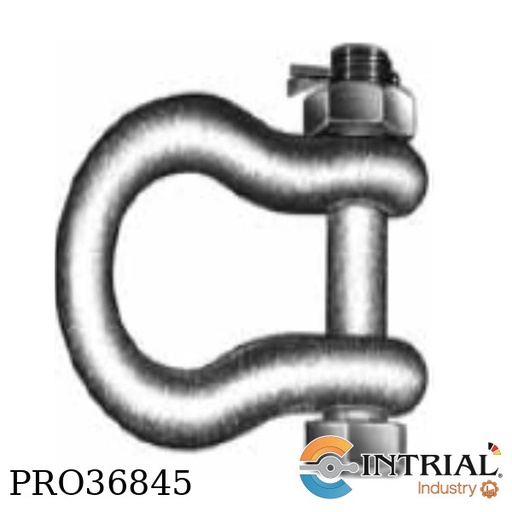

ANCHOR SHACKLE<br />
Brand: HUBBELL-ANDERSON<br />
Model: AS25LBNK<br />
Material, Steel<br />
Material-Pin (Clevis), Galvanized Steel<br />
Material-Pin (Cotter), Stainless Steel<br />
Strength Rating-Ultimate, 30000 lb<br />
Clevis Opening, 0.875 in<br />
Dimensions, 3.01 in x 1.76 in x 1.38 in<br />
Length-Coupling, 2.781 in

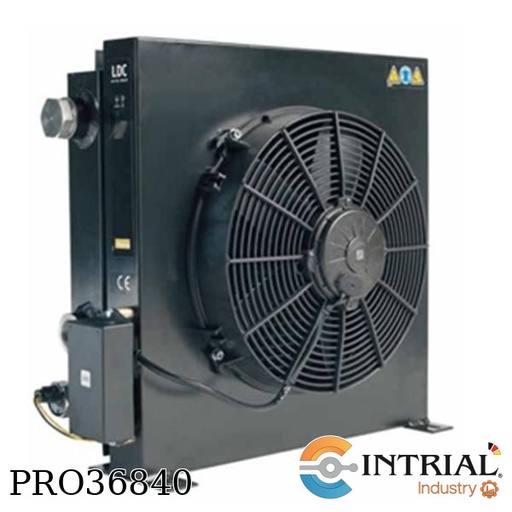

KEY FOR LDC AIR OIL COOLERS<br />
Brand: OLAER<br />
COOLER SIZE: 007<br />
MOTOR VOLTAGE: 24 V

KEY FOR LDC AIR OIL COOLERS<br />
Brand: OLAER<br />
COOLER SIZE: 007<br />
MOTOR VOLTAGE: 12 V

KEY FOR LDC AIR OIL COOLERS<br />
Brand: OLAER<br />
COOLER SIZE: 003<br />
MOTOR VOLTAGE: 24 V

KEY FOR LDC AIR OIL COOLERS<br />
Brand: OLAER<br />
COOLER SIZE: 003<br />
MOTOR VOLTAGE: 12 V

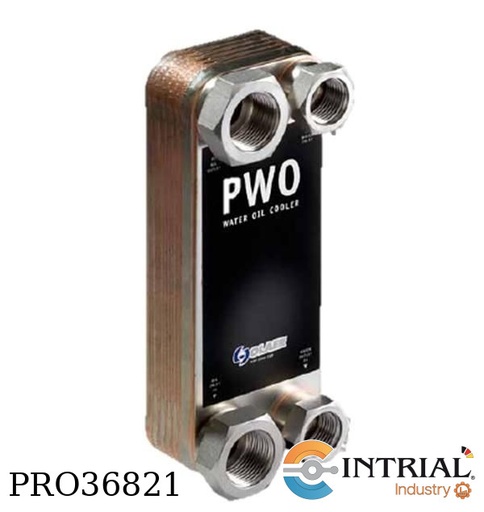

WATER OIL COOLER<br />
Brand: OLAER<br />
Max Work. Temp. “TS °C. Alt.1 (Alt.2): Prim – 155(225); Sec – 155(225)<br />
 Max Work. press. “PS” Bar, Alt.1 (Alt.2): Prim 31(27); Sec – 31 (27)<br />
Test Pressure (PT) Bar: Prim. 50; Sec. 50<br />
Volume (V) L: Prim 1.159; Sec. 1.22<br />
Min work. Temp. (TS): -160 °C

V-BELT<br />
BRAND: GATES<br />
71 IN LENGTH<br />
11/16 IN TOP WIDTH<br />
7/16 IN HEIGHT<br />
COGGED<br />
OIL RESISTANT<br />

BZP053050RD--165R<br />
SF3/50RD-O<br />
GEAR PUMP WITHOUT COUPLING, LANTERN, MOTOR<br />
gear pump : SF 3/50 RD<br />
STEIMEL part-no. : BZP053050RD--165R<br />
dimensional drawing : DMB053D-02R<br />
list of spare parts : DET053050RD--165R<br />
GEAR PUMP WITHOUT COUPLING, LANTERN, MOTOR<br />
Brand: STEIMEL <br />
suction and pressure<br />
connections : SAE 1 1/2<br />
materials:<br />
casing parts : EN-GJL-250 (GG-25)<br />
pinion shafts : case-hardened steel<br />
helical toothed, flange polished<br />
toothing : noise-optimized<br />
bearing : multilayer<br />
shaft sealing : radial shaft sealing ring<br />
elastomers : FKM<br />
flow medium : lube oil<br />
viscosity : 50-5000 cSt<br />
flow rate : approx. 70,8 / 84,9 ltr/min<br />
pressure : 5 bar<br />
speed : 1450 / 1740 1/min<br />
pressure relief valve<br />
range of adjustment : 2-18 bar<br />
opening pressure : 8 bar<br />
sense of rotation : clockwise<br />
finish : primer HDO058-green<br />
test run : yes, withHLPD 46

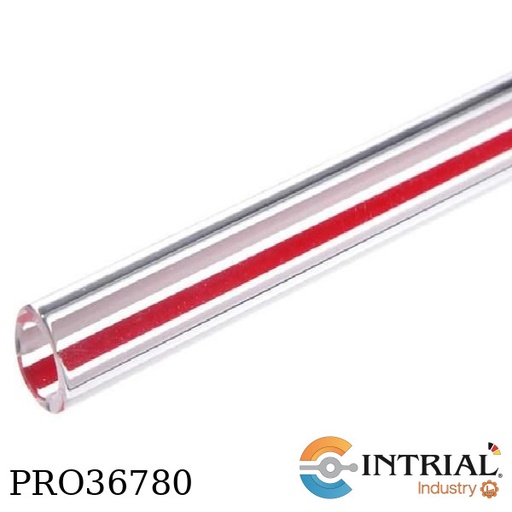

TUBO DE VIDRIO<br />
Marca: DURAN<br />
MATERIAL: VIDRIO<br />
TAMAÑO: 5/8 OD X 48"<br />

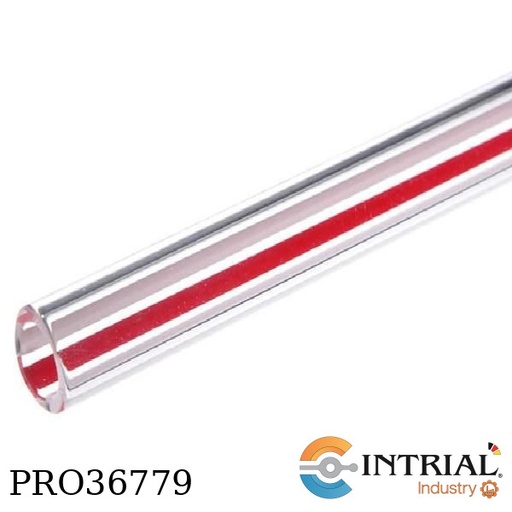

TUBO DE VIDRIO<br />
Marca: DURAN<br />
MATERIAL: VIDRIO<br />
TAMAÑO: 5/8 OD X 24”

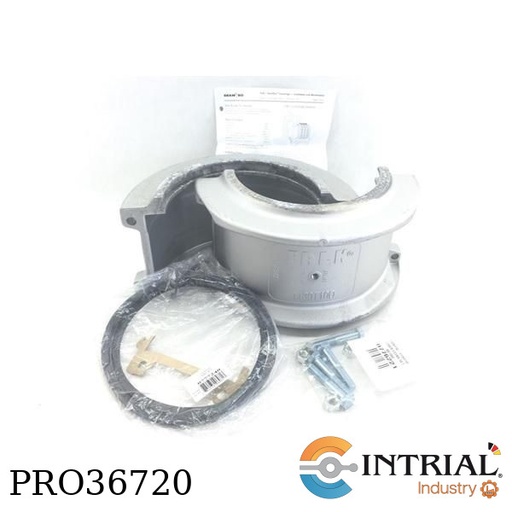

FALK STEELFLEX GRID COUPLINGS<br />
Brand: FALK

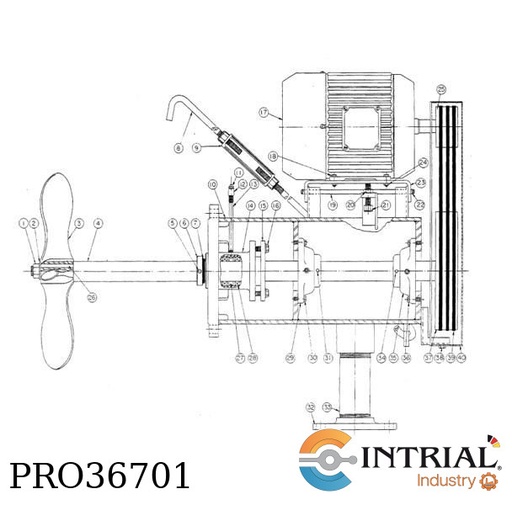

MIXER<br />
Brand: MIX MOR<br />
"V" Belt driven, side entering mixer to be constructed as follows:<br />
Motor: Mixer will be driven by a 7.5 H.P. motor, 1750 R.P.M.<br />
TEFC enclosure, Energy Efficient<br />
Severe Duty for operation on 230/460 volts A.C<br />
three phase, 60 hertz.<br />
V-Belt Drive: Mixer will be complete with heat resistant<br />
Static free, V-belts, sheaves and belt guard<br />
Final output speed will be 420 R.P.M<br />
with a minimum service factor of 1.25<br />
based on motor horsepower.<br />
Mixer Shaft: Shaft will be 2.00” diameter, by 26” long<br />
as measured from the flange facing, constructed of carbon steel.<br />
Mounting Flange: Mixer will mount on an 8”-150# A.N.S.I<br />
forged steel, raised face flange with the bolt holes straddling the vertical centerline<br />
The flange will have a carbon steel facing.<br />
Shaft Seal: Integrally fabricated in the flange will be a Chesterton S10 <br />
single outside mechanical seal with Carbon vsSilicon Carbide seal faces<br />
Viton elastomers and 316 stainless steel metallic components<br />
This seal is rated to 150 psig maximum @ 350F<br />
The seal is designed so that it may be replaced under <br />
a full head of liquid without draining the tank contents.<br />
Impeller: Mixer will be furnished with a 22” diameter<br />
three bladed, FM3<br />
FloMor high efficiency, foil impeller constructed of carbon Steel<br />
The blades will be welded to the hub.<br />
Support: Tie rods and turnbuckles will be supplied for supporting <br />
the mixer to the tank wall.<br />
Torque: 1,131 lb. - in.<br />
Design Bending Moment: 1,527 lb. - in.
