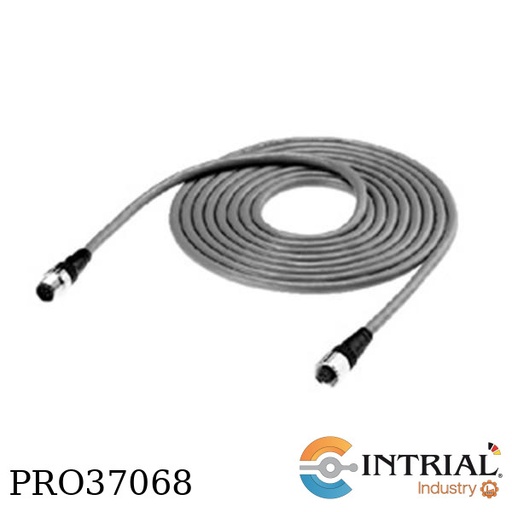

SAFETY LIGHT CURTAIN ACCESSORY<br />
Brand: OMRON

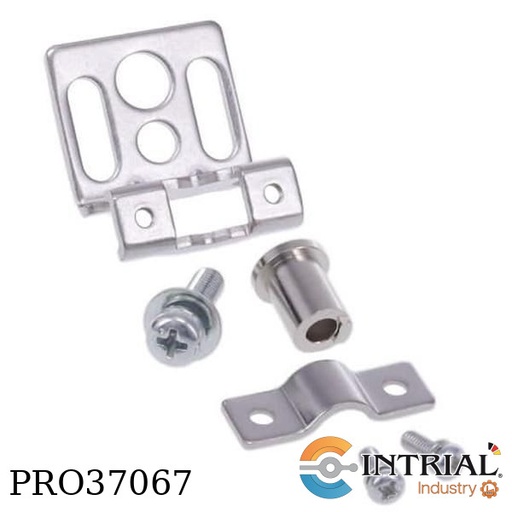

TOP MOUNTING BRACKET<br />
BRAND: OMRON<br />
SAFETY LIGHT CURTAIN<br />

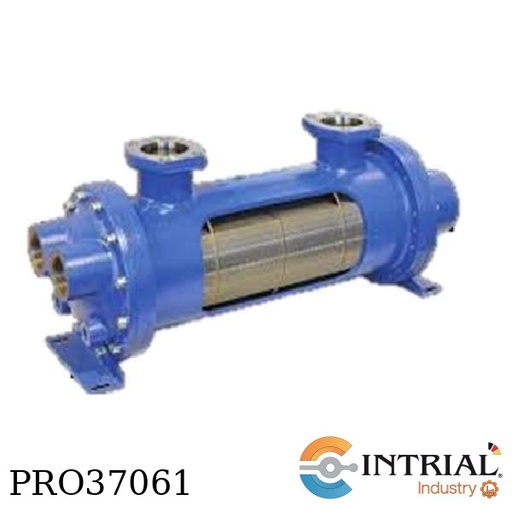

HEAT EXCHANGER<br />
Brand: Universal Hydraulik<br />
Model: EKM-508-T-CN (S:G34-T:G38)<br />
Maximum operating pressure: Shell = up to 20 bar, Tubes = up to 16 bar<br />
Operating temperatura, [5...95]°C<br />
[508]: Unit size<br />
[T]: Cooling water connection system, 2-pass<br />
[CN]: Tube material, Copper nickel<br />
[S]: BSPP thread: G3/4"<br />
[T]: BSPP thread: G3/8"

PUMP<br />
Brand: GENERAL PUMP<br />
Maximum Volume: 0.5 GPM<br />
Maximum Discharge Pressure 1,500 PSI<br />
Maximum Pump Speed 1750 RPM<br />
Rated Inlet Pressure 125 PSI<br />
Plunger Bore (in / mm) .709/18 mm<br />
Plunger Stroke (in / mm) .079 in/2mm<br />
Crankcase Oil Capacity 8.5 oz.<br />
Maximum Fluid Temperature 185o F<br />
Inlet Port Thread 1/2" NPT-F<br />
Discharge Port Thread 3/8" NPT-F<br />
Shaft Diameter 5/8" Hollow<br />
Weight 11.05 lbs.

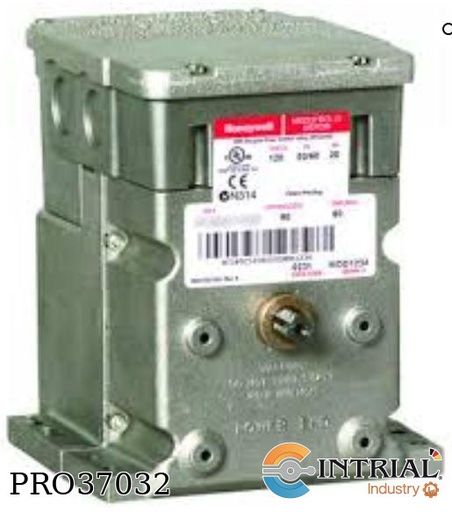

Modutrol IV Rotary Actuador Motor<br />
M7294Q-1007<br />
Brand : HONEYWELL<br />
ACTUATOR,<br />
FOOT MOUNTED,<br />
NON-SPRING RETURN,<br />
120V,<br />
300LB-IN<br />


032U7526<br />
EV 220B 22B, K.V. 6.0 m3/h, N.C.<br />
Válvula Solenoide Normalmente cerrada<br />
Marca: Danfoss<br />
Origen: Dinamarca<br />
Modelo: EV220B<br />
Conexión: 1” NPT<br />
Material de la válvula: Latón<br />
Material del diafragma: FKM<br />
Presión diferencial: 0.1 a 10 Bar<br />
Fluidos: Agua, Aceite, Aire, gases neutros<br />
<br />
BOBINA PARA VALVULA SOLENOIDE<br />
Código de la bobina: 018F7360<br />
Alimentación de la bobina: 110Vac, 10W<br />
<br />
G1NU2000<br />
CAJA TERMINALES, 2 POLOS + TIERRA, DIN43650A<br />
IP65<br />
<br />
042N0845<br />
Bobina AM, 110V 60/50HZ 5.5W<br />
Grado de protección: IP65

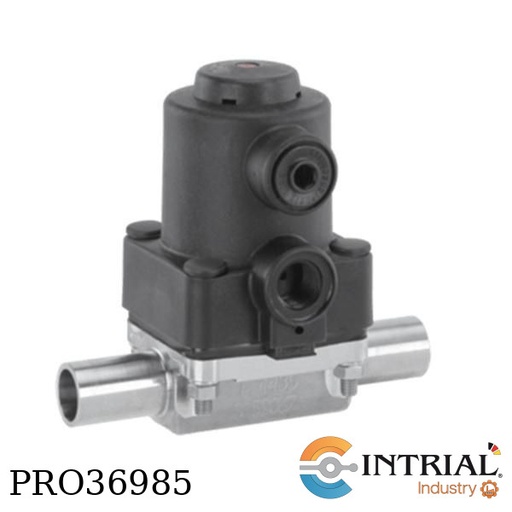

VALVULA DIAFRAGMA<br />
Marca: GEMU <br />
DN: 15 mm (1/2”)<br />
Connection: Butt weld ISO 1127<br />
Control Function: Normally Closed

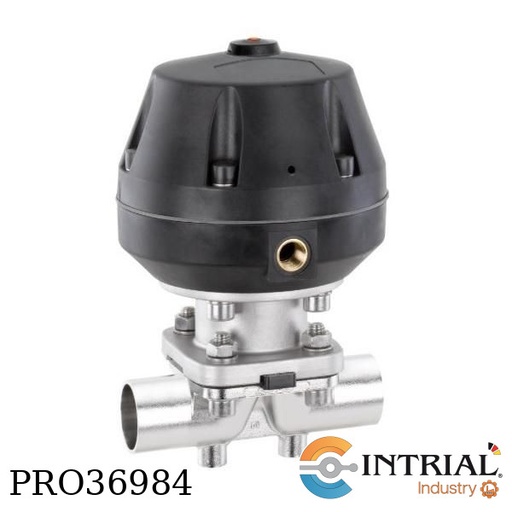

VALVULA DIAFRAGMA<br />
Marca: GEMU <br />
DN: 25 mm (1”)<br />
Connection: Butt weld ISO 1127<br />
Control Function: Normally Closed

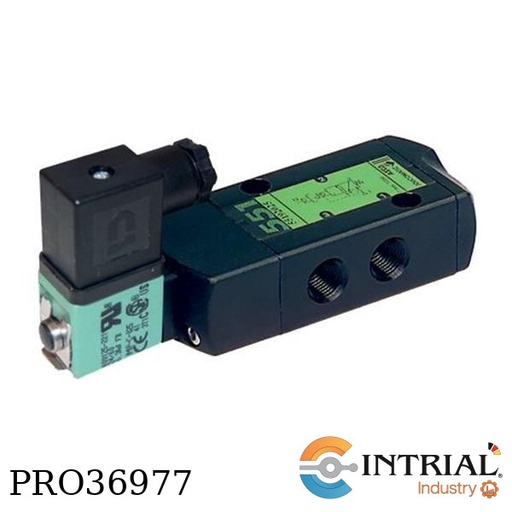

SPOOL VALVES<br />
Brand: ASCO<br />
Voltage 230V AC, 24V AC, 24V DC<br />
Body Aluminium<br />
Function 3/2 NC<br />
Pipe Size G1/4<br />
Flow Coefficient KV (m3/h) 0.75<br />
Flow Coefficient KV (l/min) 12.5<br />
Orifice Size (DN) 6<br />
Media Air<br />
Operating Pressure Differential (BAR) 2-10<br />
Power Coil AC (W) 2.5<br />
Power Coil DC (W) 3<br />
INCLUDES QUALITY CERTIFICATE

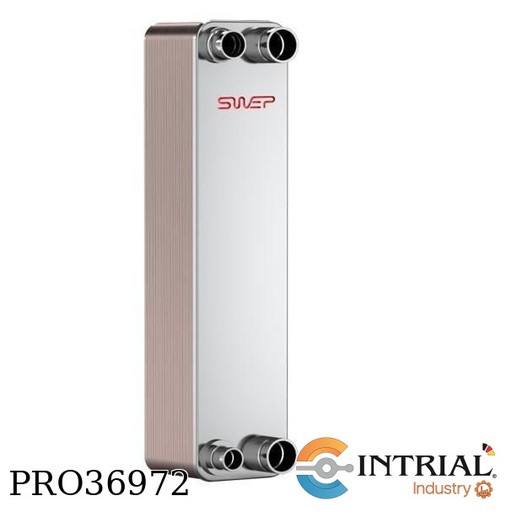

INTERCAMBIADORES DE PLACAS<br />
Brand: SWEP<br />
4x1 1/4"&28U<br />
Maximum number of plates (NoP) 140<br />
Max flow 17 m³/h (74.85 gpm)<br />
Channel volume 0.107/0.107 dm³ (0.0038/0.0038 ft³)<br />
Material 316 stainless steel plates, stainless steel brazing<br />

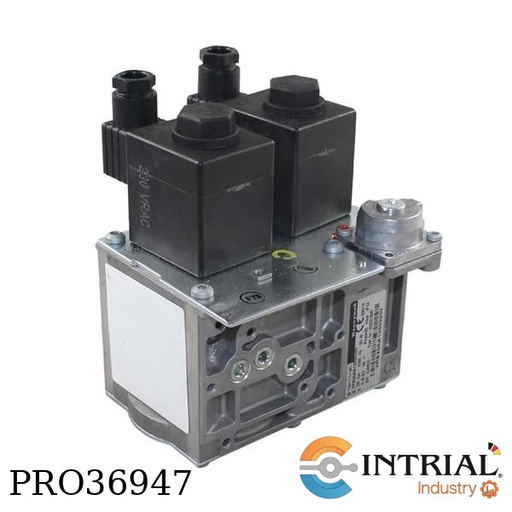

VÁLVULA DE GAS<br />
Marca: HONEYWELL<br />
25: DN25 (1”)<br />
Pressure regulator<br />
fast opening

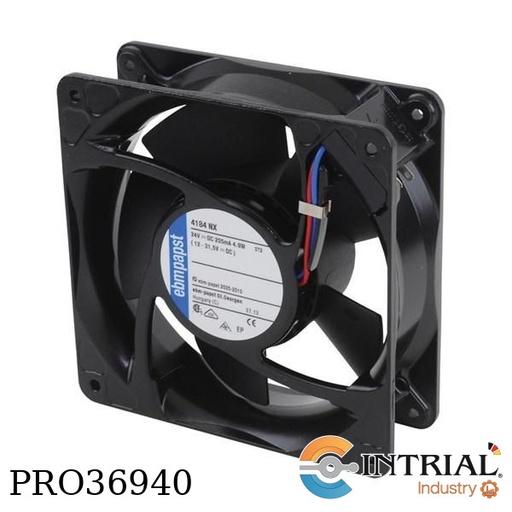

AXIAL FAN<br />
BRAND: EBM PAPST<br />
119 MM<br />
24 VDC<br />
CURRENT TYPE:DC<br />
EXTERNAL DEPTH:38MM<br />
NOISE RATING:49DBA<br />
FLOW RATE - IMPERIAL:105.9CU.FT/MIN<br />
FLOW RATE - METRIC:180M /H<br />
BEARING TYPE:BALL<br />
1.03A

714500<br />
INLET STABILIZERS<br />
Brand: CAT PUMPS<br />
2-1/2"<br />
<br />
714506<br />
FITTING<br />
Brand: CAT PUMPS<br />
1-1/2 NPT<br />
<br />
714508<br />
FITTING<br />
Brand: CAT PUMPS<br />
2 NPT<br />
<br />
701828<br />
ELBOW<br />
Brand: CAT PUMPS<br />
Assembly<br />
2-1/2

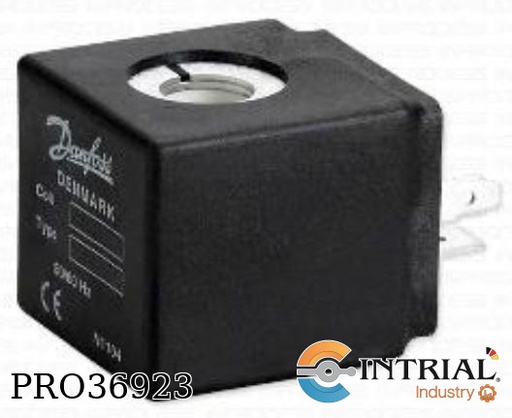

Bobina AM, 110V 60/50HZ 5.5W<br />
Marca: DANFOSS<br />
Origen: Dinamarca<br />
Modelo: AM<br />
Alimentación: 110Vac 60/50Hz, 5.5W<br />
Grado de protección: IP65

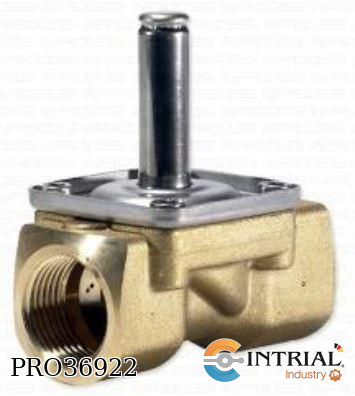

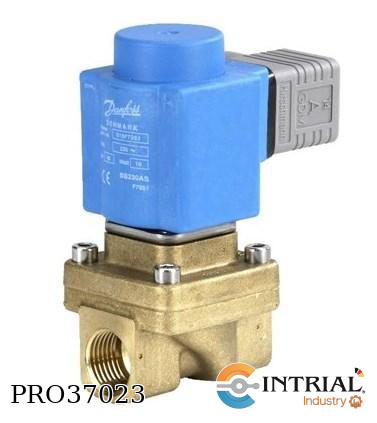

EV 220B 22B 1"NPT, FKM, K.V. 6.0 m3/h, N.C.<br />
Válvula Solenoide Normalmente cerrada<br />
Marca: Danfoss<br />
Origen: Dinamarca<br />
Modelo: EV220B<br />
Conexión: 1” NPT<br />
Material de la válvula: Latón<br />
Material del diafragma: FKM<br />
Fluidos: Agua, Aceite, Aire, gases neutros<br />
Presión diferencial: 0.1 a 10 Bar

GEAR PUMP<br />
Brand: KRACHT <br />
Materials<br />
Material Housing Grey cast iron EN-GJL 250<br />
Material End cover Grey cast iron EN-GJL 250<br />
Material Gears Steel, case hardened<br />
Seal material FKM<br />
Shaft sealing Single radial lip-type seal<br />
Bearing Multi component sleeve bearings P10<br />
Product data<br />
Geometrical Displacement 40,21 cm³/r<br />
Direction of rotation clockwise (seen on shaft end)<br />
Type of fixation DIN flange<br />
Outboard bearing no<br />
Type of pipe connection Flange connection SAE 1 1/2"<br />
Shaft end cylindrical ø 24mm<br />
Integrated valve D-valve 0...15 bar<br />
Version noise optimized for fluids with increased air percentage<br />
Mounting position optional<br />
Specific data<br />
Operating pressure <br />
(suction side) -0.4...+4 bar (max 1500 rpm),<br />
-0.4...+3 bar (max 2000 rpm)<br />
-0.4...+2 bar (max 3000 rpm), <br />
-0.4...+1.5 bar (max 3600 rpm)<br />
max. operating pressure (pressure side) 25 bar<br />
(depending on viscosity, speed and power)<br />
Fluid temperature -20°C...+150°C<br />
Ambient temperature -20°C...+60°C<br />
Minimum viscosity 1.4 mm²/s (max. 3 bar)<br />
6 mm²/s (max. 12 bar)<br />
12 mm²/s (max. operating pressure)<br />
Maximum viscosity depending on suction conditions<br />
speed and power<br />
Speed range 200...3600 rpm<br />
(depending on pressure, viscosity and power<br /><br />

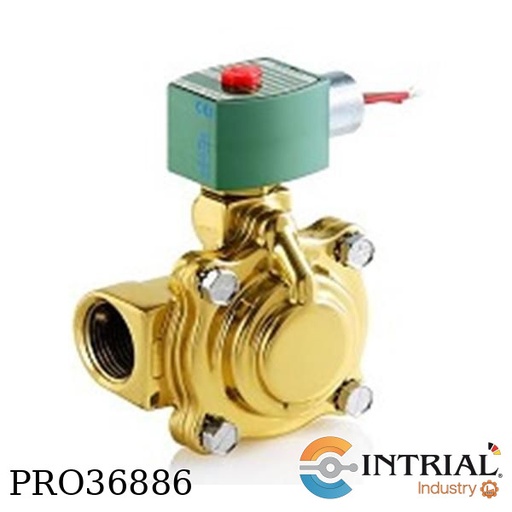

VÁLVULA SOLENOIDE<br />
Marca: ASCO<br />
Tipo de válvula: 2 vías<br />
Operación: Normalmente cerrada<br />
Operada por: Solenoide<br />
Material del cuerpo: Latón<br />
Material de los internos: Buna N (NBR)<br />
Presión de operación: 5 a 150 psi (0.3 a 10 bar)<br />
Voltaje de operación:  120/60-110/50Hz<br />
Tamaño de la conexión: 1" NPT

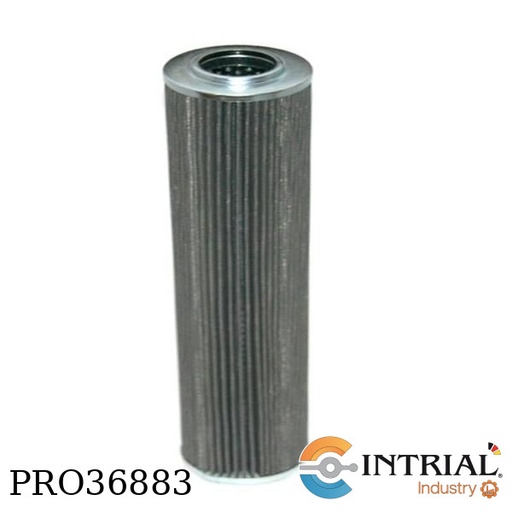

CARTUCHO DE FILTRACIÓN<br />
Marca: REXROTH<br />
15.7" Tall SOE Compressor Filter Supply Pressure Line Filter

GEAR PUMP<br />
Brand: KRACHT <br />
Net weight position: 8,300 kg<br />
Materials<br />
Material Housing Grey cast iron EN-GJL 250<br />
Material End cover Grey cast iron EN-GJL 250<br />
Material Gears Steel, case hardened<br />
Seal material FKM<br />
Shaft sealing Single radial lip-type seal<br />
Bearing Multi component sleeve bearings P10<br />
Product data<br />
Geometrical Displacement 40,21 cm³/r<br />
Direction of rotation clockwise (seen on shaft end)<br />
Type of fixation DIN flange<br />
Outboard bearing no<br />
Type of pipe connection Flange connection SAE 1 1/2"<br />
Shaft end cylindrical ø 24mm<br />
integrated valve no<br />
Version noise optimized for fluids with increased air percentage<br />
Specific data<br />
Operating pressure <br />
(suction side) -0.4...+4 bar (max 1500 rpm),<br />
-0.4...+3 bar (max 2000 rpm)<br />
-0.4...+2 bar (max 3000 rpm), <br />
-0.4...+1.5 bar (max 3600 rpm)<br />
max. operating pressure (pressure side) 25 bar<br />
(depending on viscosity, speed and power)<br />
Fluid temperature -20°C...+150°C<br />
Ambient temperature -20°C...+60°C<br />
Minimum viscosity 1.4 mm²/s (max. 3 bar)<br />
6 mm²/s (max. 12 bar)<br />
12 mm²/s (max. operating pressure)<br />
Maximum viscosity depending on suction conditions<br />
speed and power<br />
Speed range 200...3600 rpm<br />
(depending on pressure, viscosity and power)

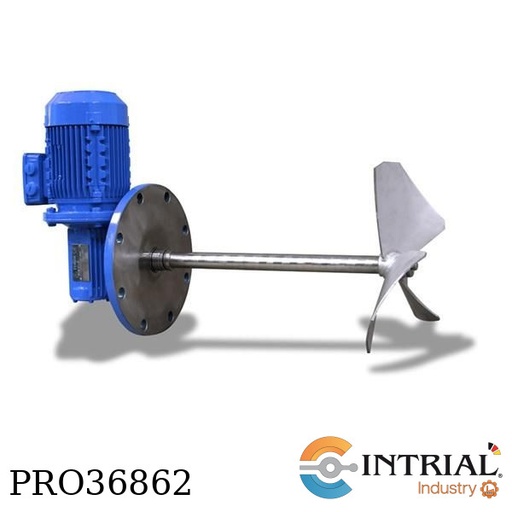

AGITADOR<br />
Marca: FLUIDMIX<br />
18,5 kW, 4 polos, 460 V, 60 Hz, IP55<br />
Efic. Premium IE3, sondas PTC<br />
Velocidad reductor: 281 rpm<br />
Fijación: Brida DN300 PN10, DIN 2527<br />
Longitud eje: 800 mm<br />
Móvil: Hélice de perfil axial ø 650 mm<br />
Materiales:<br />
Brida: AISI 304 L<br />
Eje y móvil: AISI 316 L
