•    Vibration Monitoring system triaxial Sensor KIT<br />
•    Brand: ERBESSD INSTRUMENTS®<br />
•    Vibration Monitoring system includes the most powerfull DigivibeMX  versión.<br />
•    Includes: 12 Phantoms , 1 Gateway, Software<br /><br />
////DESCRIPTION LIST////<br /><br />
•    PHANTOM-AHR       Phantom Wireless Sensor BLE 3-axis 10Hz to 10kHz (sw not included)  (10 units)<br />
•    PHANTOM-TC          Phantom Wireless Sensor BLE for K type thermocouple (sw not included)(1 unit)<br />
•    PHANTOM-S             Phantom Wireless Sensor for Measuring Speed using Hall-Effect Sensor(1 unit)<br />
•    PHANTOM-GW        Phantom BLE Gateway/Repeater (sw not included) (1 unit)<br />
•   Magnetic key (1 unit)<br />
•    Software (1 unit)<br /><br />

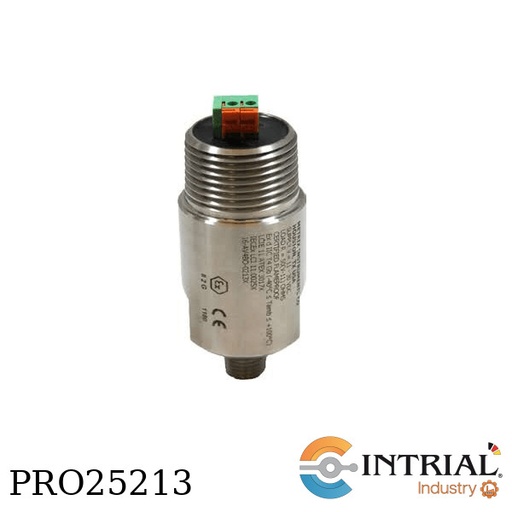

VIBRATION TRANSMITTER<br />
Brand: METRIX VIBRATION<br />
[121] Rango escala completa: 1.0 plg/s (25.4mm/s) pico<br />
[14] Material/Carcasa y Medida/Perno: Carcasa SS 316, M8x1.0- 12 macho.<br />
[8] Certificación Área Peligrosa: (XP) ATEX/IECEx, Ex d IIC T4.<br />
[0] Tipo de Conexión: Conductores flexibles 24", 2-cables; (sólo salida 4-20mA).<br />
[0] Filtro de Paso Alto: 2 Hz (estándar)<br />
[0] Filtro de Paso Bajo: 1500 Hz (estándar)<br />
***Incluye certificado de Calibración***

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"><span style="font-size:10pt;font-family:'Arial Narrow', sans-serif;">SERVICIO DE MEJORA EN FAJA OVERLANDS</span></p>

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"><span style="font-size:10pt;font-family:'Arial Narrow', sans-serif;">Incluye los siguientes accesorios:</span><br /><br /><b><span style="font-size:10pt;font-family:'Arial Narrow', sans-serif;">Modelos: </span></b><b><span style="font-size:10pt;font-family:'Arial Narrow', sans-serif;">787B+ R6QI-0-J9T2A-64+ CB2</span></b><br /><br /><span style="font-size:10pt;font-family:'Arial Narrow', sans-serif;">Modelo: </span><span style="font-size:10pt;font-family:'Arial Narrow', sans-serif;">787B</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">SENSOR SALIDA LATERAL, PROPOSITO GENERAL</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">Marca: WILCOXON</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">case aislado</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">conector MIL-C-5015 , 100 mv/g</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">±10% Tolerancia sensibilidad</span><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;"> <br />
***Inlcuye 10 Piezas***</span></p>

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"><span style="font-size:10pt;font-family:'Arial Narrow', sans-serif;">Modelo: R6QI-0-J9T2A-64</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">CABLE TEFLON AMARILLO</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">Marca: WILCOXON</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">Alta temp 200° C</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">enchaquetado 20m cable con conector</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">2 socket MIL-C-5015, IP68 </span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:13.3333px;">​***Inlcuye 10 Piezas***</span></p>

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"><span style="font-size:10pt;font-family:'Arial Narrow', sans-serif;">Modelo: CB2</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">2 CHANNEL BNC</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">Marca: WILCOXON</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">termination junction box</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">cable grips</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:13.3333px;">​***Inlcuye 10 Piezas***</span></p>

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"></p>

<p></p>

VIBRATION TRANSMITTER<br />
Brand: METRIX VIBRATION<br />
[121] Rango escala completa: 1.0 plg/s (25.4mm/s) pico<br />
[14] Material/Carcasa y Medida/Perno: Carcasa SS 316, M8x1.0- 12 macho.<br />
[8] Certificación Área Peligrosa: (XP) ATEX/IECEx, Ex d IIC T4.<br />
[0] Tipo de Conexión: Condurctores flexibles 24", 2-cables; (sólo salida 4-20mA).<br />
[0] Filtro de Paso Alto: 2 Hz (estándar)<br />
[0] Filtro de Paso Bajo: 1500 Hz (estándar)

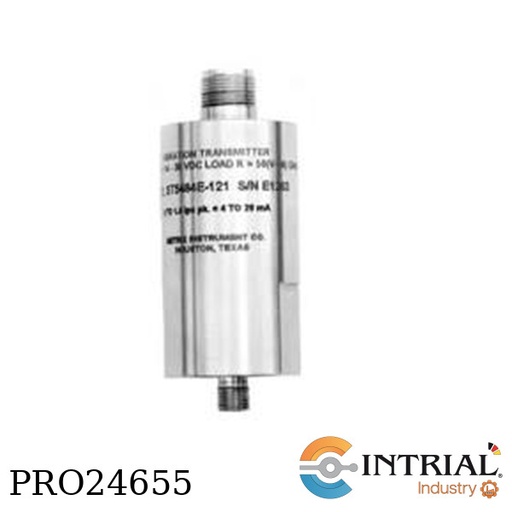

SEISMIC VIBRATION TRANSMITTER<br />
Brand: METRIX VIBRATION<br />
[122] Full Scale Range; 0.5 ips (12.7 mm/s), pk<br />
[0] Mounting Stud; Integral ¼” NPT <br />
[1] Hazard Rating; Non-hazardous & CSA/NRTL/C (for all connections) Class I, Div 2, Grps A, B, C & D  <br />
[0] Connection; 4-20 mA: Flying leads (C = 1 or 2)<br />
[0] High Pass Filter; No Filter (2 Hz), Standard<br />
[0] Low Pass Filter; No Filter (1500 Hz), Standard

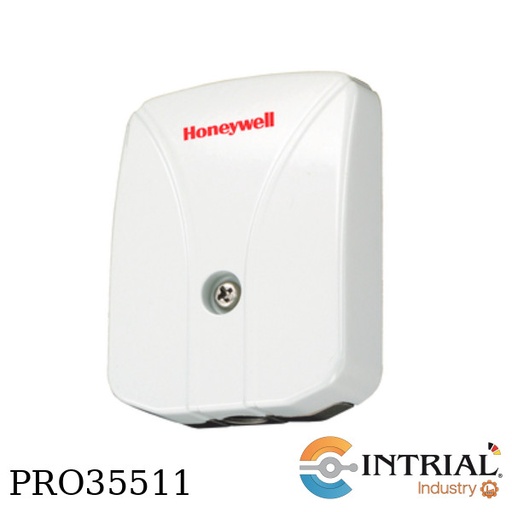

SEISMIC VIBRATION SENSORS<br />
Brand: HONEYWELL<br />
Power supply: 12Vdc <br />
Operating temperature: -40º to 70ºC.<br />
Dimensions: 80 x 60 x 21 mm.

PULLALIGN SET WITH POUCH<br />
Marca: PRUFTECHNIK

ROTALIGN touch Shaft package "FULL"<br />
ROTALIGN touch short instructions, EN<br />
Brand: PRUFTECHNIK<br />
Compact chain-type bracket, 1 piece<br />
Cleaning cloth<br />
Support post 300 mm yellow [ 11 3/4" ]<br />
touch device Safety information, multiple languages<br />
Support post 250 mm, green [ 9 5/6" ]<br />
ROTALIGN touch ruggedized trolley case<br />
sensALIGN 7 rechargeable Lithium Ion battery<100Wh<br />
2.5 mm Allen key<br />
Support post 115 mm, white [ 4 5/9" ]<br />
Support post 150 mm, black [ 5 7/8" ]<br />
Tape measurement mm/inch<br />
Power supply / Charger<br />
FULL touch computer 'FULL`, Lithium Ion<br />
battery <100Wh incl<br />
Cable for sensALIGN 7 sensor, touch, 2m [ 6' 6 5/7" ]<br />
sensALIGN 7 laser<br />
Tension chain 300 mm [ 11 3/4" ]<br />
OPTALIGN smart USB/PC cable, 2m<br />
sensALIGN 7 vibration measuring probe<br />
sensALIGN 7 sensor<br />
sensALIGN 7 AC power supply charger<br />
Storage pouch for compact chain type<br />
bracket set

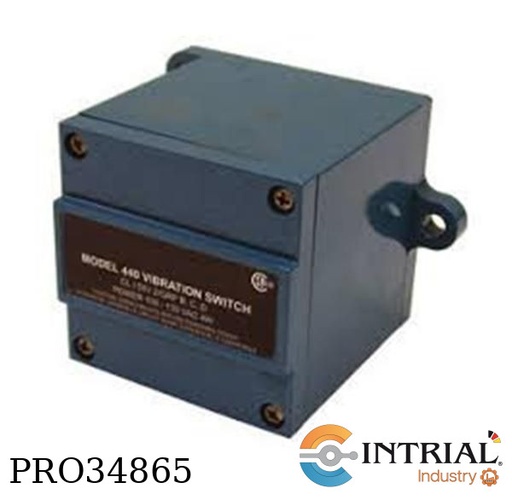

SWITCH DE VIBRACION<br />
MARCA: METRIX<br />
Puntos de ajuste de la alarma: Dos puntos de ajuste de la alarma<br />
Salida analógica proporciona: 4-20 mA<br />
Rango de la escala: 0.1 a 1.5 pulg/s (pico derivado)<br />
Salida del circuito de apagado: Relé electromecánico (10 A, SPDT)<br />
Salida del circuito de la alarma: Relé electromecánico (10 A, SPDT)<br />
Aprobaciones/Reinicio externo/Conector BNC: Aprobaciones de la CSA (Clase I, Div. 2, Grupos B-D) Sin botón pulsador de reinicio externo Sin conector BNC<br />
Potencia de entrada: 115 V CA, 50/60 Hz<br />
Inhibición temporizada del encendido (BLOQUEO): Retraso de 20 s<br />
Opción con transductor: Acelerómetro interno

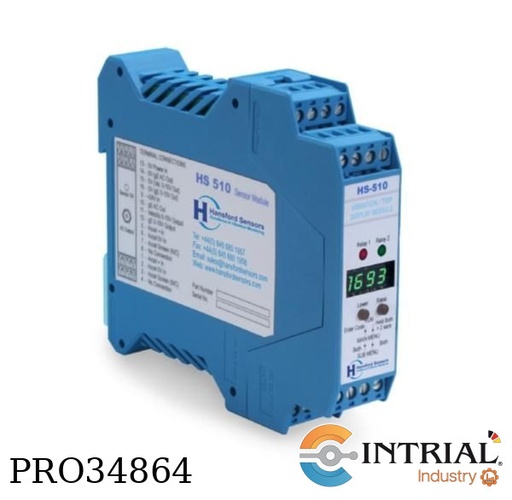

VIBRATION TRIP MODULE<br />
Brand: HANSFORD SENSORS<br />
Input = 4-20mA (HS-420 direct connection)<br />
Display Scale Max.:25<br />
Isolated 0utput = 4-20mA<br />
Alarm relay 1 = Latch on alarm<br />
Alarm relay 2 = Non Latch on alarm<br />
Power-on alarm delay = 30 sec.<br />
Alarm delays 1 = 10 sec.<br />
Alarm delays 2 = 10 sec
<div>
<div class="gtx-trans-icon"></div>
</div>

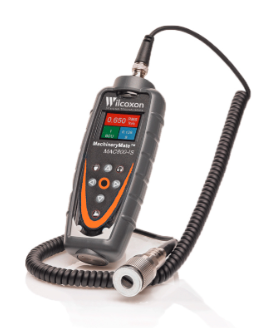

VIBRATION METER
Brand: Wilcoxon
Model: MAC800-IS
Frequency ranges: ISO: 10 Hz - 1 kHz (600 - 60,000 CPM)
Max frequency resolution: 75 CPM at 800 lines FFT setting
Displayed amplitude units:Acceleration: g, Bearing damage: BDU, Velocity: in/sec and mm/sec, Displacement: mils and mm
Displayed frequency units: Hz or RPM
Input range: ±60 g
Dynamic range, 0.01 g resolution: 96 dB

SPINDLER INDUSTRIAL ICP ACCELEROMETER
Brand: EMERSON
Model: 607A61/030BZ
Sensitivity: (±15%)100 mV/g (10.2 mV/(m/s²))
Frequency Range: (±3dB)30 to 600000 cpm (0.5 to 10000 Hz)
Sensing Element: Ceramic
Measurement Range: ±50 g (±490 m/s²)
Weight: 1.1 oz (31 gm)
