SENSOR DE VIBRACIÓN<br />
Brand: BRUEL & KJAER VIBRO<br />
Model: ASA-063<br />
Sensibilidad (4%), 100 mV/g<br />
Rango de frecuencia (+/- 5%), 4 - 10 000 Hz<br />
Conexión, Superior 2 pines compatible MIL C 5015<br />
Montaje a proceso, 1/4" 28 UNF / M8 x 14<br />
<br />


MOUNTING ADAPTOR KITKIT DE ACCESORIOS DE MONTAJE<br />
Marca: MODAL SHOP <br />
Modelo: 9100-MNTKIT<br />
Para adaptarse a plataformas de montaje roscadas de 1 / 4-28.<br />
Incluye tachuelas / inserciones (1 / 4-28, 10-32, 6-32 y 5-40) y<br />
bases (para patrones de rosca adhesivos, magnéticos y personalizados)

CALIBRADOR DE VIBRACIÓN PORTATIL<br />
Marca: MODAL SHOP <br />
Modelo: 9110D <br />
Adaptadores de fuente de alimentación y enchufes<br />
Llave de montaje<br />
Perno de montaje de ¼-28 a ¼-28 (Modelo 081B20)<br />
Espárrago de montaje de 10-32 a ¼-28 (modelo 081A08)<br />
Espárrago de montaje M8 ??x 1,25 M a ¼-28 M (Modelo M081A63)<br />
Almohadilla de montaje con orificio pasante M8 x 1,25 F (modelo PVC-MNT01)<br />
Espárrago de montaje M8 ??x 1 M a ¼-28 M (Modelo 081M165)<br />
Almohadilla de montaje de orificio pasante M8 x 1 F (modelo PVC-MNT02)<br />
Placa de montaje, sensores de vibración de alta temperatura de 3 y 4 orificios (modelo PVCHTMNT01)<br />
Placa de montaje, sensores de vibración de alta temperatura de 3 y 4 orificios (modelo PVC-HTMNT02)<br />
Guía de inicio rápido<br />
Manual<br />
Certificado de calibración rastreable NIST<br />
Unidad flash USB con libro de trabajo de generación de informes

2-pin Cable Jack 16100<br />
Brand: SPM<br />
Model: CSC-C16100.T16323<br />
Conector SPM 16100<br />
Terminal 16323<br />
Mounting, Crimp/solder termination<br />
Wire range/size:<br />
 0.30 - 0.60 mm2 / 22-20 AWG<br />
 0.75 - 1.5 mm2 / 16-18 AWG<br />
Temperature range, –40° to 125 °C (–40 to 257 °F)

INTERRUPTORES DE VIBRACIÓN ELECTRÓNICOS<br />
Marca: METRIX VIBRATION<br />
Modelo: 440DR-2244-0000<br />
[DR]: Dos puntos de ajuste de la alarma<br />
[2]: Salida analógica proporcional 4-20mA<br />
[2]: Rango: 3 a 40 mm/s (pico derivado)<br />
[4]: Salida del circuito de apagado-Rele(10 A, SPDT)<br />
[4]: Salida del circuito de la alarma-Rele(10 A, SPDT)<br />
[0]: Aprobaciones de la CSA (Clase I, Div. 2, Grupos B-D)<br />
[0]: Alimentacion: 115 V CA<br />
[0]: Sin inhibición temporizada del encendido<br />
[0]: Acelerometro interno

Velocity Monitor<br />
Brand: STI<br />
Model: CMCP530A-100A-R-ISOLF<br />
[100A]: 100 mv/g Accelerometer Input<br />
[R]: RMS Detection<br />
[ISOLF]: ISO Low Frequency 2-2,000Hz

Liquid Tight Strain Relief Connectors<br />
Brand: STI<br />
Model: CMCP261-03<br />
[03]: 0.2" to 0.47" (5 to 12mm)<br />
Single Cable<br />
Liquid Tight Strain Relief<br />
Environmental Sealing<br />
-40° to 212° F (-60° to 100° C)<br />
150 PSIG Pressure Rating

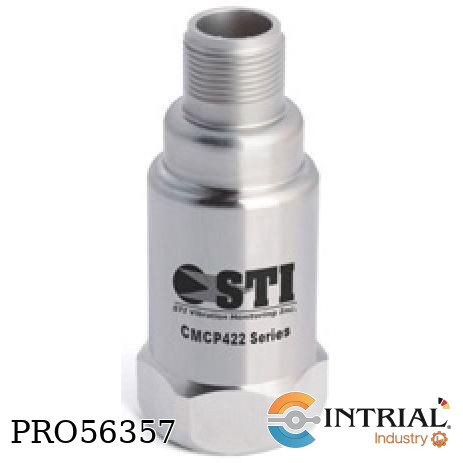

VELOCITY SENSOR<br />
Brand: STI<br />
Model: CMCP422VT-01-R-I05<br />
[CMCP422VT]: Loop Powered 4-20 mA Velocity Sensor<br />
[01]: Imperial System, 1.00 In/Sec Full Scale (25.4 mm/s)<br />
[R]: RMS Detection<br />
[I05]: Integral Braided Cable, IP65 (5 Meters Long)

VIBRATION SENSOR<br />
BRAND: IMI SENSORS<br />
MODEL: HT640B71<br />
<br />
1HZ = 60 CPM (CYCLES PER MINUTE).<br />
CURRENT WILL FLUCTUATE AT FREQUENCIES BELOW 5 HZ.<br />
CONVERSION FACTOR 1 IN/SEC = 0.0254 M/SEC.<br />
TYPICAL.<br />
SEE PCB DECLARATION OF CONFORMANCE PS039 FOR DETAILS<br />
MEASUREMENT RANGE: 0.0 TO 1 IN/SEC PK<br />
OUTPUT: 4-20 MA<br />
BROADBAND RESOLUTION: 0.005 IN/SEC PK<br />
NON-LINEARITY: ±1 %<br />
TEMPERATURE RANGE: -40 TO 257 °F<br />
EXCITATION VOLTAGE: 12 TO 30 VDC<br />
SETTLING TIME (WITHIN 2% OF VALUE): <15 SEC<br />
ELECTRICAL ISOLATION (CASE): >100000000 OHM

Low Cost Triaxial Accelerometer<br />
Brand: CTC<br />
Model: AC115-1D<br />
Sensitivity (±15%), 100 mV/g<br />
Frequency Response, 1,0-6500 Hz<br />
Dynamic Range, ± 50 g, peak<br />
Settling Time, <2.5 seconds<br />
Voltage Source, 18-30 VDC     <br />
Constant Current Excitation, 2-10 mA<br />
Connector (Non-Integral), 4 Pin Mini-MIL Connector         <br />
Output Impedance, <100 ohm     <br />
Bias Output Voltage, 10-14 VDC     <br />
Case Isolation, >108 ohm

Magnetic Base<br />
Brand: STI<br />
Model: CMCP-MB03F<br />
1.4" OD 80 Lb. Pull,<br />
1/4"-28 Female Thread

ACELEROMETRO<br />
Marca: IMI<br />
Modelo: PCB-IMI-608A11/050BZ<br />
Cable integrado de 15m<br />
Sensibilidad, (±15%)100 mV/g (10,2 mV/(m/s²))<br />
Rango de frecuencia, (±3dB)30 a 600000 cpm (0,5 a 10000 Hz)<br />
Elemento sensor, Cerámica<br />
Rango de medición, ±50 g (±490 m/s²)<br />
Peso, 3,5 oz (99,3 g)

VIBRATION SENSOR<br />
Brand: MONITRAN<br />
Model: MTN/1185CQ-10<br />
0 - 10 mm/ sec RMS<br />
Output Current: 4-20 mA DC proportional to RMS velocity (mm/s)<br />
Sealing: IP67

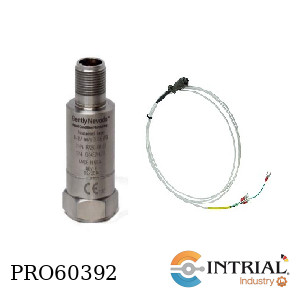

SEISMIC TRANSMITTER AND EXT CABLE 3-WIRE SIES - ARMORED<br />
(177230-01-02-05+16710-99)<br />
<br />
SEISMIC TRANSMITTER<br />
Brand: BENTLY NEVADA<br />
Model: 177230-01-02-05<br />
Scale Factor (AA) 0-25.4 mm/s (0-1.0 IPS)<br />
Freq Response (BB) 2.5Hz to 10kHz PK<br />
Approvals (CC) Multi (CSA, ATEX, IECEX)<br />
<br />
Include:<br />
EXT CABLE 3-WIRE SIES - ARMORED<br />
Brand: BENTLY NEVADA<br />
Model: 16710-99<br />
With the following configuration:<br />
Cable Length 99<br />
ETMD function return NO_MISMATCH<br />
ETMD function input MODS1_16710<br />
Meters (approx.):  30.0 <br />

TRANSMISOR DE VIBRACION, SALIDA 4-20 MA<br />
MARCA: METRIX<br />
RANGO DE VIBRACION 0-50.8MM/SEG - 0-2 IN/SEG, SALIDA 4 A 20 MA SALIDA<br />
PROPORCIONAL A LA VELOCIDAD, EXACTITUD 2%, INDICADOR 2 ½ DIGITOS, IPS OR<br />
MM/S
<div>
<div class="gtx-trans-icon"></div>
</div>

VIBRATION CALIBRATOR<br />
BRAND: MMS, MANFRED WEBER<br />
ACCESORIES.<br />
PLASTIC CARRYING<br />
CASE. MAINS PLUG ADAPTER, STUD BOLTS: M3 (021)/M5 (003), STUD<br />
ADAPTERS: M5/M3 (TAP) (022)/M5/UNF<br />
10-32 (045)/M5/1/4"-28 (046)/M5 (TAP)<br />
/M8 (044), CALIBRATION CERTIFICATE,
<div>
<div class="gtx-trans-icon"></div>
</div>

ACCELEROMETER SENSOR M5 THREAD FLAT<br />
Marca: LUDECA INC.<br />
ELECTRICALLYINSULATED<br />

MAGNETIC HOLDERS CURVED MOUNTING SURFACES M5<br />
Marca: LUDECA INC.

•    SIGNAL CONDITIONER Ultra SlimPak®<br />
•    Brand: Action Instruments<br />
•    1 Channel, Current<br />
•    Input Range: 4-20mA<br />
•    Output Range: 4-20mA<br />
•    9 to 30 Vdc<br />
•    1.5 W<br />


COMPACT GENERAL ACCELEROMETER<br />
Brand: WILCOXON<br />
PURPOSE ACCELEROMETER<br />
Sensitivity, ± 5%, 25°C 100 mV/g<br />
Acceleration range 80 g peak<br />
Amplitude nonlinearity 1%<br />
Frequency response: <br />
± 5%..3 - 5,000 Hz<br />
± 10%..1 - 9,000 Hz<br />
± 3 Db.. 0.5 - 14,000 Hz<br />
Resonance frequency 30 kHz<br />
Transverse sensitivity, max 5% of axial<br />
Temperature response: –55°C.. –20%<br />
+120°C.. +10%<br />
Power requirement: <br />
Voltage source: 18 - 30 VDC<br />
Current regulating diode: 2 - 10 mA<br />
Output impedance, max 100 Ω<br />
Bias output voltage 12 VDC<br />
Grounding case isolated, internally shielded<br />
Temperature range –55° to +120°C<br />
Vibration limit 500 g peak<br />
Shock limit 5,000 g peak<br />
Electromagnetic sensitivity, equiv. g, max 70 μg/gauss<br />
Sealing hermetic<br />
Base strain sensitivity, max 0.0002 g/μstrain<br />
Sensing element design PZT, shear<br />
Weight 62 grams<br />
Case material 316L stainless steel<br />
Mounting 1/4-28 UNF tapped hole<br />
Output connector 2 pin, MIL-C-5015 style<br />
Mating connector R6 type<br />
Recommended cabling J10 / J9T2A
