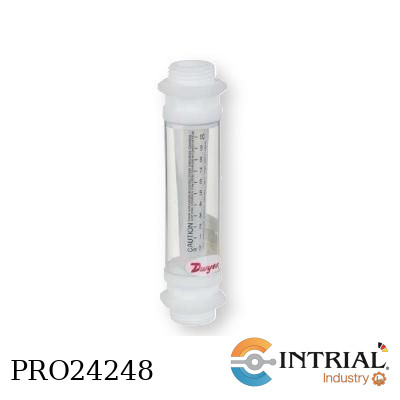

VARIABLE AREA FLOWMETER<br />
Brand: DWYER<br />
Service: Compatible liquids.<br />
Wetted Materials: Flowtube: PFA; Float and end fittings: PTFE; Guide rods: PCTFE.<br />
Temperature Limit: 250°F (121°C).<br />
Pressure Limit: 100 psig (6.9 bar).<br />
Accuracy: ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).<br />
Leak Integrity: 1 x 10-7 sccs of helium.<br />
Scale: 0 to 10 markings.<br />
Mounting: Vertical, in-line.<br />
Connection:1/2" female NPT<br />
Flow Rate GPM (L/min): 5.28 (20)<br />
With Valve

VARIABLE AREA FLOWMETER<br />
Brand: DWYER<br />
Service: Compatible liquids.<br />
Wetted Materials: Flowtube: PFA; Float and end fittings: PTFE; Guide rods: PCTFE.<br />
Temperature Limit: 250°F (121°C).<br />
Pressure Limit: 100 psig (6.9 bar).<br />
Accuracy: ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).<br />
Leak Integrity: 1 x 10-7 sccs of helium.<br />
Scale: 0 to 10 markings.<br />
Mounting: Vertical, in-line.<br />
Connection:1/2" female NPT.<br />
Flow Rate GPM (L/min): 3.43 (13)

VARIABLE AREA FLOWMETER<br />
Brand: DWYER<br />
Service: Compatible liquids.<br />
Wetted Materials: Flowtube: PFA; Float and end fittings: PTFE; Guide rods: PCTFE.<br />
Temperature Limit: 250°F (121°C).<br />
Pressure Limit: 100 psig (6.9 bar).<br />
Accuracy: ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).<br />
Leak Integrity: 1 x 10-7 sccs of helium.<br />
Scale: 0 to 10 markings.<br />
Mounting: Vertical, in-line.<br />
Connection:3/4" female NPT.<br />
Flow Rate GPM (L/min): 10.57 (40)

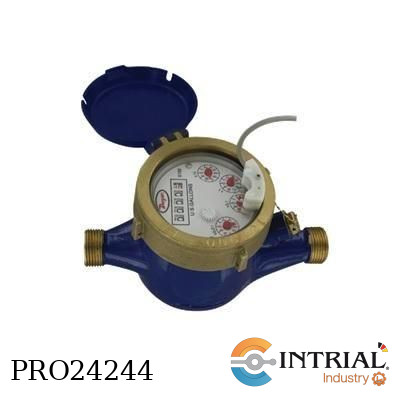

WMT2-A-C-04-1<br />
MEDIDOR DE FLUJO (1")<br />
Marca: DWYER INSTRUMENTS<br />
Serie WMT <br />
Conexión: 1” NPT<br />
Flujo máximo: 50 GPM<br />
 Rango de flujo nominal: 3 a 50 GPM<br />
 With pulse output<br />
 Electrical Rating: 0.01 A @ 24 VAC/DC.<br />
Orientación de montaje: Horizontal.<br />
Frecuencia de Pulso (Gal./Pulse): 1

SOPORTE PARA TRANSMISOR MAG6000<br />
Marca: SIEMENS
<div>
<div class="gtx-trans-icon"></div>
</div>

MODULO DE COMUNICACIÓN HART<br />
para transmisor MAG6000<br />
Marca: SIEMENS
<div>
<div class="gtx-trans-icon"></div>
</div>

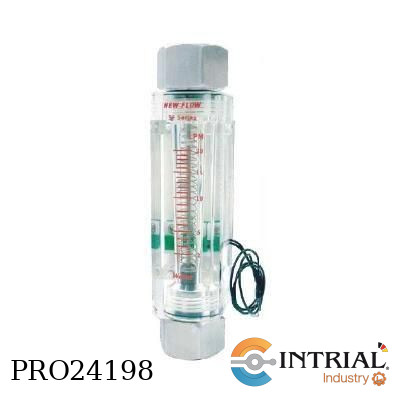

Acrylic Plastic Flow Meter<br />
Brand: NEW-FLOW<br />
Original Type<br />
Flow Range: 6 - 40 LPM<br />
Alarm Switch: Two setting points.<br />
Process connection: 3/4" NPT (FEMALE)<br />
Flow direction: Bottom to top

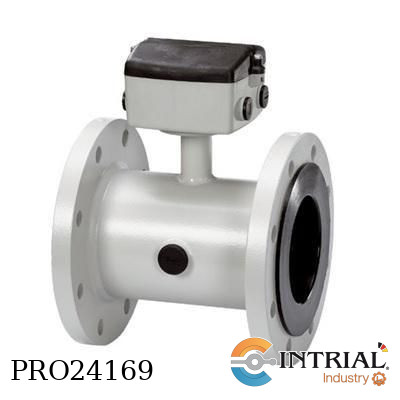

7ME6520-3MJ12-2AA2<br />
SENSOR DE FLUJO <br />
Marca: SIEMENS MODELO<br />
MAG5100<br />
Diámetro 3 Pulgadas<br />
Conexión<br />
Brida ANSI #150<br />
Liner de EPDM<br />
Electrodos de Hastelloy C C-276<br />
Conexión Eléctrica 1/2" NPT<br /><br />
7ME6920-1AA10-1AA0<br />
TRANSMISOR DE FLUJO <br />
Marca: SIEMENS <br />
MAG6000<br />
115 - 230 VAC<br />
4 - 20 mA<br />
carcasa de poliamida<br />
Conexión eléctrica 1/2" NPT<br />
A5E01181647 <br />
10 metros de cable de electrodo y bobina<br /><br />
FDK085U0226<br />

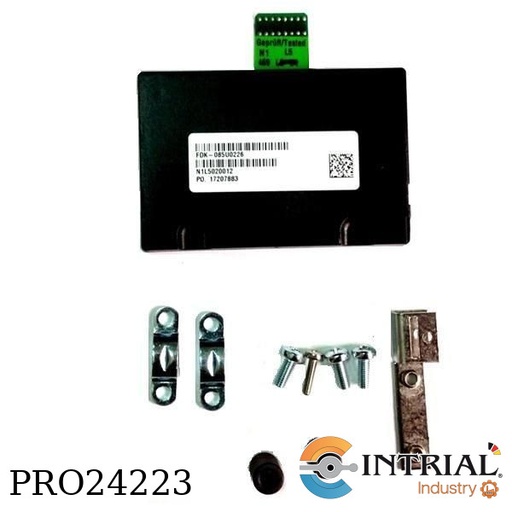

MODULO DE COMUNICACIÓN HART <br />
para transmisor MAG6000<br /><br />
FDK085U1053<br />
SOPORTE PARA TRANSMISOR MAG6000<br />

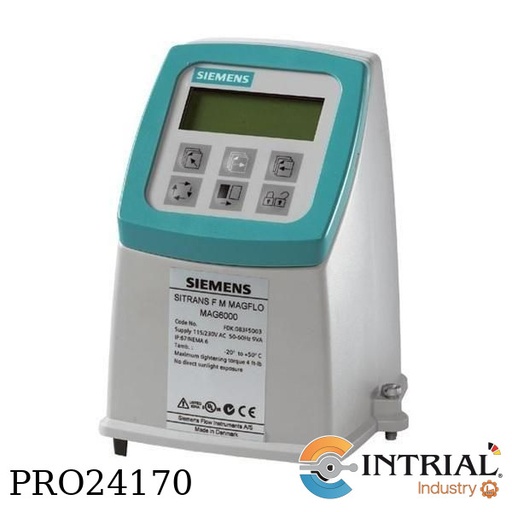

TRANSMISOR DE FLUJO <br />
MODELO : MAG6000<br />
MARCA : SIEMENS<br />
CODIGO : 7ME6920-1AA10-1AA0<br />
Precision : 0,2% de la lectura<br />
Carcasa : Poliamida reforzada con fibra de vidrio<br />
Display : alfanumericos con iluminaciòn posterior<br />
Salida analogica : 0…20mA o 4….20mA<br />
Salida digital : Salida pulso de 0….10kHZ<br />
Salida relay : SPDT, 24VDC @ 1A, 48VAC @ 2A<br />
Alimentaciòn : 220 VAC<br />
Conexión electrica : 1/2" NPT<br />
Grado de proteccion : IP67(Nema 4X)<br />
Version : Version compacto
<div>
<div class="gtx-trans-icon"></div>
</div>

SENSOR DE FLUJO <br />
Marca: SIEMENS MODELO<br />
MAG5100<br />
Diámetro 3 Pulgadas<br />
Conexión<br />
Brida ANSI #150<br />
Liner de EPDM<br />
Electrodos de Hastelloy C C-276<br />
Conexión Eléctrica 1/2" NPT

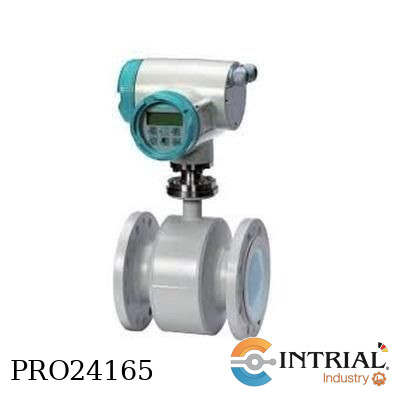

MEDIDOR DE FLUJO <br />
Brand: Siemens<br />
7ME6520-3MJ12-2JB2-Z N02<br />
Mag5100w, diametro 3 pulgadas, conexión<br />
Brida ansi #150 b16.5, liner de epdm,<br />
Electrodos de hastelloy c-276, transmisor<br />
Compacto mag 6000, 115 - 230 vac, 4 - 20 ma /<br />
Hart, conexión electrica 1/2" npt

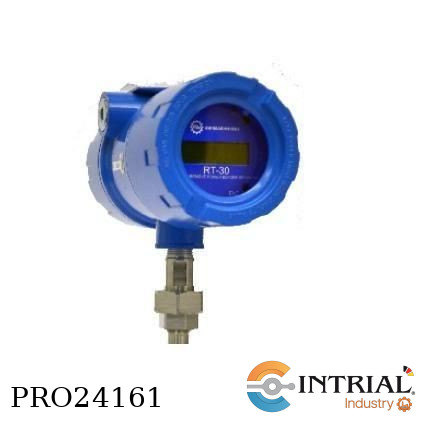

FLOW TRANSMITTER WITH LOCAL DISPLAY<br />
Brand: AW-LAKE<br />
Power Requirement<br />
9-24 VDC / 200mA (customer supplied)<br />
Class 2<br />
Analog Output 4-20mA<br />
PWM converter<br />
3- or 2-wire plus separate supply<br />
Max load impedance 500 ohm<br />
Frequency Output<br />
Three Opto-Isolated OpenCollector Outputs:<br />
Programmable for frequency or limit outputs<br />
5-30 VDC rating<br />
40 mA max (min. load impedance<br />
required 600 Ohm @ 30 VDC)<br />
Built in 30 point Linearizer<br />
Sensor/Monitor Frequency<br />
Range: 0-4,500 Hz<br />
D: Dual access<br />
11: Sensor: MAG-PB

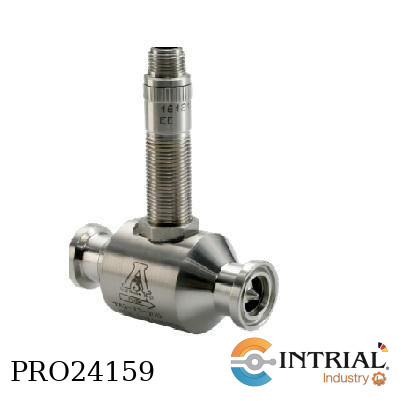

TA3 SERIES - SANITARY TURBINE FLOW METER<br />
Modelo: TA3-150-150-1 <br />
Brand: AW-LAKE<br />
Range(gal/min): 15 to 180<br />
K-Factor *(Pulses/ gal): 330<br />
Meter Size: 1-1/2”<br />
Clamp Size: 1-1/2”<br />
include the pulse output sensor and 12’ cable.<br />
MATERIALS OF CONSTRUCTION<br />
Body & Rotor Support 316L Stainless Steel<br />
Rotor Nickel Plated Stainless Steel<br />
Bearings Nickel Bindery Tungsten Carbide

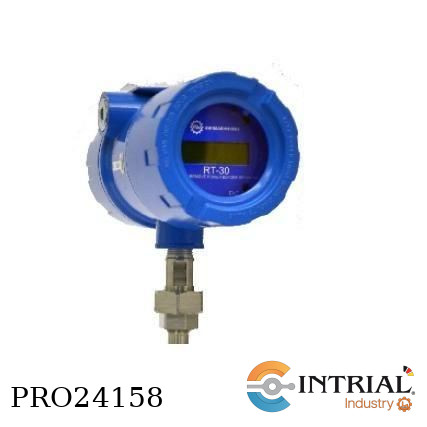

FLOW TRANSMITTER WITH LOCAL DISPLAY<br />
Brand: AW-LAKE<br />
MODEL: RT-30SD-D-00<br />
9-24 VDC / 200mA (customer supplied)<br />
Class 2<br />
Analog Output 4-20mA<br />
PWM converter<br />
3- or 2-wire plus separate supply<br />
Max load impedance 500 ohm<br />
Frequency Output<br />
Three Opto-Isolated OpenCollector Outputs:<br />
Programmable for frequency or limit outputs<br />
5-30 VDC rating<br />
40 mA max (min. load impedance<br />
required 600 Ohm @ 30 VDC)<br />
Built in 30 point Linearizer<br />
Sensor/Monitor Frequency<br />
Range: 0-4,500 Hz<br />
D: Dual access<br />
00: Sensor: None<br />
Temperature Rating: -20 to 60°C (-4 to 140°F)<br />
Connection: 3/4” female NPT conduit provisions<br />
One Opto-Isolated Input: 9-24 VDC remote reset

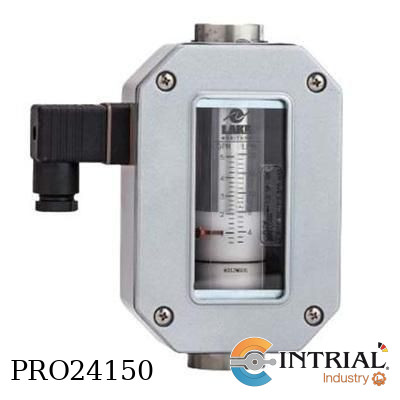

ROTAMETER TYPE FLOW SWITCH<br />
FLOW ALARM<br />
Brand: LAKE MONITORS<br />
Modelo: M4A-6HC-10<br />
[M]: Style: FLOW ALARM, 1 switch<br />
[4]: Port / Line Size Range: 3/4"- 1"<br />
[A]: Material: Aluminium<br />
[6]: Range Max Pressure: 3500 PSIG<br />
[H]: Fluid Media: Oil @ 0.873 specific gravity <br />
[C]: Thread type: 3/4" NPTF<br />
[10]: Flow Range: 1-10 GPM

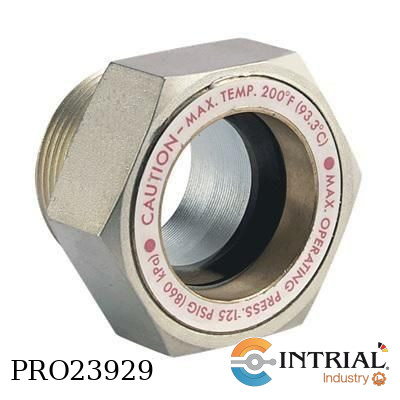

SIGHT WINDOW<br />
Brand: DWYER<br />
Wetted Materials: Brass<br />
Connection: 1-1/2" male NPT.<br />
Temperature Limit: 200°F (93°C). <br />
Pressure Limit: 125 psig (8.6 bar). <br />
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
<div>
<div class="gtx-trans-icon"></div>
</div>

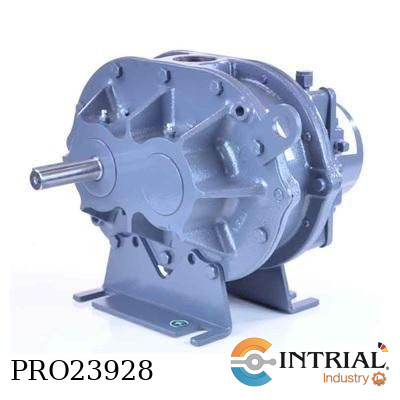

BLOWER<br />
Max. Flow: 198 ACFM<br />
Min. Flow: 38 ACFM<br />
Max Pressure: 15 PSI<br />
Max Vacuum: 16 “HG<br />
Max RPM: 3600 RPM<br />
Min RPM: 954 RPM<br />
Max. ΔT: 240°F<br />
CFR: 0.0605<br />
1 PSI Slip: 233 RPM<br />
Connection Size: 1.5” FPT<br />
Shaft Diameter: 0.875”<br />
Drive End: Grease, Synthetic<br />
Gear End: Oil (12.7 oz vertical, 14.5 oz horizontal)

NIST Certification for New G, G2, A1 and<br />
TM Series Flow Meters

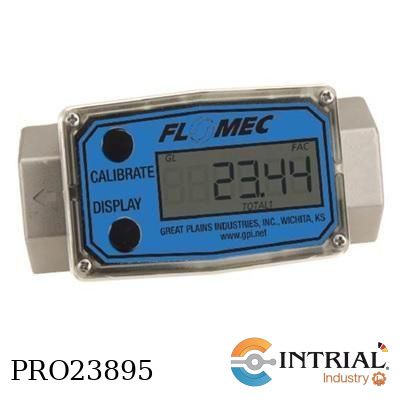

TURBINE FLOW METER<br />
Brand: GPI<br />
Turbine Body Material: Stainless steel<br />
Turbine Size: 2” bore (20 to 200 GPM / 76 to 760 LPM)<br />
Fitting Type: NPT female<br />
Electronics: Local display 2-button computer, field configurable<br />
Calibration: Gallons/minute

•    flow divider<br />
•    Item Code: 112072200<br />
•    2-section flow divider<br />
•    max. inlet flow: 40 l / min<br />
•    max. working pressure continuous: 210 bar<br />
•    with higher precision<br />
•    including mounting feet<br />
•    net weight: 3,9 kg / a piece<br />
•    delivery time: 4-6 weeks
