Model: PSR-11-201-N-20-R-1<br />
Brand: Kobold<br />
[PSR-11]:<br />
Operating principle, paddle<br />
Mounting position, all directions<br />
incl. fitting, brass<br />
Body material, brass<br />
max. pressure* 100 bar<br />
* only 25 bar at PSR-..32 and PSR-..40<br />
[201]: Measuring range/paddle, 34.6-48.3 L/min paddle: 1<br />
[N]: Connection, NPT<br />
[20]: Connection, 3/4" (for PSR-xx20...)<br />
[R]: Contact version, N/O<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)<br />
*************************************************<br />
Datasheet: http://www.kobold.com/uploads/files/psr-pse-gb-flow-1.pdf

Target Type Flowmeter <br />
Model: DPT-1230G-N5-C34P<br />
Brand: Kobold - USA<br />
[DPT-1230G]<br />
Specifications:<br />
Material Stainless Steel<br />
Range (GPM Water); 5...25<br />
Accuracy:±3% of Full Scale<br />
Display: 3 Digit LED<br />
Temperature:-10...176 °F<br />
Housing:304 SS, NEMA 4X<br />
Connection: Micro-DC, Male, 5-pin Plug<br />
[N5]: Fitting, 3/4" NPT<br />
[C34P]: Electronic, Compact  Electronic<br />
Switch Type: PNP Open Collector<br />
Analog Output: 4-20 mA, 3-wire RL=500 Ohms Max.

<strong>Paddle Type Flow Switch<br />
Model: PSE-12-498-R-15-R-1<br />
Brand: Kobold</strong><br />
[PSE-12]<br />
Operating principle paddle<br />
Mounting position horizontal<br />
Approvals w/o<br />
Body material st. st.<br />
max. pressure* 250 bar<br />
[498] Measuring range/paddle, Paddle length: 49 mm<br />
[R] Connection, G-thread<br />
[15] Connection, 1/2"<br />
[R] Contact versión, N/O<br />
[1] Connecting cable, PVC-cable 1.5 m (standard)

Flow Indicator and Switch with Paddle and Bellows<br />
Model: DWU-3-5-W80-3-R-T-0<br />
Brand: Kobold<br />
[DWU-3]:<br />
Operating principle paddle-bellow<br />
Indication pointer indication<br />
Flow direction in direction of the arrow<br />
Output 1 microswitch/SPDT<br />
max. temperature 100 °C<br />
Connection weld-on flan.<br />
[5]: Material combination: steel<br />
[W80]: Connection: for tube nom. diameter DN 80<br />
[3]: Signal lamp: 24 VDC<br />
[R]: Flow direction: flow from right to left<br />
[T]: Location of indicator: above lead<br />
[0]: w/o option<br />
***************************************************<br />
Datasheet: http://www.kobold.com/uploads/files/dwu-gb-flow.pdf

Model: DWU-3-5-W1F-3-R-T-0<br />
Brand: Kobold <br />
[DWU-3]: <br />
Operating principle paddle-bellow<br />
Indication pointer indication<br />
Flow direction in direction of the arrow<br />
Output 1 microswitch/SPDT<br />
max. temperature 100 °C <br />
Connection weld-on flan.<br />
[5]: Material combination: steel<br />
[W1F]: Connection: for tube nom. diam. DN 150 <br />
[3]: Signal lamp: 24 VDC<br />
[R]: Flow direction: flow from right to left <br />
[T]: Location of indicator: above lead <br />
[0]: w/o option<br />
***************************************************<br />
Datasheet: http://www.kobold.com/uploads/files/dwu-gb-flow.pdf

Flow Transmitter with Weld-on Connection<br />
Brand: Kobold (Usa)<br />
Model: DWD-75-3-LT-7<br />
Flow Range (GPM Water): 31.7....396<br />
Accuracy: ± 1.5 % f.s.<br />
Nominal Pipe diameter: W80=3"<br />
Direction of Flow: Left to Right, Indicator Above Pipe<br />
Analog Output: 4 ... 20 mA or 0 ... 10 V, User Selectable<br />
Power Supply: 24 VDC <br />
Protection Type: IP 65<br />
Option: RS-232C Serial Interface<br />
***********************************************************************************<br />
Datasheet: http://koboldusa.com/sites/default/files/product_files/Paddle-Bellows-Flowmeter-Switch-DWD_0.pdf

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-12-206-N-20-R-1</strong><br />
[PSR-12]:<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Incl. fitting: st.st.<br />
Body material: st.st.<br />
Max. pressure*: 250 bar<br />
*only 25 bar at PSR-..32 and PSR-..40<br />
[206]: Measuring range/paddle, 7.7-13.4 L/min paddle: 6<br />
[N]: Connection, NPT-thread<br />
[20]: Connection, 3/4" (for PSR-xx20...)<br />
[R]: Contact version, N/O<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11-153-R-15-U-1<br />
[PSR-11]:<br />
Operating principle paddle<br />
Mounting position all directions<br />
Approvals  ---<br />
incl. fitting brass<br />
Body material brass<br />
max. pressure 100 bar<br />
[153]: Measuring range/paddle, 2.5-6.4 L/min paddle: 3<br />
[R]: Connection, G-thread<br />
[15]: Connection, 1/2" (for PSR-xx15..)<br />
[U]: Contact version, SPDT  <br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

<strong>Polysulfone Paddle Switch<br />
Model: PPS-3203<br />
Brand: Kobold (USA)</strong><br />
Switch Housing: Polysulfone<br />
Process Connection: 1" NPT<br />
Max. Temperature: 105 °C<br />
Max. Pressure: 10 Bar<br />
Mounting Orientation: Paddle: Vertical<br />
Output: Contact SPDT

Baffle Plate System Flow Transmitter for Liquids<br />
Brand: Kobold (Alemania)<br />
Model: DWD-15-N20-3-L-T-0<br />
[DWD-15]:<br />
Operating principle: Baffle plate system<br />
Indication: LCD-display<br />
Flow direction: in directon of the arrow<br />
Output: 2 switching contacts + 4-20 mA<br />
Max. temperature: 120 °C<br />
Connection: thread<br />
Material (T-piece): brass<br />
[N20]: Connection size,  3/4 NPT female<br />
[3]: Power supply, 24 VDC<br />
[L]: Flow direction, from left to right<br />
[T]: Mounting position, on top of the lead<br />
[0]: Option, w/o further options<br />
************************************************************************<br />
Datasheet: http://www.kobold.com/uploads/files/dwd-gb-flow-1.pdf

Flow Indicator and Switch with Paddle and Bellows<br />
Brand: Kobold (Alemania)<br />
Model: DWU-1-5-R20-3-R-T-0                 <br />
[DWU-1]:<br />
Operating principle: paddle-bellow<br />
Indication: pointer indication<br />
Flow direction: in direction of the arrow<br />
Output 1: microswitch/SPDT<br />
Max. Temperature: 100 °C<br />
Connection: male thread<br />
[5]: Material combination: Brass<br />
[R20]: Connection: G 3/4 male<br />
[3]: Signal lamp: 24 VDC<br />
[R]: Flow direction: flow from right to left<br />
[T]: Location of indicator: above lead<br />
[0]: Options: w/o option<br />
********************************************************************************************************<br />
Datasheet: http://www.kobold.com/uploads/files/dwu-gb-flow.pdf

Flow Indicator and Switch with Paddle and Bellows<br />
Brand: Kobold (Alemania)<br />
Model: DWU-1-5-R15-3-R-T-0                 <br />
[DWU-1]:<br />
Operating principle: paddle-bellow<br />
Indication: pointer indication<br />
Flow direction: in direction of the arrow<br />
Output 1: microswitch/SPDT<br />
Max. Temperature: 100 °C <br />
Connection: male thread <br />
[5]: Material combination: Brass<br />
[R15]: Connection: G 1/2 male <br />
[3]: Signal lamp: 24 VDC<br />
[R]: Flow direction: flow from right to left<br />
[T]: Location of indicator: above lead<br />
[0]: Options: w/o option<br />
********************************************************************************************************<br />
Datasheet: http://www.kobold.com/uploads/files/dwu-gb-flow.pdf

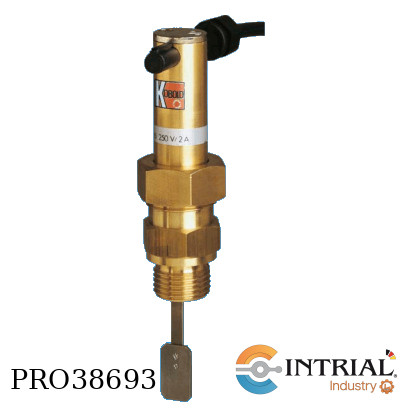

<strong>Paddle Type Flow Switch<br />
Model: PSE-11-498-R-15-R-1<br />
Brand: Kobold (Alemania)</strong><br />
[PSE-11]:<br />
Operating principle paddle<br />
Mounting position horizontal<br />
Approvals w/o<br />
Body material brass <br />
max. pressure* 100 bar<br />
[498]: Measuring range/paddle, Paddle length: 49 mm (60 mm for NPT)<br />
[R]: Connection, G-thread <br />
[15]: Connection, ½”<br />
[R]: Contact versión, N/O<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

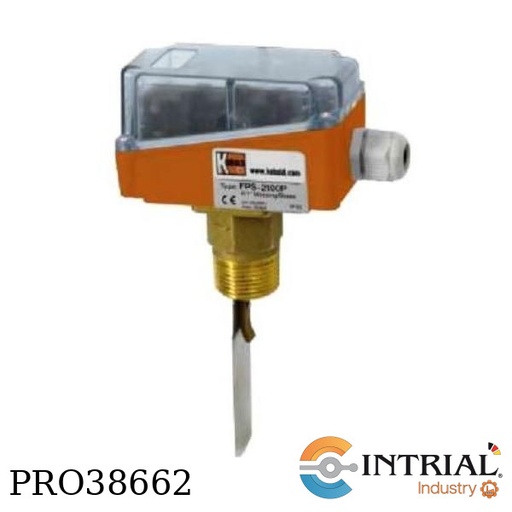

<strong>Paddle Bellows Flow Switch<br />
Brand: Kobold (USA)<br />
Model: FPS-5100P</strong><br />
[FPS-5100P]<br />
Technical Details<br />
Brass Design,Bellows: MS 58 Bronze<br />
Paddle: Stainless Steel 316L<br />
Max. Media Temperature: -40...250 °F<br />
Max. Ambient Temp: -30...150 °F<br />
Max. Allowed Pressure:Brass: 160 PSIG<br />
Process Connection: 1" NPT Male<br />
for pipes from 1"to 8 "<br />
Switch: SPDT Contact<br />
Protection Type: IP 65

Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-21-251-R-25-R-1<br />
[PSR-21]:<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Approvals: ATEX / IECEx<br />
incl. fitting: brass<br />
Body material: brass<br />
max. presure* 100bar<br />
[251]: Measuring range/paddle; 47.6-67.2 L/min paddle: 1<br />
[R]: Connection; G-thread<br />
[25]: Connection; 1" (for PSR-xx25...)<br />
[R]: Contact version; N/O (ATEX IECEx)<br />
[1]: Connecting cable; PVC-cable 1.5 m (standard)

Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSE-22-498-N-15-R-1<br />
[PSE-22]:<br />
Operating principle paddle<br />
Mounting position horizontal<br />
Approval  ATEX / IECEx<br />
Body material st. st.<br />
max. pressure* 250 bar<br />
Rising flow rate water: 183-250 l/min<br />
Falling flow rate water: 170-233 l/min<br />
[498]: Measuring range/paddle, Paddle length: 60 mm for NPT<br />
[N]: Connection, NPT<br />
[15]: Connection, ½”<br />
[R]: Contact versión, N/O (ATEX IECEx)<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

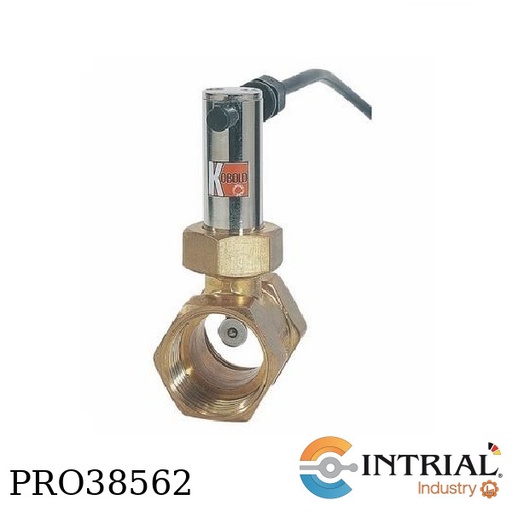

Paddle Type Flow Switch<br />
Brand: Kobold (U.S.A.)<br />
Model: PSR-5125<br /><br />
Switching ranges:<br />
Increasing GPM water: 3.2– 5.0<br />
Decreasing GPM water: 2.4– 4.5<br />
Connection: 1" NPT<br /><br />
Maximum Temperature: 230F<br />
Maximum Pressure: 1450 PSIG<br />
Materials:<br />
Paddle: SS 304<br />
Leaf Spring: SS 301<br />
Beam: SS 301<br />
Locking Plate: brass<br />
Contact Housing: Polyamide, glass-reinforced, NEMA 4<br />
Cable: PVC<br />
O-Ring: NBR for brass units<br />
Standard Cable Length: 5ft<br />
Orientation: Horizontal Pipes<br />
Max Flow: 5x switching range increasing

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11153-N-15-R-1</strong><br />
[PSR-11]:<br />
Operating principle paddle<br />
Mounting position all directions<br />
Approvals  --- <br />
incl. fitting brass <br />
Body material brass <br />
max. pressure 100 bar <br />
[153]: Measuring range/paddle, 2.5-6.4 L/min paddle: 3 <br />
[N]: Connection, NPT-thread <br />
[15]: Connection, 1/2" (for PSR-xx15..) <br />
[R]: Contact version, N/O <br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

Paddle Type Flow Switch<br />
Brand: Kobold (U.S.A.)<br />
Model: PS-5149<br />
Specifications:<br />
Switching Tolerance: ± 15%<br />
Maximum Temperature: Max. 176 °F<br />
Media Temperature: -4...158 °F<br />
Maximum Pressure: Brass: 1/2 " = 1450 PSIG<br />
Ingress Protection: IP 65<br />
Mounting Orientation: Horizontal Flow Preferred<br />
Max Flow Rate: 5x Switching Range, Increasing<br />
Cable: PVC Jacketed<br />
Cable Length: Standard: 5 Ft. (1.5m)<br />
Approximate Switching Range* <br />
Increasing GPM water: Pipe Size 2"(18...24)<br />
Decreasing GPM water: Pipe Size 2"(16...22)<br />
Connection: 1/2" NPT<br />
Pipe size: 2", 3", 4" y 6"<br />
Material: Brass

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (U.S.A.)<br />
Model: PSR-5225<br />
[PSR-5225]</strong><br />
Maximum Temperature: 230°F <br />
Maximum Pressure: 1450 PSIG<br />
Materials: <br />
Paddle: SS 304 <br />
Leaf Spring: SS 301 <br />
Beam: SS 301 <br />
Locking Plate: brass or SS 304 <br />
Contact Housing: Polyamid, glass reinforced, NEMA 4 <br />
Cable: PVC <br />
O-Ring: NBR for brass units; FKM for SS units <br />
Contact: Reed-switch SPST, N/O or N/C (SPDT Optional) <br />
Maximum Contact Ratings: 50 VA, (50 Watt, 250 VAC, 1.5A) <br />
Standard Cable Length: 5ft <br />
Orientation: Horizontal Pipes <br />
Max Flow: 5x switching range increasing<br />
Switching ranges: <br />
Increasing GPM water: 3.2– 5.0<br />
Decreasing GPM water: 2.4– 4.5<br />
Connection: 1" NPT
