Model: PSR-12-153-N-15-U<br />
Paddle Switch PSR<br />
Switching range: 2,3-4,7 L/min...47,6-67,2 L/min water<br />
Connection: G ¼... G 1 ½, ¼...1 ½ NPT<br />
Material: brass, st. st.<br />
Max. pressure: 100 bar<br />
Max. temperature: 110 °C<br />
Reed contact<br />
**************************************************<br />
PSR-12-153-N-15-U<br />
PSR-12:<br />
Mounting position, all directions<br />
Approvals, W/O<br />
incl. fitting, st.st.<br />
Body material, st.st.<br />
max. pressure, 250 bar<br />
153: Measuring range, 2.5-6.4 L/min<br />
N: Connection, NPT-thread<br />
15: Connection, 1/2" (for PSR-xx15..)<br />
U: Contact version, SPDT<br />
1: Connecting cable, PVC-cable 1.5 m (standard)<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb_psr.pdf

Paddle Type Flow Switch<br />
Brand: Kobold(Alemania)<br />
Model: PSR-11-258-N-25-R-1<br />
[PSR-11]:<br />
Operating principle, paddle<br />
Mounting position, all directions<br />
Incl. fittin, brass<br />
Body material, brass<br />
Max. presure, 100 bar<br />
[258]: Measuring range/paddle, 7.4-18.2 L/min paddle: 8<br />
[N]: Connection, NPT-thread<br />
[25]: Connection, 1"<br />
[R]: Contact version, N/O<br />
[1]: Connecting cable; PVC-cable 1.5 m (standard)

INTERRUPTOR DE CAUDAL TIPO PALETA PSE<br />
• Brand: KOBOLD (Alemania)<br />
• Switching range (L/min water): 8 - 16<br />
• Material case: Brass 58<br />
• Tolerance: ±15 % <br />
• Max. pressure: 100 bar<br />
• Max. medium temperature standard: 110 °C<br />
• Connection female: G ½<br />
• Preferred mounting position: Upright, horizontal<br />
• Cable Length: 1.5 m(Standard)<br />
• Contact: N/O contact (Standard CE)<br />
• Protection type: IP 65

<strong>Paddle Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PPS-3-2-06</strong><br />
[PPS]: Operating principle, paddle<br />
Mounting position paddle, vertical<br />
Mounting position piping, horizontal<br />
Bellow, w/o<br />
Output/SPDT, reed contact<br />
Connection, screw-in<br />
material, polysulfone<br />
Max. temperature, 105  °C<br />
Max. pressure, 10 bar<br />
[3]: Connection, NPT 1" male <br />
[2]: Material, Polysulfone<br />
[06]: Design, Contact N/O

Rotating Vane Flow Meter<br />
Model: DPM-1-5-07-G2-L443<br />
Marca: Kobold<br />
[DPM-1]:<br />
Operating principle,  Rotating vane<br />
Mounting position,  all directions<br />
Flow direction,  in direction of the arrow<br />
max. temperature ,80 °C<br />
max. pressure, 16 bar<br />
Accuracy, +/-1,0 (2,5)%<br />
Protection,  IP 65<br />
[5]: Material, st. st.<br />
[07]: Measuring range, 50-700 mL/min<br />
[G2]: Mech. connection, G 1/4 female<br />
[L443]: Evaluating Electronic,<br />
 Analogue output 4-20mA, DIN-plug, 3-wire

<strong>Paddle Type Flow Switch PSE<br />
Brand: Kobold<br />
Model: PSE-12-149-N-15-U-1</strong><br />
[PSE-12]:<br />
Operating principle paddle<br />
Mounting position horizontal<br />
Approvals w/o<br />
Body material st.st.<br />
max. pressure* 250 bar<br />
[149]: Measuring range/paddle, Paddle length: 114 mm(116 mm for NPT)<br />
[N]: Connection, NPT-thread<br />
[15]: Connection, 1/2" <br />
[U]: Contact versión, SPDT<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

Paddle Type Flow Switch<br />
Brand: Kobold (U.S.A.)<br />
Model: PSR-5140<br />
Switching Tolerance: ± 15%<br />
Media Temperature  Brass/NBR Seal: -4...158 °F<br />
Max. Pressure  Brass: 1/4"...1" = 1450 PSIG,  1-1/4"...1-1/2" = 360 PSIG<br />
Materials:<br />
Paddle: 304 Stainless Steel<br />
Leaf Spring: 301 Stainless Steel<br />
Balance Arm: 301 Stainless Steel<br />
Locking Plate: brass<br />
Sleeve: MS58 Brass<br />
Magnet: Oxide Ceramics<br />
Seal: NBR<br />
Contact Tube: Polyamide, Glass Reinforced<br />
Connection (NPT): 1-1/2"<br />
Approximate Switching Range*:<br />
Increasing GPM (Water): 9.2...15.0<br />
Decreasing GPM (Water): 7.9...14.3<br />
Cable Length: Standard: 5 Ft. (1.5m)

Paddle Type Flow Switch<br />
Brand: Kobold (U.S.A.)<br />
Model: PSR-5115<br />
Switching Tolerance: ± 15%<br />
Media Temperature  Brass/NBR Seal: -4...158 °F<br />
Max. Pressure  Brass: 1/4"...1" = 1450 PSIG,  1-1/4"...1-1/2" = 360 PSIG<br />
Connection (NPT): 1/2"<br />
Approximate Switching Range*:<br />
Increasing GPM (Water): 0.7...1.6<br />
Decreasing GPM (Water): 0.5...1.6<br />
Cable Length: Standard: 5 Ft. (1.5m)

<strong>Paddle Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: FPS-1-1-20P</strong><br />
[FPS]:<br />
Operating principle paddle bellow<br />
Mounting position paddle all directions<br />
Mounting position piping all directions<br />
Bellow bronze<br />
Output/SPDT microswitch<br />
Connection: incl. fitting<br />
material brass<br />
Max. temperature 120 °C<br />
Max. pressure 11 bar<br />
[1]: Connection c/w fitting<br />
[1]: Material: Brass<br />
[20P]: Design: 138-768 L/h; G 3/4

Paddle Type Flow Switch<br />
Brand: Kobold (U.S.A.)<br />
Model: PSR-5240-EC10<br />
Switching Tolerance: ± 15%<br />
Media Temperature: <br />
SS/FPM Seal: 14...230 °F<br />
Max. Pressure SS: <br />
1/4"...1" = 3600 PSIG<br />
1-1/4"...1-1/2" = 580 PSIG  <br />
Materials: <br />
Case: 304 SS<br />
Paddle: 304 Stainless Stee<br />
Leaf Spring: 301 Stainless Stee<br />
Balance Arm: 301 Stainless Steel<br />
Locking Plate: brass <br />
Sleeve: 304 SS<br />
Magnet: Oxide Ceramics<br />
Seal: FKM<br />
Contact Tube: Polyamide, Glass Reinforced<br />
Connection (NPT): 1-1/2"<br />
Approximate Switching Range*:<br />
Increasing GPM (Water): 9.2...15.0<br />
Decreasing GPM (Water): 7.9...14.3<br />
[EC10]: Options, SPST w/10 Ft. Cable

Paddle Type Flow Switch<br />
BRAND: KOBOLD (USA)<br />
MODEL: PS-5152-U<br />
(PS)<br />
3": Pipe Size<br />
Increasing GPM (Water): 41...48:<br />
Decreasing GPM(Water):38...44<br />
Connection: 1/2" NPT<br />
Option: U = SPDT Switch, 5 Ft. Cable

Paddle Type Flow Switch<br />
Brand: Kobold (U.S.A.)<br />
Model: PSR-5115-EC15<br />
Switching Tolerance: ± 15%<br />
Media Temperature  Brass/NBR Seal: -4...158 °F<br />
Max. Pressure  Brass: 1/4"...1" = 1450 PSIG,  1-1/4"...1-1/2" = 360 PSIG<br />
Materials:<br />
Paddle: 304 Stainless Stee<br />
Leaf Spring: 301 Stainless Stee<br />
Balance Arm: 301 Stainless Steel<br />
Locking Plate: brass<br />
Sleeve: MS58 Brass<br />
Magnet: Oxide Ceramics<br />
Seal: NBR<br />
Contact Tube: Polyamide, Glass Reinforced<br />
Connection (NPT): 1/2"<br />
Approximate Switching Range*:<br />
Increasing GPM (Water): 1.3...2.1<br />
Decreasing GPM (Water): 1.0...2.0<br /><br />
[EC15]:  <br />
SPST w/15 Ft. Cable

Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11103-R-10-R-1<br />
[PSR-11]:<br />
Operating principle: paddle<br />
Mounting position: all directions <br />
Approvals: w/o<br />
Incl. fitting: brass<br />
Body material: brass    <br />
Max. pressure*: 100 bar  <br />
*only 25 bar at PSR-..32 and PSR-..40 <br />
[103]: Measuring range/paddle, 2,8-6,0 L/min paddle: 3<br />
[R]: Connection, G-thread<br />
[10]: Connection, 3/8" (for PSR-xx10...)<br />
[R]: Contact version, N/O<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11206-N-20-R-4</strong><br />
[PSR-11]:<br />
Operating principle, paddle<br />
Mounting position, all directions<br />
incl. fitting, brass<br />
Body material, brass<br />
max. pressure, 100 bar<br />
[206]: Measuring range/paddle, 7.7-13.4 L/min paddle: 6<br />
[N]: Connection, NPT-thread<br />
[20]: Connection, 3/4" (for PSR-xx20...)<br />
[R]: Contact version, N/O<br />
[4]: Connecting cable, PVC-cable 3.0 m

Polysulfone Paddle Switch<br />
Brand: Kobold (USA)<br />
Model: PPS-3206<br />
[PPS-3206]:<br />
Switch Housing: Polysulfone, Transparent<br />
Process Connection: 1" M NPT<br />
Max. Operating Pressure: 145 PSI<br />
Protection Type: IP65 / NEMA 4<br />
Electrical Connection: DIN 43 650 w/Cable Gland<br />
Switch: N/O, max. Switching Capacity: 230 VAC/DC; 2 A; 40 W / 40 VA

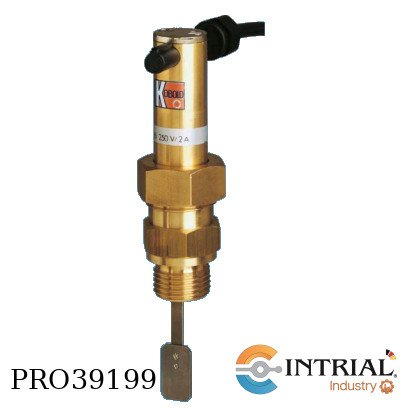

<strong>Paddle Type Flow Switch<br />
Model: PSE-12-520-R-15-R-1<br />
Brand: Kobold</strong><br />
[PSE-12]<br />
Operating principle: paddle<br />
Mounting position: horizontal<br />
Approvals: w/o<br />
Body material: st.st.<br />
max. pressure 250 bar<br />
[520] Measuring range/paddle: Paddle length: 52 mm<br />
[R] Connection: G-thread<br />
[15] Connection: 1/2"<br />
[R] Contact versión: N/O<br />
[1] Connecting cable: PVC-cable 1.5 m (standard)

<strong>Flow Indicator and Switch with Paddle and Bellows<br />
Model: DWN-1-5-R50-X-R-T-0</strong><br /><strong>Brand: Kobold</strong><br />
[DWN-1]:<br />
Operating principle paddle-bellow<br />
Indication pointer w/o<br />
Flow direction in direction of the arrow<br />
Output 1 microswitch/SPDT, adjustable<br />
max. temperature 100 °C<br />
Connection male thread<br />
[5]: Material combination, brass<br />
[R50]: Connection, G 2 male <br />
[X]: Signal lamp, without signal lamp<br />
[R]: Flow direction, from right to left<br />
[T]: Mounting pos. of indicat, above pipe <br />
[0]: Options, w/o

Model: DWU-1-6-R25-X-L-T-0<br />
Brand: Kobold<br />
[DWU-1]:<br />
Operating principle paddle-bellow<br />
Indication pointer indication<br />
Flow direction in direction of the arrow<br />
Output 1 Microswitch/SPDT<br />
max. temperature 100 °C<br />
Connection male thread<br />
Electrical connection, PG 13,5<br />
[6]: Material combination, st.st.<br />
[R25]: Connection, G1 male<br />
[X]: Signal lamp, without signal lamp<br />
[L]: Flow direction, flow from left to right<br />
[T]: Location of indicator, above lead<br />
[0]: Options, w/o

Model: PS-5214U<br />
Brand: Kobold<br />
Material Stainless Steel<br />
Connection 1/2" NPT<br />
Pipe Size, 4", 6", 8"<br />
Increasing GPM (Water) 24...30, 53...75, 101...141<br />
Decreasing GPM (Water) 19...27, 44...62, 88...123<br />
Option, SPDT Switch, 5 Ft. Cable<br />
***********************************************************************************<br />
Datasheet: http://koboldusa.com/sites/default/files/product_files/Paddle-type-flow-switch.pdf

Paddle Type Flow Switch<br />
Model: PSE-12-149-N-15-R-1<br />
Brand: Kobold<br />
[PSE-12]:         <br />
Operating principle paddle<br />
Mounting position horizontal<br />
Approvals w/o<br />
Body material st.st.<br />
max. pressure* 250 bar<br />
[149]: Measuring range/paddle, Paddle length: 114 mm(116 mm for NPT)<br />
[N]: Connection, NPT-thread<br />
[15]: Connection, 1/2"<br />
[R]: Contact versión, N/O<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)
