Shop | Intrial Industrial

Electromagnetic Flow Meter-EPS, Max. measuring range, 274 m³/h, Installation length, 250 mm, Process <strong>EPS Electromagnetic Flow Meter<br /> Brand: Heinrichs (Alemania)<br /> Model: EPS-H-210R-1-S-S-1-0 + UMF2-A-1-1-G-0BK</strong><br /> [EPS]:Sensor<br /> [H]: Material Lining, Hard Rubber (Ebonit),<br /> Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br /> Process-Temperature 0°C...95°C<br /> [210R]: Process connection, ANSI flanges 4" Class 150 RF ASME B16.5-2003<br /> Max. measuring range, 274 m³/h, Installation length, 250 mm.<br /> [1]: Material Process connection, Flange steel painted<br /> [S]: Material electrodes, st.st. 1.4571 (316 -TI)<br /> [S]: Earthing electrode, st.st. 1.4571 (316 TI)<br /> [1]: Transmitter mounting, Integrated transmitter, Protection class, sensor, IP67,<br /> [0]:Certificates, w/o<br /> <br /> [UMF2]:Transmitter<br /> [A]: Mounting IP 67, Integrated transmitter IP 67 standard.<br /> Thread - electrical connection, ½" NPT (f)<br /> [1]: Display and control unit, integrated<br /> [1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br /> [G]: Output Signal:<br /> current output: 1x 0/4-20 mA c/w HART protocoll<br /> pulse output: passive Um=24 VDC<br /> status output: passive Um=24 VDC<br /> [0BK]: Design, Kobold S/ 6,772.41 6772.41 PEN	Pelton Wheel Flow Meter, 25-250 L/min, 1 1/2 NPT <div>Pelton Wheel Flow Meter<br /> Brand: Kobold (Alemania)<br /> Model: DPE-11-20-N8-F300<br /> [DPE-11]<br /> Operating principle: Pelton Wheel (6-vane)<br /> Mounting position / flow direction: in all directions/ in direction of the arrow<br /> Protection: IP 65<br /> Max. temperature: 80 °C<br /> Max. pressure: PN 40 (DPE-1200W: 16 bar)<br /> Accuracy of final value: +/-2,5%<br /> Material Housing: Brass casting<br /> Material Axis: Hard metal<br /> [20]: Measuring range, 25-250 L/min<br /> [N8]: Mech. connection for MR-Code: 20, 1 1/2 NPT female<br /> [F300]: Electronic, frequency output, plug M12x1</div> <div><br /> Include 1:<br /> [ZUB-KAB-12-K002]<br /> Accessories round plug<br /> Brand: Kobold (Alemania)<br /> Model: ZUB-KAB-12-K002<br /> M12x1 box 2 m cable, 4-pin</div> S/ 2,030.27 2030.27 PEN	Pelton Wheel Flow Meter Measuring range, 25-250 L/min Pelton Wheel Flow Meter<br /> Brand: Kobold (Alemania)<br /> Model: DPE-12-20-N8-K-3-4-2<br /> [DPE-12]<br /> Operating principle: Pelton Wheel (6-vane)<br /> Mounting position / flow direction:<br /> in all directions/ in direction of the arrow<br /> Protection: IP 65<br /> Max. temperature: 80 °C<br /> Max. pressure: PN 40 (DPE-1200W: 16 bar)<br /> Accuracy of final value: +/-2,5%<br /> Material Housing: St. St.<br /> Material Axis Hard metal<br /> [20]: Measuring range, 25-250 L/min<br /> [N8]: Mech. connection, 1 1/2 NPT female<br /> [K] ADI-indication Bargraph/digital-indication<br /> Housing 116 x 116<br /> Bargraph display 55 LEDs<br /> Digital display 5 digit LED<br /> Ambient temperature -20 ..60 (80) °C<br /> Min./Max. memory yes<br /> Housing material Aluminium/PA66<br /> Protection IP 65<br /> [3] Power supply, 18-30 VAC, 10-40 VDC<br /> [4] Output, 0-10 VDC, 0(4) - 20 mA selectable<br /> [2] Contacts, 2 SPDT S/ 7,417.58 7417.58 PEN	Turbine Wheel Flowmeter Kobold 250 bar, 1.6-16 m³/h, 1" NPT Turbine Wheel Flowmeter<br /> Brand: Kobold(Alemania)<br /> Model: DOT-13-25H-N6-Z3N-L<br /> [DOT-13]:<br /> Operating principle, Turbine wheel<br /> Mounting position, All directions<br /> Flow direction, in direction of the arrow<br /> Connection/ Housing material, st. steel / st. steel<br /> Max. temperature, -20…+120 °C<br /> Max. pressure, 250 bar<br /> Linearity, ± 0.5 % of reading<br /> [25H]: Measuring range, 1.6-16 m³/h<br /> [N6]: Mechanical connection, 1" NPT<br /> [Z3N]: Electronics / cable entry: Dual LCD totaliser/rate, outputs: pulse, analogue, cable entry 1/2" NPT<br /> [L]: Flow direction: From left to right, indication on top S/ 7,053.08 7053.08 PEN
Plastic Flowmeter and Switch for Liquids and Gases Plastic Flowmeter and Switch for Liquids and Gases<br /> Brand: Kobold USA<br /> Model: KSM-3020-T<br /> Specifications<br /> Accuracy: ±4% full scale<br /> Flow Media: Liquids and gases<br /> Mounting: Vertical, media flow bottom to top<br /> Max. Temperature: 140 °F<br /> Max. Pressure: 145 PSI<br /> Materials:<br /> Measuring Tube: Trogamid®<br /> Float: PVDF<br /> Float Stops: PVDF<br /> Range Water GPM: 0.88...8.8<br /> Nominal Size (Inch) : 1-1/2<br /> Add suffix T for female NPT fittings S/ 852.93 852.9300000000001 PEN	Multivariable VORTEX Flowmeter <div><strong>Multivariable VORTEX Flowmeter<br /> Brand: Heinrichs (Alemania)<br /> Model: DVE-P-S-L-L-2-S-3-D-H</strong><br /> [DVE] Model: Insertion Version<br /> [P] Electronic Options, Volume Measurement of Liquids, Gases and Steam <br /> + temperature sensor + pressure sensor<br /> [S] Probe length, Standard length 748,5mm<br /> [L] Sensor Configuration / Mounting Option: <br /> Compact incl. Digital Display and Programming Buttons<br /> [L] Supply voltage: 12-36 VDC loop powered<br /> [2] Output signal, 1x 4-20mA, HART, Loop powered 1x Pulse only with input power L<br /> [S] Process temperature: Standard temperature -200..+260°C (-330..+500°F)<br /> [3] Option Pressure Sensor: Incl. Pressure Sensor 20 bar abs ( 300 psia)<br /> [D] Process connection: 2" 300 lbs Flange Compression fitting<br /> [H] Version, Heinrichs<br /><br /> Caudal TOP Oxígeno 95%<br /> Simulation Range: 2270 a 160000 Nm3/h<br /> Setting range: 2270 a 24,000 Nm3/h</div> <div></div> <div></div> S/ 18,754.33 18754.33 PEN	Oval Gear Flow Meter/Counter Oval Gear Flow Meter/Counter<br /> Brand: Kobold<br /> Model: DON-1-35H-R9-1-Z3-M-0<br /> [DON-1]<br /> Operating principle Gear Wheel<br /> Mounting position horizontal / vertical<br /> Flow direction in direction of the arrow<br /> max. temperature 80 °C<br /> max. pressure 16...64 bar<br /> Accuracy ±0,2 % …1 % of reading<br /> Housing material Aluminium<br /> Rotor material PPS<br /> [35H] Measuring range 30-450 L/min<br /> [R9] Mech. connection G 2<br /> [1] Seal, FKM for DON-x30…DON-x40<br /> [Z3] Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br /> [M] Cable entry M20<br /> [0] Options, without<br /> * Not iinclude Battery S/ 6,856.25 6856.25 PEN	Screw-Type Spindle Flowmeter Screw-Type Spindle Flowmeter<br /> Brand: Kobold (Alemania)<br /> Model: OMG-1FR1F-16/43<br /> [OMG]:<br /> Operating principle: Screw spindle<br /> Mounting position: Horizontal / Vertical<br /> Flow direction: In direction of the arrow<br /> Material: Cast iron<br /> Accuracy: +-0,3% of MV<br /> Viscosity range (pay attention on pressure loss!): 1...5000 mm²/s<br /> [1FR1F]: 50...5000 L/min / G 6 female<br /> [16]: Pressure rating (only for flanges): PN 16<br /> [43]: Pick-up/ temp./ pressure: Inductive PNP / 100 °C / 250 bar S/ 151,628.36 151628.36000000002 PEN

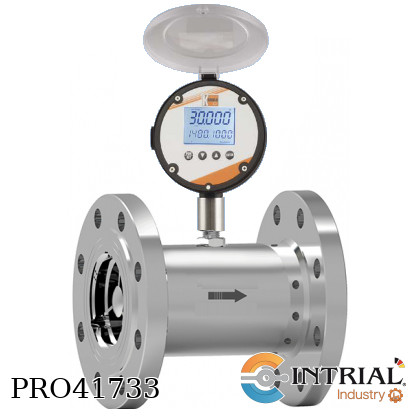

Caudalímetro de eje de tornillo (7...700 L/min / G 2 female) <strong>Screw-Type Spindle Flowmeter<br /> Brand: Kobold (Alemania)<br /> Model: OMG-50R50-16/43+OMG-50</strong><br /> [OMG]:<br /> Operating principle: Screw spindle<br /> Mounting position: Horizontal / Vertical<br /> Flow direction: In direction of the arrow<br /> Material: Cast iron<br /> Accuracy: +-0,3% of MV<br /> Viscosity range (pay attention on pressure loss!): 1...5000 mm²/s<br /> [50R50]: Measuring range / connection: 7...700 L/min / G 2 female<br /> [16]: Pressure rating (only for flanges): PN 16<br /> [43]: Pick-up/ temp./ pressure: Inductive PNP / 100 °C / 250 bar<br /><br /><strong>Include 1:<br /> Model: OMG-50<br /> Brand: Kobold (Alemania)</strong><br /> [OMG-50]: EPDM O-Rings (OMG-50) S/ 37,769.49 37769.49 PEN	Flujómetro de rueda de turbina (2.5-100 m³/h) <strong>Turbine Wheel Flowmeter<br /> Model: TUR-21-10-C34P<br /> Brand: Kobold (Alemania)</strong><br /> [TUR-21]<br /> Operating principle, Turbine Wheel<br /> Mounting position, horizontal / vertical<br /> Flow direction, in direction of the arrow<br /> Material, PVDF<br /> Max. temperature, 70 °C<br /> Max. pressure, PN 10<br /> Accuracy, +-1% FS<br /> Protection, IP 65<br /> [10]: Connection / Measuring range, NW 100 / 2,5...100 m³/h water<br /> [C34P]: Electronic, Compact electronics, 4-20 mA, 1x PNP S/ 15,155.91 15155.91 PEN	Flujómetro de rueda de turbina (2-80 m³/h) <strong>Turbine Wheel Flowmeter<br /> Model: TUR-21-80-C34P<br /> Brand: Kobold (Alemania)</strong><br /> [TUR-21]<br /> Operating principle, Turbine Wheel<br /> Mounting position, horizontal / vertical<br /> Flow direction, in direction of the arrow<br /> Material, PVDF<br /> Max. temperature, 70 °C<br /> Max. pressure, PN 10<br /> Accuracy, +-1% FS<br /> Protection, IP 65<br /> [80]: Connection / Measuring range, NW 80 / 2...80 m³/h water<br /> [C34P]: Electronic, Compact electronics, 4-20 mA, 1x PNP S/ 11,390.63 11390.630000000001 PEN	Low Volume Vane Flowmeter Low Volume Vane Flowmeter<br /> Brand: Kobold (Alemania)<br /> Model: DPL-1-P-25-G4-L343<br /><br /> Operating principle: Rotating vane<br /> Mounting position: all directions<br /> Flow direction: in direction of the arrow<br /> Body material: Polypropylene<br /> max. temperature: 70 °C<br /> max. pressure: 10 bar<br /> Accuracy: +-2,5(5,0)% of FS<br /> Protection: IP 65<br /> [1]: Version: Standar<br /> [P]: Seal: NBR<br /> [25]: Measuring range: 1...25 L/min water, Mech.<br /> [G4]: Mech. connection: G 1/2 male<br /> [L343]: Electronic: Analogue output 4-20mA, M12x1, 3-wire<br /><br /> Include 1: [ZUB-KAB-12-K002]<br /> Accessories round plug<br /> Brand: Kobold (Alemania)<br /> Model: ZUB-KAB-12-K002<br /> M12x1 box 2 m cable, 4-pin<br /> S/ 1,202.85 1202.8500000000001 PEN
Low Volume Vane Flowmeter, 1...25 L/min water, G 1/2 male Low Volume Vane Flowmeter<br /> Brand: Kobold (Alemania)<br /> Model: DPL-1-P-25-G4-L343<br /> [DPL]:<br /> Operating principle: Rotating vane<br /> Mounting position: all directions<br /> Flow direction: in direction of the arrow<br /> Body material: Polypropylene<br /> max. temperature: 70 °C<br /> max. pressure: 10 bar<br /> Accuracy: +-2,5(5,0)% of FS<br /> Protection: IP 65<br /> [1]: Version: Standar<br /> [P]: Seal: NBR<br /> [25]: Measuring range: 1...25 L/min water<br /> [G4]: Mech. connection: G 1/2 male<br /> [L343]: Electronic: Analogue output 4-20mA, M12x1, 3-wire S/ 1,100.79 1100.79 PEN	Electromagnetic Flow Meter-EPS, DN 40, 38m3/h <div>EPS Electromagnetic Flow Meter<br /> Brand: Heinrichs - Kobold (Alemania)<br /> Model: EPS-A-7020-N-N-0-1-0+UMF2-A-1-4-G-0BK<br /> [EPS-A]: Sensor<br /> Material Lining Ceramics, Standard 2x Measuring Electrodes<br /> Process Temperature, -20°C…+150°C<br /> [7020] Process connection, DN40 Tri-Clamp-Connection<br /> Material Lining / Electrodes / Sealing, Ceramics / Platinum<br /> Max. measuring range (Water 20°C, 1 mPas), 38 m³/h<br /> Installation length, 174 mm<br /> [N] Material Process connection, HC22(2.4602)PTFE-gasket<br /> [N] Material electrodes, Platinum / Iridium<br /> [0] Earthing electrode, w/o<br /> [1] Transmitter mounting, Integrated transmitter<br /> Protection class, sensor IP 67<br /> [0] Certificates, w/o</div> <div>[UMF2] Transmitter<br /> [A] Mounting, Integrated transmitter IP 67 standard<br /> Thread - electrical connection, ½" NPT (f).<br /> [1] Display and control unit, integrated<br /> [4] Power supply, 24V DC (±15%)<br /> [G] Output Signal:<br /> current output: 1x 0/4-20 mA c/w HART protocoll<br /> pulse output: passive Um=24 VDC<br /> status output: passive Um=24 VDC<br /> [0BK] Design, Kobold</div> S/ 8,281.44 8281.44 PEN	Electromagnetic Flow Meter-EPS <div>EPS Electromagnetic Flow Meter<br /> Brand: Heinrichs (Alemania)<br /> Model: EPS-A-7030-N-N-0-1-0+UMF2-A-1-4-G-0BK<br /> [EPS-A]: Sensor<br /> Material Lining Ceramics, Standard 2x Measuring Electrodes<br /> Process Temperature, -20°C…+150°C<br /> [7030]: Process connection, DN50 Tri-Clamp-Connection<br /> Material Lining / Electrodes / Sealing, Ceramics / Platinum<br /> Max. measuring range (Water 20°C, 1 mPas), 70 m³/h<br /> Installation length, 184 mm<br /> [N]: Material Process connection, HC22(2.4602)PTFE-gasket<br /> [N]: Material electrodes, Platinum / Iridium<br /> [0]: Earthing electrode, w/o<br /> [1]: Transmitter mounting, Integrated transmitter<br /> Protection class, sensor IP 67<br /> [0]: Certificates, w/o</div> <div>[UMF2]:Transmitter<br /> [A]: Mounting, Integrated transmitter IP 67 standard<br /> Thread - electrical connection, ½" NPT (f).<br /> [1]: Display and control unit, integrated<br /> [4]: Power supply, 24V DC (±15%)<br /> [G]: Output Signal:<br /> current output: 1x 0/4-20 mA c/w HART protocoll<br /> pulse output: passive Um=24 VDC<br /> status output: passive Um=24 VDC<br /> [0BK]: Design, Kobold</div> S/ 8,952.12 8952.12 PEN	Medidor de flujo másico de Coriolis <span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Coriolis Massflowmeter</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Brand: Kobold - Heinrichs (Alemania)</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Model: TMU-S-150-214R-A-0-0-C-0-10-0-H+UMC4-D-1-1-A-0-0</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[TMU-S]:</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Wetted materials, Stainless steel</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[150] Range: min. 0-60000 kg/h - max. 0-460000 kg/h</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[214R]: Process connnection, 10" Class 150 RF ASME B16.5-2003</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Installation length : ~1450 mm</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[A]: Containment options,Stainless steel containment 1.4301 (304)</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[0]: Heating/cooling, none</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[0]: Connection for heating / cooling, none</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[C]: Sensor configuration, Remote mount transmitter</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Process temperature: -40° to 100°C</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Sensor Cable Connection, Terminal block via ½" NPT (f) IP65</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[0]: ApprovaIs, none</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[1]: Calibration Flow, standard, 3-points</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[0]: Calibration Density, None</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[0]: Supplementary equipment, None</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[H]: Design, Heinrichs</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Include:</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[UMC4] Transmitter</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[D]:Mounting, Remote mount / terminal connection box, mounted</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Conduit port opening, M20 x 1,5; Cable Length 10 metros</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[1]:Display / Interface board, Integral within transmitter housing,</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">for ambient temperature up to 60°C</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[1]:Power supply, 90 - 265V AC, 50/60Hz</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[A]:Outputs:</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Analog output 1: 4 - 20mA with HART®</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Analog output 2: 4 - 20mA</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Pulse output: passive Um=30V DC</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Status output: passive Um=30V DC</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[0]:Approvals, none</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[0]:Type of protection (signal output), none</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Data Process:</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Processconditions</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Flow rate [t/h] : 0 - 350</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Fluid : palm oil</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Density [kg/m3] : 920</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Viscosity [mPas] : 35</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Fluid temperature [°C] : 55</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Line pressure [bar g] : 5</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Performance Characteristics</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Accuracy : ± 0,15% of actual flow + Zero-Stability</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Repeatability : ± 0,075% of actual flow</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Pressure loss : 0,66 bar at mass flow 350 t/h</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Supplementary Equipment :</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">- including 10m sensor to transmitter cable</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">- special process connection (non standard)</span> S/ 152,663.54 152663.54 PEN

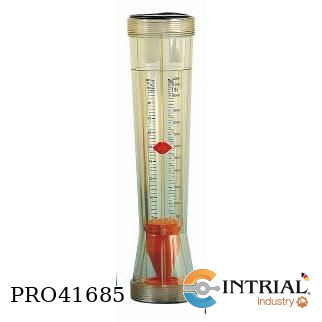

Plastic Flowmeter-switch KSM, 2000...20000 L/h water Plastic Flowmeter-switch<br /> Brand: Kobold (Alemania)<br /> Model: KSM-1-201-Q-P50-R0<br /> [KSM-1]<br /> Operating principle: Variable area<br /> Mounting position: Vertical<br /> Flow direction: From bottom<br /> Armature material: Trogamide<br /> Accuracy: ±4 % FS<br /> Max. temperature: 60 °C<br /> Max. pressure: 16 bar<br /> [201]: Measuring range: 2000...20000 L/h water<br /> [Q]: Either scales for liquid media: m³/h water<br /> [P50]: Option connection: PVC G 2 female<br /> [R0]: Option contact: w/o contact S/ 4,454.19 4454.1900000000005 PEN	Plastic Flowmeter-switch KSM, Measuring range: 1200...12000 L/h water Plastic Flowmeter-switch<br /> Brand: Kobold (Alemania)<br /> Model: KSM-1-120-Q-P40-R0<br /> [KSM-1]<br /> Operating principle: Variable area<br /> Mounting position: Vertical<br /> Flow direction: From bottom<br /> Armature material: Trogamide<br /> Accuracy: ±4 % FS<br /> Max. temperature: 60 °C<br /> Max. pressure: 16 bar<br /> [120]: Measuring range: 1200...12000 L/h water<br /> [Q]: Either scales for liquid media: m³/h water<br /> [P40]: Option connection: PVC G 1 1/2 female<br /> [R0]: Option contact: w/o contact S/ 2,547.86 2547.86 PEN	Plastic Flowmeter-switch KSM Plastic Flowmeter-switch<br /> Brand: Kobold (Alemania)<br /> Model: KSM-1-060-Q-P25-R0<br /> [KSM-1]:<br /> Operating principle: Variable area<br /> Mounting position: Vertical<br /> Flow direction: From bottom<br /> Armature material: Trogamide<br /> Accuracy: ±4 % FS<br /> Max. temperature: 60 °C<br /> Max. pressure: 16 bar<br /> [060]: Measuring range: 600...6000 L/h water<br /> [Q]: Either scales for liquid media: m³/h water<br /> [P25]: Option connection: PVC G 1 female<br /> [R0]: Option contact: w/o contact S/ 2,376.54 2376.54 PEN	Plastic Flowmeter-switch KSM Plastic Flowmeter-switch<br /> Brand: Kobold (Alemania)<br /> Model: KSM-1-030-Q-P25-R0<br /> [KSM-1]<br /> Operating principle: Variable area<br /> Mounting position: Vertical<br /> Flow direction: From bottom<br /> Armature material: Trogamide<br /> Accuracy,: ±4 % FS<br /> Max. temperature: 60 °C<br /> Max. pressure: 16 bar<br /> [030]: Measuring range: 300...3000 L/h water<br /> [Q]: Either scales for liquid media: m³/h water<br /> [P25]: Option connection: PVC G 1 female<br /> [R0]: Option contact: w/o contact S/ 1,687.64 1687.64 PEN
