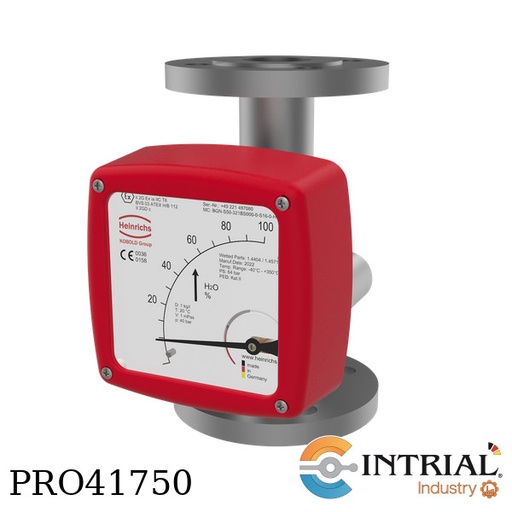

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Heinrichs (Alemania)<br />
Model: BGN-S25-309B-N-0-G-0-0-S-5-2-0-H</strong><br />
[BGN]: Model<br />
[S25]: Model, Stainless Steel, process temperature  = 350°C<br />
[309B]: Connection, size; DN25 PN40 Form B1 DIN EN 1092-1<br />
[N]: Range: 8.65-80.69 Kg/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[G]: Damping / spring stop, Gas damping <br />
[0]: Self draining, without<br />
[0]: Certificates, without  <br />
[S]: Display, Standard display housing,<br />
Process temperature = 150°C for electrical output, <br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[2]: Switches, 2 x inductive switch, Type SJ 3,5N<br />
Ambient temperature, -25 to 80ºC<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs<br />
<br />
* Data Process: Media: Steam

<strong>Variable Area Flowmeter<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: V31-40401S-01-D8W-F-F-A-0-0-2-0-0-0-0-0-0-0-H</strong><br />
[V31]: Model<br />
[40401S]: Thread, G 1"(F) Verschraubung<br />
Length, 375 mm, connection - wetted parts Edelstahl<br />
[01]: Type of float, Material, Stainless steel 1.4571; guide rod 1.4571 without<br />
[D8W]: Measuring range - stainless steel float, 0.27-2.7 m3/h<br />
[F]: Gasket, Viton®<br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: Electrical output, without<br />
[2]: Scale, Measuring range-scale (H2O)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[H]: Make, Heinrich

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S15-305B-F-0-G-0-0-S-5-2-0-H</strong><br />
[BGN]: Model<br />
[S15]: Model, Stainless Steel, process temperature  = 350°C<br />
[305B]: Connection, size; DN15 PN40 Form B1 DIN EN 1092-1<br />
[F]: Range,1.87-13.15 Nm3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[G]: Damping / spring stop, Gas damping <br />
[0]: Self draining, without<br />
[0]: Certificates, without  <br />
[S]: Display, Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[2]: Switches, 2 x inductive switch, Type SJ 3,5 N<br />
Ambient temperature, -25 to 80ºC<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs<br />
<br />
*Data Process: Media: H2

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S25-305B-M-0-G-0-0-S-5-2-0-H</strong><br />
[BGN]: Model<br />
[S25]: Model, Stainless Steel, process temperature  = 350°C<br />
[305B]: Connection, size; DN15 PN40 Form B1 DIN EN 1092-1<br />
[M]: Range, 5.89-58.85 Nm3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[G]: Damping / spring stop, Gas damping <br />
[0]: Self draining, without<br />
[0]: Certificates, without  <br />
[S]: Display, Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[2]: Switches, 2 x inductive switch, Type SJ 3,5 N<br />
Ambient temperature, -25 to 80ºC<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs<br />
<br />
Data Process: Media: N2

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S15-309B-K-0-G-0-0-S-5-2-0-H</strong><br />
[BGN]: Model<br />
[S15]: Model, Stainless Steel, process temperature  = 350°C<br />
[309B]: Connection, size; DN25 PN40 Form B1 DIN EN 1092-1<br />
[K]: Range, 2.64-24.46 Nm3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[G]: Damping / spring stop, Gas damping <br />
[0]: Self draining, without<br />
[0]: Certificates, without  <br />
[S]: Display, Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[2]: Switches, 2 x inductive switch, Type SJ 3,5 N<br />
Ambient temperature, -25 to 80ºC<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs<br />
<br />
*Media: CO2

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S15-305B-H-0-G-0-0-S-5-2-0-H</strong><br />
[BGN]: Model<br />
[S15]: Model, Stainless Steel, process temperature  = 350°C<br />
[305B]: Connection, size; DN15 PN40 Form B1 DIN EN 1092-1<br />
[H]: Range, 0.69-4.97 Nm3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[G]: Damping / spring stop, Gas damping <br />
[0]: Self draining, without<br />
[0]: Certificates, without  <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[2]: Switches, 2 x inductive switch, Type SJ 3,5N<br />
Ambient temperature, -25 to 80ºC<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs<br />
<br />
* Media: Air

<div><strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S15-305B-K-0-G-0-0-S-5-2-0-H</strong></div>

<div>[BGN]: Model<br />
[S15]: Model, Stainless Steel, process temperature  = 350°C<br />
[305B]: Connection, size; DN15 PN40 Form B1 DIN EN 1092-1<br />
[K]: Range, 2.76-25.38 Nm3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[G]: Damping / spring stop, Gas damping<br />
[0]: Self draining, without<br />
[0]: Certificates, without <br />
[S]: Display, Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[2]: Switches, 2 x inductive switch, Type SJ 3,5 N<br />
Ambient temperature, -25 to 80ºC<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs<br />
<br />
Data Process. Media: NH3<br />
 </div>

<div></div>

Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11-153-R-15-R-1<br />
[PSR-11]:<br />
Operating principle paddle<br />
Mounting position all directions<br />
Approvals ---<br />
incl. fitting brass<br />
Body material brass<br />
max. pressure 100 bar<br />
[153]: Measuring range/paddle, 2.7-6.4 L/min paddle: 3<br />
[R]: Connection, G-thread<br />
[15]: Connection, 1/2" NPT (for PSR-xx15..)<br />
[R]: Contact version, N/O<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

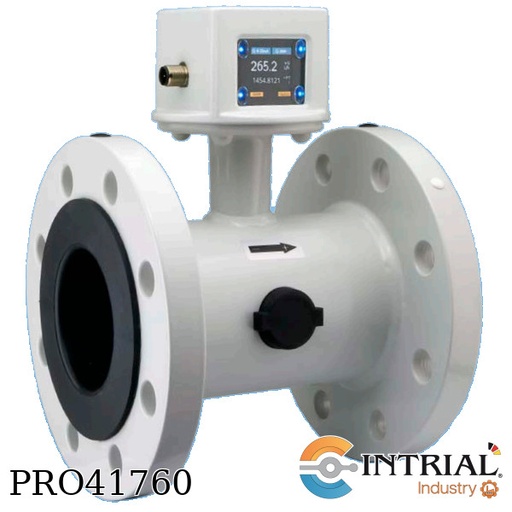

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIS-H-335B-1-HH-100<br />
Brand: Kobold (Alemania)</strong><br />
[MIS]<br />
MIS Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Functions/output:<br />
Pulse, Frequency, Analogue Output<br />
Alarm function, IO-link<br />
dosing and counter function<br />
Material electronic housing Aluminium coated, display window PMMA<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 μS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (ambient) -10°C …+60°C<br />
Max. temperature (medium) -10°C…+70°C<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[H] Material Lining, Hard rubber (NBR)<br />
[335B] Flange size, DIN EN 1092-1, Form A DN100 PN16<br />
[1] Material Process Connection, steel, coated<br />
[HH] Measuring and Grounding electrodes, Hastelloy C-276<br />
[100] Transmitter Mounting, direct mounted

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S25-305B-N-0-0-0-0-S-5-6-0-H</strong><br />
[BGN]: Model<br />
[S25]: Model, Stainless Steel, process temperature  = 350°C<br />
[305B]: Connection, size; DN15 PN40 Form B1 DIN EN 1092-1<br />
[N]: Range (water 20°C, 1mPas): UFE: 150-1500 L/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[0]: Damping / spring stop<br />
[0]: Self draining, without<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichsç<br />
<br />
Data Process.<br />
Media: UF6<br />


<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S50-321B-S-0-0-0-0-S-5-1-0-H</strong><br />
[BGN]:<br />
[S50]: Model, Stainless Steel, process temperature  = 350°C<br />
[321B]: Connection, DN50 PN40 Form B1 DIN EN 1092-1 <br />
[S]: Range (water 20°C, 1mPas): H2O: 1000-10000 L/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[0]: Damping / spring stop, without<br />
[0]: Self draining, without<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[1]: Switches, 1 x inductive switch, Type SJ 3,5 N<br />
Ambient temperature, -25 to 80ºC<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs<br />
<br />
Data Process.<br />
Media: Water<br />
<br />


All-Metal Variable Area Flowmeter BGN<br />
Brand: KOBOLD (Alemania)<br />
Model: BGN-S15-305B-J-0-G-0-0-S-5-0-0-H<br />
[S15]: Model, Stainless Steel, process temperature = 350°C<br />
[305B]: Connection, size; DN15 PN40 Form B1 DIN EN 1092-1<br />
[J]: Range, 1.8 a 15.45 Nm3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[G]: Damping / spring stop, Gas damping<br />
[0]: Self draining, without<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches,without<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

Compact Magnetic Inductive Flow Meter<br />
Model: MIK-5NA-65-K-C34P<br />
Brand: Kobold (Alemania)<br /><br />
[MIK-5NA]:<br />
Operating principle: Magnetic Inductive<br />
Mounting position: All directions<br />
Max. temperature/pressure: 80 °C / 10 bar<br />
Protection: IP 65<br />
Housing: PPS<br />
Electrodes: St. st.<br />
Seal: NBR<br />
[65]: Measuring range (liquid >30 µS/cm): 16...320 L/min, G 2 male<br />
[K]: Connection set: PVC-glue connection, G2 -Ø33/40 mm<br />
[C34P]: Evaluation electronic for MIK: Compact electronic, 24 VDC, 4-20 mA, 1x PNP

Flow Counter and Batch controller<br />
Brand: Kobold<br />
Model: ZOK-Z3-M-2F-3-0-0-Y<br />
[ZOK-Z3]:<br />
Function: Totaliser/ rate<br />
LCD Digital display: grafic,128 x 54 , backlight<br />
Measuring inputs: 2 x pulse (0,1…1000 Hz),<br />
type NPN, PNP, NAMUR, Reed, Hall, active<br />
Counter function: Partial /total value<br />
Actual flow: yes<br />
Pulse output (actual flow): PushPull<br />
Analogue output*: 4-20 mA<br />
*with universal housing (..K, ..M) 2/3-wire<br />
Ambient temperature: -20…+80 °C<br />
[M] Housing version, Universal housing for retrofitting DON (IP66/67)<br />
[2F] Electrical connection/Cable gland, 3 x cable entry ½ NPT<br />
[3] Supply voltage, 5…28 VDC, Battery 3,6 V (only for universal housing K, M)<br />
[0] Contacts, w/o<br />
[0] Options, w/o<br />
[Y] Special design

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S50-321B-S-0-0-0-0-S-5-2-0-H</strong><br />
[BGN]: Model<br />
[S50]: Model, Stainless Steel, process temperature  = 350°C<br />
[321B]: Connection, DN50 PN40 Form B1 DIN EN 1092-1 <br />
[S]: Range (water 20°C, 1mPas): H2O: 1-10 m3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[0]: Damping / spring stop, without <br />
[0]: Self draining, without<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing, <br />
Process temperature = 150°C for electrical output, <br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[2]: Switches, 2 x inductive switch, Type SJ 3,5 N<br />
Ambient temperature, -25 to 80ºC<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs<br />
<br />
Data Process.<br />
Media: Water<br />


All-Metal Variable Area Flowmeter BGN<br />
Brand: KOBOLD (Heinrichs)<br />
Model: BGN-S15-305B-H-0-G-0-0-S-5-0-0-H<br />
[S15]: Model, Stainless Steel, process temperature  <= 350°C<br />
[305B]: Connection, size; DN15 PN40 Form B1 DIN EN 1092-1<br />
[H]: Range 0.81-5.89 Nm3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[G]: Damping / spring stop, Gas damping <br />
[0]: Self draining, without<br />
[0]: Certificates, without  <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[0]: Switches,without <br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KDF-22-41-N-V-0-00-0<br />
[KDF-22]:<br />
Mounting length, 125 mm<br />
Operating principle, variable area<br />
Flow direction, from bottom to top<br />
Body material, st.st.<br />
Glass, Borosilicate<br />
Accuracy, class 2.5<br />
Max. temperature without/with contact, 100 °C / 80 °C<br />
Max. pressure, PN 16<br />
[41]: Measuring range, 16...160 L/h water<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Panel mounting kit, w/o<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o<br /><br />


<strong>Oval Gear Flow Meter/Counter<br />
Model: DON-8-15H-N3-1-Z3-N-0<br />
Marca: Kobold (Alemania)</strong><br />
[DON-8]:<br />
Operating principle: Gear Wheel<br />
Mounting position: Horizontal / Vertical<br />
Flow direction: In direction of the arrow<br />
Max. temperature: 80 °C<br />
Max. pressure: 16…100 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: PPS<br />
[15H]: Measuring range: 15-550 L/h<br />
[N3]: Mech. connection: 3/8" NPT<br />
[1]: Seal: FKM up to DON-x25<br />
[Z3]: Electronic: Dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry: 1/2 NPT<br />
[0]: Options: without

<div>Over Gear Flowmeter<br />
Model: OVZ-04-3-N2-N-C34P<br />
Brand: Kobold (Alemania)</div>

<div>[OVZ-04]:<br />
Operating principle: Oval Gear<br />
Mounting position: Horizontal / Vertical<br />
Measuring range by 10-100 mm²/s: 0,4-10 L/min<br />
Max. Temperature: 80°C<br />
Accuracy: +/- 2,5% FS<br />
Protection: IP65<br />
[3]: Body material / cover / max. pressure: Aluminium / PMMA / PN 16<br />
[N2]: Connection: 1/4 NPT<br />
[N]: Seals: NBR<br />
[C34P]: Electronic: Compact electronics, 4-20 mA, 1x PNP</div>

<div>Include 1: [ZUB-KAB-12-K502]<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K502<br />
Brand: Kobold (Alemania)</div>

<div>M12x1 box 2 m cable, 5-pin</div>

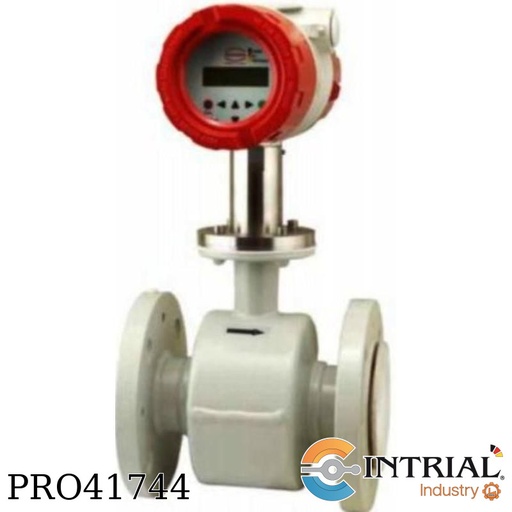

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-H-207R-1-S-S-1-0+UMF2-A-1-1-G-0BK</strong><br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[207R]: Process connection, 2½"" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 117 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated Transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br />
UMF2-A-1-1-G-0BK<br />
[UMF2]: Transmitter<br />
[A]: Mounting,<br />
Integrated transmitter IP 67 standard<br />
Thread-electrical ½"" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold
