Thermal Mass Flow Meter for Gas<br />
Brand: Kobold (Alemania)<br />
Model: KEC-2-S-R15-0-A-S-0-0<br />
[KEC-2]<br />
function principle, Direct thermal flow<br />
Mounting position, all directions<br />
version, inline version<br />
Output, Modbus RTU, 2x4-20 mA (°C/Nm³/h), Modbus TCP, puls, alarm<br />
Counter, 1 total counters (resettable)<br />
max. temperature, -40…+180 °C<br />
max. pressure, 10 (40) bar<br />
Accuracy, ±1,5% of meas. value, ±0,3% of F.S.<br />
sensor material, st. st. 1.4571 /glass<br />
[S]:Measuring range, Standard<br />
[R15]:Connection / sensor-length, G 1/2 male<br />
[0]:Display, without display<br />
[A]:Gas type, oxygen<br />
[S]:max. pressure, 16 bar (standard)<br />
[0]:Calibration, Standard<br />
[0]:Option, w/o

Thermal Mass Flow Meter for Gas<br />
Brand: Kobold (Alemania)<br />
Model: KEC-2-S-R15-0-E-H-E-0<br />
[KEC-2]<br />
function principle, Direct thermal flow<br />
Mounting position, all directions<br />
version, inline version<br />
Output, Modbus RTU, 2x4-20 mA (°C/Nm³/h), Modbus TCP, puls, alarm<br />
Counter, 1 total counters (resettable)<br />
max. temperature, -40…+180 °C<br />
max. pressure, 10 (40) bar<br />
Accuracy, ±1,5% of meas. value, ±0,3% of F.S.<br />
sensor material, st. st. 1.4571 /glass<br />
[S]:Measuring range, Standard<br />
[R15]:Connection / sensor-length, G 1/2 male<br />
[0]:Display, without display<br />
[E]:Gas type, hydrogen<br />
[H]:max. pressure, 40 bar (high pressure)<br />
[E]:Calibration, real gas calibration<br />
[0]:Option, w/o

<strong>Bypass-Level Indicators with glass tube <br />
Model: SZM-K-5-1-A8-G1-0 (2200 mm)<br />
Brand: Kobold (Alemania)</strong><br />
[SZM-K] <br />
Bypass- tube: Borosilicate glass<br />
O-ring, FPM<br />
Protecting tube: st.steel 1.4301 <br />
Connection: st.steel 1.4301<br />
Max. temperature:  100 °C<br />
Max. pressure 10 bar<br />
Installation length, 2200 mm<br />
[5] Version (top/bottom), top: cleaning hole, bottom: drain valve<br />
[1] Valves, 2 shut off valves in connection<br />
[A8] Connection, loose flange ANSI B16.5 1 1/2" 150 lbs<br />
[G1] Scale, Plastic foil on meas. tube (2 mm-division)<br />
[0] Limit switch, without

Bypass-Level Indicators with glass tube<br />
Model: SZM-K-5-1-A5-G1-0 (1650 mm)<br />
Brand: Kobold (Alemania)<br />
[SZM-K]<br />
Bypass- tube: Borosilicate glass<br />
O-ring, FPM<br />
Protecting tube: st.steel 1.4301<br />
Connection: st.steel 1.4301<br />
Max. temperature:  100 °C<br />
Max. pressure 10 bar<br />
Installation length, 1650 mm<br />
[5] Version (top/bottom), top: cleaning hole, bottom: drain valve<br />
[1] Valves, 2 shut off valves in connection<br />
[A5] Connection, loose flange ANSI B16.5 3/4" 150 lbs<br />
[G1] Scale, Plastic foil on meas. tube (2 mm-division)<br />
[0] Limit switch, without

Bypass-Level Indicators with glass tube<br />
Model: SZM-K-5-1-A8-G1-0 (1000 mm)<br />
Brand: Kobold (Alemania)<br />
[SZM-K]<br />
Bypass- tube: Borosilicate glass<br />
O-ring, FPM<br />
Protecting tube: st.steel 1.4301<br />
Connection: st.steel 1.4301<br />
Max. temperature:  100 °C<br />
Max. pressure 10 bar<br />
Installation length, 1000 mm<br />
[5] Version (top/bottom), top: cleaning hole, bottom: drain valve<br />
[1] Valves, 2 shut off valves in connection<br />
[A8] Connection, loose flange ANSI B16.5 1 1/2" 150 lbs<br />
[G1] Scale, Plastic foil on meas. tube (2 mm-division)<br />
[0] Limit switch, without

Plastic Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSM-1-060-Q-P40-R1<br />
[KSK-1]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Trogamide<br />
Accuracy, ±4 % FS<br />
Max. temperature, 60 °C<br />
Max. pressure, 16 bar<br />
[060]: Measuring range, 600...6000 L/h water<br />
[Q]: either scales for liquid, media m³/h water, from 1 m³/h water<br />
[P40]: Option connection for size 060, PVC G 1 1/2 female<br />
[R1]: Option contact, 1 contact

Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: UTR-5-YY-1-N4-0<br />
[UTR-5]:<br />
Mounting length 240 mm<br />
Material, st.st. 1.4404<br />
Float, st.st. 1.4404<br />
Measuring glass Borosilicate<br />
Operating principle Float<br />
Flow direction from bottom to top<br />
Accuracy class 4<br />
Max. temperature without contact, 100 °C <br />
Max. pressure PN 10<br />
[YY]: Measuring range, 3-5 L/min<br />
[1]: Valve, with valve<br />
[N4]: Connection, 1/2" NPT<br />
[0]: Contacts, w/o

<strong>Variable Area Flowmeter/-switch Glass Cone<br />
Brand: Kobold<br />
Model: URK-73-33H-L-A6-0</strong><br />
[URK-73]:<br />
Operating principle variable area <br />
Mounting position vertical, flow direction from bottom <br />
Accuracy Class 4 <br />
Type loose flange<br />
Max. temperature 65 °C<br />
Max. pressure 12 Bar<br />
Housing st. st. 1.4301<br />
Connection Cast iron <br />
Float 1.4301 <br />
Ring PVC <br />
Seal NBR<br />
[33H]: Range Full Scale, 10 000 L/h<br />
[L]: Type, loose flange<br />
[A6]: Connection, ANSI 150 lbs, 1"<br />
[0]: Contacts, w/o

Oval Gear Flow Meter/Counter<br />
Brand: Kobold<br />
Model: DON-2-25G-A6-4-Z1-N-0<br />
[DON-2]:                <br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[25G]: Measuring range, 2.6-39.6 G/min<br />
[A6]: Mech. Connection, ANSI flange 1" 150 lbs<br />
[4]: Seal, NBR<br />
[Z1]: Electronic, LCD totaliser with rate, incl. battery<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options , without

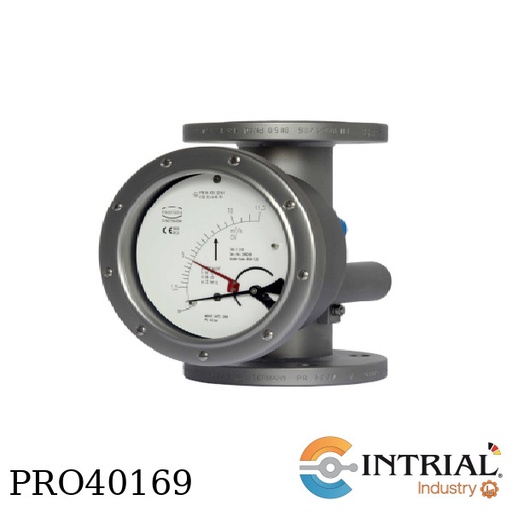

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S25-202R-M-0-F-0-0-E-2-0-0-H</strong><br />
[BGN]: Model<br />
[S25]: Stainless Steel, process temperature ≤ 350°C<br />
[202R]: ¾" Class 150 RF ASME B16.5-2003<br />
[M]: Range:100 - 1000 l/h (1.67 – 16.67 L/min)<br />
[0]: Heating/cooling, without heating / Cooling<br />
[F]: Damping/spring stop, with liquid damping<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[E]: Display, Stainless steel display housing IP67, working temperature ≤ 150°C<br />
[2]: Scale, Measuring range-Scale (Water) <br />
[0]: Switches, without<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

Pelton Wheel Flow Meter<br />
Brand: Kobold<br />
Model: DPE-12-15-N6-Z340<br />
[DPE-12]<br />
Operating principle: Pelton Wheel (6-vane)<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar)<br />
Accuracy of final value: +/-2,5%<br />
Material Housing: St. St.<br />
Material Axis Hard metal<br />
[15]: Measuring range, 20-80 L/min<br />
[N6]: Mech. connection, for MR-Code: 15, 1 NPT female<br />
[Z340]: Electronic, Pointer indicator 4-20 mA, plug M12x1<br /><br />
Include:<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K002<br />
Brand: Kobold<br />
M12x1 box 2 m cable, 4-pin

Model: DPE-12-15-N6-C34P<br />
Brand: Kobold<br />
[DPE-12]<br />
Operating principle: Pelton Wheel (6-vane) <br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar) <br />
Accuracy of final value: +/-2,5% <br />
Material Housing: St. St.<br />
Material Axis Hard metal  <br />
[15]: Measuring range, 20-80 L/min <br />
[N6]: Mech. connection, for MR-Code: 15, 1 NPT female <br />
[C34P]: Electronic, Compact electronics, 4-20 mA, 1x PNP, <br /><br />
Include:<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K002<br />
Brand: Kobold<br />
M12x1 box 2 m cable, 4-pin

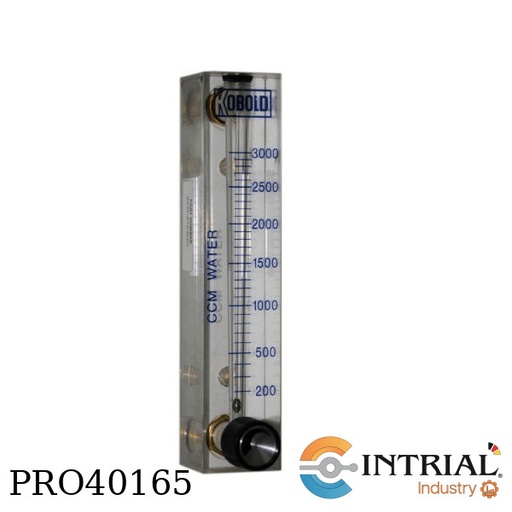

Low Volume Flowmeter<br />
Brand: Kobold<br />
Model: KFR-22-12-N0<br />
[KFR-22]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length,102 mm<br />
Accuracy, ±5 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, St.st.<br />
Connection size,1/8 NPT female on rear<br />
Seal, FPM<br />
[12]: Measuring range, 0,04...0,5 L/min air<br />
[N0]: Needle valve

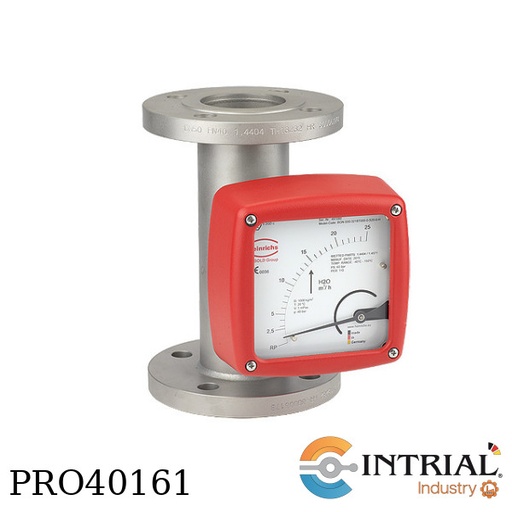

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Heinrichs (Alemania)<br />
Model: BGN-S25-309B-N-0-G-0-0-S-5-0-0-H</strong><br />
[BGN]: Model<br />
[S25]: Model, Stainless Steel, process temperature ≤ 350°C <br />
[309B]: Connection, size: DN25 PN40 Form B1 DIN EN 1092-1 <br />
[N]: Range: 5.11-51.12 Kg/h, <br />
[0]: Heating/cooling: without heating / Cooling <br />
[G]: Damping/spring stop, Gas damping<br />
[0]: Self draining, without<br />
[0]: Certificates, without<br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs<br />
Process Data. Media: Steam

Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KDG-22-37-N-V-S-00-0<br />
[KDG-22]:<br />
Mounting length 125 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy class 2.5<br />
Max. temperature without/with contact  100 °C / 80 °C<br />
Max. pressure PN 16<br />
With needle valve<br />
[37]: 50...500 L/h air<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[S]: Panel mounting kit, with panel mounting set<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o

Flap Flow Meter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: TSK-S-210R-F1-L-6-V-0-0-S-2-6-0-H<br />
[TSK-S]:  <br />
Wetted materials, Armature: Stainless steel<br />
Built-in parts: Stainless steel<br />
Pressure rating: 16 bar<br />
Process temperature: -40° to +300°C<br />
[210R]: Process connection, for 4" Class 150 RF ASME B16.5-2003<br />
[F1]: Range, Water: 6 - 40 m³/h<br />
[L]: Flow direction, horizontal from left to right<br />
[6]: Temperature class, max. 80°C<br />
Contains: enclosure of magnet PVDF<br />
[V]: Sealing, Viton<br />
Process temperature: max. 150°C<br />
[0]: Protection against particle-penetration into transmission chamber, without<br />
[0]: Certificates, without<br />
[S]: Indicating part, Standard indicating housing (aluminum)<br />
[2]: Product scale, Measuring range-Scale (Water)<br />
[6]: Electrical output: Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature: -40° to +70°C<br />
[0]: Accessory, without<br />
[H]: Design, Heinrichs

Pelton Wheel Flow Meter. Range, 30-350 L/min. Accuracy of final value, +/-3%, Compact electronics, 4-20 mA, 1x PNP.  Max. connection: 2 NPT female. Temperature, 80 C. Max. Pressure, 16 bar.<br /><br />
Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-12-25-N9-C34P<br />
[DPE-12]<br />
Operating principle: Pelton Wheel (6-vane)<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar)<br />
Accuracy of final value: +/-2,5%<br />
Material Housing: St. St.<br />
Material Axis Hard metal  <br />
[25]: Measuring range, 30-350 L/min<br />
[N9]: Mech. connection, for MR-Code: 25 2 NPT female<br />
[C34P]: *Electronic, Compact electronics, 4-20 mA, 1x PNP

Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-12-30-NB-C34P<br />
[DPE-12]<br />
Operating principle: Pelton Wheel (6-vane) <br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar) <br />
Accuracy of final value: +/-2,5% <br />
Material Housing: St. St.<br />
Material Axis Hard metal  <br />
[30]: Measuring range, 50-750 L/min <br />
[NB]: Mech. connection, for MR-Code: 30, 3 NPT female <br />
[C34P]: *Electronic, Compact electronics, 4-20 mA, 1x PNP,

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs<br />
Model: BGN-S1H-210R-V-0-F-0-0-S-2-6-0-H</strong><br />
[BGN]: Model,<br />
[S1H]: Model, Stainless Steel, process temperature  = 350°C<br />
[210R]: Connection, size, 4" Class 150 RF ASME B16.5-2003<br />
[V]: Range (water 20°C, 1 mPas), H2O: 4-40 m3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[F]: Damping / spring stop, with liquid damping<br />
[0]: Self draining, without<br />
[0]: Certificates, without<br />
[S]: Display, <br />
Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water)<br />
[6]: Switches,Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-8-55G-AC-4-Z1-N-0<br />
[DON-8]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: PPS<br />
[55G]: Measuring range, 75-1500 L/min, 14-396 GPM<br />
[AC]: Mech. connection, ANSI flange 4" 150 lbs<br />
[4]: Seal, NBR<br />
[Z1]: Electronic,LCD totaliser with rate<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without<br />
* Not include battery
