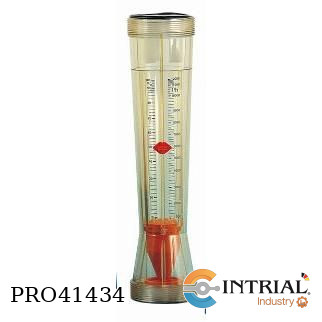

<strong>Variable Area Flowmeter-Plastic<br />
Brand: Kobold (Alemania)<br />
Model: KSM-2-060-H-P25-R0</strong><br />
[KSM-2]: Plastic Flowmeter/-switch<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Polysulfone<br />
Accuracy, ±4 % FS<br />
Max. temperature, 100 C<br />
*60 °C c/w PVC-connection<br />
Max. pressure, 16 bar<br />
[060]: Measuring range: 600...6000 L/h water<br />
[H]: Either scales for liquid media, L/h water<br />
[P25]: Option connection for size 030, PVC G 1 female<br />
[R0] Option contact: w/o contact

EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-E-210R-1-H-H-1-0+UMF2-A-1-4-F-0BK<br />
[EPS-E]: Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[210R]: Process connection, 4" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 274 m³/h, Installation length, 250 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br />
[UMF2]:Transmitter<br />
[A]: Mounting,<br />
Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[F]: Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

Low Volume Variable Area Flowmeter<br />
Brand: Heinrichs - Kobold (Alemania)<br />
Model: K12-N-0-1-61-2-V-0-0-0-0-00-0-K-0-0-0-0-0<br />
[K12]: Base Price, Mounting length 125 mm<br />
[N]: Connection, ¼"-NPT female<br />
[0]: Connection-accessories, w/o<br />
[1]: Valve position, outlet<br />
[61]: Ranges, 5.82 – 58.24 Nl/min (Air)<br />
[2]: Skaling, Product scale  <br />
[V]: Sealing glass tube, Viton standard<br />
[0]: Accessories, Wall / Panel Mount (not with terminal conn. Box), w/o<br />
[0]: Contacts, w/o<br />
[0]: N° of contacts, w/o<br />
[0]: Terminal box, w/o<br />
[00]: Flow - differential pressure regulator (not with panel mount/ only with NPT conn.), w/o<br />
[0]: Approvals, w/o<br />
[K]: Labeling, KOBOLD<br />
[0]: Marking, w/o                                                                                                                                                     <br />
[0]: Certificates, w/o<br />
[0]: Pressure and leak testing, w/o<br />
[0]: Calibration report, w/o<br />
[0]: Cleaning, w/o

Transmitter Clamp-on Ultrasonic Flow Meter<br />
Compound model:<br />
DUC-MP-1-0-0-S-00+DUC-WP-10-0-03+DUC-WP-05-0-03+DUC-ZF-MS<br />
Model: DUC-MP-1-0-0-S-00<br />
Brand: Kobold<br />
[DUC-MP]:<br />
Operating principle Ultrasonic<br />
Mounting version portable<br />
Measuring units volume flow, flow velocity, thermal output<br />
Counter heat quantity, volume<br />
Housing Aluminium, ABS<br />
Additional input for heat measuring 2x Pt100<br />
Output 2x4-20 mA, 1 pulse, 1x microUSB, 1 relay<br />
Measuring channels 1<br />
Protection IP 40<br />
Included Accessories Case<br />
[1]: Measuring channels, 1-channel<br />
[0]: Power supply, 100-240 VAC, battery<br />
[0]: Ex-approval, without<br />
[S]: Language packages, german/spanish/french<br />
[00]: Options, without<br /><br />
Include 1:<br />
DUC-WP-10-0-03<br />
Transducer Clamp-on Ultrasonic Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DUC-WP-10-0-03<br />
[DUC-WP]:<br />
Application area for portable<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range -40..+150 °C<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling gel,<br />
textile tightening straps (DUC-WP05) or clambing chain (DUC-WP-10, -WP21)<br />
[10]: for tube diameter, DN32..DN400, 1 MHz<br />
[0]: Ex-approval, without<br />
[03]: Cable length, 3 m<br /><br />
Include 2:<br />
DUC-WP-05-0-03<br />
Transducer Clamp-on Ultrasonic Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DUC-WP-05-0-03<br />
[DUC-WP]:<br />
Application area for portable<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range -40..+100 °C<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling gel, textile tightening straps (DUC-WP05)<br />
[05]: for tube diameter, DN200..DN6000, 0,5 MHz<br />
[0]: Ex-approval, without<br />
[03]: Cable length, 3 m<br /><br />
Include 3:<br />
Accessories for DUC<br />
Model: DUC-ZF-MS<br />
[DUC-ZF-MS]<br />
Mounting rails suitable for transducer DUC-WF10, -WP10 (max. DN 400), max.150 °C

Variable Area Flowmeter<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: V31-60401F-06-D8W-B-F-A-0-0-4-0-0-0-0-0-0-0-K<br />
[V31]: Model<br />
[60401F]: Thread: NPT ¾"(F) Verschraubung, Length, 375 mm, <br />
connection - wetted parts PVDF<br />
[06]: Type of float, Material, PVDF - weighted; guide rod 1.4571 without<br />
[D8W]: Measuring range - PVDF float (H2O: 225 a 2250 Lph)<br />
[B]: Gasket, EPDM <br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, with<br />
[0]: Electrical output, without<br />
[4]: Scale, Measuring range-scale (Medium)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[K]: Make, Kobold

<strong>Variable Area Flowmeter<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: V31-60401F-06-D6W-B-F-A-0-0-4-0-0-0-0-0-0-0-K</strong><br />
[V31]: Model<br />
[60401F]: Thread: NPT ¾"(F) Verschraubung, Length, 375 mm, <br />
connection - wetted parts PVDF<br />
[06]: Type of float, Material, PVDF - weighted; guide rod 1.4571 without<br />
[D6W]: Measuring range - PVDF float (H2O: 125 a 1250 Lph)<br />
[B]: Gasket, EPDM <br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, with<br />
[0]: Electrical output, without<br />
[4]: Scale, Measuring range-scale (Medium)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[K]: Make, Kobold

Variable Area Flowmeter<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: V31-60401F-06-D3W-B-F-A-0-0-4-0-0-0-0-0-0-0-K<br />
[V31]: Model<br />
[60401F]: Thread: NPT ¾"(F) Verschraubung, Length, 375 mm,<br />
connection - wetted parts PVDF<br />
[06]: Type of float, Material, PVDF - weighted; guide rod 1.4571 without<br />
[D3W]: Measuring range - PVDF float (H2O: 58 a 580 Lph)<br />
[B]: Gasket, EPDM<br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, with<br />
[0]: Electrical output, without<br />
[4]: Scale, Measuring range-scale (Medium)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[K]: Make, Kobold

Flow indicator with Flange Connection<br />
Brand: Kobold (Alemania)<br />
Model: DAR-2-1-05H-F-40<br />
[DAR-2]<br />
Operating principle, Rotor<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120 °C<br />
max. pressure, 16 bar<br />
[1]: Housing, cast iron<br />
[05H]: Nom. diameter, 40<br />
[F]: Flanges, flange acc. EN 1092-1<br />
[40]: Connection*, DN 40 / 1 1/2"

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Kobold Group)<br />
Model: EPS-H-212R-1-S-S-1-0 + UMF2-A-1-1-F-0BH</strong><br /><br />
[EPS]: Sensor Model<br />
[H]: Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[212R]:Process connection, 6" Class 150 RF ASME B16.5-2003<br />
Max. measuring range 632 m³/h, length, Installation 300 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor, IP67<br />
[0]:Certificates, w/o<br /><br />
[UMF2]: Transmitter Model<br />
[A]: Mounting, Integrated transmitter IP 67 standard,<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
status output: passive Um=24 VDC<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs (Alemania)<br />
Model: DVH-P-H5-1-S-L-L-2-S-3-H</strong><br />
[DVH]: Model, Inline Version<br />
[P]: Electronic – Options, Flow Velocity including temperature and pressure sensor<br />
[H5]: Flow Body Flange, 6 inch ANSI <br />
[1]: Process Connection, ANSI 150 lbs ASME B16.5.2003<br />
[S]: Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[L]: Sensor Configuration / Mounting Option, Kompakt inkl. LCD Anzeige IP 66 / Nema 4<br />
[L]: Input Power, 12-36 VDC loop powered<br />
[2]: Output Signal, Loop powered 1x 4-20mA, HART 1x Impuls nur mit Spann.-Versorgung L passiv<br />
[S]: Process Temperature, Standard Temperature  -200….+260 °C  -330….+500 °F<br />
[3]: Option Pressure Sensor (Electronic versions T/P/E/M), Incl. Pressure Sensor 20 bar abs (300 psia) Electr.version P / M41 bar abs. (600 psia)<br />
[H]: Version, Heinrichs

Turbine Wheel Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: DOT-13-25-XX-Z3N-L<br />
[DOT-13]<br />
Operating principle Turbine wheel<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Connection/ Housing material st. Steel / st. steel<br />
max. temperature -20…+120 °C<br />
max. pressure 250 bar<br />
Linearity ± 0.5 % of Reading<br />
[25]: measuring range, 1.6-16 m³/h<br />
[XX]: Mechanical connection, mechanical connection Tri-clamp according to DIN 32676 size 1"<br />
[Z3N]: Electronics / cable entry, dual LCD totaliser/rate, outputs: pulse, analogue, cable entry 1/2 NPT<br />
[L]: Flow direction, from left to right, indication on top.

Rotating Vane Flow Meter<br />
Marca: Kobold (Alemania)<br />
Model: DPM-1-5-50-N2-L343<br />
[DPM-1]:<br />
Operating principle, Rotating vane<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. temperature ,80 °C<br />
max. pressure, 16 bar<br />
Accuracy, +/-1,0 (2,5)%<br />
Protection, IP 65<br />
[5]: Material, st. st.<br />
[50]: Measuring range, 0,05-5,0 L/min<br />
[N2]: Mech. connection, 1/4 NPT female<br />
[L343]: Evaluating Electronic, Analogue output 4-20mA, M12x1, 3-wire

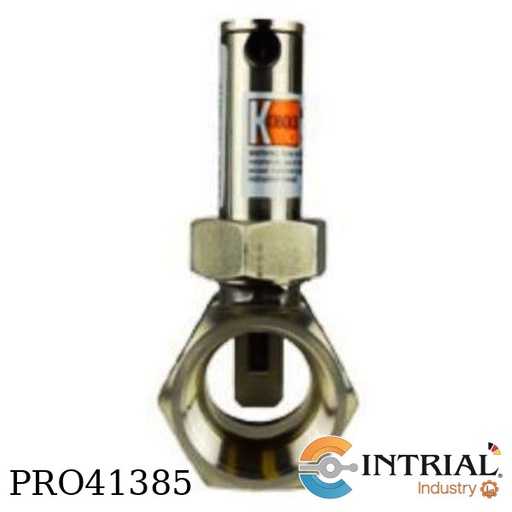

Flow Indicator and Switch with Paddle and Bellows<br />
Brand: Kobold (Alemania)<br />
Model: DWU-1-5-R32-0-R-T-0    <br />
[DWU-1]:<br />
Operating principle: paddle-bellow<br />
Indication: pointer indication<br />
Flow direction: in direction of the arrow<br />
Output 1: microswitch/SPDT<br />
Max. Temperature: 100 °C <br />
Connection: male thread <br />
[5]: Material combination: Brass<br />
[R32]: Connection: G 1¼ male<br />
[0]: Signal lamp:230 VAC<br />
[R]: Flow direction: flow from right to left<br />
[T]: Location of indicator: above lead<br />
[0]: Options: w/o option

<strong>Flow Indicator and Switch with Paddle and Bellows<br />
Brand: Kobold (Alemania)<br />
Model: DWU-1-5-R40-0-R-T-0   </strong> <br />
[DWU-1]:<br />
Operating principle: paddle-bellow<br />
Indication: pointer indication<br />
Flow direction: in direction of the arrow<br />
Output 1: microswitch/SPDT<br />
Max. Temperature: 100 °C <br />
Connection: male thread <br />
[5]: Material combination: Brass<br />
[R40]: Connection: G 1½ male <br />
[0]: Signal lamp:230 VAC<br />
[R]: Flow direction: flow from right to left<br />
[T]: Location of indicator: above lead<br />
[0]: Options: w/o option

Viscosity-Compensated Flow Meters and Switches<br />
Brand: Kobold (USA)<br />
Model: VKM-6206<br />
[VKM-6206]:<br />
Specifications:<br />
Accuracy: ± 4% full scale (viscosity of 105 cSt)<br />
Max. Temperature:  212 °F<br />
Flowmeter Oil Scale<br />
Housing:  SS<br />
Ingress Protection: IP54 for Side Indicator<br />
Range: 0.5...2.5 GPM<br />
Stand. Conn. 1/4" NPT<br />
Press. Drop Max: 11.6 (PSI)

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-H-15H-N2-3-H0-N-0<br />
[DON-H]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 400 Bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[15H]: Measuring range, 15-550 L/h<br />
[N2]: Mech. Connection, NPT 1/4<br />
[3]: Electronic, Seal, FEP O-seal / EPDM-core up to DON-x15<br />
[H0]: Pulse output Hallsensor/Reed switch, Push Pull (8-30 VDC)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-H-10H-N2-3-H0-N-0<br />
[DON-H]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 400 Bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[10H]: Measuring range, 2 - 100 L/h<br />
[N2]: Mech. Connection, NPT 1/4<br />
[3]: Electronic, Seal, FEP O-seal / EPDM-core up to DON-x15<br />
[H0]: Pulse output Hallsensor/Reed switch, Push Pull (8-30 VDC)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without

Viscosity Compensated Plastic Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKP-1-100-AG3-S<br />
[VKP-1]:<br />
Operating principle variable area<br />
Mounting position vertical or horizontal<br />
Flow direction all directions<br />
Material Polysulfone<br />
Accuracy ±5 % FS<br />
Max. temperature 120 °C*<br />
Max. pressure 16 bar<br />
* c/w contact 85 °C; c/w PVC-connection 60 °C<br />
[050]: Measuring range: 5...50 L/min water<br />
[AG3]: Connection, G 3/4 male, brass<br />
[S]: Contact N/0

Differential Pressure Flow Meter / Monitor<br />
Model: RCD-11-14H-N6-ZRT<br />
Brand: Kobold (Alemania)<br />
[RCD-11]:<br />
Operating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class IP 65<br />
max. temperature 80 °C (100 °C)<br />
max.pressure 40 bar<br />
Material Brass casting<br />
[14H]: Measuring range, 10-58 L/min water<br />
[N6]: Process Connection,  1 NPT female  <br />
[ZRT]: Evaluating electronics, mech. pointer indication Flow from right/indication on top

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-12-251-R-25-R-1</strong><br />
[PSR-12]:<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Incl. fitting: st.st.<br />
Body material: st.st.<br />
Max. pressure*: 250 bar<br />
*only 25 bar at PSR-..32 and PSR-..40<br />
[251] Measuring range/paddle, 47.6-67.2 L/min paddle: 1<br />
[R] Connection, G-thread<br />
[25] Connection, 1" <br />
[R] Contact version, N/O<br />
[1] Connecting cable, PVC-cable 1.5 m
