<strong>Ultrasonic Flow Meter/-Monitor/-Counter/-Doser<br />
Brand: Kobold (Alemania)<br />
Model: DUK-11-N9H-C34P-L</strong><br />
[DUK-11]: <br />
Operating principle Ultrasonic<br />
Mounting position all directions<br />
Indication/Output see electronic version<br />
Max. temperature/pressure 90 °C / 16 bar <br />
Protection IP 65<br />
Seal NBR <br />
Sensor Housing Brass<br />
[N9H]: Measuring range/connection, 1…250 L/min, 2 NPT female<br />
[C34P]: Evaluation electronic for DUK,<br />
Compact electronic 24 VDC, 4-20 mA, 1x PNP <br />
[L]: Flow direction, from left to right<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania) <br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

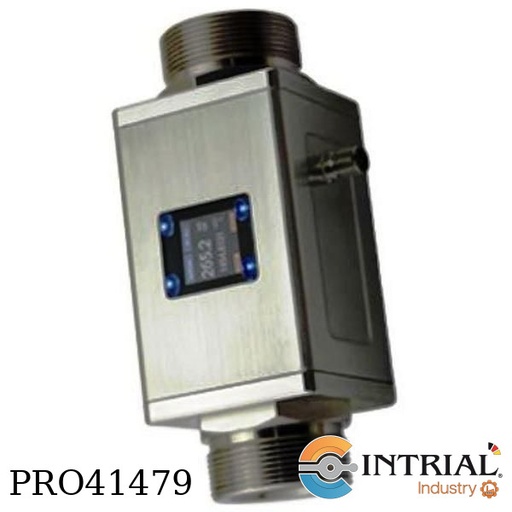

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-35HG9-C3T-0</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 uS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2]: Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / FKM<br />
[35HG9]: Measuring range (flow/temperature), 1,5…350 L/min. / [°C] G 2 male<br />
[C3T]: Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0]: Options, without<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

EPS Electromagnetic Flow Meter<br />
Brand: Kobold - Heinrichs<br />
Model: EPS-H-335B-1-S-S-1-0+UMF2-A-1-1-F-0BK<br />
[EPS]: Sensor<br />
[H]: Material – lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature, 0°C…+95°C<br />
[335B]: Process Connection, DN100 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range (Water 20°C, 1 mPas), 274 m³/h<br />
Installation length, 250 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, integrated transmitter<br />
Protection class sensor, IP67<br />
[0]: Certificates, w/o<br /><br />
UMF2-A-1-1-F-0BK<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F] Output signal,<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

<strong>Rotating Vane Flow Meter<br />
Marca: Kobold (Alemania)<br />
Model: DPM-1-5-40-N2-F300</strong><br />
[DPM-1]<br />
Operating principle, Rotating vane<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. temperature ,80 °C<br />
max. pressure, 16 bar<br />
Accuracy, +/-1,0 (2,5)%<br />
Protection, IP 65<br />
[5] Material, st. st.<br />
[40] Measuring range, 0,05-4,0 L/min<br />
[N2] Mech. connection, 1/4 NPT female<br />
[F300] Evaluating Electronic, Frequency output, plug M12x1, PNP<br /><br /><strong>Include:<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K002</strong><br />
M12x1 box 2 m cable, 4-pin

<strong>High Precision Pelton Wheel Flowmeter<br />
Model: PEL-L-001-LMX-F<br />
Brand: Kobold (Alemania)</strong><br />
[PEL-L]<br />
Operating principle, Pelton Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Max. temperature, 100 °C<br />
Max. pressure, 100 bar<br />
Accuracy, ± 2 % FS<br />
[001] Measuring range / connection size, 0,01...0,25 L/min<br />
[LMX] Material fitting/ conn./ temp./ pressure, <br />
st.st. / R 1/2 male/ 100 °C/ 100 bar<br />
[F] Electronic, Standard pulse output

Compact Vortex Flow Meter<br />
Brand: Kobold<br />
Modelo: DVZ-1-2-32G5-L343<br />
[DVZ-1]<br />
Operating principle Vortex<br />
Mounting position all directions<br />
Indication / Output see electronic version<br />
Housing PPS/standard housing<br />
Max. temperature/pressure, 80 °C / 10 bar<br />
Protection, IP 65<br />
Housing Standard<br />
Bluff body PPS<br />
Connection material, St. st.<br />
[2] Seal /Conn. material, NBR / St. st.<br />
[32G5] Measuring range/connection fix: 4-32 L/min water / G 3/4<br />
[L343] Analogue output, 24 VDC, 4-20 mA, plug M12, 3-wire

<strong>Compact Vortex Flow Meter<br />
Brand: Kobold<br />
Modelo: DVZ-1-2-32G6-L343</strong><br />
[DVZ-1]<br />
Operating principle Vortex<br />
Mounting position all directions<br />
Indication / Output see electronic version<br />
Housing PPS/standard housing<br />
Max. temperature/pressure, 80 °C / 10 bar<br />
Protection, IP 65<br />
Housing Standard<br />
Bluff body PPS<br />
Connection material, St. st.<br />
[2] Seal /Conn. material, NBR / St. st.<br />
[32G6] Measuring range/connection fix: 4-32 L/min water / G 1<br />
[L343] Analogue output, 24 VDC, 4-20 mA, plug M12, 3-wire

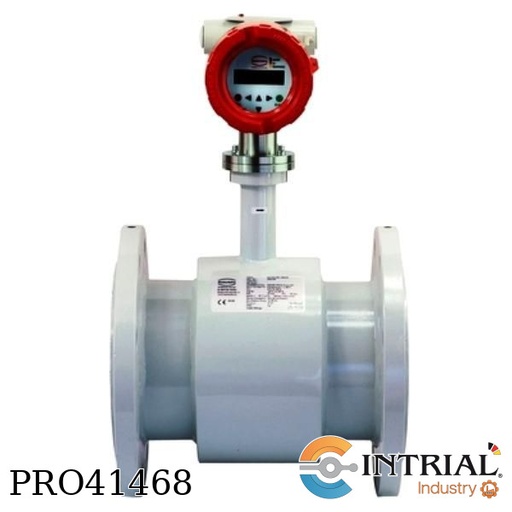

<div><strong>Magnetic Inductive Flow Meter with flange<br />
Brand: Kobold<br />
Model: EPS-H-208R-1-S-S-1-0</strong><br />
[EPS-H]<br />
Mounting position, all directions<br />
Display / Protection class, LCD Display / IP 68<br />
Output, Analogue, frequency, connection and status output<br />
max. medium temperature, 0…+95 °C<br />
Coating, hard rubber<br />
[208R]: Connection flange ASME 16.5./ 3" 150 Class lbs max. 170 m³/h<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571<br />
[S]: Earthing electrode, st.st. 1.4571<br />
[1]: Transmitter mounting integrated version, protection IP 67<br />
[0]: Certificates, without</div>

<div>UMF2-A-1-4-G0BK<br />
[UMF2]<br />
Output analogue, binary, status<br />
Communication HART®<br />
Power supply 115/250 VAC, 24 VDC<br />
Ambient temperature -20...+60 °C<br />
Housing material Aluminium painted, display cover out of safety class<br />
Protection IP 68<br />
[A]: Mounting, integrated transmitter IP67 / ½ NPT<br />
[1]: Display / Interface board, with display / interface board<br />
[4]: Power supply, 24V DC (±15%)<br />
[G0BK]: Output, Analogue, pulse, status, with HART®</div>

<div>Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-11-15-N6-C34P + ZUB-KAB-12-K502<br />
Temperatura, 80°C<br />
Max. Pressure, PN 40 (DPE-1200W: 16 bar)<br />
Accuracy of final value, +/-2,5%<br />
Material Housing, al. + bronze<br />
Material Axis, Hard metal<br />
[15]: Measuring range, 20-80 L/min<br />
[N6]: Mech. Connection, 1 NPT female<br />
[C34P]: Compact electronics, 4-20 mA, 1x PNP</div>

<div>Include:<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K502<br />
M12x1 box 2 m cable, 5-pin</div>

Paddle Wheel Flowmeter<br />
Brand: Kobold USA<br />
Model: DRB-1155-N5-C34P<br />
[DRB-1155]:<br />
Technical Details<br />
Measuring Accuracy: ± 3% of Full Scale<br />
Process Temperature: -10...176°F<br />
Range flow (GPM): 3.0...13<br />
Material: Brass<br />
[N5]: Process Connection; 3/4" NPT<br />
[C34P]: Evaluating Electronics; LED-Display,<br />
4-20 mA, 1 x Open Collector PNP,<br />
Plug Connector M12 x 1

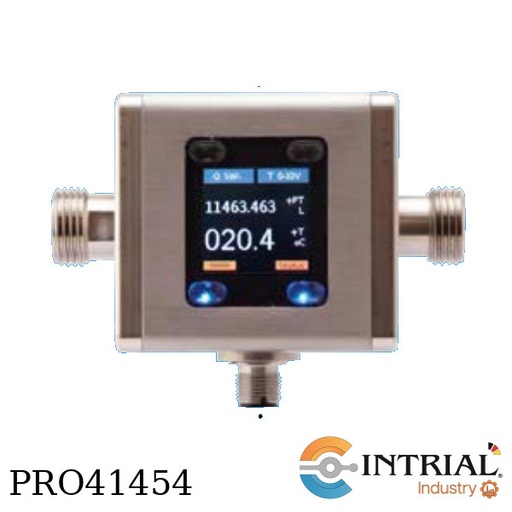

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-15HG6-C3T-0</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display: <br />
TFT-display, 128 x 128 color pixel, <br />
1,4", rotatable in 90° steps, <br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Max. temperature: <br />
-20°C..+70°C (media),<br />
-10°C..+60°C (ambient)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2]: Material housing / insulation part, st. steel 1.4404 / PEEK<br />
[15HG6]: Measuring range (flow/temperature), 0,2…50 L/min / -20..+70 °C<br />
[C3T]: Evaluation electronic: <br />
Analogue output: 0(4)-20 mA, 0-10 V, <br />
Switching output NPN, PNP, PushPull, <br />
Frequency output, pulse output, <br />
Part- or grand totaliser.<br />
[0]: Options, without<br /><br />
Accessories round plug<br />
Brand: Kobold (Alemania) <br />
Model: ZUB-KAB-12-K005<br />
M12x1 box 5 m cable, 4-pin

<div>Ultrasonic Flow Meter/-Monitor/-Counter/-Doser<br />
Brand: Kobold (Alemania)<br />
Model: DUK-11-N6H-K042-L</div>

<div>[DUK-11]:<br />
Operating principle Ultrasonic<br />
Mounting position all directions<br />
Indication/Output see electronic version<br />
Max. temperature/pressure 90 °C / 16 bar<br />
Protection IP 65<br />
Seal NBR<br />
Sensor Housing Brass<br />
[N6H]: Measuring range/connection, 0,25…63 L/min 1 NPT female<br />
[K042]: Evaluation electronic for DUK,<br />
ADI-Evaluation electronic Bar graph / Digital display<br />
[L]: Flow direction, from left to right</div>

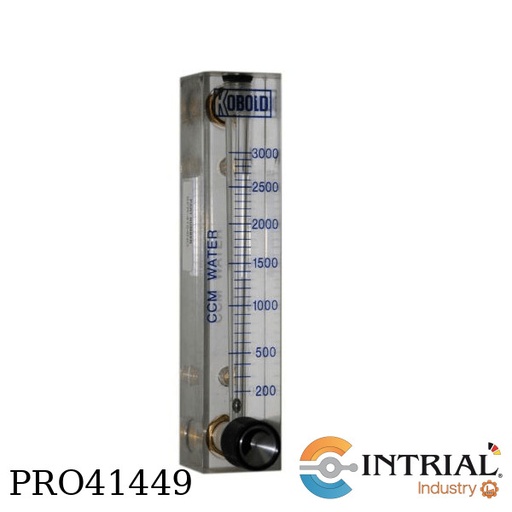

Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-22-15-N0 <br />
[KFR-22]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length,102 mm<br />
Accuracy, ±5 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, St.st.<br />
Connection size,1/8" NPT female on rear <br />
Seal , FPM<br />
[15] Measuring range, 1...10 L/min air<br />
[N0] Needle valve

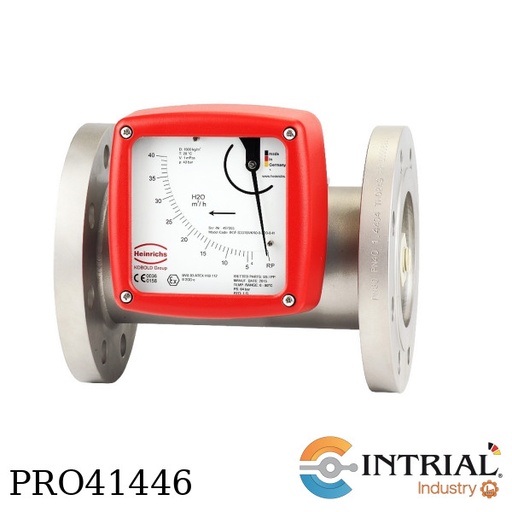

<strong>All-Metal Variable Area Flowmeter BGF<br />
Brand: Heinrichs (Kobold Group) <br />
Model: BGF-S25-305B-M-P-L-0-0-S-2-0-0-H</strong><br />
[BGF]: Model<br />
[S25]: Model, Stainless Steel, process temperature ≤ 200°C<br />
[305B]: Connection, DN15 PN40 Form B1 DIN EN 1092-1<br />
[M]: Range (water 20°C, 1 mPas), 100-1000 LPH<br />
[P]: Magnet bearer, maximum 125 °C PTFE<br />
[L]: Flow direction, Left to right<br />
[0]: Heating/cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water)<br />
[0]: Switches, without<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>All-Metal Variable Area Flowmeter BGF<br />
Brand: Heinrichs (Kobold Group) <br />
Model: BGF-S25-202R-N-P-L-0-0-S-2-0-0-H</strong><br />
[BGF]: Model<br />
[S25]: Model, Stainless Steel, process temperature ≤ 200°C<br />
[202R]: Connection, size, ¾" Class 150 RF ASME B16.5-2003<br />
[N]: Range (water 20°C, 1 mPas), 160-1600 LPH<br />
[P]: Magnet bearer, maximum 125 °C PTFE<br />
[L]: Flow direction, Left to right<br />
[0]: Heating/cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water)<br />
[0]: Switches, without<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

All-Metal Variable Area Flowmeter BGF<br />
Brand: Heinrichs (Kobold Group) <br />
Model: BGF-S25-203R-P-P-L-0-0-S-2-0-0-H<br />
[BGF]: Model<br />
[S25]: Model, Stainless Steel, process temperature ≤ 200°C<br />
[203R]: Connection, size, 1" Class 150 RF ASME B16.5-2003<br />
[P]: Range (water 20°C, 1 mPas), 250-2500 LPH<br />
[P]: Magnet bearer, maximum 125 °C PTFE<br />
[L]: Flow direction, Left to right<br />
[0]: Heating/cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water)<br />
[0]: Switches, without<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

Compact Magnetic Inductive Flow Meter<br />
Model: MIK-5VA-35-A-G34R<br />
Brand: Kobold<br />
[MIK-5VA]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes St. st.<br />
Seal FPM<br />
[35] Measuring range (liquid >30 µS/cm), 2,5...50 L/min, G 1male<br />
[A] Connection set, without<br />
[G34R] Evaluation electronic for MIK,<br />
Dosing electronic, 4-20 mA, 24 VDC, plug connection

<strong>Ball Type Flow Indicator<br />
Brand: Kobold (USA)<br />
Model: DKB-3215</strong><br />
[DKB-3215]:<br />
Flow Range: 0.019...13 GPM<br />
Fittings: 1/2" NPT<br />
Press. Drop at Max. Flow: 15 PSI<br />
Weight: 1.2 lbs

Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold - Alemania<br />
Model: MIK-5NA-35-A-G34R<br />
[MIK-5NA]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS <br />
Electrodes St. st.<br />
Seal NBR<br />
[35] Measuring range (liquid >30 µS/cm), 2,5...50 L/min, G 1male <br />
[A] Connection set, without<br />
[G34R] Evaluation electronic for MIK,<br />
Dosing electronic, 4-20 mA, 24 VDC, plug connection

Variable Area Flowmeter-Plastic<br />
Brand: Kobold (Alemania)<br />
Model: KSM-2010-H-P25-R0<br />
[KSM-2]: Plastic Flowmeter/-switch<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Polysulfone<br />
Accuracy, ±4 % FS<br />
Max. temperature, 100 °C*<br />
*60 °C c/w PVC-connection<br />
Max. pressure, 16 bar<br />
[010]: Measuring range:100...1000 L/h water<br />
[H]: Either scales for liquid media, L/h water<br />
[P25]: Option connection for size 030, PVC G 1 female<br />
[R0] Option contact: w/o contact
