<div>7-03951B<br />
* Model: TLR-4225U<br />
Sample cooler, 1/4" OD 316 SS Tube<br />
• Tube design: 303 bar at 538C<br />
* 304 SS Shell Material<br />
• Shell Design: 31 bar at 343 C<br />
• Area: 2.4 ft2(0.22m2)</div>

TRIPPER POSITION SWITCH<br />
Brand: THERMO FISHER<br />
Model: TPS-2E-3-4-NPT<br />
P/N: 505086<br />
[2E]: Switch version number, 2 SPDT microswitches ROS & SPS<br />
[3]: Hazardous area approvals, cCSAus hazardous area rated for Class II, Div 1 & 2, Groups E,F, and G<br />
[4]: Finish/Nema rating, NEMA-4 Type enclosure, yellow finish, steel external components<br />
[NPT]: Conduit Openings, Standard 3/4-14 NPT threads

Belt Misalignment Switch (Run off Switch)<br />
Brand: THERMO FISHER<br />
Model: ROS-2E-3-4X-NPT<br />
P/N: 140930<br />
[2E]: Switch version number, 2 SPDT microswitches ROS & SPS<br />
[3]: Hazardous area approvals, cCSAus hazardous area rated for Class II,<br />
Div 1 & 2, Groups E,F, and G<br />
[4X]: Finish/Nema rating, NEMA-4X Type enclosure, yellow finish, stainless steel external<br />
components <br />
[NPT]: Conduit opening, Standard 3/4-14 NPT threads

Belt Misalignment Switch (Run off Switch)<br />
Brand: THERMO FISHER<br />
Model: ROS-2E-3-4-NPT<br />
P/N: 140926<br />
[2E]: Switch version number, 2 SPDT microswitches ROS & SPS<br />
[3]: Hazardous area approvals, cCSAus hazardous area rated for Class II, Div 1 & 2, Groups E,F, and G<br />
[4]: Finish/Nema rating, NEMA-4 Type enclosure, yellow finish, steel external components<br />
[NPT]: Conduit opening, Standard 3/4-14 NPT threads

BOTTLE ADAPTER <br />
Marca: SENTRY<br />
1" X 70 MM<br />
MODEL: :8375

<div>SENSOR DE CONDUCTIVIDAD<br />
Marca: HANNA INSTRUMENTS<br />
IP68: hermético al polvo y protegido contra los efectos <br />
de la inmersión continua en agua más allá de 1 m.<br />
Material duradero de cloruro de polivinilo (PVC)<br />
Contiene electrodos de acero inoxidable AISI 316</div>

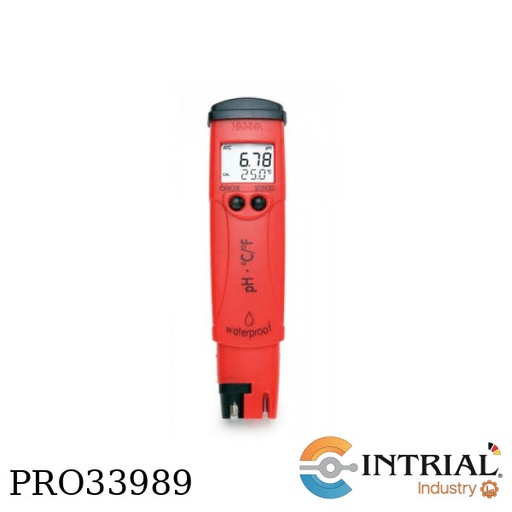

PH METRO  TIPO LAPICERO<br />
Marca: HANNA INSTRUMENTS<br />
Rango pH -2.00 hasta 16.00 pH<br />
Rango Temperatura -5.0°C hasta 60.0° C / 23.0 hasta 140.0° F<br />
Precisión (@20°C) pH ±0.05 pH

ISOLOK Model SAA Automatic Sampler consisting of:<br />
Sampler Configuration:<br />
=====================<br />
• Body Material = 316 Stainless Steel<br />
• Bore Lining = Roller Burnished<br />
• Annulus Size = 8 cc<br />
• Plunger Outer Diameter Seals = Viton (O-Ring)<br />
• Plunger Inner Diameter Seals = None<br />
• Purge Port = 1/8 NPT<br />
• Nose Connection Size and Type = Instrument Hub<br />
• Discharge Port Size and Type = 1/2 in. FNPT<br />
• Discharge Angle and Connection = 0 degrees, Threaded<br />
Container Adapter<br />
================<br />
• 38mm vented bottle adapter<br />
Sample Container<br />
================<br />
• Quantity (1) polypropylene 125cc sample bottle (38mm)<br />
Mounting Kit<br />
============<br />
• Instrument Hub with Viton® o-ring seal, and port closure with socket head cap screws<br />
• 316 stainless steel<br />
• Designed to fit customer's 3" pipe, OD = 3.5 inches (88.9 mm)<br />
Airset<br />
======<br />
• 4-way general purpose 24 VDC solenoid valve.<br />
• Includes filter, pressure regulator, pressure gauge, and speed control muffler.<br />
Provided QA Documentation<br />
=========================<br />
• QAF 1029 Material Test Reports<br />
• QAF 1030 Product Inspection Checklist<br />
 <br />
Quantity (1) Operation Manual in PDF

<strong>ISOLOK Model SAA Automatic Sampler consisting of:</strong><br />
Sampler Configuration:<br />
• Body Material = 316 Stainless Steel<br />
• Bore Lining = Roller Burnished<br />
• Annulus Size = 3 cc<br />
• Plunger Outer Diameter Seals = Viton (O-Ring)<br />
• Plunger Inner Diameter Seals = None<br />
• Purge Port = 1/8 NPT<br />
• Nose Connection Size and Type = Instrument Hub<br />
• Discharge Port Size and Type = 1/2 in. FNPT<br />
• Discharge Angle and Connection = 0 degrees, Threaded<br />
Container Adapter<br />
================<br />
• 38mm vented bottle adapter<br />
Sample Container<br />
================<br />
• Quantity (1) polypropylene 125cc sample bottle (38mm)<br />
Mounting Kit<br />
============<br />
• Instrument Hub with Viton® o-ring seal, and port closure with socket head cap screws<br />
• 316 stainless steel<br />
• Designed to fit customer's 3" pipe, OD = 3.5 inches (88.9 mm)<br />
Airset<br />
======<br />
• 4-way general purpose 24 VDC solenoid valve.<br />
• Includes filter, pressure regulator, pressure gauge, and speed control muffler.<br />
Sentry Model SBC<br />
================<br />
• PLC based automatic control<br />
• Nema 4X dust tight and water tight non-metallic enclosure.<br />
• 110-220 VAC / 60 Hz / 1 PH.<br />
Provided QA Documentation<br />
=========================<br />
• QAF 1029 Material Test Reports<br />
• QAF 1030 Product Inspection Checklist<br />
 <br />
Quantity (1) Operation Manual in PDF

SL200H-SPECIAL<br />
Sample: Boiler Water 120C° at 60 BARG<br />
Conditioning Panel for On-Line Analysis<br />
Consisting of the following components:<br />
* 1/4 in. Sample Inlet Isolation Valve<br />
* 1/4 in. High Pressure (Sample Inlet) Blowdown Valve<br />
* Primary Sample Cooler, Sentry Model TLR4225<br />
* 3-Way Cooling Water Inlet Valve, with drain<br />
* Globe Valve on the Cooling Water Outlet<br />
* Cooling Water Sight Gauge<br />
* Cooling Water Valve Materials are Stainless Steel<br />
* Sentry VREL High Pressure Reducing Valve<br />
* Sentry TSV with a Setpoint of 120°F(49°C)<br />
* Total Flow Indicator, 0-1600 cc/min<br />
* Temperature Gauge, 0-250°F/-20-120°C<br />
* Sentry BPRV with a Setpoint of 20 psig/1.4 barg<br />
* 304 SS Sample Sink<br />
All components are factory mounted on a 12 in. W x 36 in. H, T304SS backplate.<br />
All sample tubing throughout panel is SA249, T316 SS.<br /><br />
QA Documents Provided:<br />
* QAF 1050 Manufacture Certificate for Testing and Material – Single Line<br />
* QAF 1030 Product Inspection Checklist - Includes Hydrotest Results

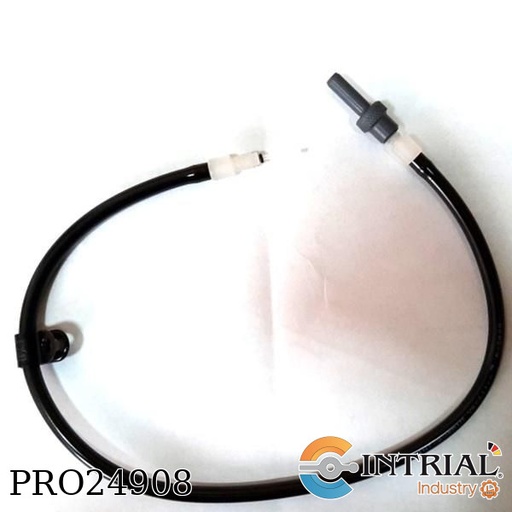

2100RT<br />
Restrictor tube assembly<br />
Chloride Analyzer

Syringe kit with 20 cc syringe for use with dynamic calibrator during three-point calibration on 2117LL

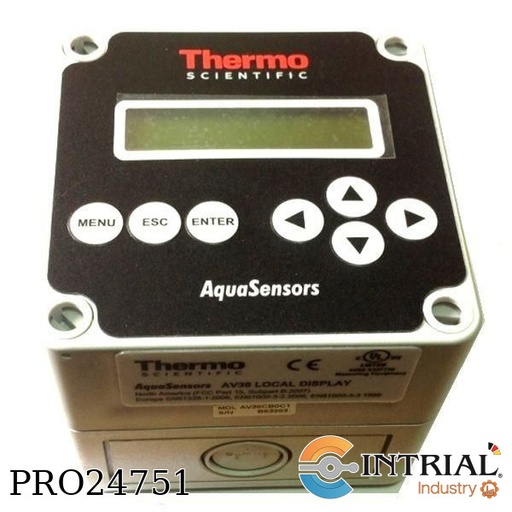

AV38 (Local Monitor Controller)<br />
• 02 Analog Output 4-20mA<br />
• 02 Form “C” Relay (1 amp with NO and NC) for Control, Alarm, Wash<br />
• Mounting: 1/4 DIN NEMA 4X Wall Mount Enclosure<br />
• Power: 24 Vdc<br />
• Approvals: Meet s CE requirements<br />
Please read Datasheet for more information attached to this Quote

MATRAZ<br />
ERLENMEYER GRAD 125ML. ASTM<br />
Presentación x 01 Unidad

2120RBS (2100FABA)<br />
•    Reagent Bottle Adaptor (1)

FLUIDICS PANEL (1816DO Dissolved Oxygen Analyzer)<br />
316 stainless steel fluidics panel for online calibration, includes:<br />
• Inlet valve, magnetite grit bypass, atmospheric pressure relief and grab sample chamber, flow cell outlet and siphon drain system

Diisopropylamine Reagent (DIPA)– for one-year operation.<br />
INCLUDES:<br />
• (6) x 0.8 L bottles DIPA reagent and<br />
• (6) diffusion tubing kits

Calibration Kit–includes:<br />
• Carrying case,<br />
• 0.1 mL pipet<br />
• Pipet tips<br />
• Wash bottle,<br />
• (1) x 2 oz bottle low level standard 1 (19.1 ppm Na+), (1) x 2 oz bottle low level standard 2 (192 ppm Na+),<br />
• (1) x 2 oz bottle high level standard 1 (1910 ppm Na+), (1) x 2 oz bottle high level standard 2 (19200 ppm Na+) and sodium electrode etch solution

Thermo Scientific Orion 2111XP Sodium Analyzer<br />
Sodium Monitor-Expandable Platform, for Pure Water, double known addition calibration technique with off-line calibration.<br />
Reagent: Diisopropylamine (DIPA)<br />
Range: 0.10 ppb to 10 ppm<br />
Resolution: 1,2 o 3 digits<br />
Accuracy (with DKA cal): =/- 5% or 0.1 ppb<br />
Sample conditions: Temp: 5 to 45° C / Inlet Pressure: 8 to 100 psi / Flow rate: 40mL/min<br />
Calibration: DKA calibration<br />
Output: 2 x 4-20 mA (Sodium & temperature)<br />
Relays: 3 Relays (250Vac, 5 A, 30 VDC)<br />
Power: 85-132 or 170-264 Vac<br />
INCLUDE:<br />
•Protective Enclosure package, sodium electrode, Reference electrode, ATC Probe, Sodium Standard solution Kit, application package (DIPA reagent bottle adaptor, diffusion tubing), CD User Guide<br />
More specifications please see Datasheet attached.

182011B<br />
Formic Acid Reagent<br />
60 days Supply<br />
THERMO ORION
