2230PS<br />
Power Supply Assembly<br />
For Orion 2230XP Silica Analyzer.<br />
THERMO SCIENTIFIC<br />


AQT1CO<br />
AQUACLEAR Low Range Turbidity<br />
* Range: 0 to 200 NTU<br />
* Resolution: 0.001 NTU<br />
* Accuracy : +/- 2% of reading<br />
* Flow Rate: Between (250 to 500 mL/min)<br />
* Water Temperature range: -5 to 50 C<br />
* Air Temperature Range: -5 to 60 C<br />
* Power Source: 100-240 VAC<br />
* Output: 1 x 4-20mA<br />
* Display: LCD BackLight<br />
Brand:Thermo Scientific

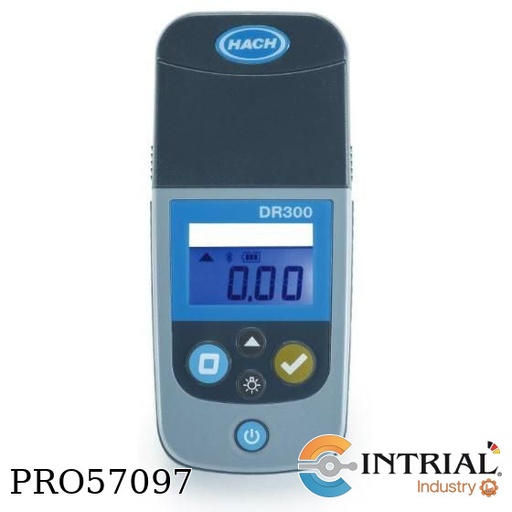

Pocket Colorimeter<br />
Brand: HACH<br />
Model: DR300<br />
Source Lamp Light emitting diode (LED)<br />
Detector Silicon photodiode<br />
Enclosure Rating IP67, waterproof at 1 m for 30 minutes<br />
Spectral Bandwidth 15 nm filter bandwidth<br />
Absorbance 0 - 2.5 Abs<br />
Operating Conditions, 0 - 50 °C (32 - 122 °F)
<div>
<div class="gtx-trans-icon"></div>
</div>

212050XPMM<br />
Kit de mantenimiento de Analizador de calcio 2120XP<br />
Incluye:<br />
• Consumible Kit para 01 año de Operación compuesto por:<br />
--- (6) 2ft length diffusion tubing with O-rings<br />
--- (1) each calcium standard solution kit<br />
--- (1) each calcium sensing electrode<br />
--- (1) each reference electrode<br />
--- (5) 2oz bottles reference electrode filling solution<br />
--- (1) O-ring kit<br />
--- Check valve<br />
--- Restriction tube assembly<br />
--- Inlet filter with Gaskets<br />
• Kit de Bomba de Aire<br />
• Cable para Electrodos (02)<br />
• Kit Filtro de Aire

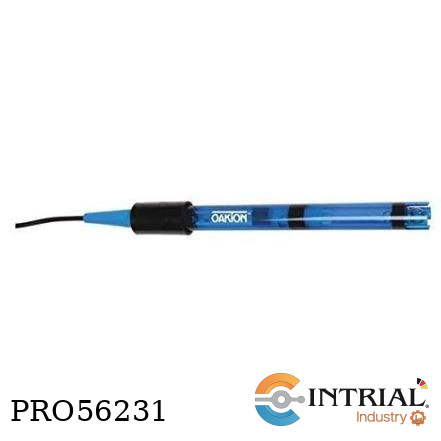

PH ELECTRODE<br />
Brand: OAKTON<br />
Model: WD-35805-05<br />
0 to 14 pH<br />
Type, standard<br />
Cable length, 3 ft. (1 m)<br />
Max temperature, 80 °C<br />
Diameter, 12 mm<br />
<br />


TAPON MACHO<br />
Marca: DK LOK<br />
Modelo: GP-8N-S<br />
1/2 NPT SS316

CONECTOR UNION<br />
Marca: DK LOK<br />
Modelo: DL-8-S<br />
CODO 90º 1/2 TUBE O.D. SS316

CONECTOR CODO<br />
Marca: DK LOK<br />
Modelo: DLM-8-8N-S<br />
90º MACHO 1/2" O.D X 1/2" NPT-M. SS316

CONECTOR UNION TEE<br />
Marca: DK LOK<br />
Modelo: DT-8-S<br />
1/2 TUBE O.D. SS316<br />
<br />


CONECTOR UNION RECTA DOBLE FERRUL<br />
Marca: DK LOK<br />
Modelo: DU-8-S<br />
1/2 TUBE O.D, SS316

(10) Line Sample Panel(s) with Analysis Provisions Consisting of the following components:<br />
• (5) Sentry Model SL200L Conditioning Panel(s) for On-Line Analysis Consisting of the following components:<br />
--- 3/8 in. Sample Inlet Isolation Valve<br />
--- Primary Sample Cooler, Sentry Model FLR6225<br />
--- 3-Way Cooling Water Inlet Valve, with drain<br />
--- Globe Valve on the Cooling Water Outlet<br />
--- Cooling Water Valve Materials are Stainless Steel<br />
--- PCV Low Pressure Reducing Valve<br />
--- Sentry TSV with a Setpoint of 120°F(49°C)<br />
--- Total Flow Indicator, 0-1600 cc/min<br />
--- Temperature Gauge, 0-250°F/-20-120°C<br />
--- Sentry BPRV with a Setpoint of 20 psig/1.4 barg<br />
--- 304 SS Sample Sink<br />
--- All components are factory mounted on a 12 in. W x 36 in. H, T304SS backplate.<br />
--- All sample tubing throughout panel is SA249, T316 SS.<br />
• (5) Sentry Model SL200L Conditioning Panel(s) for On-Line Analysis Consisting of the following components:<br />
--- 1/4 in. Sample Inlet Isolation Valve<br />
--- Primary Sample Cooler, Sentry Model TLR4225<br />
--- 3-Way Cooling Water Inlet Valve, with drain<br />
--- Globe Valve on the Cooling Water Outlet<br />
--- Cooling Water Valve Materials are Stainless Steel<br />
--- PCV Low Pressure Reducing Valve<br />
--- Sentry TSV with a Setpoint of 120°F(49°C)<br />
--- Total Flow Indicator, 0-1600 cc/min<br />
--- Temperature Gauge, 0-250°F/-20-120°C<br />
--- Sentry BPRV with a Setpoint of 20 psig/1.4 barg<br />
--- 304 SS Sample Sink<br />
--- All components are factory mounted on a 12 in. W x 36 in. H, T304SS backplate.<br />
--- All sample tubing throughout panel is SA249, T316 SS.<br />
<br />
(10) Analysis Side Panel(s) Consisting of the following components:<br />
• (1) FICV 0-580 cc/min<br />
• (1) Sentry Cell Holder, 3/4" NPT SS<br />
-- Panel prepped for mounting Hach SC4500 Analyzer, 8362 pH probe, & 8310 Conductivity probe<br />
-- FICV and Cell Holder are factory mounted on a 36 in. H x 8 in. W, T304SS backplate.<br />
 <br />
(1) Analysis Side Panel(s) Consisting of the following components:<br />
• (1) FICV 0-580 cc/min<br />
-- Panel prepped for mounting Hach K1100 Lumunescent DO Analyzer<br />
-- FICV is factory mounted on a 36 in. H x 12 in. W, T304SS backplate.<br />
<br />
(1) Analysis Side Panel(s) Consisting of the following components:<br />
• (2) FICV 0-580 cc/min<br />
-- Panel prepped for mounting Hach B3500c TOC Dual Channel Analyzer<br />
-- FICVs are factory mounted on a 36 in. H x 24 in. W, T304SS backplate.<br />
<br />
All panels are mounted to 304SS Unistrut<br />
.

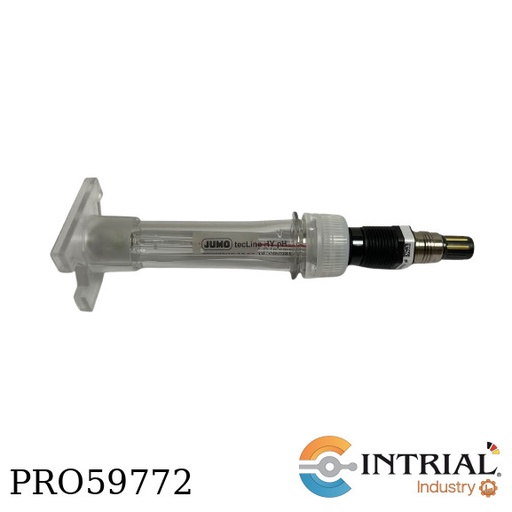

TECLINES HY PH COMBINATION ELECTRODES <br />
Brand: JUMO<br />
Model: 201022/10-12-07-18-120/841

OEM HIGH RANGE PRESSURE SWITCHES<br />
Brand: ORION<br />
Model: MZ-15<br />
Range, 1.0-15.0 bar / 14.50-217.71 PSI<br />
Approx. max. differential, 1.5 bar / 21.76 PSI<br />
Maximum working pressure, 25 bar / 362.6 PSI<br />
Electrical rating, 15 Amp, 250 VAC, SPDT snapaction microswitch<br />
Wetted parts, SS 316 & Teflon<br />
Pressure port, 1/4" BSPF standard<br />
Cable gland, M20 x 1.5 standard (polyamide)

Manifold Sampling Valve<br />
* 1/4" Conections<br />
* 04 Valves With 12Vdc Coils

<div>SAMPLE SEQUENCER EXPANDER<br />
* 01 I/O Board / 01 Power Board<br />
* 04 Point samples Expander<br />
* 01 analyzer<br />
* Surface Mount Only<br />
* 120VAC input, 12VDC valve outputs</div>

<div>SAMPLE SEQUENCER 6<br />
* Can handle up to 8 sample points between two analyzers<br />
* 100-240 VAC, 50/60 Hz input<br />
* 8 point track & hold, 12 VDC valve outputs</div>

Bottle, 70mm x 1000cc<br />
Polypropylene<br />
SENTRY  P/N 3194

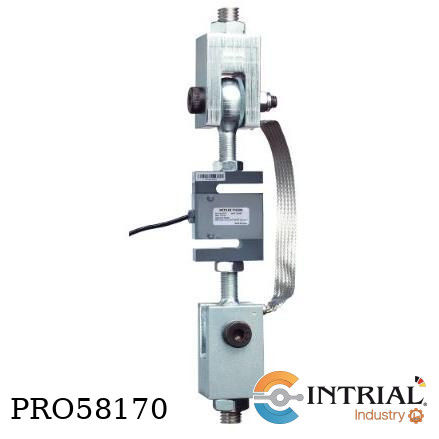

WEIGHT MODULE<br />
Brand: METTLER TOLEDO<br />
Model: SWS310/SLS510(61042162)<br />
Maximun capacity, 3000 lb<br />
Material, Zinc-plated steel<br />
Metrology, NTEP ||| 5M.|||L 10M<br />
<br />
Include<br />
LOAD CELL<br />
Brand: METTLER TOLEDO<br />
Model: SLS510-C3<br />
Cable, 6 m (19.7 ft)<br />
<br />
Without accesories

Sodium Sensing Electrode (210045)<br />
For use with:<br />
• 2111XP Analyzers<br />
Thermo Scientific

<div>7-04067M<br />
* Model: TLR-4525U(S)<br />
Sample cooler, 1/4" OD 316 SS Tube<br />
• Tube design: 303 bar at 538C<br />
* 316 SS Shell Material<br />
• Shell Design: 30 bar at 343 C<br />
• Area: 2.4 ft2(0.22m2)</div>
