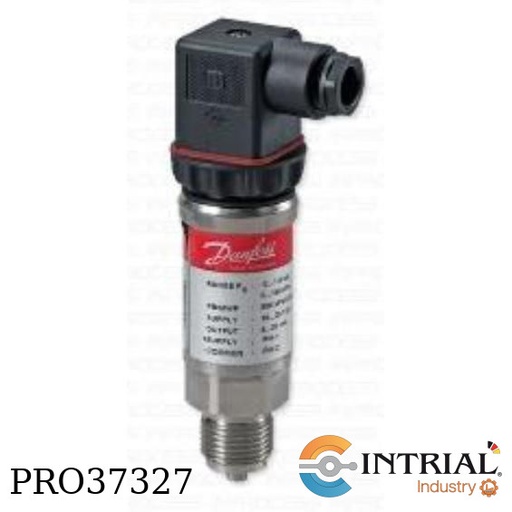

MBS4701, 0-25Bar, G1/2", 4-20mA, ATEX<br />
Transmisor de Presión<br />
Marca: Danfoss<br />
Modelo: MBS 4701<br />
Conexión: G1/2”<br />
Precisión: +/- 0.3% F.S<br />
Alimentación: 10 a 30Vdc.<br />
Entradas: 0-25 Bar<br />
Salidas: Corriente (4…20mA)<br />
Temperatura de compensación: 0 a 80ºC<br />
Material: Acero Inoxidable AISI 316<br />
Tipo de sensor: Piezo resistivo<br />
Grado de protección: IP65

MBS4701, 0-10Bar, G1/2",4-20mA, ATEX<br />
Transmisor de Presión<br />
Marca: Danfoss<br />
Modelo: MBS 4701<br />
Conexión: G1/2”<br />
Precisión: +/- 0.3% F.S<br />
Alimentación: 10 a 30Vdc.<br />
Entradas: 0-10 Bar<br />
Salidas: Corriente (4…20mA)<br />
Temperatura de compensación: 0 a 80ºC<br />
Material: Acero Inoxidable AISI 316<br />
Tipo de sensor: Piezo resistivo<br />
Grado de protección: IP65

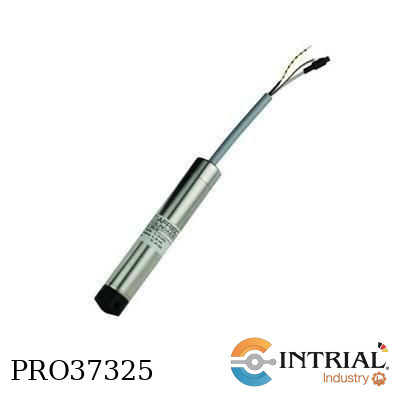

TRANSMISOR DE PRESION HYDROFOX<br />
Marca: AFRISO (Alemania)<br />
Piezas húmedas: Acero Inoxidable /FKM 316 L<br />
Alimentación: DC 8-32 V<br />
Salida: 4-20 mA<br />
Sistema: 2-hilos<br />
Conexión eléctrica: 15 m cable PUR<br />
Rangos de medición: 0 a 600 mBar

TRANSMISOR DE PRESION HYDROFOX<br />
Marca: AFRISO (Alemania)<br />
Piezas húmedas: Acero Inoxidable /FKM 316 L<br />
Alimentación: DC 8-32 V<br />
Salida: 4-20 mA<br />
Sistema: 2-hilos<br />
Conexión eléctrica: 105 m cable PUR<br />
Rangos de medición: 0 a 10 Bar

TRANSMISOR DE PRESION HYDROFOX<br />
Marca: AFRISO (Alemania)<br />
Piezas húmedas: Acero Inoxidable /FKM 316 L<br />
Alimentación: DC 8-32 V<br />
Salida: 4-20 mA<br />
Sistema: 2-hilos<br />
Conexión eléctrica: 220 m cable PUR<br />
Rangos de medición: 0 a 10 Bar

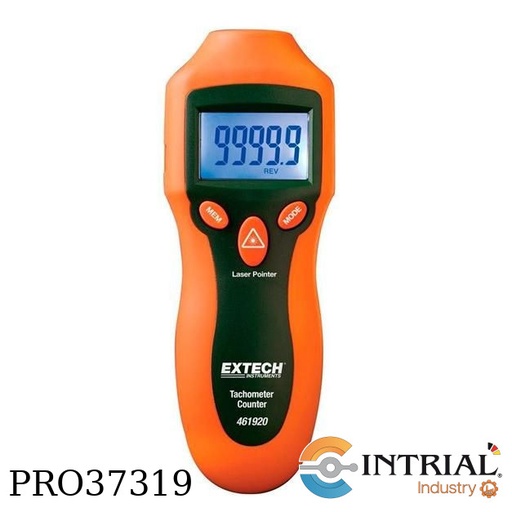

FOTO TACÓMETRO LÁSER Y EL CONTADOR<br />
Marca: EXTECH INSTRUMENTS<br />
Base de tiempo Cristal de cuarzo<br />
Pantalla Pantalla LCD de 5 dígitos<br />
Fuente de luz láser Láser clase 2 potencia < 1 mW; Longitud de onda de 630 a 670 nm<br />
Distancia de detección 50 a 500 mm (2 a 20")<br />
Tiempo de muestreo 0.5 seg. (sobre 120 RPM)<br />
Memoria Última lectura y MIN/MAX<br />
Condiciones de operación 0 °C a 50 °C (32 °F a 122 °F); HR 80% Máx.<br />
Fuente de tensión Batería interna de 9V o adaptador externo de CA (6 a 9VDC). (Parte # UA100-240)<br />
Consumo de energía 45 mA CD aprox.<br />
Peso 151 g (5.3 oz.)<br />
Tamaño 160 x 58 x 39 mm (6.3 x 2.3 x 1.6")<br />
Foto tacómetro 2 a 99,999 RPM<br />
Contador: 1 a 99,999 REV<br />

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-30H-N8-1-E3-N-N<br />
[DON-2]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C<br />
max. pressure  16…100 bar <br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. stee<br />
[30H]: Measuring range, 15-250 L/min<br />
[N8]: Mech. Connection, for meas.<br />
range 30H, G 1 1/2<br />
[1]: Seal, FKM up to DON-x25 <br />
[E3]: Electronic, Z3 electronic with ATEX <br />
approval (Exi), incl. battery <br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-25H-N6-1-E3-N-N</strong><br />
[DON-2]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C<br />
max. pressure  16…100 bar <br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. stee<br />
[25H]: Measuring range, 10-150 L/min<br />
[N6]: Mech. Connection, for meas.<br />
range 25H, 1” NPT<br />
[1]: Seal, FKM up to DON-x25 <br />
[E3]: Electronic, Z3 electronic with ATEX <br />
approval (Exi), incl. battery <br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery

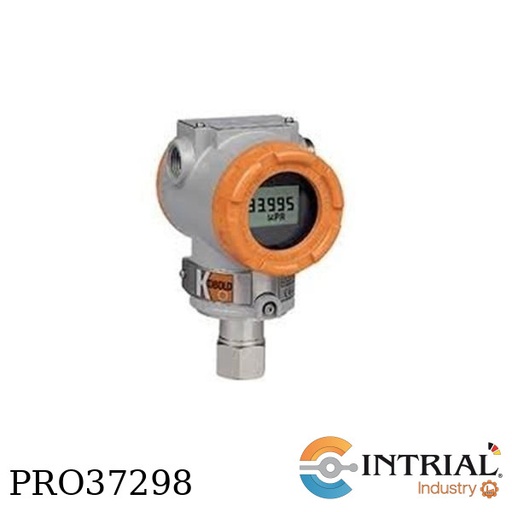

Pressure Transmitter PAS<br />
Brand: Kobold (Alemania)<br />
Model: PAS-G-EE-3-S-4-N-S-0-0<br /><br />
[PAS-G] :<br />
Pressure type: gauge pressure<br />
Accuracy: ± 0,075% of calibrated span<br />
Measuring principle: piezoresistive<br />
Medium temperature: -30..+120 °C<br />
Power supply: 12-45 VDC (17,5-45 VDC with HART)<br />
[EE] Material (Diaphrgm/other): st.steel 1.4404/1.4401<br />
[3] Measuring range: -1...1,5 bar<br />
[S] Filling liquid: Silicone<br />
[4] Process connection: 1/2-14 NPT IG (standard)<br />
[N] Electr. Connection: 1/2-14 NPT Epoxy-polyester painted Aluminium<br />
[S] Approvals: Standard (IP 67)<br />
[0] Manifold Valve: w/o<br />
[0] Options: w/o<br />

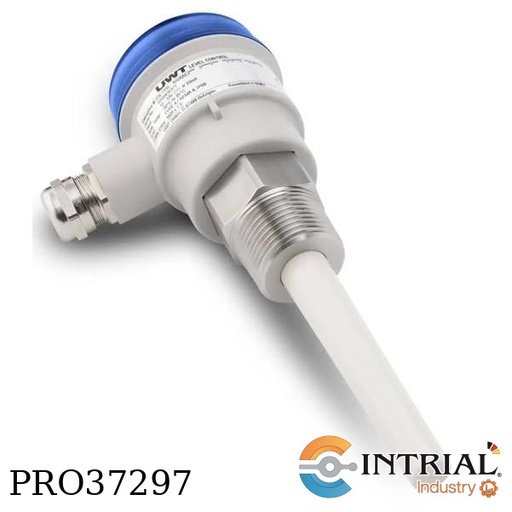

INTERRUPTOR DE NIVEL<br />
Marca: UWT<br />
Carcasa: IP68<br />
Temperatura de trabajo: -30°C hasta +100°C<br />
Presión -1 hasta +10 bar<br />
Tensión de alimentación 12..33V DC<br />
Conexión NPT ¾"<br />
Señal de salida 2-hilos 4/20mA<br />

•    Analizador de Puereza de Oxigeno Hazardous Area<br />
•    Marca  SERVOMEX(Inglaterra)<br />
•    Rango 0 a 100%<br />
•    Tecnología: paramagnética<br />
•    Precisión:  0.1% O2<br />
•    Tiempo de respuesta T90= 7.5 segundos<br />
•    Salida: 0-1 volt for 0-100% O2, impedance: 1kohm<br />
•    Batería:   Si Incluye<br />
•    Estado.  Equipos de segundo uso: 100% Operativo<br /><br />

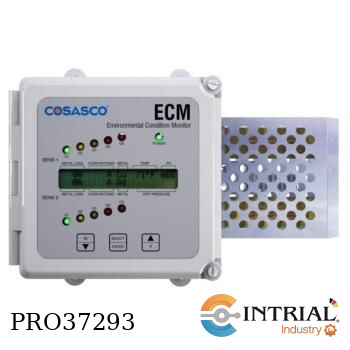

ECM Enviromental Condition Monitor<br />
• Include one Copper and one Silver sensor<br />
• Without differential pressure transmitter<br />
• Include data logger software<br />
• With 230-volt wall transformer

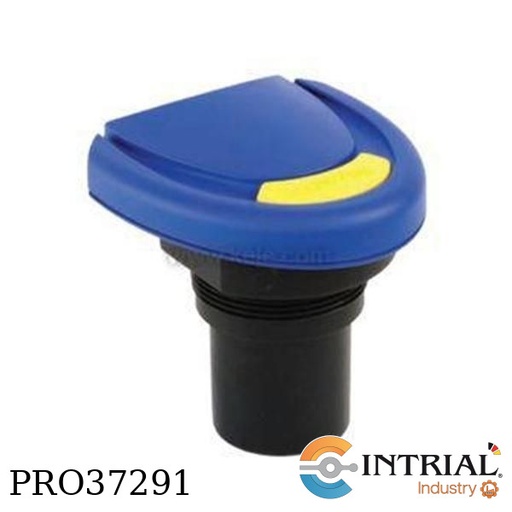

ULTRASONIC LEVEL TRANSMITTER<br />
Brand: FLOWLINE<br />
Supply Voltage 24 VDC @ 20.8 mA<br />
Accuracy ±0.2% of span in air<br />
Signal Output 4-20 mA @ 500Ω two-wire<br />
Measurement Range: 4" to 9.8' (10 cm to 3.0 m)<br />
Beam Width: 2" (5.1 cm)<br />
Process Connection: 1″ NPT

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire,<br />
protective tube ø 6 mm<br />
built-in length 150 mm<br />
compression fitting thread 3/4"NPT<br />
material 1.4571<br />
with connection head form B<br />
electrical connection 1/2"NPT<br />
 temperatura range: 0 to +250°C

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire<br />
protective tube ø 6 mm<br />
built-in length 195 mm<br />
compression fitting thread 3/4"NPT<br />
material 1.4571<br />
with connection head form B<br />
electrical connection 1/2"NPT<br />
temperatura range: 0 to +250°C

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire<br />
protective tube ø 6 mm<br />
built-in length 120 mm<br />
compression fitting thread 3/4"NPT<br />
material 1.4571<br />
with connection head form B<br />
electrical connection 1/2"NPT<br />
temperatura range: 0 to +250°C

FLOTECT MINI-SIZE FLOW SWITCHES<br />
Brand: DWYER<br />
Construction: Explosion proof<br />
Body: SS<br />
Circuit (Switch): SPDT<br />
Tee Connection Size+: 1-1/2˝ (38.10 mm)<br />
Process Connection : NPT<br />
Tee Material+: SS

ENCODER<br />
BRAND: OMRON<br />
ROTARY<br />
ABSOLUTE<br />
12-24VDC<br />
256PPR<br />
OPEN OUT<br />

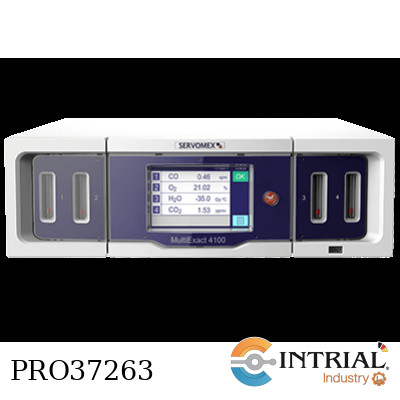

MultiExact 4100(08100A1-SP6050US- MultiExact 4100)<br />
With the following configuration:<br />
Series Code MultiExact 4100<br />
Type Standard N2 Background and TCD<br />
Sample System Flow Driven<br />
MODULE 1 .<br />
Paramagnetic O2 Purity (0 -100%, Control ±0.1%)<br />
Flowmeter : Not required<br />
Module 1 Filter    Filter Required•    Configurable Alarms Two Alarms<br />
Isolated Analogue Output Isolated 4-20mA<br />
0-10 VDC Output Not Required<br />
Digital Input Not Required<br />
Isolated Analogue Input Not Required<br />
MODULE 2 .<br />
Measurment  (0 a 210,000 ppm O2)( accuracy ±0.1ppm)<br />
Flowmeter : Not required<br />
Module 2 . Measurment None<br />
MODULE 3 .Measurment None<br />
MODULE 4 .Measurment None<br />
AQUAXACT .<br />
AquaXact Required<br />
Gas Moisture<br />
Measurment Range Universal<br />
Transducer Type Al2O3 - Moisture<br />
Options Sample Blk, NPT 1/4" Swagelok<br />
Transducr Cables 5 Meter Cable Digital<br />
Adapter 3/4" AquaXact Required<br />
1688 Transducer Tip (Extra) Not Required<br /><br />
GENERAL CONFIGURATION.Power Cord Europe<br />
Flow Alarm Not Required, Serial Communications Not Required, Modbus TCP/IP Not Required<br />
Mounting Rack Mount w/ears, Autocal Not Required, Relay Contacts 4 Relay Contacts<br />
Operator Manual English, Extended Chassis Not Required

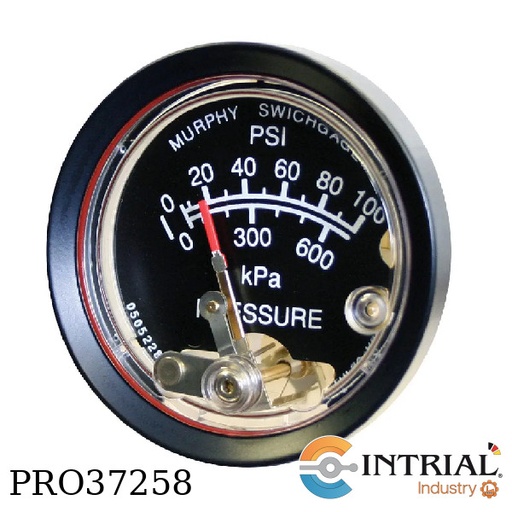

PRESSURE SWICHGAGE<br />
Brand: MURPHY<br />
Case: Polycarbonate/glass-filled, corrosion-resistant; steel mounting clamp included<br />
Bezel: Polished stainless steel, standard; others are available.<br />
Pointer: Tempered nickel silver; Red tip<br />
Lens: Polycarbonate, high-impact<br />
Oil: Silicone Oil<br />
Temperature Range:<br />
Ambient: -40° to 150°F (-40° to 66°C)<br />
Process: -40° to 250°F (-40° to 121°C)<br />
Process Connection: 1/8-27 NPTM brass<br />
Range: 0 - 100  PSI
